Colfax DX820 Desktop




High-Performance Desktop

  • 9th/8th Gen Intel® Core™ Processor
  • 4x DIMMs Supporting DDR4 Memory
  • Up to 2x HDDs, 2x SSDs and 1x M.2 SSD

Features

  • Asus PRIME Z390-A Board
  • 9th/8th Gen Intel® Core™ Processor
  • Intel® Z390 Chipset
  • 4x DIMMs Supporting Non-ECC, Unbuffered DDR4 Memory
  • Expansion Options
    - 2x PCIe 3.0 x16 (x16, x8/x8)
    - 1x PCIe 3.0 x16 (max x4)
    - 3x PCIe 3.0 x1
  • Up to 2 Fixed 3.5" SATA HDDs, 2 SSDs and 1 M.2 SSD
  • Integrated Intel® HD Graphics Support:
    - Multi-VGA output support: HDMI/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @30Hz
    - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @60Hz
  • Realtek® ALC S1220A 8-Channel High Definition Audio
  • Integrated Intel® I219V Gigabit LAN
  • Antec P101 Silent Chassis


1 PCIEX4_1 max. at x1 mode, PCIEX4_2 max. at x4 mode
2 SATA6G_4/5/6/7 share bandwidth with PCIEX4_2


Technical Specifications

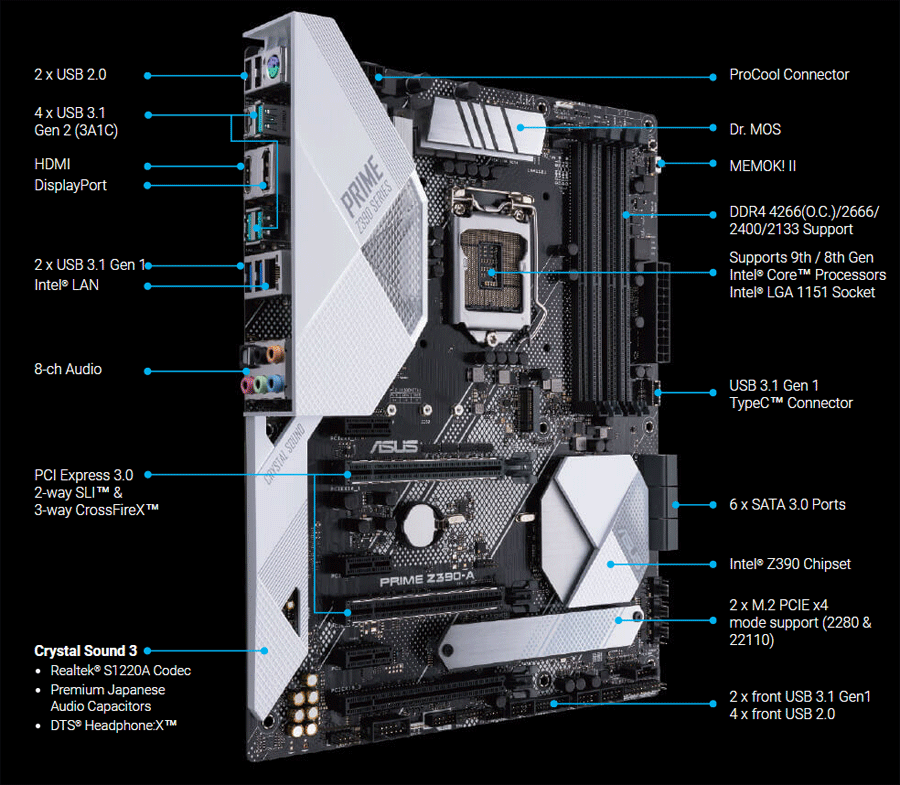

Motherboard • Asus PRIME Z390-A
CPU • Intel® Socket 1151 for 9th / 8th Generation Intel® Core™ Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology
Chipset Intel® Z390
Memory • 4x DDR4 DIMM sockets (Max. 64GB)
• 4266 (O.C.*) / 4133 (O.C.*) / 4000 (O.C.*) / 3866 (O.C.*) / 3733 (O.C.*) / 3600 (O.C.*) / 3466 (O.C.*) / 3400 (O.C.*) / 3333 (O.C.*) / 3300 (O.C.*) / 3200 (O.C.*) / 3000 (O.C.*) / 2800 (O.C.*) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

* WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce system stability and useful life of the system, memory and processor; (ii) cause the processor and other system components to fail; (iii) cause reductions in system performance; (iv) cause additional heat or other damage; and (v) affect system data integrity. Colfax has not tested, and does not warranty, the operation of the memory beyond its specifications. Colfax assumes no responsibility that the memory, including if used with altered clock frequencies and/or voltages, will be fit for any particular purpose.

Expansion Slots • 2 x PCIe 3.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) 1
• 1 x PCIe 3.0 x16 (max at x4 mode) 4
• 3 x PCIe 3.0 x1

* For 2 SSDs on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings
** For 3 SSDs on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings
Graphics • Integrated Intel® HD Graphics Support:
- Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @30Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @60Hz
• Maximum shared memory of 1024 MB (for iGPU exclusively)
• Supports Intel® InTru™ 3D, Intel® Quick Sync Video, Intel® Clear Video HD Technology
Integrated LAN • Intel® i219V Gigabit Ethernet Controller
Storage Intel® Z390 chipset:
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)5
• 6 x SATA 6Gb/s port(s)
• Supports Raid 0, 1, 5, 10
• Intel® Optane™ Memory Ready
Audio • Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
USB Ports Intel® Z390 chipset:
• 4 x USB 3.1 Gen 2 port(s)
• 5 x USB 3.1 Gen 1 port(s) (3 at mid-board)
• 6 x USB 2.0 port(s) (4 at mid-board)
Back I/O Ports • 1 x LAN (RJ45) port
• 3 x USB 3.1 Gen 2 Type-A (Teal Blue)
• 1 x USB 3.1 Gen 2 Type-C
• 2 x USB 3.1 Gen 1 Type-A (Blue)
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
Internal I/O Ports • 2 x Aura RGB Strip Headers
• 1 x USB 3.1 Gen 1 front panel TypeC™ connector
• 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x W_PUMP+ connector
• 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x MemOK! II switch(es)
• 1 x CPU OV
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x Node Connector(s)
• 1 x EXT_Fan header
• 1 x Thermal sensor connector
• 1 x M.2 Fan Header

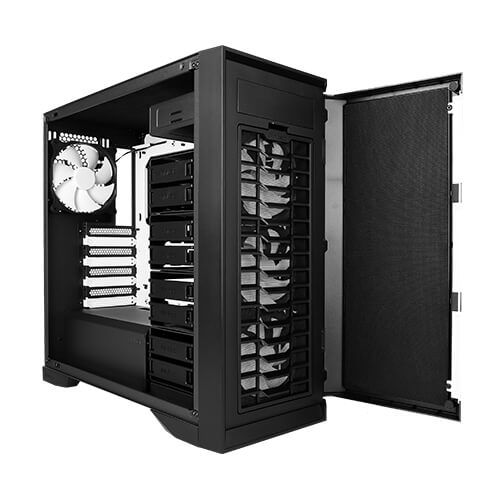

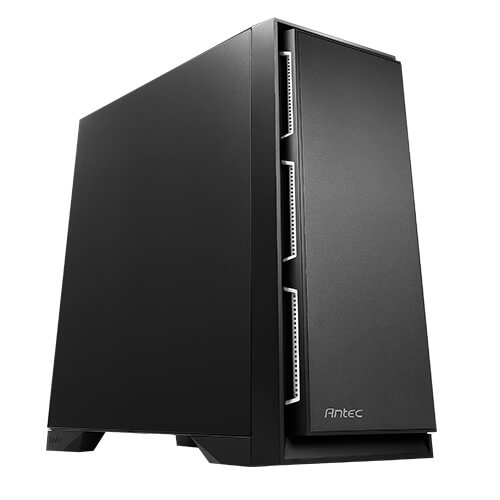

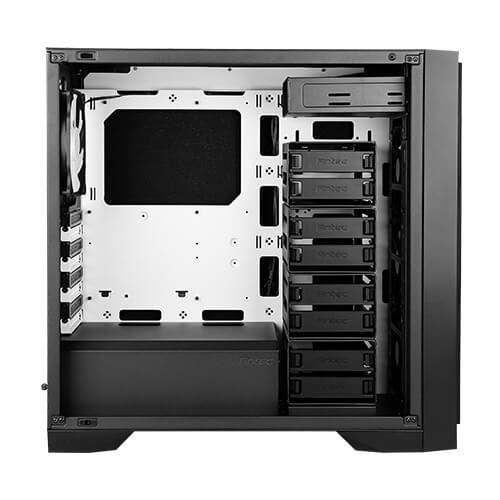

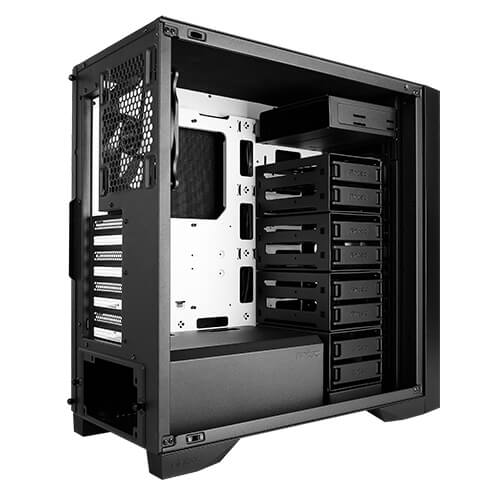

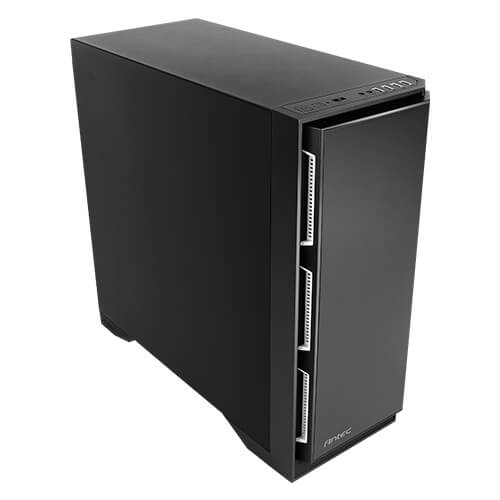

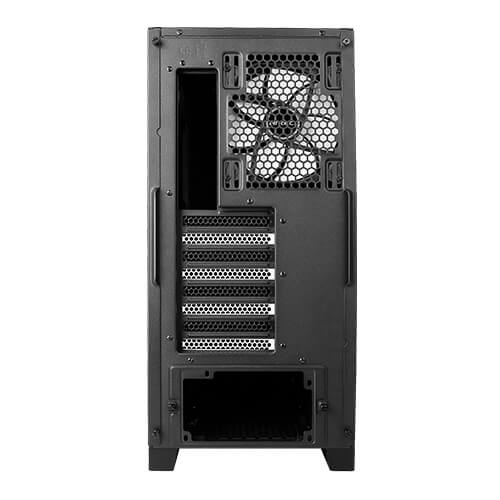

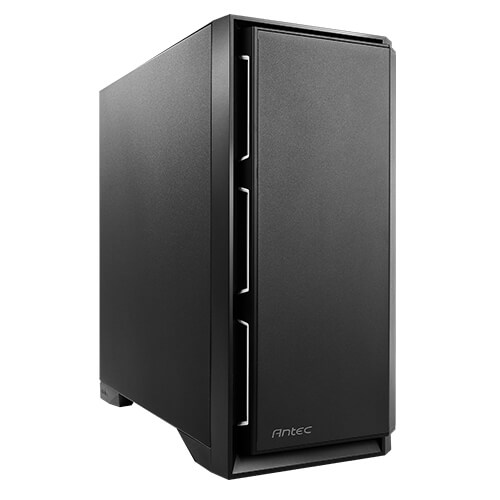

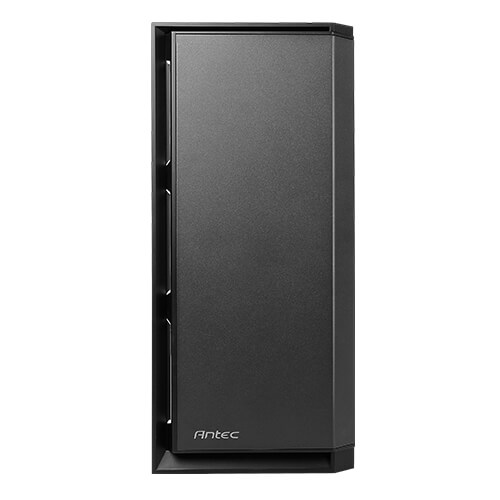

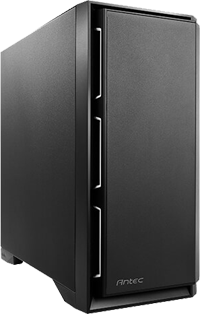

Chassis Antec P101 Silent
• Form Factor
- Mid Tower
• Mainboard Support
- E-ATX, ATX, Micro-ATX, ITX
• Drive Bays
- 1 x 5.25"
- 8 x 3.5"/2.5"
- 2 x 2.5"
• 8 expansion slots

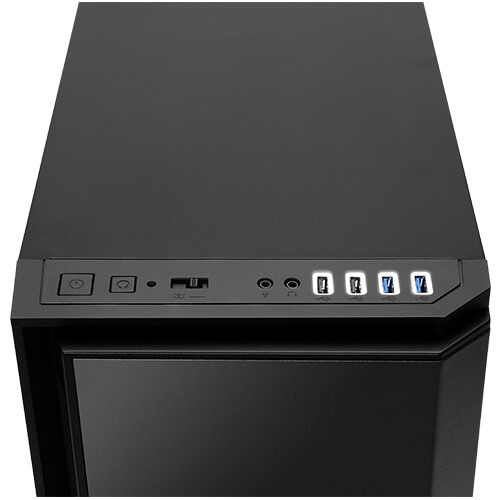

• Front Access & Controls
- USB 3.0 x 2, USB 2.0 x 2, MIC/AUDIO (HD), Power, Reset, Fan Speed Controller (High/Stop/Low)
• Side Panel
- Sound dampening panels
• Cooling System:
- 3 x 120 mm (default) or 2 x 140 mm front fans
- 1 x 120 mm or 1 x 140 mm (default) rear fan
• Radiator Support:
- ≤ 360mm front
- ≤ 140mm rear
• Dimensions:
- 19.92" (H) x 9.13" (W) x 20.75" (D)
- 506 mm (H) x 232 mm (W) x 527 mm (D)

1 PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card. 3
2 PCIEX16_2 slot supports up to 2 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card. 3
3 Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
4 The PCIe x16_3 slot shares bandwidth with SATA_5 and SATA_6. The PCIe x16_3 is default set at x2 mode.
5 The M.2_1 socket shares bandwidth with SATA_2 port when using M.2 SATA devices. Adjust BIOS settings to use a SATA device.
