Colfax DX830 Desktop




High-Performance Desktop

  • Intel® Core™ X-Series Processor
  • 8x DIMMs Supporting DDR4 Memory
  • Up to 2x HDDs, 2x SSDs and 1x M.2 SSD

Features

  • Asus PRIME X299-A Board
  • Intel® Core™ X-Series Processor
  • Intel® X299 Chipset
  • 8x DIMMs Supporting DDR4 Memory
  • Expansion Options
    - 44-Lane CPU:
    3x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8)
    2x PCIe 3.0 x4 (max at x4 mode)1
    - 28-Lane CPU:
    3x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)
    2x PCIe 3.0 x4 (max at x4 mode)1
    - 16-Lane CPU:
    3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
    2x PCIe 3.0 x4 (max at x4 mode)1
  • Up to 2 Fixed 3.5" SATA HDDs, 2 SSDs and 1 M.2 SSD
  • Realtek® ALC S1220A 8-Channel High Definition Audio
  • Integrated Intel® I219V Gigabit LAN
  • Antec P101 Silent Chassis


1 PCIEX4_1 max. at x1 mode, PCIEX4_2 max. at x4 mode
2 SATA6G_4/5/6/7 share bandwidth with PCIEX4_2


Technical Specifications

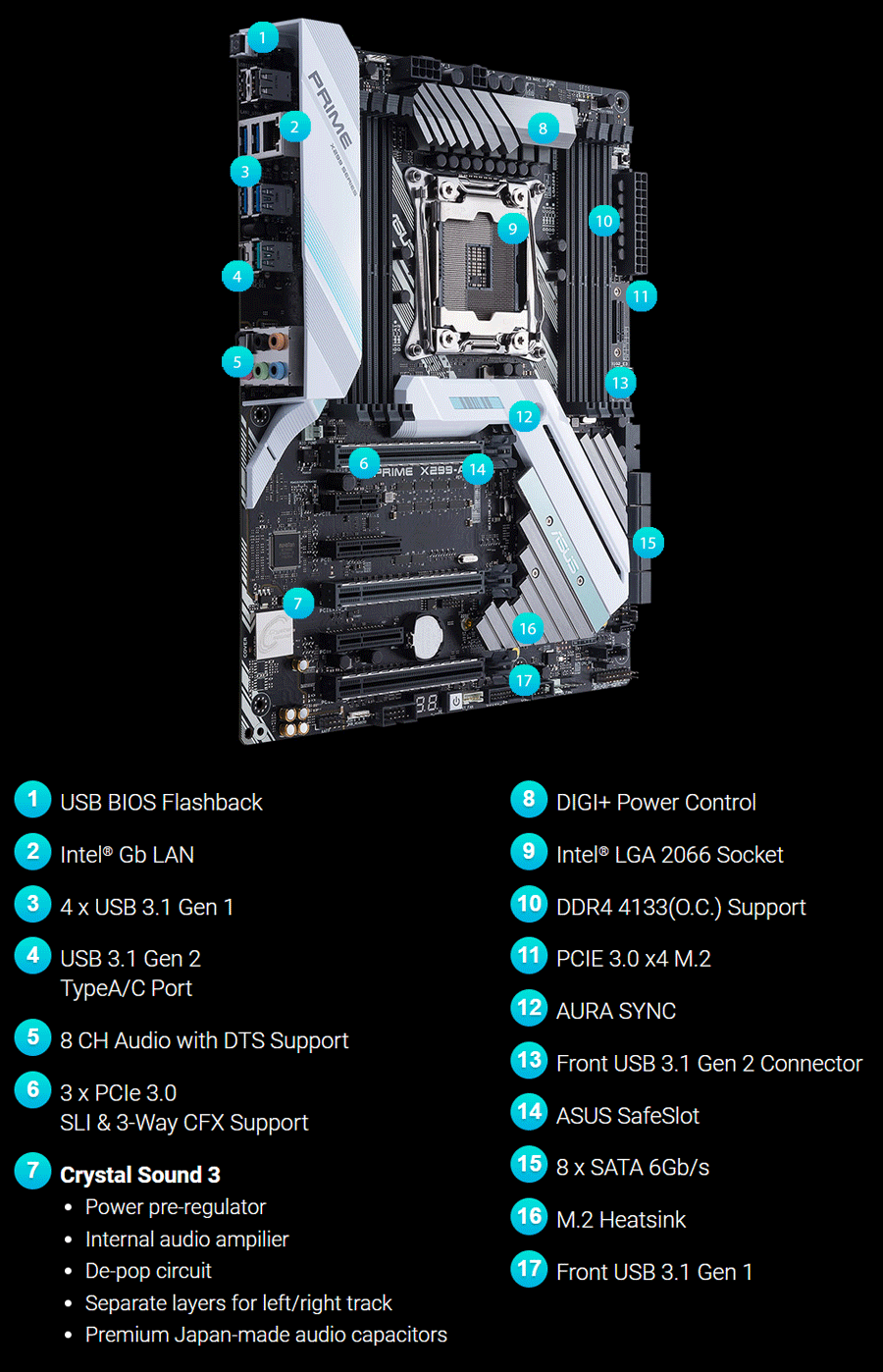

Motherboard • Asus PRIME X299-A
CPU • Intel® Core™ X-Series Processors on LGA 2066 Socket
• Supports Intel® Turbo Boost Technology
Chipset Intel® X299
Memory Intel® Core™ X-series Processors (6-core above)
• 8x DDR4 DIMM sockets (Max. 128GB)
• 4000 (O.C.*) / 3600 (O.C.*) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
• 4x DDR4 DIMM sockets (Max. 64GB)
• 4000 (O.C.*) / 3600 (O.C.*) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory

* WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce system stability and useful life of the system, memory and processor; (ii) cause the processor and other system components to fail; (iii) cause reductions in system performance; (iv) cause additional heat or other damage; and (v) affect system data integrity. Colfax has not tested, and does not warranty, the operation of the memory beyond its specifications. Colfax assumes no responsibility that the memory, including if used with altered clock frequencies and/or voltages, will be fit for any particular purpose.

Expansion Slots 44-Lane CPU:
- 3x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8)
- 2x PCIe 3.0 x4 (max at x4 mode)1
28-Lane CPU:
- 3x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)
- 2x PCIe 3.0 x4 (max at x4 mode)1
16-Lane CPU:
- 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
- 2x PCIe 3.0 x4 (max at x4 mode)1

1 PCIEX4_1 max. at x1 mode, PCIEX4_2 max. at x4 mode

Integrated LAN • Intel® i219V Gigabit Ethernet Controller
Storage Intel® X299 chipset:
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s port(s)
• Supports Raid 0, 1, 5, 10
• Supports Intel® Smart Response Technology, Intel Rapid Start Technology
• Intel® Optane™ Memory Ready
Audio • Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
USB Ports Intel® X299 chipset:
• 8 x USB 3.1 Gen 1 port(s) (4 at back panel, 4 at mid-board)
• 4 x USB 2.0 port(s) (4 at back panel, 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller:
• 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
ASMedia® USB 3.1 Gen 2 controller:
• 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-C)
Back I/O Ports • 1 x LAN (RJ45) port
• 2 x USB 3.1 Gen 2 (Type-A + Type-C)
• 4 x USB 3.1 Gen 1
• 2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x USB BIOS Flashback Button
Internal I/O Ports • 1 x AAFP connector
• 2 x Aura RGB Strip Header
• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB 3.1 Gen 2 front panel connector
• 1 x CPU_OV jumper
Chassis Antec P101 Silent
• Form Factor
- Mid Tower
• Mainboard Support
- E-ATX, ATX, Micro-ATX, ITX
• Drive Bays
- 1 x 5.25"
- 8 x 3.5"/2.5"
- 2 x 2.5"
• 8 expansion slots
• Front Access & Controls
- USB 3.0 x 2, USB 2.0 x 2, MIC/AUDIO (HD), Power, Reset, Fan Speed Controller (High/Stop/Low)
• Side Panel
- Sound dampening panels
• Cooling System:
- 3 x 120 mm (default) or 2 x 140 mm front fans
- 1 x 120 mm or 1 x 140 mm (default) rear fan
• Radiator Support:
- ≤ 360mm front
- ≤ 140mm rear
• Dimensions:
- 19.92" (H) x 9.13" (W) x 20.75" (D)
- 506 mm (H) x 232 mm (W) x 527 mm (D)
