Intel® NUC Kit NUC7i5BNH


Go Small. Get Big.

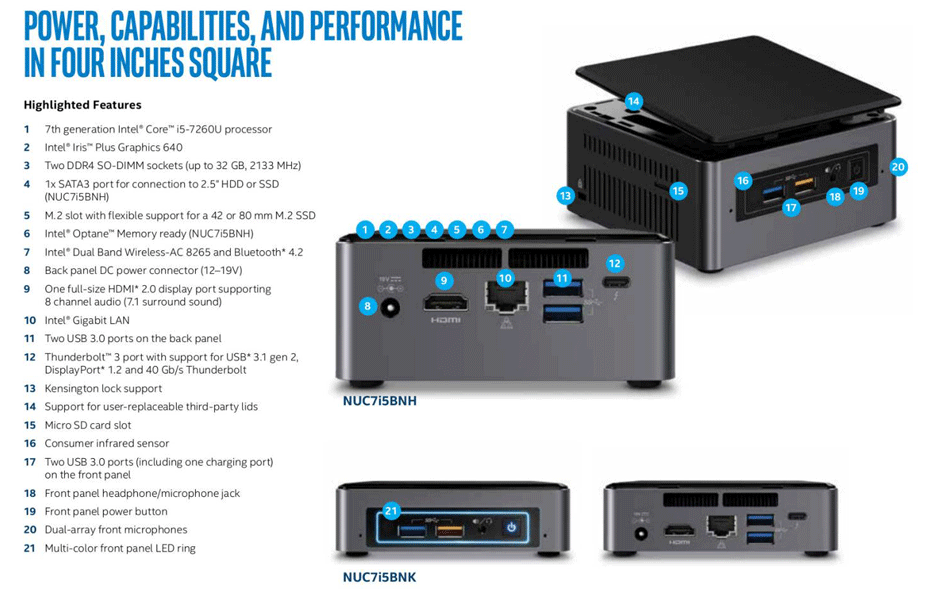

  • 7th generation Intel® Core™ i5 processor
  • Intel® Optane™ memory ready
  • Intel® Iris™ Plus Graphics 640
  • Thunderbolt™ 3 technology

The Intel NUC Kit NUC7i5BNH gives you the performance to turn the Intel NUC into a powerhouse of productivity and play.

The Intel NUC Kit NUC7i5BNHX1 has some cool new features including dual-array front microphones so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-color LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music, movies, and games. Or listen with headphones via the front microphone/audio jack.

Intel® Iris™ Plus Graphics lets you see images in brilliant 4K and adds better clarity, letting you see data visualizations or on screen text in brilliant definition. The Intel NUC Kit NUC7i5BNHX1 can connect up to three 4K monitors so you can spread your work out across screens. The kits also come with Thunderbolt™ 3 which supports up to 40 Gbps transfer speeds for your intensive data needs and has built-in 10 GbE for networking with another Thunderbolt™ 3 system.

Download Product Brief


  • 7th generation Intel® Core™ i5-7260U processor (2.2 GHz to 3.4 GHz Turbo, 2 Dual-Core 4 MB cache, 15W TDP)
  • 2x DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz)
  • Graphics:
    - Intel® Iris™ Pro Graphics 640
    - 1x HDMI* 2.0 port with 4K at 60 Hz
    - Thunderbolt™ 3 port with support for USB* 3.1 Gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt
  • Storage:
    - Micro SDXC slot with UHS-I support on the side
    - 1x M.2 slot supporting 42 or 80 mm M.2 SSD
    - 1x SATA3 port for connection to 2.5" HDD or SSD (up to 9.5 mm thickness)
  • Up to 7.1 surround audio via HDMI
  • Peripheral Connectivity:
    - Thunderbolt™ 3 port with support for USB* 3.1 Gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt
    - 4x USB 3.0 ports (two back panel ports and two front ports including one charging port)
    - 2x USB 2.0 ports via internal header
    - Intel® Dual Band Wireless-AC 8265 (802.11ac), 2x2, up to 867 Mbps
    - Dual Mode Bluetooth® 4.2
  • Integrated Gigabit LAN



  Qty.Intel NUC 7i5BNH, Cost As Configured $525.34
Base Platform 1
Socket 1 1
Socket 2 1
M.2 Drive 1
SSD Drive 1
Mouse 1
Keyboard 1
Operating System SW 1
   Intel NUC 7i5BNH, Cost As Configured $525.34
