Revolutionize NVMe Storage Performance with Highpoint PCIe Gen5 Switch Technology
Rocket 7600 PCIe Gen5 NVMe RAID Series AICs & Adapters
HighPoint RocketRAID 7600 PCIe Gen5 NVMe RAID AICs and Adapters are engineered to enhance the capabilities of
Linux and Windows-based Edge Server and High-End workstation platforms. Built on the foundation of our Rocket
1600 Switch series product lines, each RAID AICs/Adapter is armed with industry proven RAID technology and an
unparalleled storage health monitoring and management suite designed to maximize the performance, reliability and
serviceability of NVMe arrays.
HighPoint RocketRAID 7600 PCIe Gen5 NVMe RAID AICs and Adapters are now available with the below workstations.
AMD Ryzen™ Threadripper™ PRO based Workstations
Intel® Xeon® W-3500 / W-2500 based Workstations
|
|
|

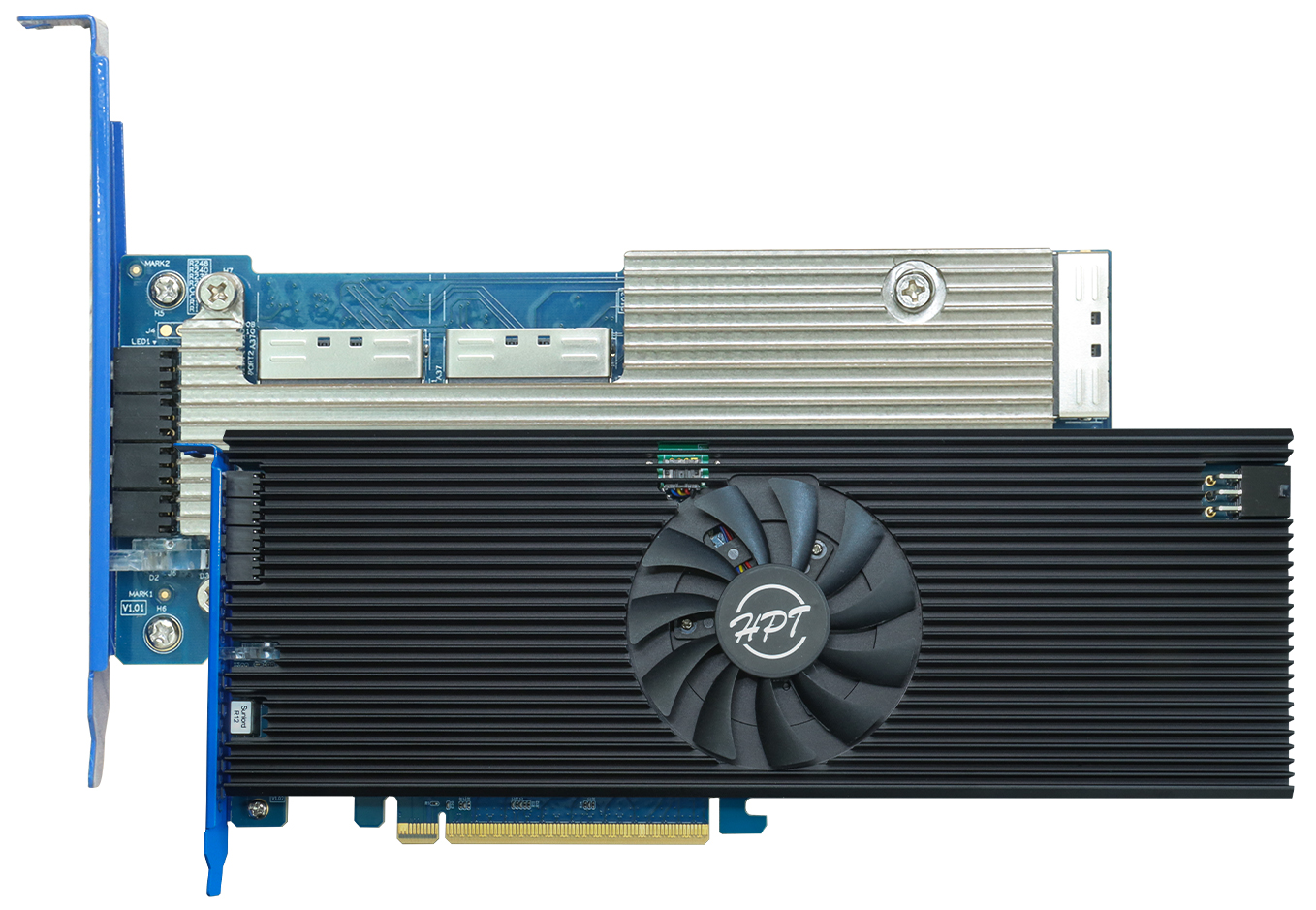

Rocket 7608A – PCIe Gen5 x16 to 8-M.2x4 NVMe RAID AIC
• Bus Interface: PCIe 5.0 x16
• Port Count: 8x NVMe Ports
• Connector Type: M.2
• Device & Form factor: 2242, 2260, 2280
• Cooling: Full-Length Aluminum Heatsink with cooling fan
• Ext. Power Connector: Yes (uses PCIe Standard 2x3 Power Connector)
• AIC Form factor: Full-Height, Single-Width
• Operating System Support: Windows & Linux
• FRU: Yes (stores VPD data)
• Hardware Secure Boot: Yes
• OOB Managament: No
• Synthetic Hierarchy: Yes
• RAID Support: Single, RAID 0, 1, 10
• HighPoint Advanced Feature Suite: Yes
Download Datasheet
|

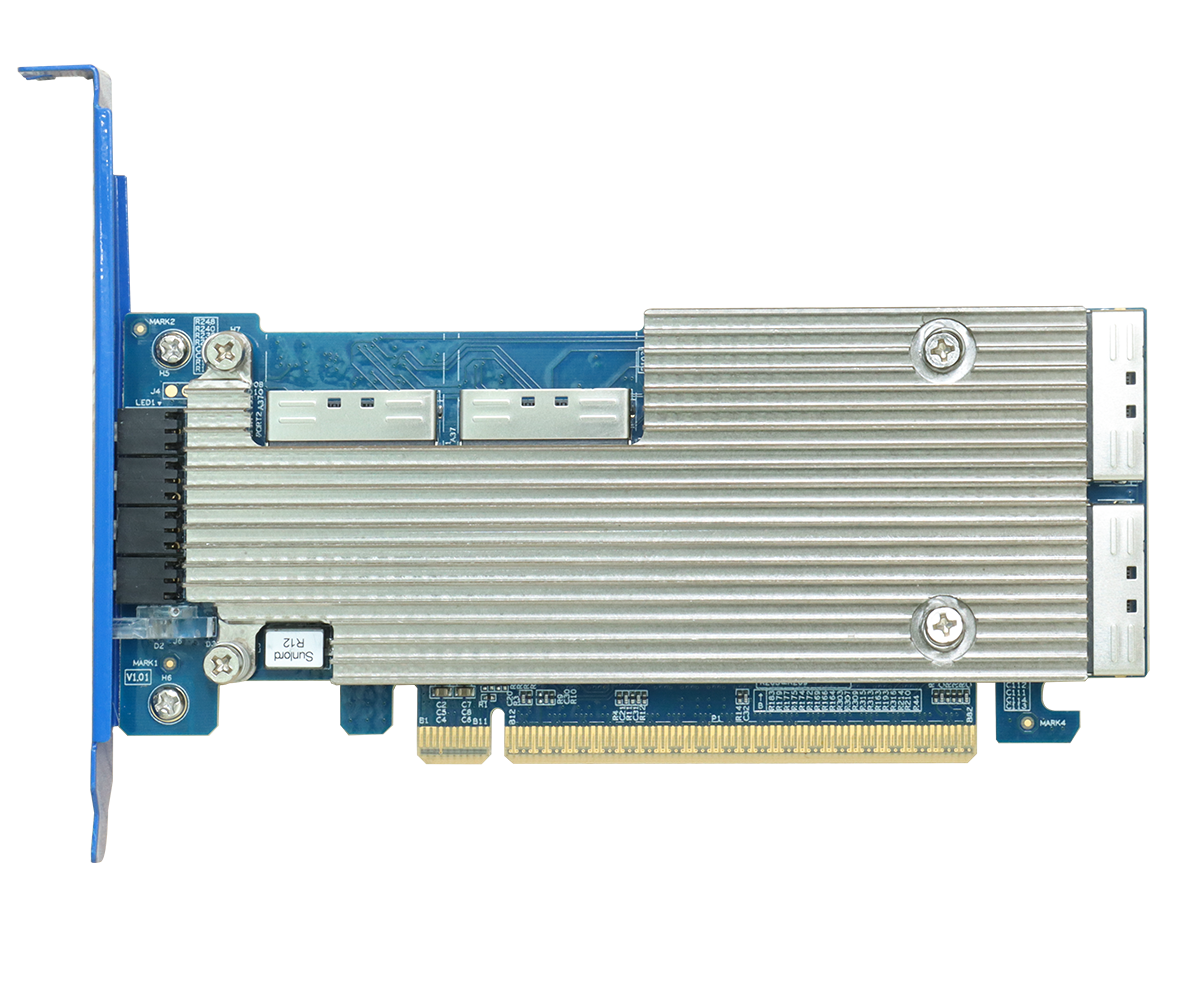

Rocket 7628A – PCIe Gen5 x16 to 4-MCIOx8 NVMe RAID Adapter
• Bus Interface: PCIe 5.0 x16
• Port Count: 8x NVMe Ports
• Connector Type: MCIO (SFF-1016 8x)
• Device & Form factor: U.2/U.3, E3.S
• Cooling: Full-Length Aluminum Heatsink
• Ext. Power Connector: No
• AIC Form factor: LP-MD2, Single-Width
• Operating System Support: Windows & Linux
• FRU: Yes (stores VPD data)
• Hardware Secure Boot: Yes
• OOB Managament: Yes
• Synthetic Hierarchy: Yes
• RAID Support: Single, RAID 0, 1, 10
• HighPoint Advanced Feature Suite: Yes
Download Datasheet
|
|
News
HighPoint Technologies - HighPoint is Now shipping the Rocket 7600 Series; Industry’s 1st Gen5 x16 NVMe RAID AICs & Adapters
