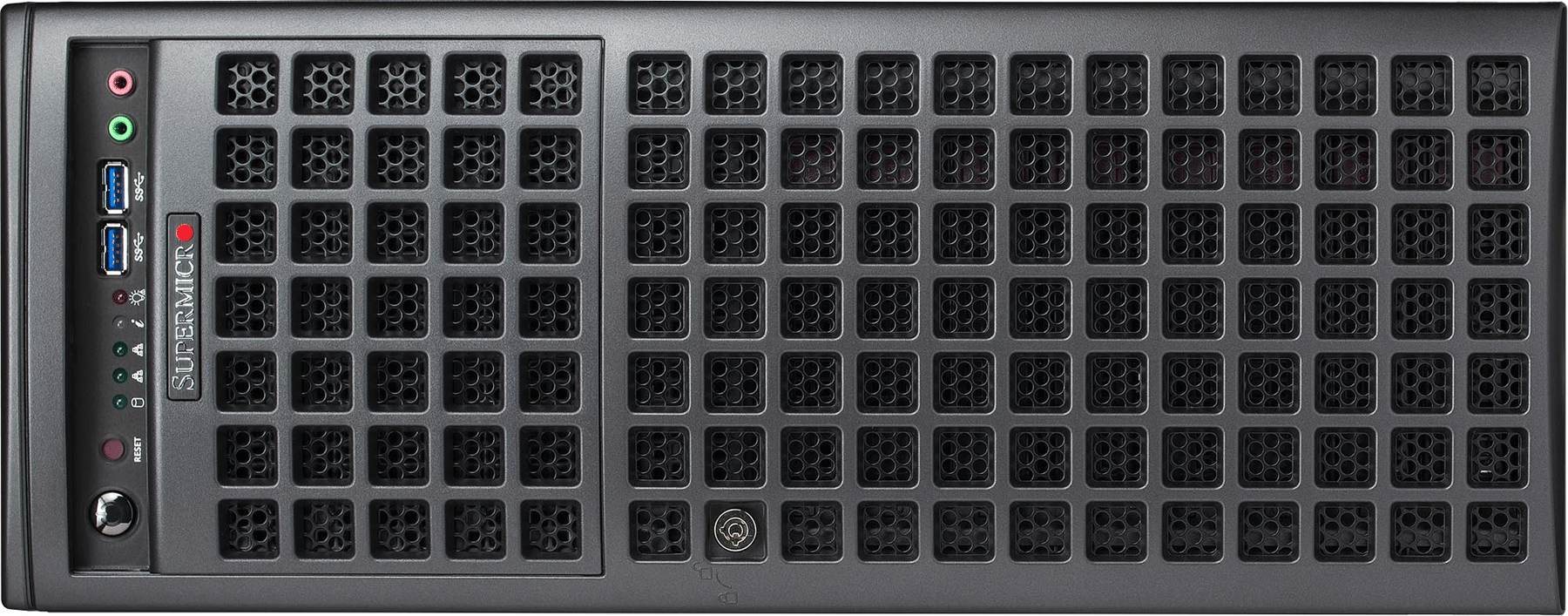

Colfax ProEdge™ VX100 Workstation



  • 4x NEC Vector Engine Processor Type 10C
  • 2x Intel® Xeon® Scalable Processors
  • 16x DIMMs
  • 8x 3.5" Drive Bays

Features

  • Pedestal or 4U Rackmount (w/Optional Rackmount Kit)
  • 4x NEC Vector Engine Processor Type 10C
  • 2x Intel® Xeon® Scalable Processors
  • Intel C621 Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 4 PCI-E 3.0 x16 (Double-Width) Slots
    - 2 PCI-E 3.0 x16 (Single-Width) Slots
    - 1 PCI-E 3.0 x4 Slot
  • 8x 3.5" Hot-Swap Drive Bays
  • 1x M.2 NVMe SSD
  • 2x 10GBase-T LAN ports via Intel X550
  • 2200W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.


Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-165W with IVR)
Memory • 16 DIMM Sockets
• Supports up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
• Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion PCI-Express
• 4 PCI-E 3.0 x16 (double-width) slots
• 2 PCI-E 3.0 x16 (single-width) slots
• 1 PCI-E 3.0 x4 (in x8 slot)
M.2
• M.2 Interface: PCI-E 3.0 x4
• Form Factor: 2280, 22110
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Intel® X550 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 10 SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
• 4 USB 2.0 ports (2 rear, 2 via headers)
VGA
• 1x VGA port
Serial Port/Header
• 2 COM ports (1 rear, 1 Header)
Chassis Form Factor • 4U Rackmountable / Tower
• Dimension (HxWxD): 18.2" (462mm) x 7.0" (178mm) x 26.5" (673mm)
Power Supply • 2200W Redundant Power Supplies with PMBus
• Total Output Power and Input
- 1200W with Input 100-127Vac
- 1800W with Input 200-220Vac
- 1980W with Input 220-230Vac
- 2090W with Input 230-240Vac
- 2090W with Input 200-220Vac
- 2200W with Input 220-240Vac (for UL/cUL use only)
- 2090W with Input 230-240Vdc (for CCC only)
• AC Input Frequency
- 50-60Hz
• +12V
- Max: 100A / Min: 0A (100-127Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 174.17A / Min: 0A (230-240Vac)
- Max: 183.3A / Min: 0A (220-240Vac)
• 5V sb
- Max: 1A / Min: 0A
• 80PLUS Titanium Certified
Drive Bays • 8x 3.5" hot-swap drive bays
System Cooling Fans
• 4x heavy duty fans
• 4x rear exhaust fans
• 2x optional rear fans (required for Passive GPUs)
Heatsink
• 2x active heatsinks with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• System reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat & Power Fail LED
Ports
• 2 Front USB 3.0 ports
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram
