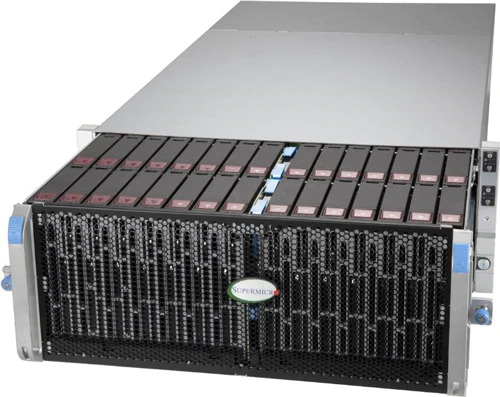

Colfax CX4210LPs-S60-(JBOD)-X8 4U Rackmount Server



  • 2x 3rd Gen Intel® Xeon® Scalable Processors

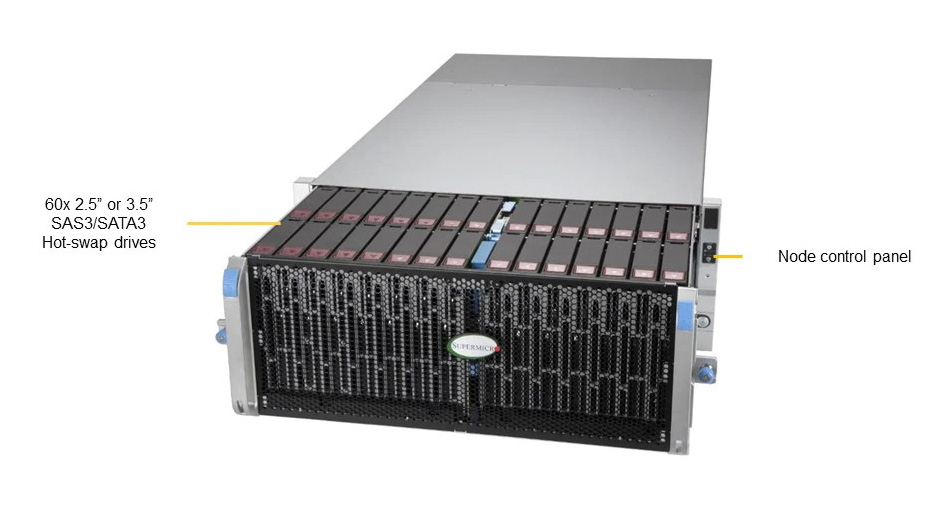

  • 60x 3.5" Hot-Swap SAS/SATA Drive Bays
  • 2x 2.5" Hot-Swap Rear SATA Drive Bays
  • 4x Gen4 U.2 NVMe Drive Bays
  • Broadcom 3616 HBA or 3916 RAID Controller Kit

Features

  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • Intel C621A Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • 3x PCI-E 4.0 x16 Slots (HHHL)
  • 60x 3.5" Hot-Swap SAS3/SATA3 Drive Bays
  • 2x 2.5" Hot-Swap Rear SATA3 Drive Bays
  • 4x Gen4 U.2 NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • Broadcom 3616 HBA or 3916 RAID Controller Kit
  • 2000W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN


Disk Controller

Broadcom 3616 HBA

  • Two Broadcom SAS 3616 controllers (IT)
    - PCIe 3.1 Compliant
    - x16 host interface (each controller)
    - 16 internal SAS3 (each controller)
    - SAS 12 Gb/s and SATA 6 Gb/s (transfer rates and backward compatible)

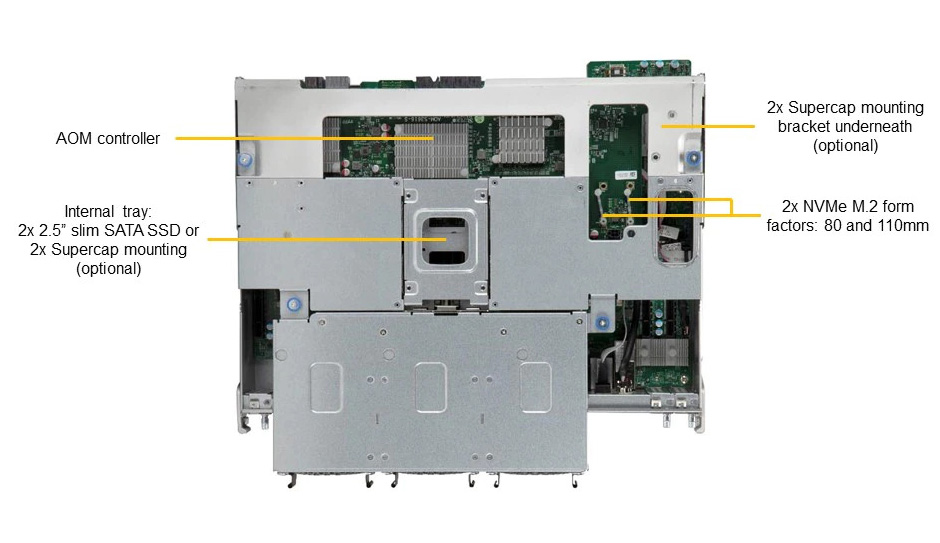

  • Two NVME M.2 connectors (supports 80mm and 110mm form factors)
  • Microchip PM40036 (PSX 36xG4 Gen 4 Programmable PCIe Switch, x16 host interface)
  • 1G network controller for heartbeat functionality
  • I2C interface for BMC OOB communication


Broadcom 3916 RAID Controller Kit

  • By-pass card
  • Two NVME M.2 connectors (supports 80mm and 110mm form factors)
  • MicroChip Gen4 PFX PCIe Fanout Switch PM40036 NTB


  • 16 internal SAS3 ports, Supports up to 240 physical devices w/ expander, 2x SlimSAS x8 black (100-Ohm) connectors
  • Low profile x8 PCIe Gen 4.0 root complex interface
  • Supports RAID 0, 1, 5, 6, 10, 50, 60
  • 8GB DDR4 onboard cache memory – 2666MHz
  • Power consumption: 18 Watts
  • Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
  • Support for MCTP over PCIe
  • Broadcom Cachevault BTR-CVPM05 to protect onboard cache memory w/ 24" Remote Extender (Optional)
  • Supercap holder module (Optional)
  • TFM – Included on-board
  • Supports advanced software Encryption - included
  • Supports MegaRAID Storage Manager SW and secure boot
  • UEFI Configuration utility


Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimension: 17.6" W (447mm) x 7" H (178mm) x 34.1" D (866mm)
CPU • Dual Socket P+ (LG-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processors
• Supports CPU TDP 120-205W
Memory • 16x DDR4 DIMM slots
• Up to 4TB: 16x 256 GB DRAM
• Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A
I/O Expansion • Slot 1: PCI-E 4.0 x16 LP
• Slot 2: PCI-E 4.0 x16 LP
• Slot 3: PCI-E 4.0 x16 LP
Onboard Devices Network Controllers
• Dual 10GBase-T LAN with Intel® X550
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 2x SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 1x COM port (front)
DOM
• 2x SuperDOM (Disk on Module) ports
Power Supply • 2000W Redundant Power Supplies with PMBus
AC Input
• 100-127Vac / 50-60Hz
• 200-240Vac / 50-60Hz
DC Input
• 2000W: 230-240Vdc
+12V
• Max: 83.3A / Min: 0A (100Vac-127Vac)
• Max: 166.7A / Min: 0A (200Vac-240Vac)
12V sb
• Max: 2.1A / Min: 0A

Certification
• 80PLUS Titanium Certified

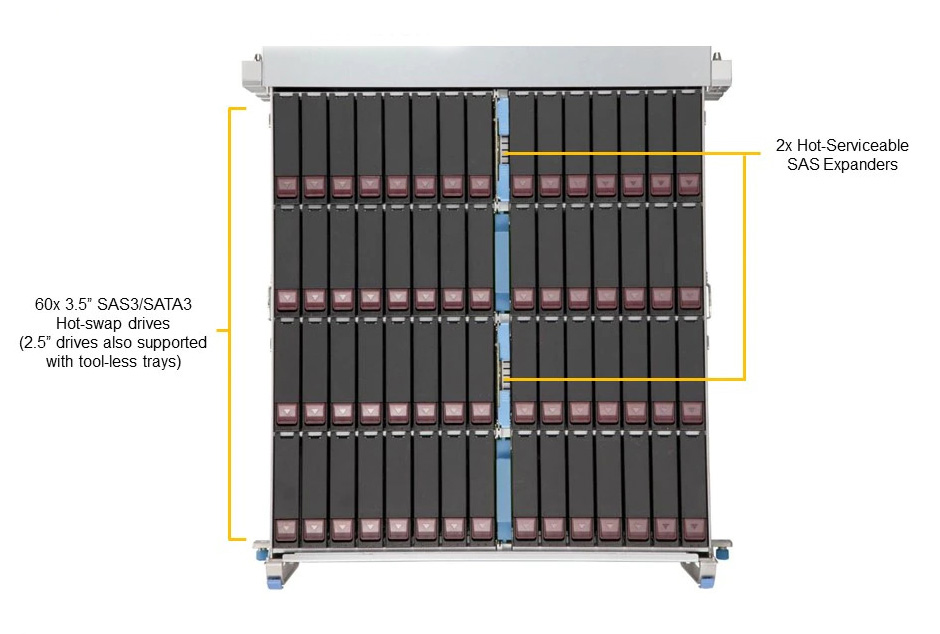

Storage • 60x hot-swap 3.5" SAS3/SATA3 drive bays
• 2x hot-swap 2.5" SATA3 drive bays (rear)
• 4x Gen4 U.2 NVMe drive bays (rear)

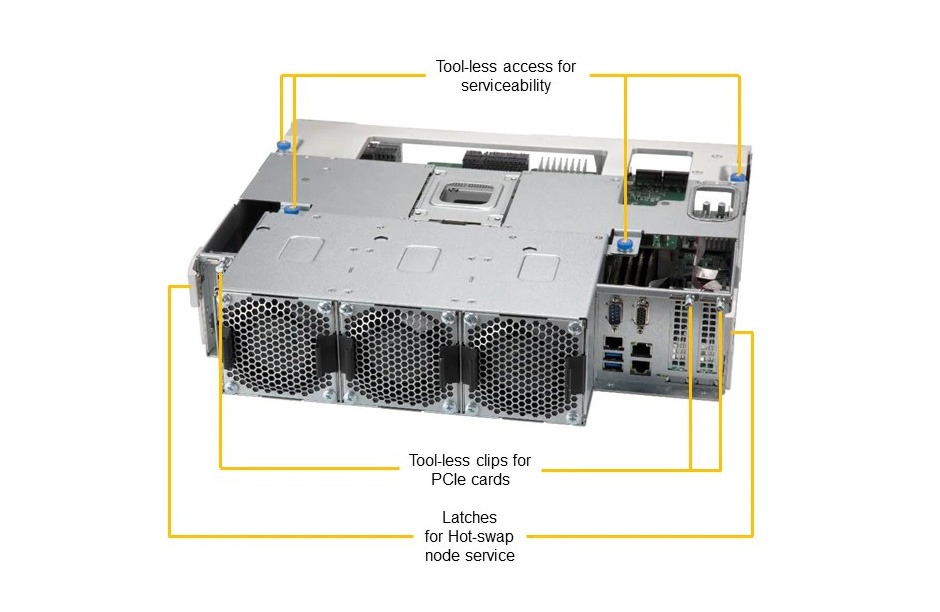

System Cooling • 6 x 80mm heavy duty fans

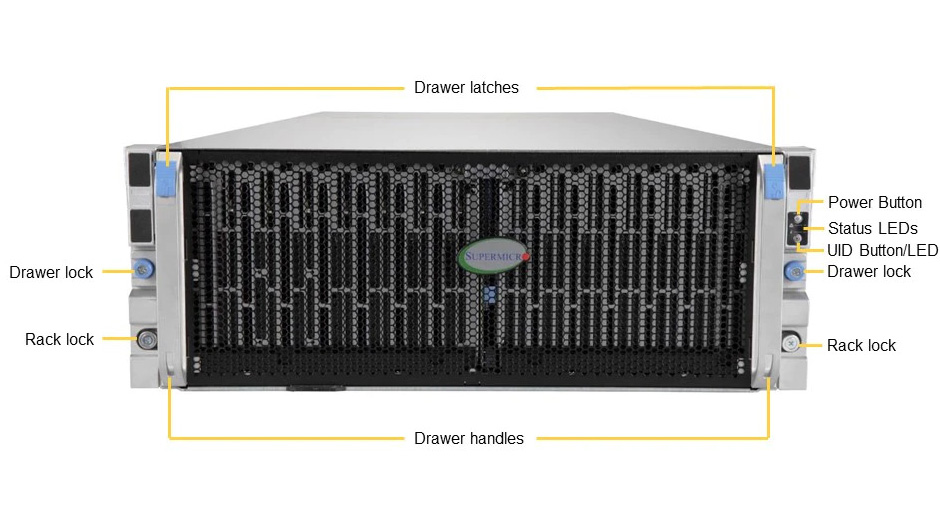

Front Panel Buttons
• Power button
• UID button
LEDs
• Status LEDs
BIOS • AMI 128MB SPI Flash EEPROM


Block Diagram


Images


$8,905.25


  Qty.Colfax CX4210LPs-S60-(JBOD)-X8 4U Rackmount Server, Cost As Configured $8,905.25
