Colfax CX4220LPs-S36-X9 4U Rackmount Server



  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • 16x DDR5 DIMMs
  • 36x 3.5" Hot-Swap SAS/SATA Drive Bays (Optional 6x 2.5" NVMe)
  • 2x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x 10GBase-T Ports
  • Broadcom 3908 HW RAID Controller

Features

  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • Intel C741 Chipset
  • 16x DIMMS, Supports DDR5 ECC RDIMMM
  • Expansion Slots:
    - 3 PCIe 5.0 x16 Slots (LP)
    - 1 PCIe 5.0 x8 Slot (LP)
  • 36x 3.5" Hot-Swap SAS/SATA Drive Bays (24x Front (Optional 6x 2.5" NVMe); 12x Rear)
  • 2x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x M.2 SSDs (PCIe 4.0 x2)
  • Broadcom 3908 HW RAID Controller
  • Dual 10GBase-T LAN Ports
  • 2x 1600W Redundant Power Supplies
  • Integrated IPMI 2.0 with KVM and Dedicated LAN



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimension: 17.2" W (437mm) x 7" H (178mm) x 27.5" D (698.5mm)
CPU • Dual Socket E (LGA-4677)
• Supports 4th Gen Intel® Xeon® Scalable processors
• Supports 120W - 270W TDP CPUs (Air Cooled)
Memory • 16x DDR5 DIMM slots
• Supports up to 4TB
• Memory Type: 4800MHz ECC DDR5 RDIMM
Chipset • Intel® C741

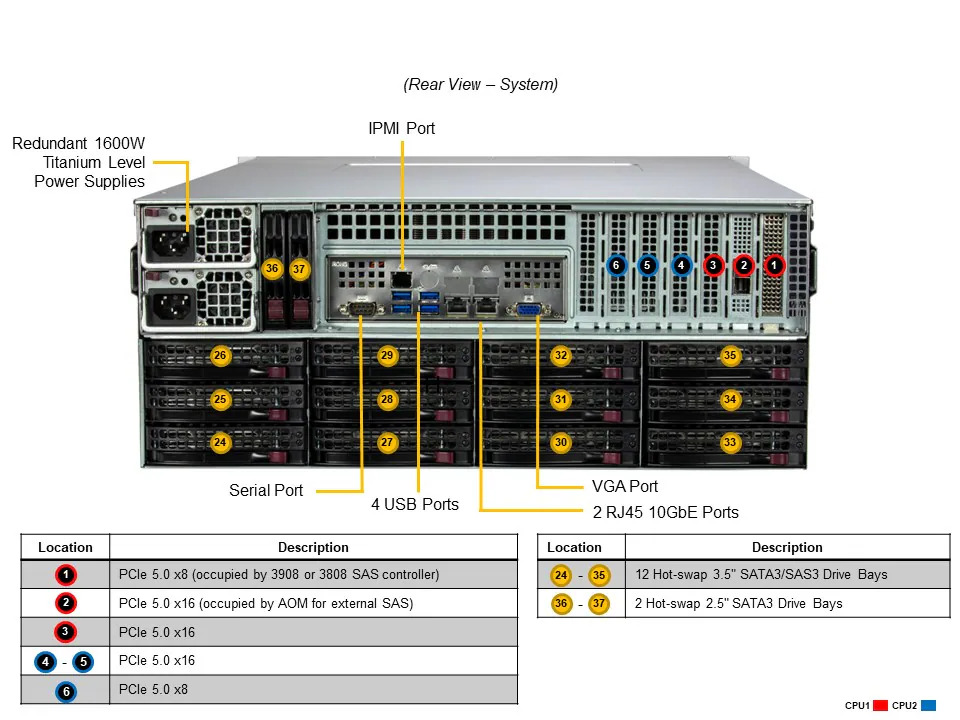

I/O Expansion • Slot 1: PCIe 5.0 x8 LP (occupied by 3908 controller)
• Slot 2: PCIe 5.0 x16 LP (occupied by AOM for external SAS)
• Slot 3: PCIe 5.0 x16 LP
• Slot 4: PCIe 5.0 x16 LP
• Slot 5: PCIe 5.0 x16 LP
• Slot 6: PCIe 5.0 x8 LP
Onboard Devices SATA
• Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
Network Controllers
• Dual 10GBase-T LAN with Broadcom BCM57416
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 1x COM port (rear)
DOM
• 2x SuperDOM (Disk on Module) ports

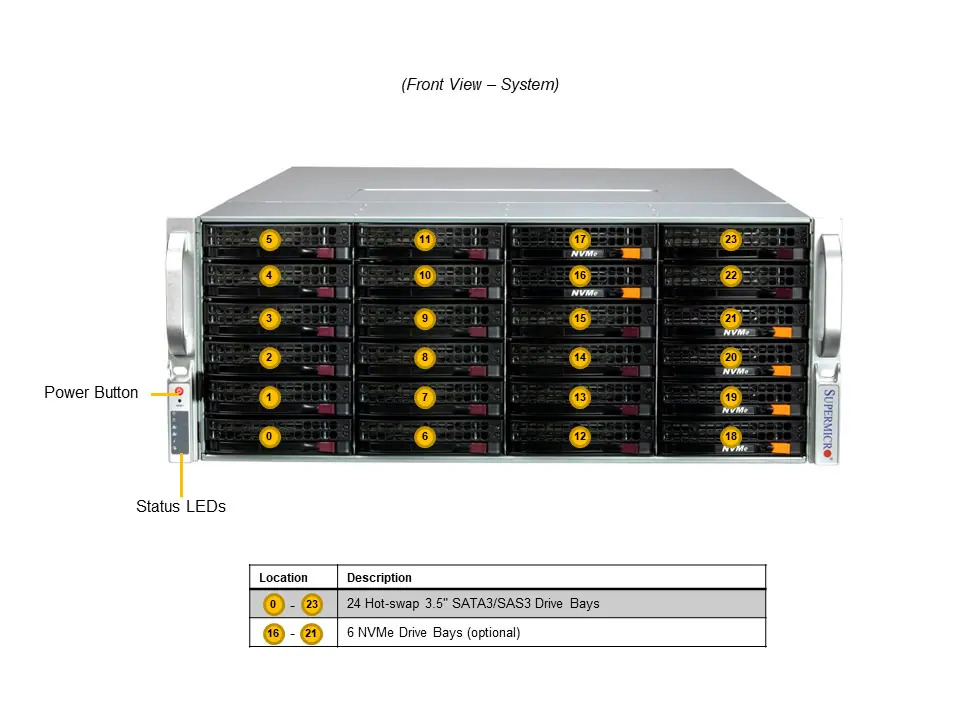

Drive Bays • 36x 3.5" hot-swap SAS/SATA drive bays (6x 2.5" NVMe hybrid)
• 2x 2.5" hot-swap SATA drive bays (rear)
M.2
• 2x M.2 NVMe
• Interface: PCIe 4.0 x2
• Form Factor: 2280, 22110
• Key: M-Key
Power Supply • 1600W Redundant Power Supplies
AC Input
• 800W: 100-140Vac / 50-60Hz
• 1600W: 180-240Vac / 50-60Hz
+12V
• Max: 66A / Min: 0A (100Vac-140Vac)
• Max: 133A / Min: 0A (180Vac-240Vac)
5V SB
• Max: 1A / Min: 0A
• 80 PLUS Titanium Certified
System Cooling • 7x heavy duty 8cm fans
Front Panel Buttons
• Power On/Off
LEDs
• HDD activity
• Network activity
• Power status
• System information (overheat/UID)
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram

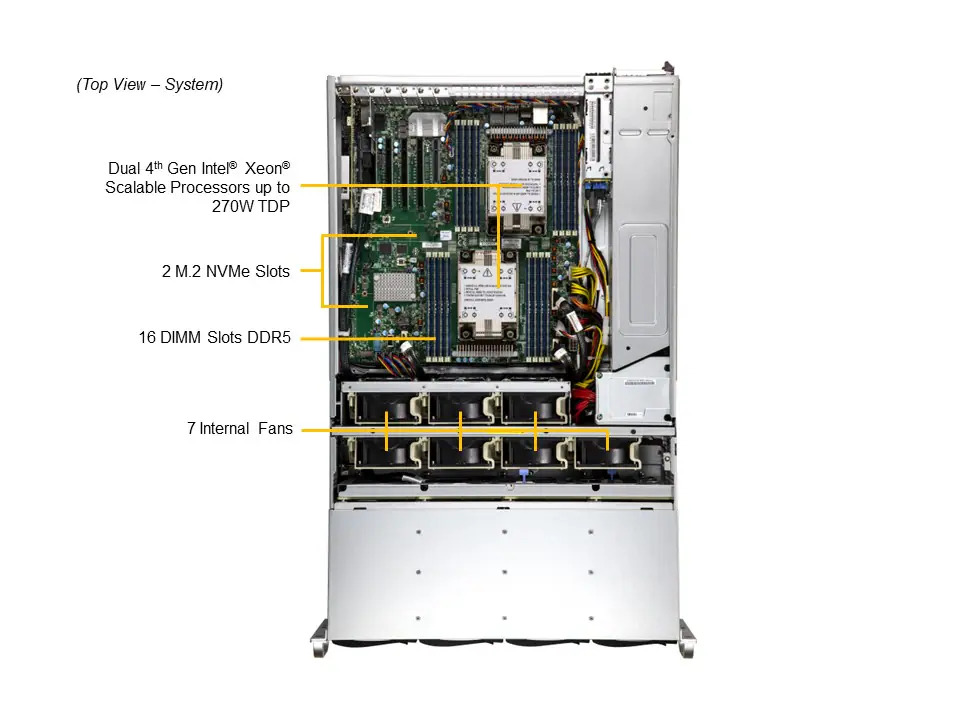

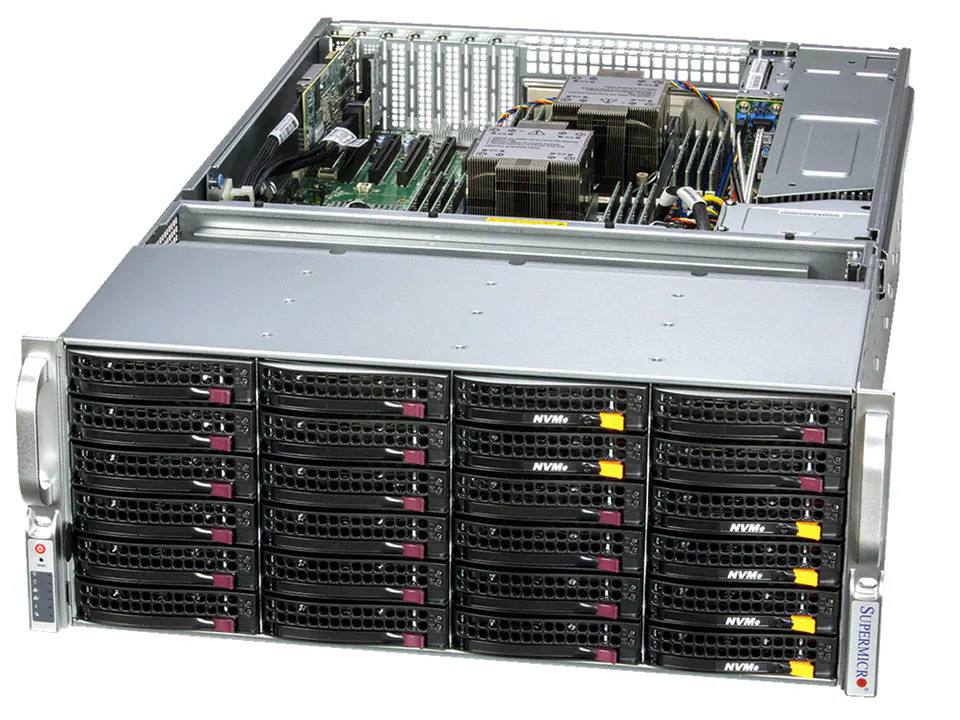

Images
$6,341.73


  Qty.Colfax CX4220LPs-S36-X9 4U Rackmount Server, Cost As Configured $6,341.73
