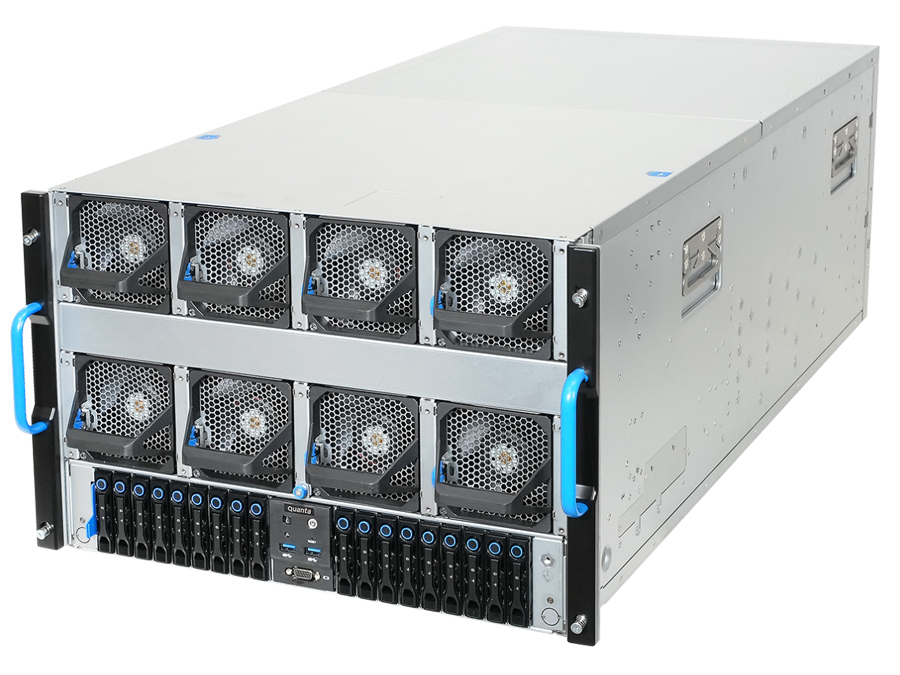

Colfax CX7850q-XK9 7U Rackmount Server




  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors
  • NVIDIA HGX™ H100/H200 8-GPU
  • 18x 2.5" NVMe Drive Bays

Request for Quote

Features

  • 7U Rackmount
  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors
  • NVIDIA HGX™ H100/H200 8-GPU SXM5 (NVIDIA® NVLink® with NVIDIA® NVSwitch™)
  • Intel C741 Chipset
  • 32x DIMMS, Supports DDR5 ECC RDIMMM
  • Expansion Slots
    - 2 PCIe 5.0 x16 OCP 3.0 SFF Slots
    - 10 PCIe 5.0 x16 OCP 3.0 TSFF Slots
  • 18x 2.5" Hot-Plug NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • 3+3 4000W Hot-Plug Redundant Power Supplies
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 7U Rackmount
• Dimensions (WxHxD): 17.63" x 12.12" x 34.88" (447.8 x 307.85 x 886mm)
CPU • Dual Socket E (LGA-4677)
• Supports 4th/5th Gen Intel® Xeon® Scalable processors
• TDP up to 350W
GPU Supported GPUs
• NVIDIA HGX™ H100/H200 8-GPU SXM5 Multi-GPU Board
GPU-GPU Interconnect
• NVIDIA® NVLink® with NVIDIA® NVSwitch™
Memory • 32x DDR5 DIMM slots
• Supports up to 8TB: 32x 256 GB DRAM
• Memory Type: 5600 MT/s DDR5 RDIMM / 3DS RDIMM
Chipset • Intel® C741 chipset
I/O Expansion • 2 PCIe 5.0 x16 OCP 3.0 SFF slots
• 10 PCIe 5.0 x16 OCP 3.0 TSFF slots
Drive Bays / Storage Front
• 18x 2.5" NVMe drive bays
M.2
• 2x (2280)
Network Controller • LOM: Dedicated 1GbE management port
Video • Integrated AST2600
• Maximum display resolution is up to 1920x1080p 32bpp@60Hz

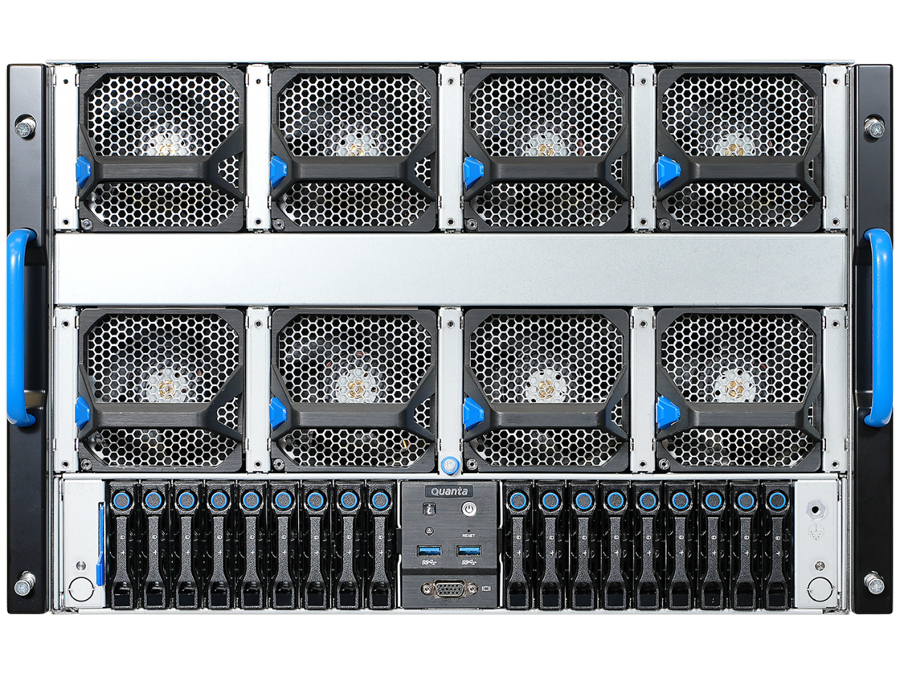

Front I/O • 1x Power button/LED
• 1x Reset button
• 1x ID button/LED
• 1x System status LED
• 2x USB 3.0 ports
• 1x VGA port

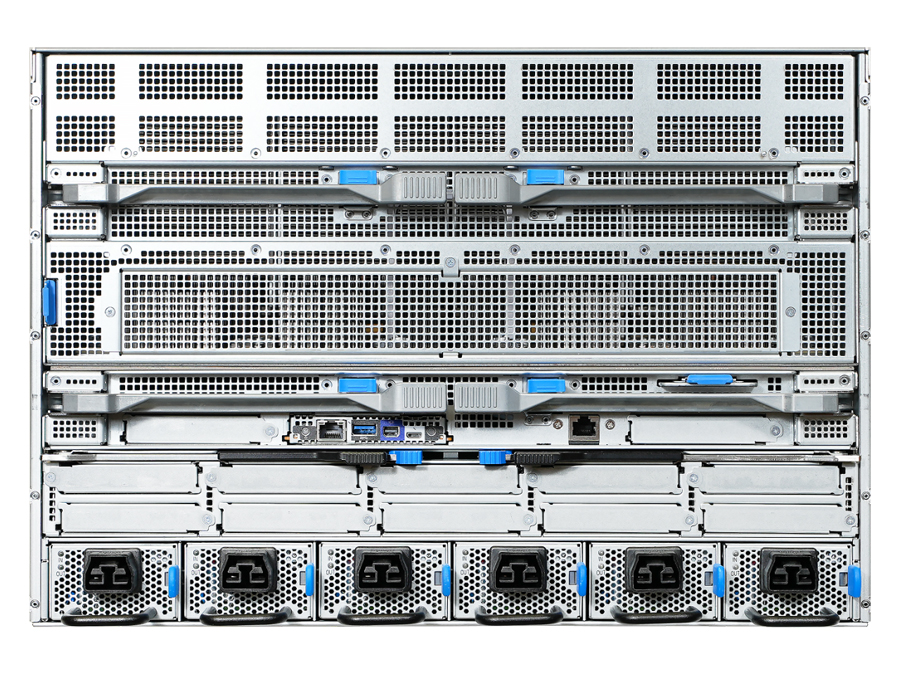

Rear I/O • 1x Power button
• 1x ID button/LED
• 1x USB 3.0 port
• 1x Mini Display port
• 1x COM port (micro USB type-B)
• 1x RJ45 dedicated mgmt port
Power Supply • (3+3) hot-plug 4000W redundant power supplies
Certification
• 80 PLUS Titanium Certified
System Cooling • 8x hot-swap 9276 dual rotor fans (N+1 redundant)
System Management • Redfish v1.11
• IPMI v2.0 compliant, on board "KVM over IP" support
TPM • TPM 2.0 SPI module (optional)
Operating Environment • Operating temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
• Operating relative humidity: 20% to 85%RH
• Non-operating relative humidity: 10% to 95%RH
