Colfax CX22450g-S-NVMeOF-JBOF




  • 24x 2.5" NVMe SSD Drive Bays
  • 3x PCIe Gen3 Expansion Slots per Node
  • Western Digital Onyx NVMe Over Fabric Storage Controller
  • Fully Supported iWARP, RoCE v1 and v2
  • Dual Controllers Architecture

Features

  • 24x 2.5" NVMe SSD Drive Bays
  • 3x PCIe Gen3 Expansion Slots per Node
  • Western Digital Onyx NVMe Over Fabric Storage Controller
    - Default 1x in each Node
    - Up to 3x in each Node
  • Fully Supported iWARP, RoCE v1 and v2
  • Dual Controllers Architecture
  • 1x Dedicated Management Port
  • 2x 800 Watts RPSU, 80 PLUS Platinum

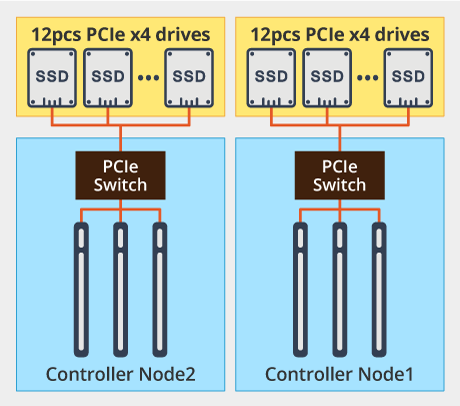

Network Topology (RDMA Structure)


Each Node Supports 12x PCIe x4 Drives


Western Digital Onyx NVMeOF Adapter Card

  • CX22450g-S-NVMeOF-JBOF supports up to 6x Western Digital Onyx NVMeOF adapter cards (3 per each controller node)
  • Up to 2.5M random read and 2M random write IOPS per NVMeOF adapter card

SoC • Fuji, KN-103 21mm BGA
CPU • 4 cores
Power • 7W
Memory • 10 MB
RDMA • iWARP, RoCE v1/v2
Network • Single 100G or Dual 50G/25G/10G
PCIe • PCIe Gen3 x16

Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.32" x 3.4" x 27.36" (440 x 87 x 695 mm)
Motherboard • 2‎ x CPBD530
• Embedded Microsemi PM8536B-FEI PICe switch with 96 Lanes
• Pre-installed 1 x Western Digital Onyx NVMe Host Bus Adapter* in each CPBD530
• Each CPBD530 board controls 12 x NVMe SSD devices with PCIe x4 bandwidth per port

*NOTE: Up to 3 x Western Digital Onyx NVMe Host Bus Adapters in each CPBD530 board
Memory • 32 DIMM sockets
• 8-channel memory architecture
• Supports up to 64GB RDIMM / 128GB LRDIMM modules
• Memory speed: Up to 3200 MHz
CPU • Western Digital Onyx NVMeOF Bridge ASIC
Socket • Embedded
Chipset -
Memory -
Expansion Slots Per node:
• Total 3 x PCIe x16 slots (Gen3 x16) for Western Digital Onyx NVMeOF HBAs per node
- 2 x PCIe x16 (Gen3 x16 bus) Full height slots
- 1 x PCIe x16 (Gen3 x16 bus) Low profile slot
Storage • 2‎4 x 2.5" NVMe hot-swappable SSD bays
LAN • 1‎ x 100Gb or 2 x 50Gb Ethernet port(s) via QSFP28 interface
• 1 x 10/100/1000 management LAN
Video • Integrated Aspeed® AST2520
Power Supply • 2‎ x 800W redundant PSUs
• AC Input:
- 100-240V~/ 10-4A, 50-60Hz
• DC Input:
- 240Vdc/ 4.5A

• DC Output:
- 800W
+12V/ 66A
+12Vsb/ 2.5A
• 80 plus Platinum
System Cooling • 4 x 80x80x38mm (16,300rpm)
Internal I/O -
Front I/O • 1‎ x Power button with LED
• 1 x ID button with LED
• 1 x Reset button
• 1 x System status LED
Rear I/O • 1‎ x QSFP28
• 1 x MLAN
• 1 x Serial port
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x BMC Reset button
• 1 x System Reset button
• 1 x System status LED
System Management • Aspeed® AST2520 management controller

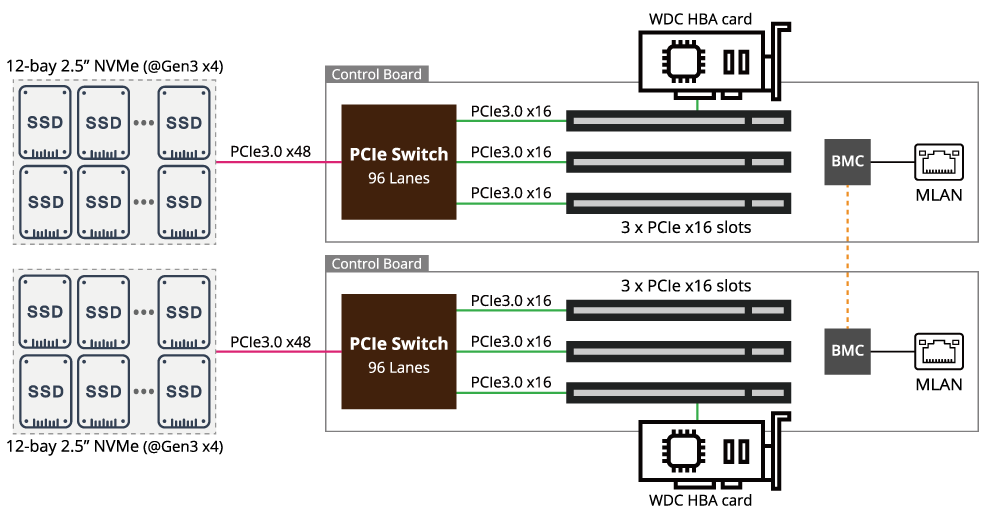

Block Diagram


Images


$5,215.74


  Qty.Colfax CX22450g-S-NVMeOF-JBOF, Cost As Configured $5,215.74
