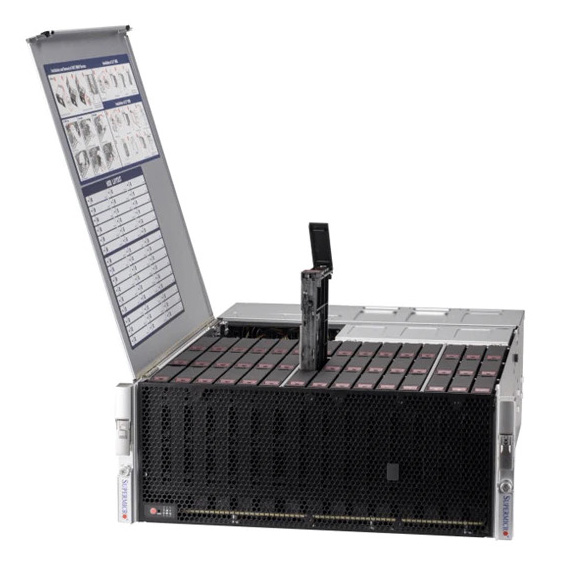

Colfax CX4110LPs-S45-X8 4U Rackmount Server



  • 1x 3rd Gen Intel® Xeon® Scalable Processor
  • 8x DIMMs
  • 45x 3.5" Top-Loading Hot-Swap SAS/SATA Drive Bays
  • 2x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x 2.5" Hot-Swap Gen4 U.2 NVMe Drive Bays (Rear)
  • 2x 10GBase-T Ports
  • Broadcom 3908 HW RAID Controller

Features

  • 1x 3rd Gen Intel® Xeon® Scalable Processor
  • Intel C621A Chipset
  • 8x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 2 PCI-E 4.0 x16 Slots (LP)
    - 2 PCI-E 4.0 x8 Slots (LP)
  • 45x 3.5" Top-Loading Hot-Swap SAS/SATA Drive Bays
  • 2x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x 2.5" Hot-Swap Gen4 U.2 NVMe Drive Bays (Rear)
  • 1x M.2 SSD
  • Broadcom 3908 HW RAID Controller (RAID 0, 1, 5, 6, 10, 50, 60 support)
  • Dual 10GBase-T LAN Ports
  • 1600W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimension: 17.2" W (437mm) x 7" H (178mm) x 26" D (660mm)
CPU • Single Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processor
• Supports CPU TDP up to 270W
Memory • 8x DDR4 DIMM slots
• Supports up to 2TB
• Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A
I/O Expansion • Slot 1: PCI-E 4.0 x8 LP
• Slot 2: PCI-E 4.0 x8 LP
• Slot 4: PCI-E 4.0 x16 LP
• Slot 6: PCI-E 4.0 x16 LP
• Slot 7: PCI-E 4.0 x8 LP

PCIe slot 1 is occupied by the JBOD Expansion/Storage Controller
Onboard Devices SATA
• SATA3 (6Gbps)
Network Controllers
• Dual 10GBase-T LAN with Intel® X550
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC

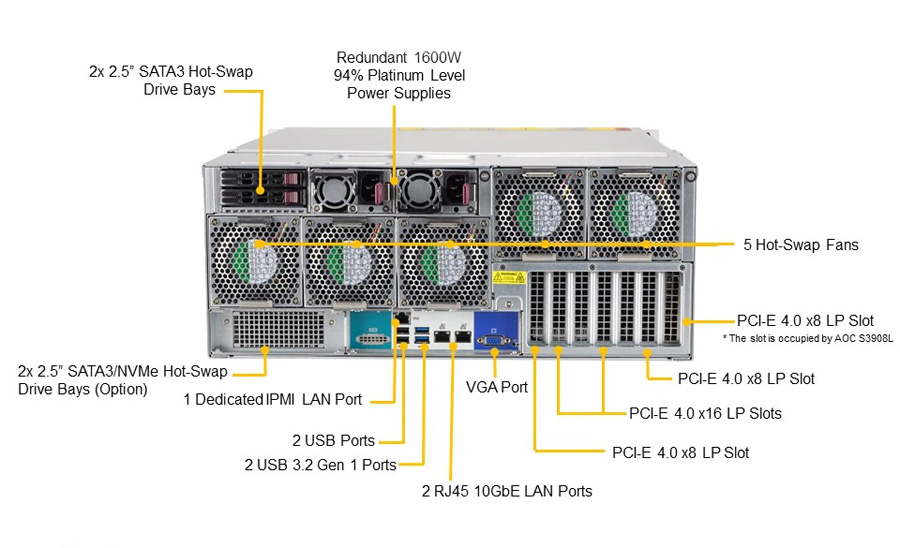

Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4 USB 2.0 ports (2 headers; 2 rear)
• 5 USB 3.2 Gen 1 ports (2 headers; 2 rear; 1 Type A)
VGA
• 1x VGA port
Serial Port
• 1x COM port (rear)
DOM
• 2x SuperDOM (Disk on Module) ports

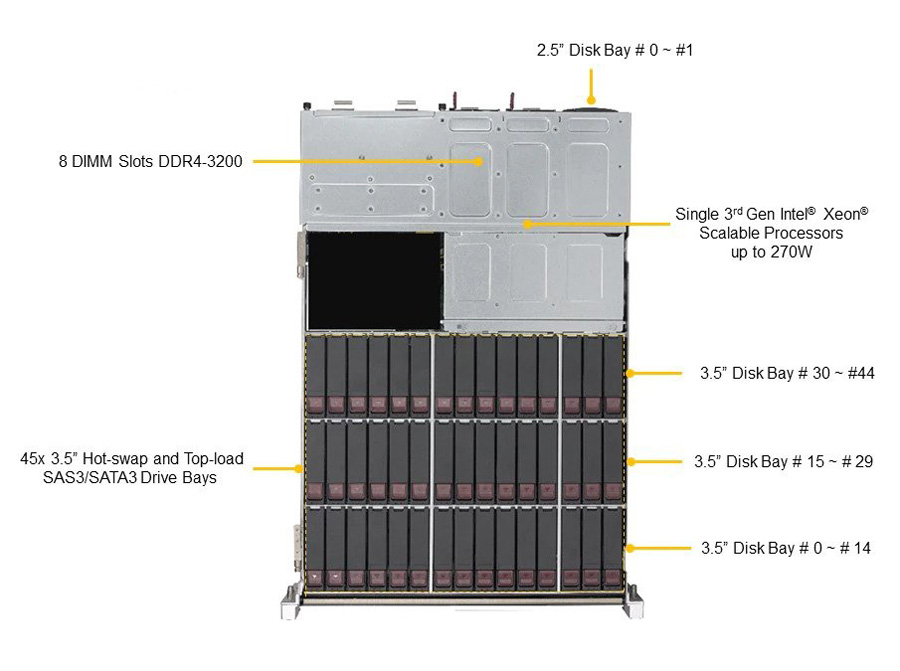

Drive Bays • 45x 3.5" top-loading hot-swap SAS/SATA drive bays
• 2x 2.5" hot-swap SATA drive bays (rear)
• 2x 2.5" hot-swap Gen4 U.2 NVMe drive bays (rear)
M.2
• Interface: PCI-E 3.0 x4 and SATA
• Form Factor: 2280, 22110
• Key: M-Key
Power Supply • 1600W Redundant Power Supplies
• 80PLUS Platinum Certified
System Cooling • 5x 8cm heavy duty fans with optimal fan speed control

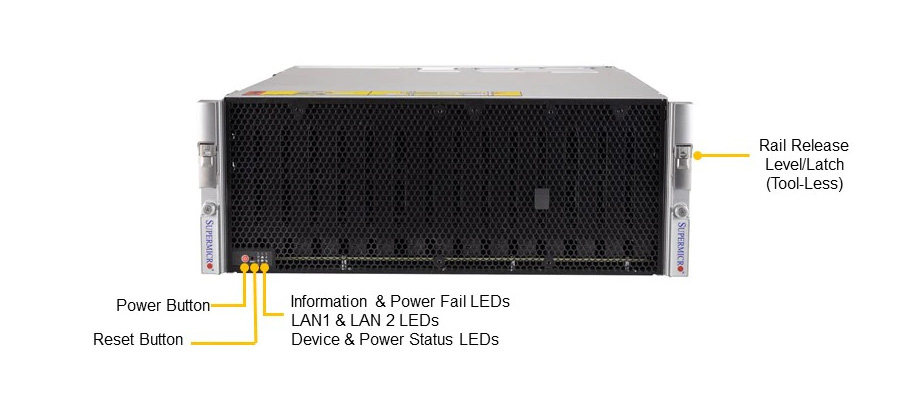

Front Panel Buttons
• Power On/Off
• System reset
LEDs
• Device Activity
• LAN 1 Activity
• LAN 2 Activity
• Power Failure
• Power status
• System information
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram
