Colfax CX4264-JBOD

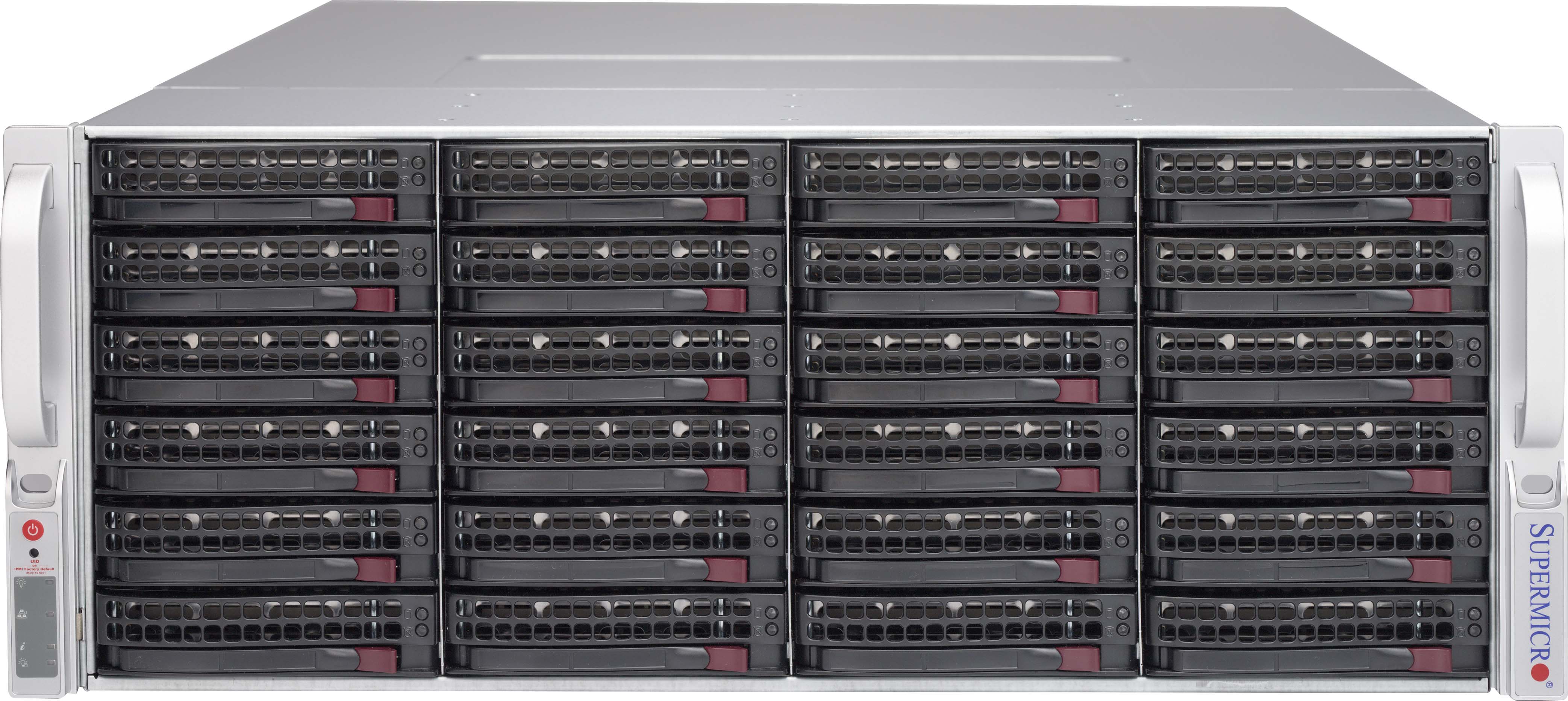

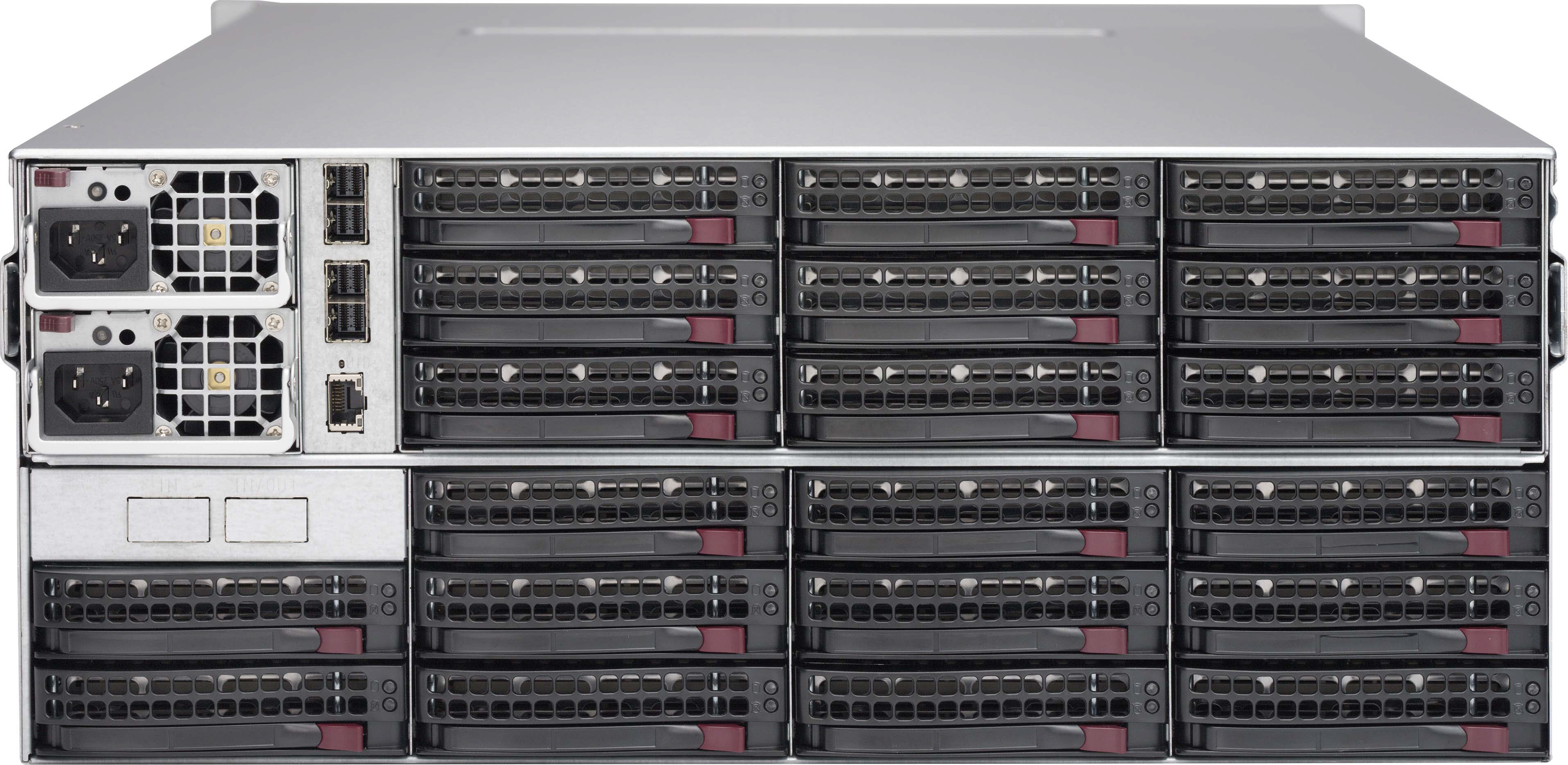

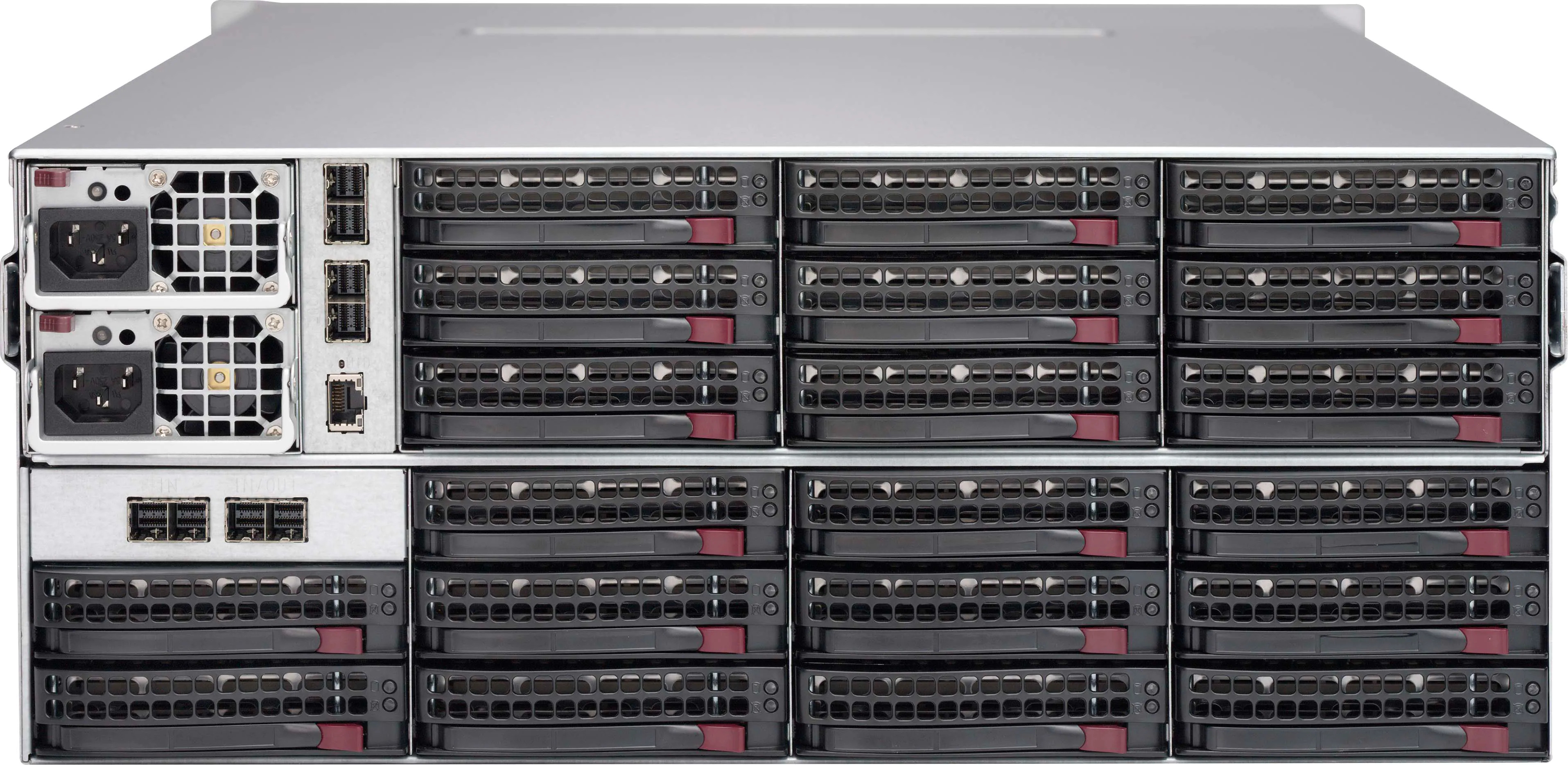

  • 44x (24 front + 20 rear) 3.5" hot-swap SAS3/SATA3 HDD bays
  • Single/Dual Expander
  • 4x/8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
  • High efficiency redundant power

Features

  • 44x 3.5" (24 Front + 20 Rear) Hot-Swap SAS3/SATA3 HDD Bays
  • Backplane
    - SAS3 (12Gbps) Backplane with Single Expander Supports SAS3/SATA3 Drives for Capacity Expansion
    - SAS3 (12Gbps) Backplane with Dual Expanders Supports SAS3/SATA3 Drives for Load Balancing and Redundancy*
  • 4x/8x External mini SAS HD (SFF 8644) Connectivity and IPMI RJ45 Port
  • 7x 8cm (Middle) Hot-Swap Redundant Cooling Fans
  • JBOD Power Control Board with IPMI for Remote Monitor and Power On-Off
  • 1+1 Redundant 1200W Power Supplies with PMBus - Titanium Level


* Secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature

Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimensions: Height 7.0" (178mm), Width 17.2" (437mm), Depth 27.5" (699mm)
Drive Bays • 44x (24 front + 20 rear) 3.5" hot-swap SAS3/SATA3 HDD bays
Qualified SAS Controllers • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
• AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
Backplane Single Expander
• 24-port 4U SAS3 12Gbps single-expander backplane, supports up to 24x 3.5" SAS3/SATA3 HDD/SSD
• 20-port 4U SAS3 12Gbps single-expander backplane (rear), supports up to 20x 3.5" SAS3/SATA3 HDD/SSD
Dual Expander
• 24-Port 4U SAS3 12Gbps dual-expander backplane, supports up to 24x 3.5" SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
• 20-port 4U SAS3 12Gbps dual-expander backplane (rear), supports up to 20x 3.5" SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
System Cooling • 7x 8cm hot-swap redundant PWM cooling fans
Power Supply • 1U 1200W/1000W Titanium Power Supply W/PMbus
Power Efficiency
• 96%
Total Output Power and Input
• 1000W with Input 100 - 127Vac
• 1200W with Input 200 - 240Vac
• 1200W with Input 200 - 240Vdc
AC Input Frequency
• 50-60Hz
+12V
• Max: 83A (100Vac - 127Vac)
• Max: 100A (200Vac - 240Vac)
• Max: 100A (200 - 240)
+5Vsb
• Max: 4A / Min: 0A
Power Distributor
• PDB-PT847-8824
• O/P: 12V/135
• +5V Max: 100
• +3.3V Max: 30
• -12V Max: 0.6
Certification
• Titanium Certified
Front Panel Buttons
• Power On/Off button
• System Reset button
• Unit Identification (UID) button
LEDs
• Network activity LEDs
• Fan Fail/System Over Heat LED
• Power Status LED
• Power Fail LED
• Unit Identification (UID) LED

Images


$3,875.43


  Qty.Colfax CX4264-JBOD, Cost As Configured $3,875.43
