Colfax CX46012s-JBOD




  • 60x 3.5" Top-Loading Hot-Swap SAS/SATA HDD/SSD Bays with SES3
  • 2x 30-Bay Single-Expander Backplanes with SAS3 Connectivity at up to 12Gb/s
  • 4x SFF-8644 Mini-SAS HD Ports for Host Connectivity and JBOD Cascading
  • 1600W (1+1) Redundant Power Supplies; 80 PLUS Titanium Certified
  • 1x Dedicated IPMI LAN Port for Remote Power Control and System Monitoring

Features

  • 60x 3.5" Top-Loading Hot-Swap SAS/SATA HDD/SSD Bays with SES3
  • Tool-less Drive Trays with Drive LED Indicators
  • 2x 30-Bay Single-Expander Backplanes with SAS3 Connectivity at up to 12Gb/s
  • 4x SFF-8644 Mini-SAS HD Ports for Host Connectivity and JBOD Cascading
  • 1600W (1+1) Redundant Power Supplies; 80 PLUS Titanium Certified
  • 5x 80 x 80 x 38 mm Rear Hot-Swap Exhaust PWM Fans
  • 1x Dedicated IPMI LAN Port for Remote Power Control and System Monitoring
  • NTP Time Synchronization and RTC Battery Backup


Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimensions: Height 7" (178 mm), Width 17.2" (437 mm), Depth 30.2" (767.08 mm)
• Depth with cable management arm installed: 35.2" (894 mm)

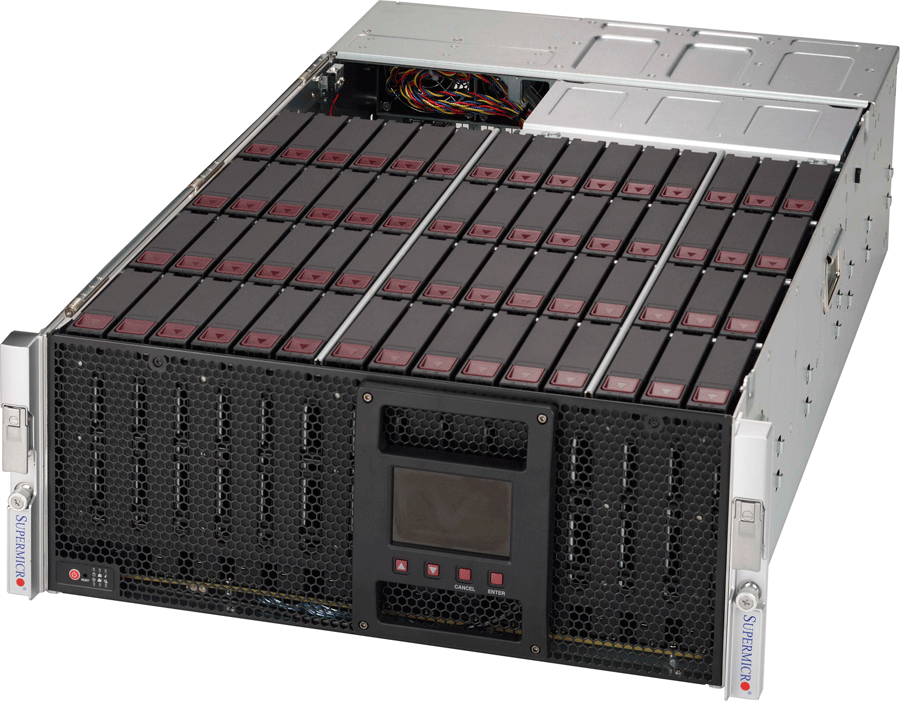

Storage • 60x 3.5" top-loading hot-swap SAS/SATA drive bays with SES3
• Tool-less drive trays with drive LED indicators
Backplane • 2x BPN-SAS3-946SEL1-1 single-expander backplanes
• Each backplane supports 30x 3.5" SAS3/SATA3 HDDs/SSDs
• SAS3 connectivity at up to 12Gb/s

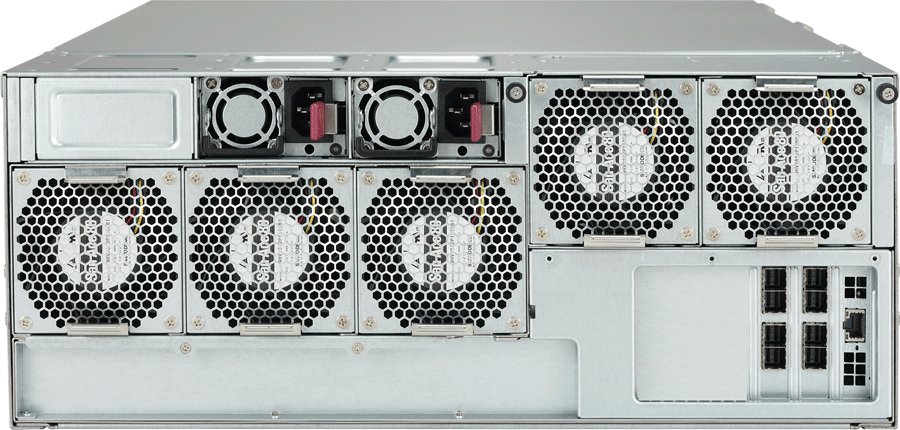

Rear I/O • 4x SFF-8644 Mini-SAS HD ports
• 1x dedicated IPMI LAN port for remote power control and system monitoring
System Cooling • 5x 80 x 80 x 38 mm rear hot-swap exhaust PWM fans
Power Supply • 2x PWS-1K63A-1R power supplies with 1+1 redundancy
Total Output Power and Input
• 1000W with input 100 - 127Vac
• 1600W with input 200 - 240Vac
AC Input Frequency
• 50-60Hz
+12V
• Max: 82A / Min: 0.1A (100 - 120Vac)
• Max: 132A / Min: 0.1A (200 - 240Vac)
+12Vsb
• Max: 2A / Min: 0.2A
Certification
• 80 PLUS Titanium Certified
Front Panel Buttons
• Power On/Off button
• Unit Identification (UID) button
LEDs
• Network Activity LED
• Power Status LED
• Power Fail LED
• System Information LED

Images


$7,541.91


  Qty.Colfax CX46012s 4U 60 Bay SAS 12Gb/s JBOD, Cost As Configured $7,541.91
Base Platform 1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Disk Drive 5    1
Disk Drive 6    1
Disk Drive 7    1
Disk Drive 8    1
Disk Drive 9    1
Disk Drive 10    1
Disk Drive 11    1
Disk Drive 12    1
Disk Drive 13    1
Disk Drive 14    1
Disk Drive 15    1
Disk Drive 16    1
Disk Drive 17    1
Disk Drive 18    1
Disk Drive 19    1
Disk Drive 20    1
Disk Drive 21    1
Disk Drive 22    1
Disk Drive 23    1
Disk Drive 24    1
Disk Drive 25    1
Disk Drive 26    1
Disk Drive 27    1
Disk Drive 28    1
Disk Drive 29    1
Disk Drive 30    1
Disk Drive 31    1
Disk Drive 32    1
Disk Drive 33    1
Disk Drive 34    1
Disk Drive 35    1
Disk Drive 36    1
Disk Drive 37    1
Disk Drive 38    1
Disk Drive 39    1
Disk Drive 40    1
Disk Drive 41    1
Disk Drive 42    1
Disk Drive 43    1
Disk Drive 44    1
Disk Drive 45    1
Disk Drive 46    1
Disk Drive 47    1
Disk Drive 48    1
Disk Drive 49    1
Disk Drive 50    1
Disk Drive 51    1
Disk Drive 52    1
Disk Drive 53    1
Disk Drive 54    1
Disk Drive 55    1
Disk Drive 56    1
Disk Drive 57    1
Disk Drive 58    1
Disk Drive 59    1
Disk Drive 60    1
Ext RAID Controller 1
Ext SAS Cable 1    1

Set next    items (  ) like this
Ext SAS Cable 2    1
Ext SAS Cable 3    1
Ext SAS Cable 4    1
   Colfax CX46012s 4U 60 Bay SAS 12Gb/s JBOD, Cost As Configured $7,541.91
