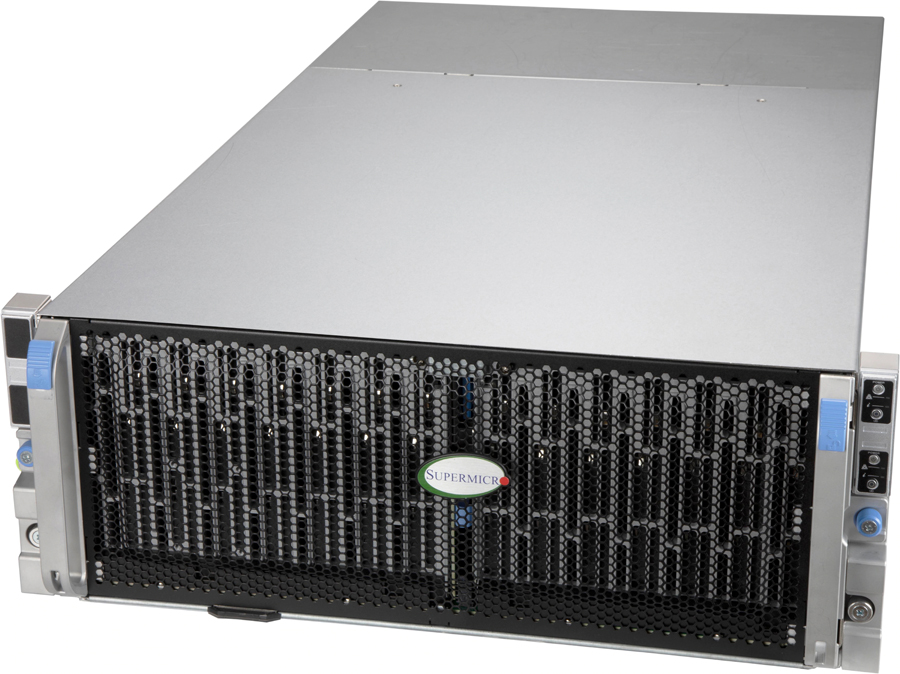

Colfax CX46012s-P12-JBOD




  • 60x 3.5"/2.5" SATA/SAS Drive Bays
  • Single/Dual Path Storage Enclosure
  • Redundant Power

Models

  • CX46012s-P1-JBOD - Single Path Storage Enclosure
  • CX46012s-P2-JBOD - Dual Path Storage Enclosure

Features

  • 60x 3.5"/2.5" Top Loading Hot-Swap SATA/SAS Drive Bays
  • Single/Dual Path Storage Enclosure
  • Single Canister Controllers / Two Canister Controllers; 1+1 Redundant for Dual Path Enclosure
  • 6x SAS3.0 IO ports ( MiniSAS HD) per Node
  • Dedicated IPMI RJ45 Management Port
  • Redfish OOB Management Protocol Support
  • SCSI Enclosure Services SES-4 Support
  • Hot-Swappable Tool-less Modular Design for Easy Service and Easy Maintenance
  • 1600W Redundant Power Supplies; 80PLUS Platinum Certified




Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimensions: Height 6.96" (177 mm), Width 17.6" (447 mm), Depth 32" (813 mm)
Storage • 60 x 3.5"/2.5" hot-swap SAS drive bays with SES3
Backplane • Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system, RoHS
• Adapter board between Expander and HDD BPN for CSE-947H, RoHS
• IPMI control board for CSE-947H top-load 60/90-bay JBOD
• 15-Port HDD Backplane for CSE-947H 60/90-bay top load chassis/server, RoHS
• JBOD I/O board for CSE-947H top-load 60/90-bay JBOD unit
• SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project, RoHS
System Cooling • 6x 8cm hot-swap redundant PWM cooling fans
Power Supply • 1600W redundant power supply with PMBus & I2C
Total Output Power and Input
• 1000W with Input 100 - 127Vac
• 1600W with Input 200 - 240Vac
AC Input Frequency
• 50-60Hz
+12V
• Max: 82A / Min: 0.1A (100Vac - 120Vac)
• Max: 132A / Min: 0.1A (200Vac - 240Vac)
12V sb
• Max: 2A / Min: 0.2A
Certification
• 80 PLUS Platinum Level Certified
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• HDD activity LED
• 1x Network Activity LED
• Power LED
• System Information LED
• UID LED

Images

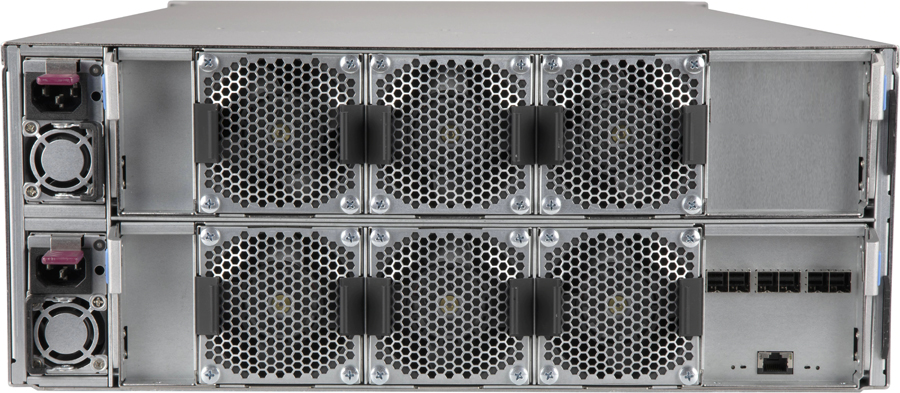

Single-Path Storage Enclosure

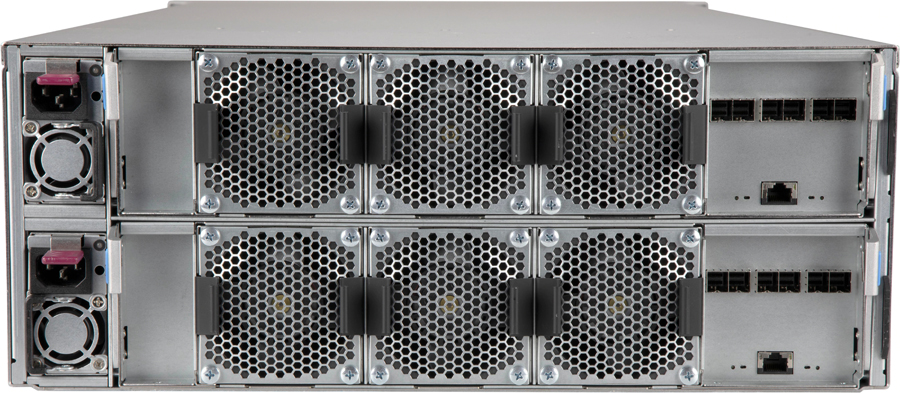

Dual-Path Storage Enclosure


$8,984.29


  Qty.Colfax CX46012s-P12-JBOD 4U 60 Bay SATA/SAS JBOD, Cost As Configured $8,984.29
Base Platform 1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Disk Drive 5    1
Disk Drive 6    1
Disk Drive 7    1
Disk Drive 8    1
Disk Drive 9    1
Disk Drive 10    1
Disk Drive 11    1
Disk Drive 12    1
Disk Drive 13    1
Disk Drive 14    1
Disk Drive 15    1
Disk Drive 16    1
Disk Drive 17    1
Disk Drive 18    1
Disk Drive 19    1
Disk Drive 20    1
Disk Drive 21    1
Disk Drive 22    1
Disk Drive 23    1
Disk Drive 24    1
Disk Drive 25    1
Disk Drive 26    1
Disk Drive 27    1
Disk Drive 28    1
Disk Drive 29    1
Disk Drive 30    1
Disk Drive 31    1
Disk Drive 32    1
Disk Drive 33    1
Disk Drive 34    1
Disk Drive 35    1
Disk Drive 36    1
Disk Drive 37    1
Disk Drive 38    1
Disk Drive 39    1
Disk Drive 40    1
Disk Drive 41    1
Disk Drive 42    1
Disk Drive 43    1
Disk Drive 44    1
Disk Drive 45    1
Disk Drive 46    1
Disk Drive 47    1
Disk Drive 48    1
Disk Drive 49    1
Disk Drive 50    1
Disk Drive 51    1
Disk Drive 52    1
Disk Drive 53    1
Disk Drive 54    1
Disk Drive 55    1
Disk Drive 56    1
Disk Drive 57    1
Disk Drive 58    1
Disk Drive 59    1
Disk Drive 60    1
Ext RAID Controller 1
Ext SAS Cable 1    1

Set next    items (  ) like this
Ext SAS Cable 2    1
Ext SAS Cable 3    1
Ext SAS Cable 4    1
   Colfax CX46012s-P12-JBOD 4U 60 Bay SATA/SAS JBOD, Cost As Configured $8,984.29
