Colfax CX49012s-P12-JBOD




  • 90x 3.5"/2.5" SATA/SAS Drive Bays
  • Single/Dual Path Storage Enclosure
  • Redundant Power

Models

  • CX49012s-P1-JBOD - Single Path Storage Enclosure
  • CX49012s-P2-JBOD - Dual Path Storage Enclosure

Features

  • 90x 3.5"/2.5" Top Loading Hot-Swap SATA/SAS Drive Bays
  • Single/Dual Path Storage Enclosure
  • Single Canister Controllers with Field Serviceable Tray / Two Canister Controllers; 1+1 Redundant for Dual Path Enclosure
  • 6x SAS3.0 IO Ports (MiniSAS HD/SFF-8644) / 6x SAS3.0 IO Ports (MiniSAS HD/SFF-8644) per Node
  • Dedicated IPMI RJ45 Management Port
  • Redfish OOB Management Protocol Support
  • SCSI Enclosure Services SES-4 Support
  • Hot-Swappable Tool-less Modular Design for Easy Service and Easy Maintenance
  • 2000W Redundant Power Supplies; 80PLUS Titanium Certified




Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimensions: Height 6.96" (177 mm), Width 17.6" (447 mm), Depth 43.3" (1099 mm)
Storage • 90 x 3.5"/2.5" hot-swap SAS drive bays with SES3
Backplane • Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system, RoHS
• Adapter board between Expander and HDD BPN for CSE-947H, RoHS
• IPMI control board for CSE-947H top-load 60/90-bay JBOD
• 15-Port HDD Backplane for CSE-947H 60/90-bay top load chassis/server, RoHS
• JBOD I/O board for CSE-947H top-load 60/90-bay JBOD unit
• SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project, RoHS
System Cooling • 6x 8cm hot-swap redundant PWM cooling fans
Power Supply • 1U 2000W Redundant AC power supply, CRPS
Total Output Power and Input
• 1000W with Input 100 - 120Vac
• 1980W with Input 220 - 230Vac
• 1800W with Input 200 - 220Vac
• 2000W with Input 200 - 240Vac
• 2000W with Input 230 - 240Vac
AC Input Frequency
• 50-60Hz
+12V
• Max: 165A / Min: 0A (220Vac - 230Vac)
• Max: 150A / Min: 0A (200Vac - 220Vac)
• Max: 166.7A / Min: 0A (200Vac - 240Vac)(for UL/cUL only)
• Max: 166.7A / Min: 0A (230Vac - 240Vac)
• Max: 83.3A / Min: 0A (100Vac - 120Vac)
12V sb
• Max: 2.1A / Min: 0A
Certification
• 80 PLUS Titanium Level Certified
Front Panel Buttons
• Power On/Off button
• System Reset button
• UID button
LEDs
• HDD activity LED
• 1x Network Activity LED
• Power LED
• System Information LED
• UID LED

Images

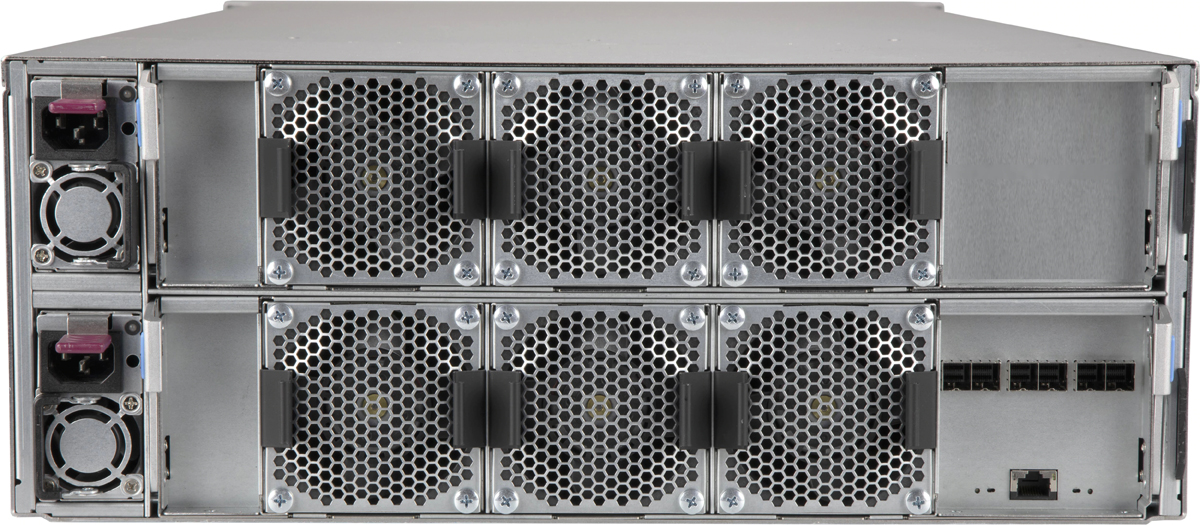

Single-Path Storage Enclosure

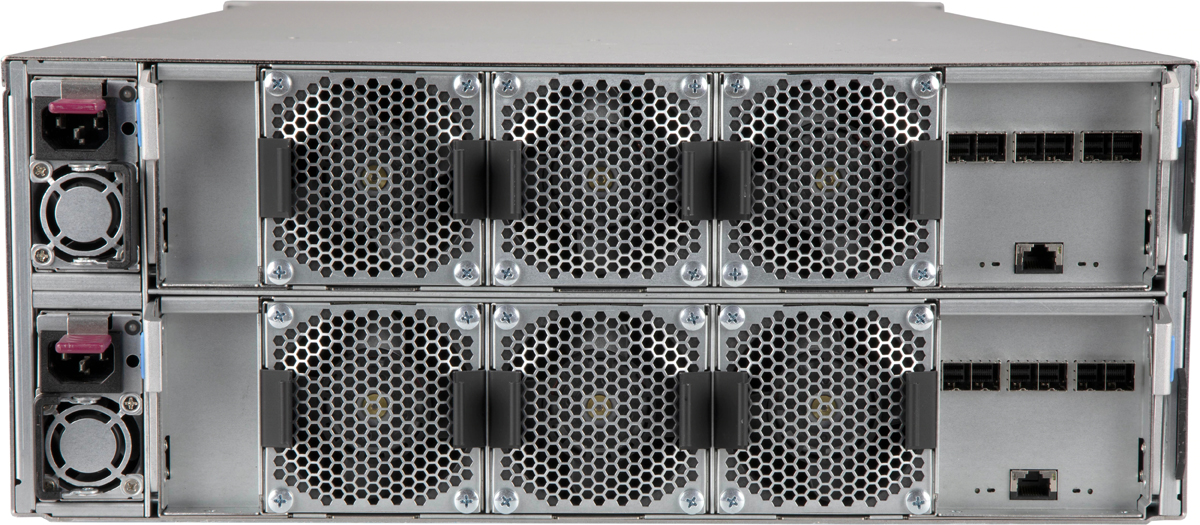

Dual-Path Storage Enclosure
