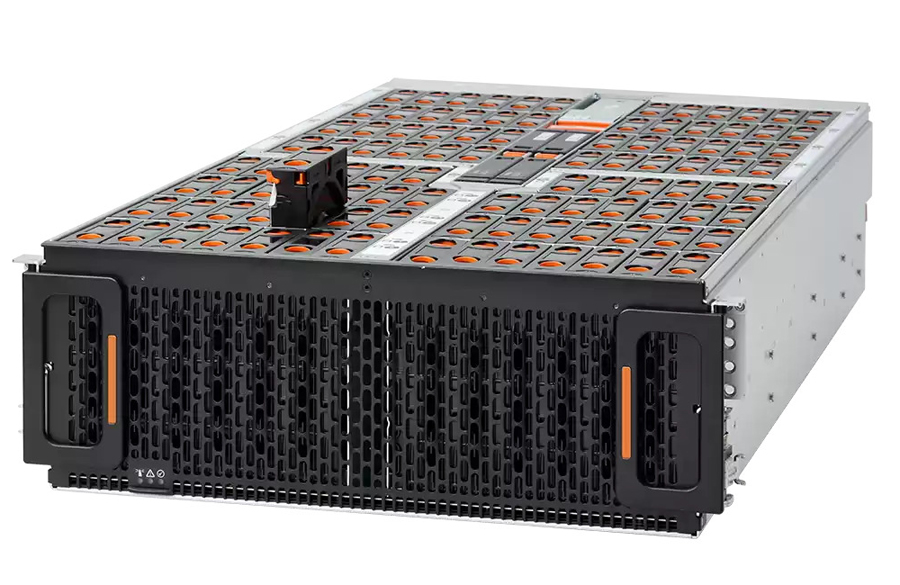

Western Digital Ultrastar Data102 Hybrid Storage Platform



  • Up to 2.44PB1 of raw capacity in a 4U Enclosure
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Innovative IsoVibe™ and ArcticFlow™ technologies improve performance and cooling
  • TAA compliant models available

Features

The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems, delivering high density and the flexibility to balance performance with cost.

The Ultrastar Data102 provides up to 2.44PB1 of raw storage using 24TB CMR HDDs in a compact and efficient form factor. Western Digital HelioSeal® drives ensure cool running, quiet operation and high reliability.


  • Up to 102 Ultrastar HDDs (SAS or SATA)
  • Up to 2.44PB1 of raw capacity in 4U using 22TB CMR HDDs
  • Up to 4 units may be daisy-chained for a total raw capacity of 9.76PB
  • Dual-port SAS for high availability or single-port SATA for low cost
  • 4 rack units height, 1047mm depth
  • Up to 12 x 12Gb/s SAS3 host connections
  • Enterprise-grade redundant and hot-swappable PSUs, IO Modules and fans
  • Innovative IsoVibe technology ensures maximum performance even in heavy workloads
  • Improved cooling from innovative ArcticFlow technology
  • Rack-mounted top cover for quick and easy service

Resource Manager

Resource Manager Standard Edition is an in-band monitoring and management application for Western Digital hybrid storage platforms. It runs on the host operating system (Windows® or Linux®), using a RESTful interface to present a real-time status of the platform's storage health and management controls to the browser in the form of an intuitive GUI.

Highlights

  • Multiple JBOD support
  • Multiple Broadcom® MegaRAID® or HBA support*
  • Virtual presence view with components & sensor status
  • Drive monitoring & LED management
  • Zoning configuration (custom & predefined)
  • Alerts & notifications
Download Datasheet

* Only supported Broadcom MegaRAID controllers or HBAs.










1 As used for storage capacity, 1GB = 1 billion bytes, 1TB = 1 trillion bytes, and 1PB = 1 quadrillion bytes. Actual user capacity may be less depending on operating environment.


Technical Specifications

General

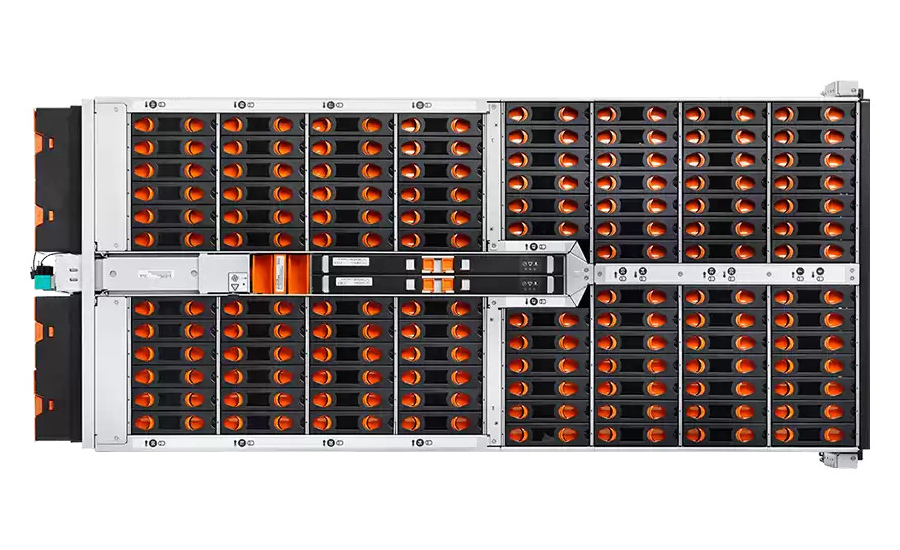

Max Drives • 102 x 3.5" drive bays
Interface • 12Gb/s SAS
• 6Gb/s SATA
Available Capacities • HDD up to 24TB CMR

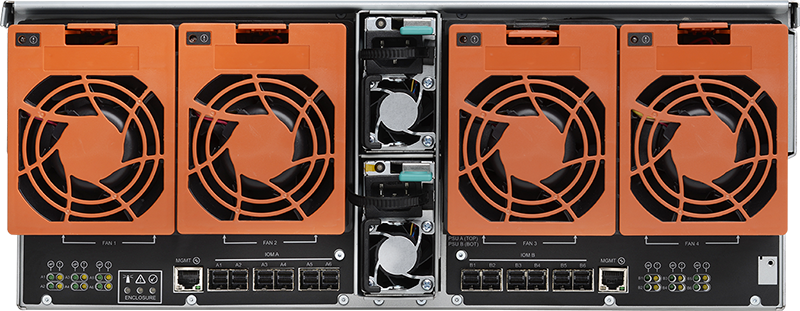

Host Interface • Dual redundant I/O Modules (IOM)
• 6 Mini-SAS HD ports per IOM
Management • SCSI Enclosure Services
• Redfish (out of band, via RJ45)
LED Indicators • Front/Rear: Power, ID, Fault
• Drive: Activity, Fault

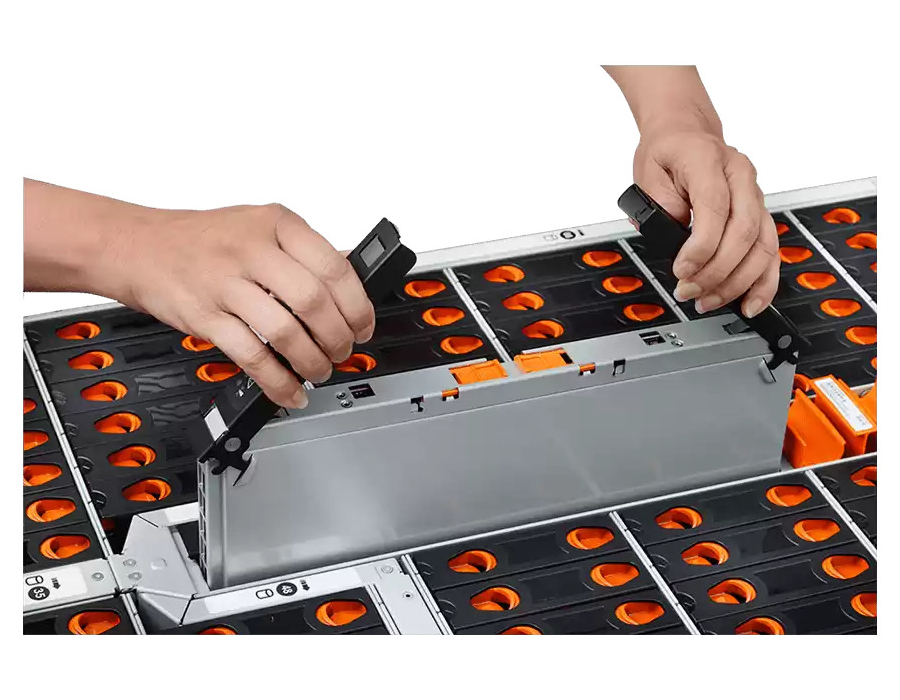

Serviceability • Cable-free hot-swappable IOM, power supply, fans, and drives
Power and Cooling: Operating

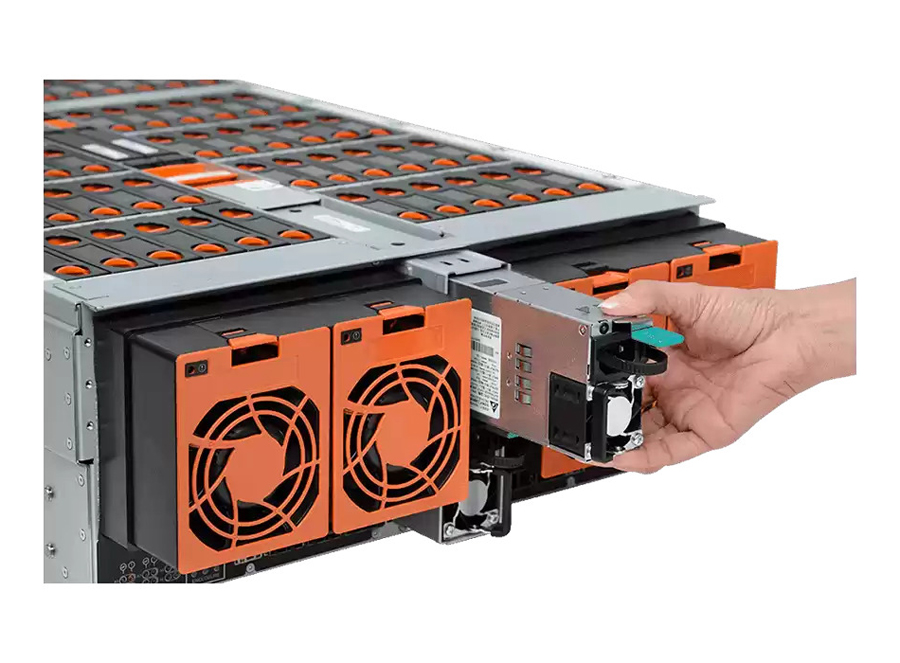

Power Characteristics • Dual 1800W, 80+ Platinum
• 200-240V AC input, auto ranging, 50-60Hz

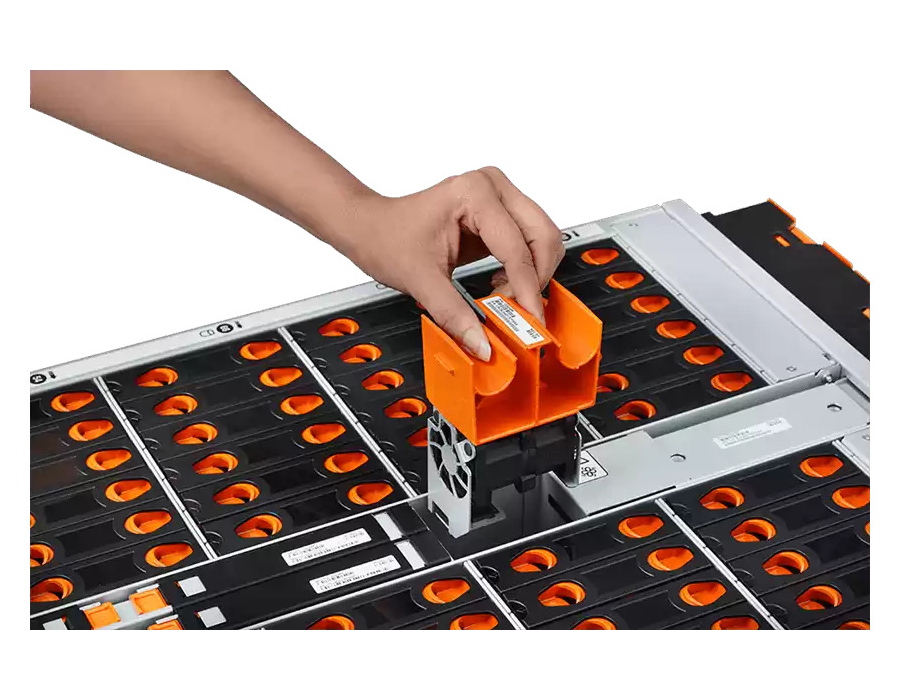

Cooling Fans • 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
• 1 IO module fan
• Dual PSUs with built-in fans
Physical Dimensions
Rack Size Height x Width x Depth mm (in) • Height: 175mm (6.89")
• Width: 447mm (17.61")
• Depth: 1047mm (41.25")
Rack Space Requirements (rack units) • Max of 1197mm (47.13") w/ dual CMA
Environmental
Temperature Range Operating
• 5° to 35°C
Non-Operating
• -40° to 70°C
Humidity • 5 to 85% relative humidity
Sound Power • < 7.2Bels @ 23±2°C
Operating Altitude • -300m to 3048m (-984 ft to 10,000 ft)

1 As used for storage capacity, 1GB = 1 billion bytes, 1TB = 1 trillion bytes, and 1PB = 1 quadrillion bytes. Actual user capacity may be less depending on operating environment.

Images

Western Digital Ultrastar Data102 Models Comparison

P/N

Description

Drive Family

Interface

Security

Drive Capacity (TB)

Total Capacity (TB)

RFQ

Fully populated with 102 Drives. Each with 22TB, for a total capacity of 2244TB

1ES2061

Western Digital Data102 HC570 2244TB nTAA He SAS 512E SE

London

SAS

SAS

22

2244

Request Quote

1ES2186

Western Digital Data102 HC570 2244TB nTAA He SAS 512E TCG

London

SAS

SAS-TCG

22

2244

Request Quote

1ES2191

Western Digital Data102 HC570 2244TB nTAA He SATA 512E SE

London

SATA

SATA

22

2244

Request Quote

1ES2192

Western Digital Data102 HC570 2244TB nTAA He SATA 512E SED

London

SATA

SATA-SED

22

2244

Request Quote

Fully populated with 102 Drives. Each with 20TB, for a total capacity of 2040TB

1ES2155

Western Digital Data102 HC560 2040TB nTAA He SAS 512E SE

Paris

SAS

SAS

20

2040

Request Quote

1ES2153

Western Digital Data102 HC560 2040TB nTAA He SAS 512E TCG

Paris

SAS

SAS-TCG

20

2040

Request Quote

1ES2151

Western Digital Data102 HC560 2040TB nTAA He SATA 512E SE

Paris

SATA

SATA

20

2040

Request Quote

1ES2152

Western Digital Data102 HC560 2040TB nTAA He SATA 512E SED

Paris

SATA

SATA-SED

20

2040

Request Quote

Fully populated with 102 Drives. Each with 18TB, for a total capacity of 1836TB

1ES1885

Western Digital Data102 HC550 1836TB nTAA He SAS 512E SE

Paris

SAS

SAS

18

1836

Request Quote

1ES1846

Western Digital Data102 HC550 1836TB nTAA He SAS 512E TCG

Paris

SAS

SAS-TCG

18

1836

Request Quote

1ES1847

Western Digital Data102 HC550 1836TB nTAA He SAS 512E TCG-FIPS

Paris

SAS

SAS-TCG+FIPS

18

1836

Request Quote

1ES1851

Western Digital Data102 HC550 1836TB nTAA He SATA 512E SE

Paris

SATA

SATA

18

1836

Request Quote

1ES1852

Western Digital Data102 HC550 1836TB nTAA He SATA 512E SED

Paris

SATA

SATA-SED

18

1836

Request Quote



Fully populated models, each with 16TB, 14TB, 12TB and 10TB; for a total capacity of 1632TB, 1428TB, 1224TB and 1020TB respectively are also available. Please contact sales for a Quote
