Western Digital Ultrastar Data60 Hybrid Storage Platform



  • Up to 1.44PB1 of raw capacity in a 4U Enclosure
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Innovative IsoVibe™ and ArcticFlow™ technologies improve performance and cooling
  • TAA compliant models available

Features

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems, delivering high density and the flexibility to balance performance with cost.

The Ultrastar Data60 provides up to 1.44PB1 of raw storage using 24TB CMR HDDs in a compact and efficient form factor. Western Digital HelioSeal® drives ensure cool running, quiet operation and high reliability.


  • Up to 60 Ultrastar HDDs (SAS or SATA)
  • Up to 1.44PB1 of raw capacity in 4U with 24TB CMR HDDs
  • Up to 4 units may be daisy-chained for a total raw capacity of 5.76PB
  • Dual-port SAS for high availability or single-port SATA for low cost
  • 4 rack units height, 712mm depth
  • Up to 12 x 12Gb/s SAS3 host connections
  • Enterprise-grade redundant and hot-swappable PSUs, IO Modules and fans
  • Innovative IsoVibe technology ensures maximum performance even in heavy workloads
  • Improved cooling from innovative ArcticFlow technology

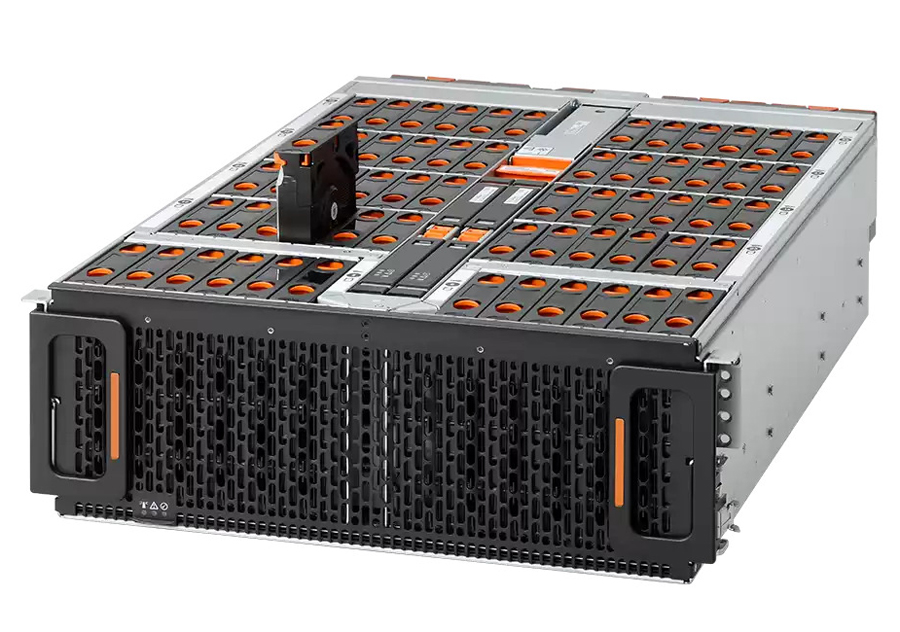

  • Rack-mounted top cover for quick and easy service

Resource Manager

Resource Manager Standard Edition is an in-band monitoring and management application for Western Digital hybrid storage platforms. It runs on the host operating system (Windows® or Linux®), using a RESTful interface to present a real-time status of the platform's storage health and management controls to the browser in the form of an intuitive GUI.

Highlights

  • Multiple JBOD support
  • Multiple Broadcom® MegaRAID® or HBA support*
  • Virtual presence view with components & sensor status
  • Drive monitoring & LED management
  • Zoning configuration (custom & predefined)
  • Alerts & notifications
Download Datasheet

* Only supported Broadcom MegaRAID controllers or HBAs.










1 As used for storage capacity, 1GB = 1 billion bytes, 1TB = 1 trillion bytes, and 1PB = 1 quadrillion bytes. Actual user capacity may be less depending on operating environment.


Technical Specifications

General
Max Drives • 60 x 3.5" drive bays
Interface • 12Gb/s SAS
• 6Gb/s SATA
Available Capacities • HDD up to 24TB CMR
Host Interface • Dual redundant I/O Modules (IOM)
• 6 Mini-SAS HD ports per IOM
Management • SCSI Enclosure Services
• Redfish (out of band, via RJ45)
LED Indicators • Front/Rear: Power, ID, Fault
• Drive: Activity, Fault

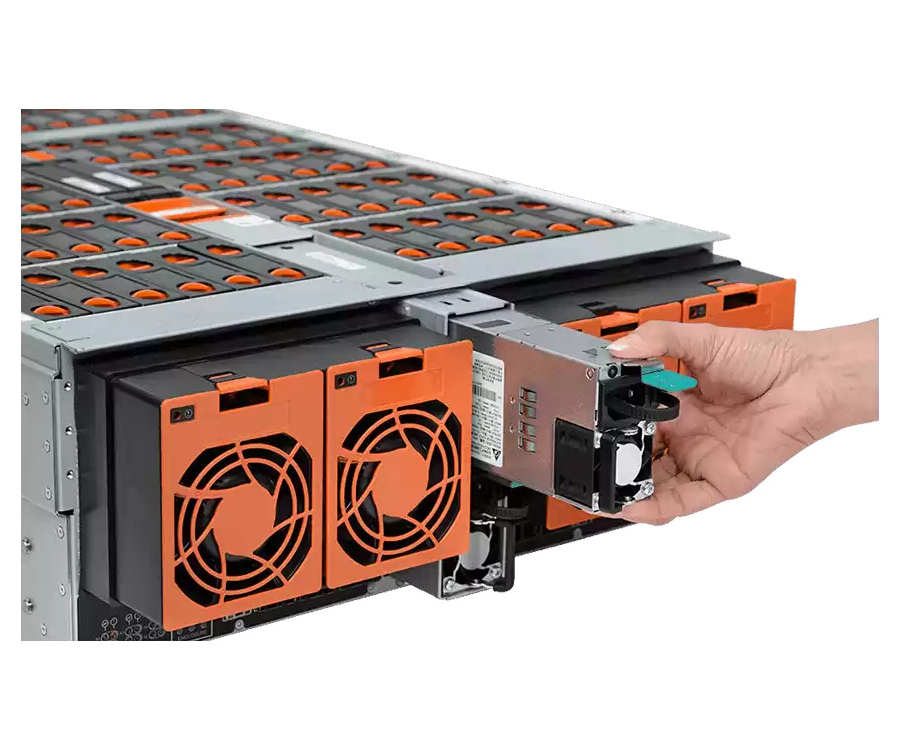

Serviceability • Cable-free hot-swappable IOM, power supply, fans, and drives
Power and Cooling: Operating
Power Characteristics • Dual 1800W, 80+ Platinum
• 200-240V AC input, auto ranging, 50-60Hz

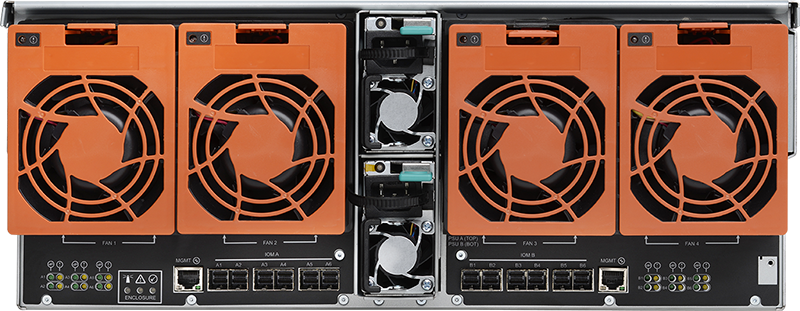

Cooling Fans • 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
• 1 IO module fan
• Dual PSUs with built-in fans
Physical Dimensions
Rack Size Height x Width x Depth mm (in) • Height: 175mm (6.89")
• Width: 447mm (17.61")
• Depth: 712mm (28.03")
Rack Space Requirements (rack units) • Max of 890mm (35.04") w/ dual CMA
Environmental
Temperature Range Operating
• 5° to 35°C
Non-Operating
• -40° to 70°C
Humidity • 5 to 85% relative humidity
Sound Power • < 7.2Bels @ 23±2°C
Operating Altitude • -300m to 3048m (-984 ft to 10,000 ft)

1 As used for storage capacity, 1GB = 1 billion bytes, 1TB = 1 trillion bytes, and 1PB = 1 quadrillion bytes. Actual user capacity may be less depending on operating environment.

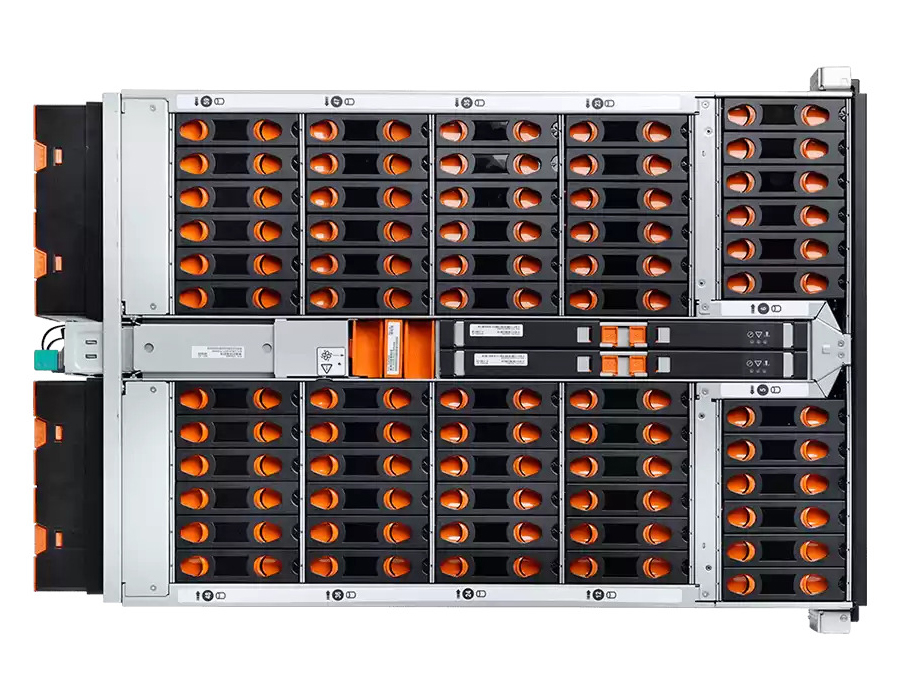

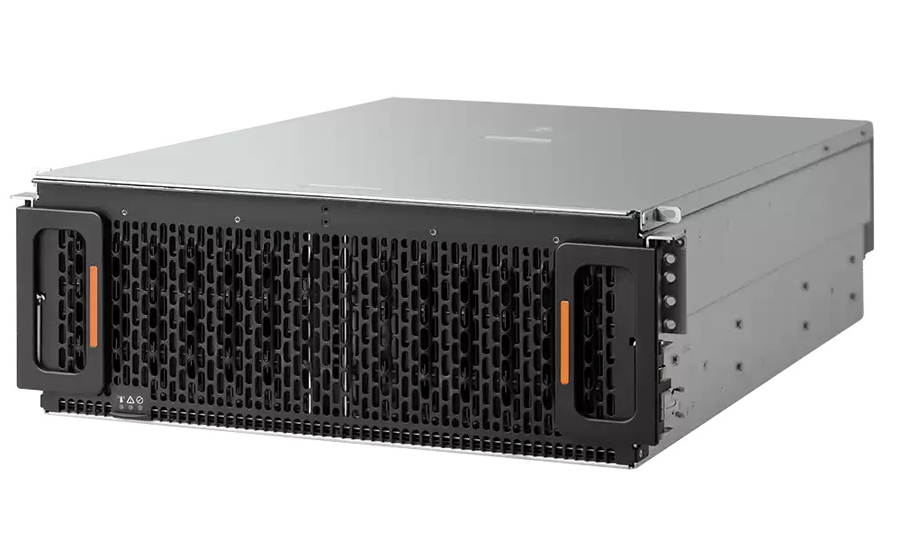

Images

Western Digital Ultrastar Data60 Models Comparison

P/N

Description

Drive Family

Interface

Security

Drive Capacity (TB)

Total Capacity (TB)

RFQ

Fully populated with 60 Drives. Each with 22TB, for a total capacity of 1320TB

1ES2063

Western Digital Data60 HC570 1320TB nTAA He SAS 512E SE

London

SAS

SAS

22

1320

Request Quote

1ES2198

Western Digital Data60 HC570 1320TB nTAA He SAS 512E TCG

London

SAS

SAS-TCG

22

1320

Request Quote

1ES2203

Western Digital Data60 HC570 1320TB nTAA He SATA 512E SE

London

SATA

SATA

22

1320

Request Quote

1ES2204

Western Digital Data60 HC570 1320TB nTAA He SATA 512E SED

London

SATA

SATA-SED

22

1320

Request Quote

Fully populated with 60 Drives. Each with 20TB, for a total capacity of 1200TB

1ES2143

Western Digital Data60 HC560 1200TB nTAA He SAS 512E SE

Paris

SAS

SAS

20

1200

Request Quote

1ES2144

Western Digital Data60 HC560 1200TB nTAA He SAS 512E TCG

Paris

SAS

SAS-TCG

20

1200

Request Quote

1ES2135

Western Digital Data60 HC560 1200TB nTAA He SATA 512E SE

Paris

SATA

SATA

20

1200

Request Quote

1ES2136

Western Digital Data60 HC560 1200TB nTAA He SATA 512E SED

Paris

SATA

SATA-SED

20

1200

Request Quote

Fully populated with 60 Drives. Each with 18TB, for a total capacity of 1080TB

1ES1865

Western Digital Data60 HC550 1080TB nTAA He SAS 512E SE

Paris

SAS

SAS

18

1080

Request Quote

1ES1866

Western Digital Data60 HC550 1080TB nTAA He SAS 512E TCG

Paris

SAS

SAS-TCG

18

1080

Request Quote

1ES1867

Western Digital Data60 HC550 1080TB nTAA He SAS 512E TCG-FIPS

Paris

SAS

SAS-TCG+FIPS

18

1080

Request Quote

1ES1871

Western Digital Data60 HC550 1080TB nTAA He SATA 512E SE

Paris

SATA

SATA

18

1080

Request Quote

1ES1872

Western Digital Data60 HC550 1080TB nTAA He SATA 512E SED

Paris

SATA

SATA-SED

18

1080

Request Quote



Fully populated models, each with 16TB, 14TB, 12TB and 10TB; for a total capacity of 960TB, 840TB, 720TB and 600TB respectively are also available. Please contact sales for a Quote
