Colfax Storage

Storage Servers

Model	CPU	Storage	Other Features
CX1260s-S12-X7	Dual Intel® Xeon® Scalable Processor	12 Hot-Swap 3.5" HDDs + 4 Hot-Swap NVMe/SATA Drives	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port
CX2110LPs-S12-X7	Single Intel® Xeon® Scalable Processor	12 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port SAS3 Backplane: SAS3 12Gbps Single Expander Backplane, w/ LSISAS3x28 Expander, Supports 12x 3.5" Drives, with 4x mini-SAS HD Connectors
CX2110LPs-S12-X8	Single 3rd Gen Intel® Xeon® Scalable Processor	12x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3916 HW RAID Controller
CX2110LPs-S12-JBOD-X8	Single 3rd Gen Intel® Xeon® Scalable Processor	12x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3816 HBA
CX2220LPs-S12-X7	Dual Intel® Xeon® Scalable Processor	12 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX2220LPs-S12-JBOD-X7	Dual Intel® Xeon® Scalable Processor	12 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX2220LPs-S12-X8	Dual 3rd Gen Intel® Xeon® Scalable Processor	12x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3916 HW RAID Controller
CX2220LPs-S12-JBOD-X8	Dual 3rd Gen Intel® Xeon® Scalable Processor	12x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3816 HBA
CX2220LPs-S24-X7	Dual Intel® Xeon® Scalable Processor	24 Hot-Swap 2.5" HDDs/SSDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX2220LPs-S24-JBOD-X7	Dual Intel® Xeon® Scalable Processor	24 Hot-Swap 2.5" HDDs/SSDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX3220LPs-S16-X7	Dual Intel® Xeon® Scalable Processor	16 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX3220LPs-S16-JBOD-X7	Dual Intel® Xeon® Scalable Processor	16 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX4110LPs-S36-JBOD-X7	Single Intel® Xeon® Scalable Processor	36 Hot-Swap 3.5" SAS3/SATA3 HDDs + 2 Hot-Swap 2.5" Rear NVMe/SATA SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX4110LPs-S36-X8	Single 3rd Gen Intel® Xeon® Scalable Processor	36x 3.5" Hot-Swap SAS/SATA Drive Bays (24x Front + 12x Rear) + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3908 HW RAID Controller: HW RAID 0, 1, 5, 6, 10, 50, 60 Support
CX4110LPs-S36-JBOD-X8	Single 3rd Gen Intel® Xeon® Scalable Processor	36x 3.5" Hot-Swap SAS/SATA Drive Bays (24x Front + 12x Rear) + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3808 HBA
CX4110LPs-S45-X7	Single Intel® Xeon® Scalable Processor	45 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2 Hot-Swap 2.5" Rear NVMe SSDs	Onboard Dual 1GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX4110LPs-S45-JBOD-X7	Single Intel® Xeon® Scalable Processor	45 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2 Hot-Swap 2.5" Rear NVMe SSDs	Onboard Dual 1GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX4110LPs-S45-X8	Single 3rd Gen Intel® Xeon® Scalable Processor	45x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear) + 2x 2.5" Hot-Swap Gen4 U.2 NVMe Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3908 HW RAID Controller: HW RAID 0, 1, 5, 6, 10, 50, 60 Support
CX4110LPs-S45-JBOD-X8	Single 3rd Gen Intel® Xeon® Scalable Processor	45x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear) + 2x 2.5" Hot-Swap Gen4 U.2 NVMe Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3808 HBA
CX4220LPs-S24-X7	Dual Intel® Xeon® Scalable Processor	24 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX4220LPs-S24-JBOD-X7	Dual Intel® Xeon® Scalable Processor	24 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX4220LPs-S24-X8	Dual 3rd Gen Intel® Xeon® Scalable Processor	24x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3908 HW RAID Controller: HW RAID 0, 1, 5, 6, 10, 50, 60 Support
CX4220LPs-S24-JBOD-X8	Dual 3rd Gen Intel® Xeon® Scalable Processor	24x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3808 HBA
CX4220LPs-S36-X7	Dual Intel® Xeon® Scalable Processor	36 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX4220LPs-S36-JBOD-X7	Dual Intel® Xeon® Scalable Processor	36 Hot-Swap 3.5" SAS3 HDDs + 2 Hot-Swap 2.5" Rear SSDs + 2x PCIe NVMe 3.0 x4 SSDs	Onboard Dual 10GBase-T LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX4220LPs-S36-X8	Dual 3rd Gen Intel® Xeon® Scalable Processor	36x 3.5" Hot-Swap SAS/SATA Drive Bays (24x Front + 12x Rear) + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3908 HW RAID Controller: HW RAID 0, 1, 5, 6, 10, 50, 60 Support
CX4220LPs-S36-JBOD-X8	Dual 3rd Gen Intel® Xeon® Scalable Processor	36x 3.5" Hot-Swap SAS/SATA Drive Bays (24x Front + 12x Rear) + 2x 2.5" Hot-Swap SATA Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3808 HBA
CX4210LPs-S45-X7	Dual Intel® Xeon® Scalable Processor	45 Hot-Swap 3.5" SAS3 HDDs + 6x NVMe SSDs + 2 Hot-Swap 2.5" Rear SSDs	Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX4210LPs-S45-JBOD-X7	Dual Intel® Xeon® Scalable Processor	45 Hot-Swap 3.5" SAS3 HDDs + 6x NVMe SSDs + 2 Hot-Swap 2.5" Rear SSDs	Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX4220LPs-S45-JBOD-X7	Dual Intel® Xeon® Scalable Processor	45 Hot-Swap 3.5" SAS3 HDDs + 6x NVMe SSDs + 2 Hot-Swap 2.5" Rear SSDs	Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3616 SAS3 (12Gbps) Controller
CX4210LPs-S60-X7	Dual Intel® Xeon® Scalable Processor	60 Hot-Swap 3.5" SAS3 HDDs + 6x NVMe SSDs + 2 Hot-Swap 2.5" Rear SSDs	Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3108 SAS3 (12Gbps) Controller; HW RAID 0, 1, 10, 5, 6 Support
CX4210LPs-S60-JBOD-X7	Dual Intel® Xeon® Scalable Processor	60 Hot-Swap 3.5" SAS3 HDDs + 6x NVMe SSDs + 2 Hot-Swap 2.5" Rear SSDs	Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3008 SAS3 (12Gbps) Controller
CX4220LPs-S60-JBOD-X7	Dual Intel® Xeon® Scalable Processor	60 Hot-Swap 3.5" SAS3 HDDs + 6x NVMe SSDs + 2 Hot-Swap 2.5" Rear SSDs	Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3616 SAS3 (12Gbps) Controller
CX4210LPs-S60-(JBOD)-X8	Dual 3rd Gen Intel® Xeon® Scalable Processors	60x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear) + 4x 2.5" Hot-Swap Gen4 U.2 NVMe Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3616 HBA or 3916 RAID Controller Kit
CX4210LPs-S90-(JBOD)-X8	Dual 3rd Gen Intel® Xeon® Scalable Processors	90x 3.5" Hot-Swap SAS/SATA Drive Bays + 2x 2.5" Hot-Swap SATA Drive Bays (Rear) + 4x 2.5" Hot-Swap Gen4 U.2 NVMe Drive Bays (Rear)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port Integrated Broadcom 3616 HBA or 3916 RAID Controller Kit
CX42210LPs-S90-(JBOD)-X8	4U - 2x Nodes Dual 3rd Gen Intel® Xeon® Scalable Processors /Node (Total 4)	45x 3.5" Hot-Swap SAS/SATA Drive Bays /Node (Total 90)	Onboard Dual 10GbE LAN + Dedicated 1GbE RJ45 Management Port /Node Integrated Broadcom 3616 HBA or 3916 RAID Controller Kit

JBODs

Model	Storage	Other Features
CX21220s-JBOD	12 Hot-Swap 3.5" SAS3/SATA3	Single or Dual expanders (12Gb/s)
CX22412s-JBOD	24 Hot-Swap 2.5" SAS3/SATA3	Single or Dual expanders (12Gb/s)
CX31612s-JBOD	16 Hot-Swap 3.5" SAS3/SATA3	Single or Dual expanders (12Gb/s)
CX42412s-JBOD	24 Hot-Swap 3.5" SAS3/SATA3	Single or Dual expanders (12Gb/s)
CX4264-JBOD	44 Hot-Swap 3.5" SAS3/SATA3	Single or Dual expanders (12Gb/s)
CX44512s-JBOD	45 Hot-Swap 3.5" SAS3/SATA3	Single expander (12Gb/s)
CX46012s-JBOD	60 Hot-Swap 3.5" SAS3/SATA3	Single or Dual expanders (12Gb/s)
CX46012s-P12-JBOD	60 Hot-Swap 3.5"/2.5" SAS3/SATA3	Single or Dual path enclosure Single Canister Controller / Two Canister Controllers; 1+1 Redundant for Dual Path Enclosure 6x SAS3.0 IO ports (MiniSAS HD) per Node
CX49012s-E2-JBOD	90 Hot-Swap 3.5" SAS3	Hot-swappable Expanders
CX49012s-P12-JBOD	90 Hot-Swap 3.5"/2.5" SAS3/SATA3	Single or Dual path enclosure Single Canister Controller / Two Canister Controllers; 1+1 Redundant for Dual Path Enclosure 6x SAS3.0 IO Ports (MiniSAS HD/SFF-8644) per Node

NVMe over Fabrics (NVMeOF)

	Model	Storage	Other Features
	CX22450g-S-NVMeOF-JBOF	24x 2.5" NVMe SSDs	3x PCIe Gen3 Expansion Slots per Node Each Node Supports 12x PCIe x4 Drives Western Digital Onyx NVMe Over Fabric Storage Controller Fully Supported iWARP, RoCE v1 and v2 Dual Controllers Architecture
	CX22450g-D-NVMeOF-JBOF	24x 2.5" NVMe SSDs	3x PCIe Gen3 Expansion Slots per Node Each Node Supports 24x PCIe x2 Drives Western Digital Onyx NVMe Over Fabric Storage Controller Fully Supported iWARP, RoCE v1 and v2 Dual Controllers Architecture

Seagate Storage Platforms

Exos CORVAULT

	Model	Storage	Other Features

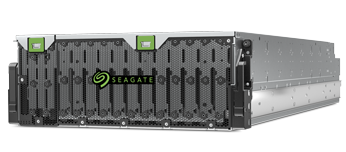

	Exos CORVAULT	106 Hot-Swap 3.5" SAS3	Autonomous Drive Regeneration (ADR) Redundant active-active controllers powered by the 6th gen VelosCT ASIC and ADAPT erasure code data protection software dramatically streamline overhead, throughput, management and recovery.

All Flash, Hybrid & Disk Arrays

Model	Storage	Other Features

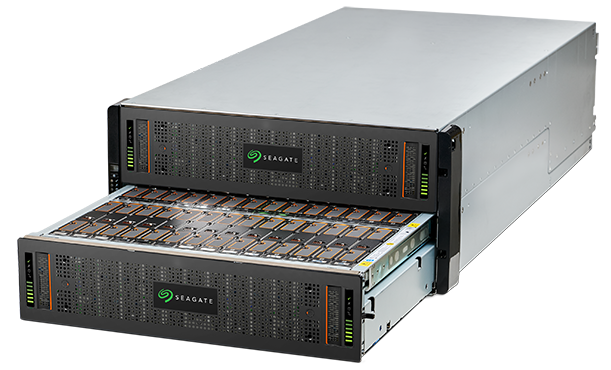

Exos X 5U84	84 Hot-Swap 3.5" SAS3	Efficiently manage hot and cold data with real-time data tiering feature option Deliver unfettered data access with dual redundant controllers capable of achieving up to 7GB/s sequential read, 5.5GB/s sequential write performance

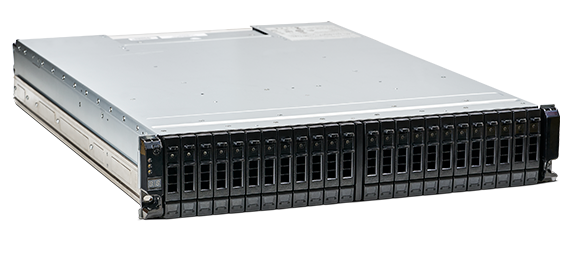

Exos X 2U24	24 Hot-Swap 3.5" SAS3	Efficiently manage hot and cold data with real-time data tiering feature option Deliver unfettered data access with dual redundant controllers capable of achieving up to 7GB/s sequential read, 5.5GB/s sequential write performance

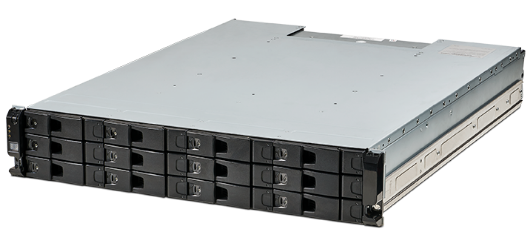

Exos X 2U12	12 Hot-Swap 3.5" SAS3	Deliver data fast with 3.5GB/s throughput in an all-HDD configuration Rebuild drives faster than ever and reduce downtime with Seagate ADAPT data protection technology

Expansion Shelves & JBODs

Model	Storage	Other Features

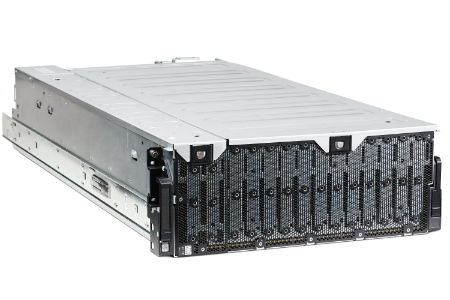

Exos E 4U106	106 Hot-Swap 3.5" SAS3/SATA3	Includes four ×4 mini-SAS HD I/O connectors Redundant Path (SAS only)

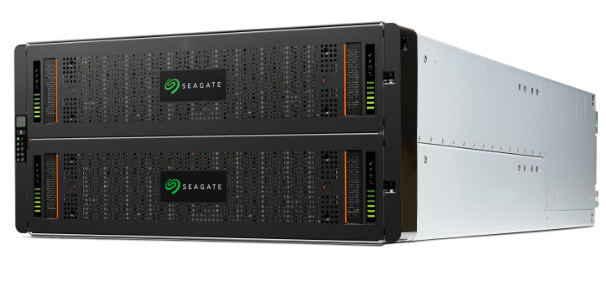

Exos E 5U84	84 Hot-Swap 3.5" SAS3	Three universal ×4 12Gb/s mini-SAS connectors (SFF-8644) per I/O module Dual host-connected enclosure with a maximum expanded configuration of 4 enclosures for a total of 336 drives

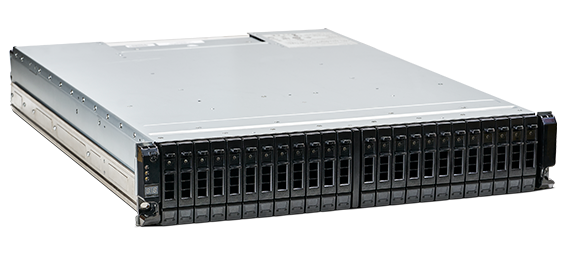

Exos E 2U24	24 Hot-Swap 3.5" SAS3	Three universal ×4 12Gb/s mini-SAS connectors (SFF-8644) per I/O module Dual host-connected enclosure with a maximum expanded configuration of 16 enclosures for a total of 336 drives

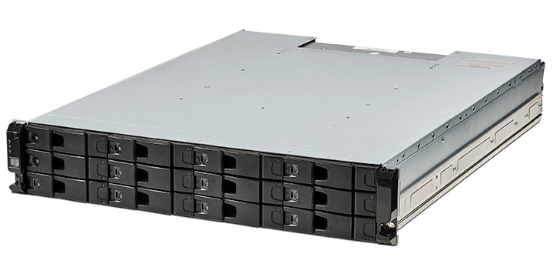

Exos E 2U12	12 Hot-Swap 3.5" SAS3/SATA3	Three universal ×4 12Gb/s mini-SAS connectors (SFF-8644) per I/O module Dual host-connected enclosure with a maximum expanded configuration of 12 enclosures for a total of 144 drives

Compute & Storage Convergence Platforms

Model	Storage	Other Features
Exos AP 5U84	84 Hot-Swap 3.5" SAS3	One or two AP-BV-1 Controllers AMD SP3 7292P EPYC CPU (8,12,16 Core) / Controller Dual 12G x4 Mini-SAS HD External Expansion Ports
Exos AP 2U24	24 Hot-Swap 2.5" SAS3/SATA3 SSDs	One or two AP-BV-1 Controllers AMD SP3 7292P EPYC CPU (8,12,16 Core) / Controller Dual 12G x4 Mini-SAS HD External Expansion Ports
Exos AP 2U12	12 Hot-Swap 3.5"/2.5" SAS3/SATA3 HDDs/SSDs	One or two AP-BV-1 Controllers AMD SP3 7292P EPYC CPU (8,12,16 Core) / Controller Dual 12G x4 Mini-SAS HD External Expansion Ports

Western Digital Storage Platforms

Ultrastar Platform Innovations
Engineering innovations that deliver real-world benefits:

Reliability
Better cooling, lower fan speed, less noise
Reduced power consumption, lower utility bills

Learn more about the Ultrastar Platform Innovations

	Model	Storage	Other Features

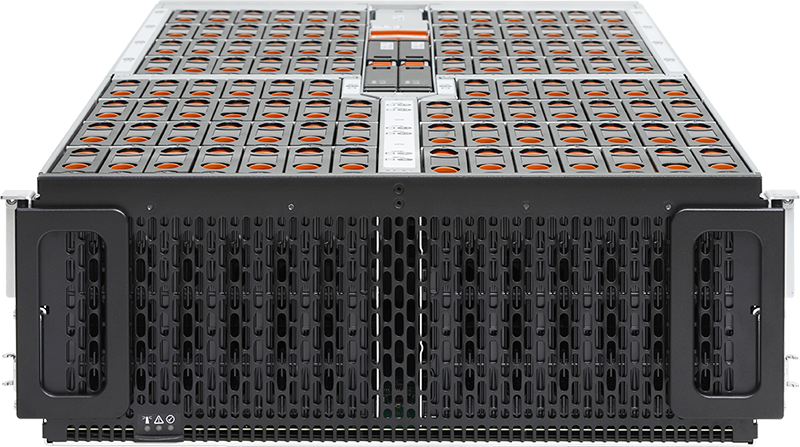

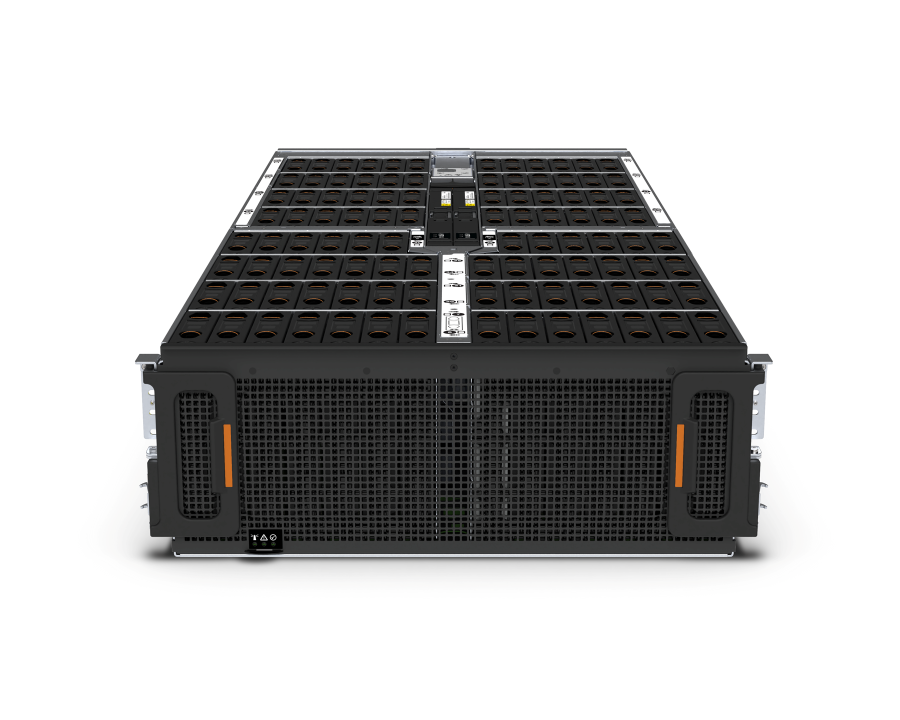

	Ultrastar Data102	102 Ultrastar DC HDDs (SAS or SATA)	HDD-SSD hybrid capability Innovative IsoVibe™ and ArcticFlow™ technologies improve performance and cooling

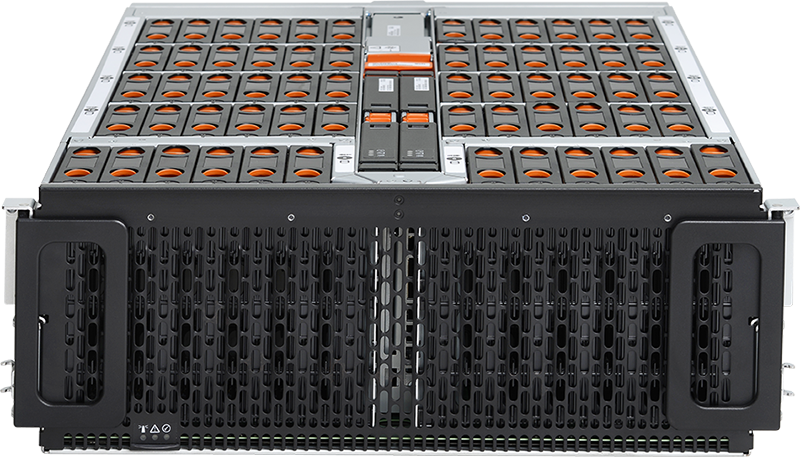

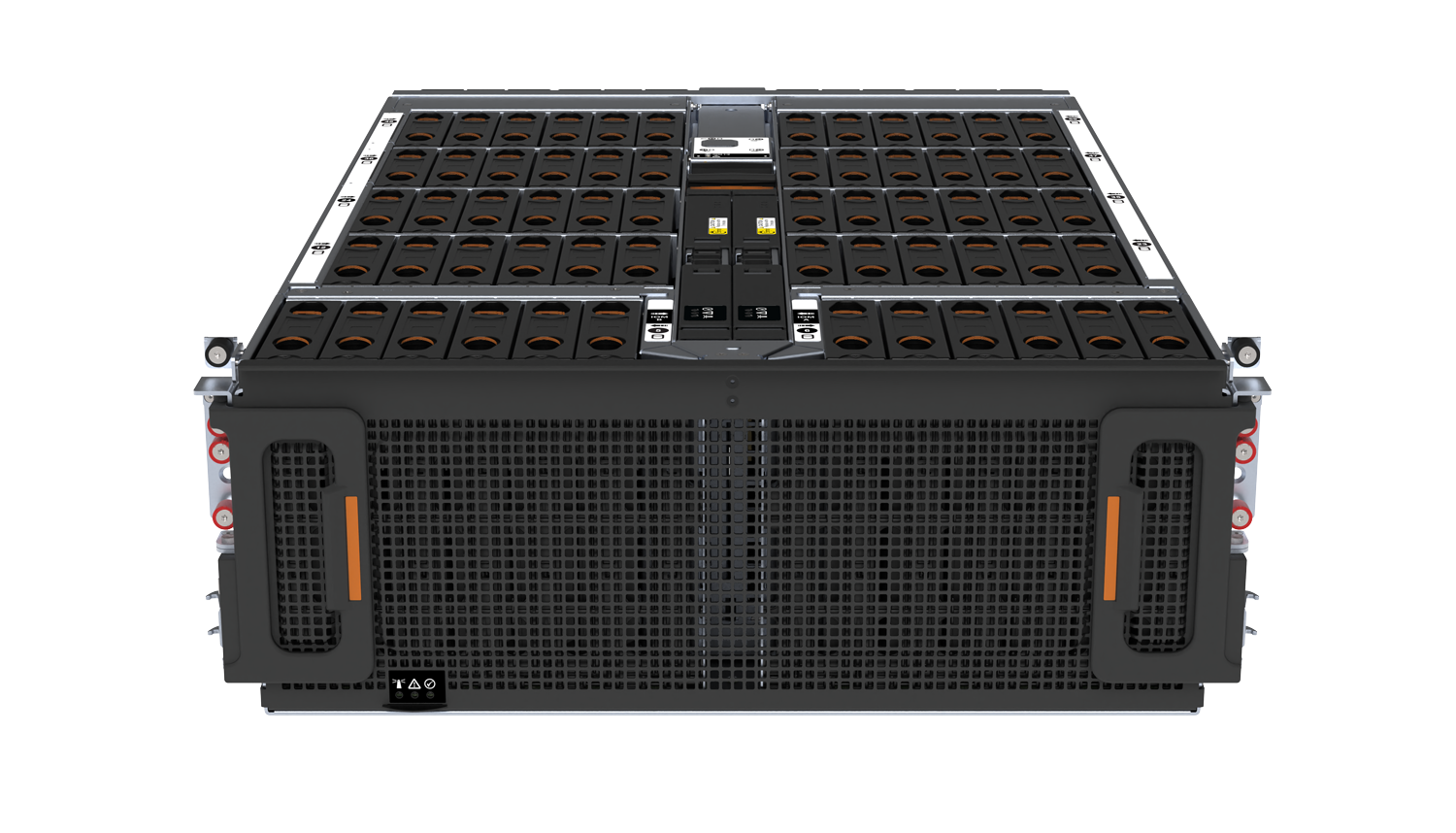

	Ultrastar Data60	60 Ultrastar DC HDDs (SAS or SATA)	HDD-SSD hybrid capability Innovative IsoVibe™ and ArcticFlow™ technologies improve performance and cooling

The Performance of NVMe Flash in Shared Storage

	Model	Storage	Other Features

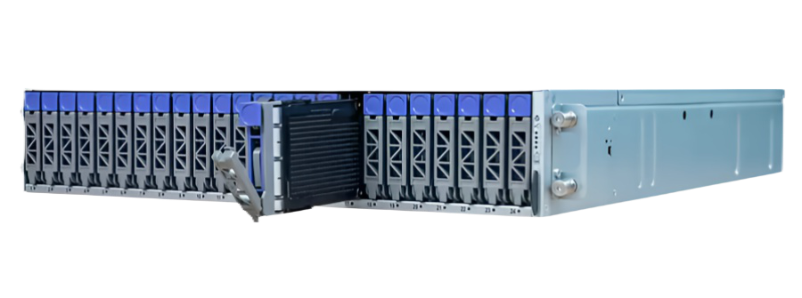

	OpenFlex Data24 NVMe-oF Storage Platform	24 Dual port high-performance NVMe SSDs	High availability with dual IOM Bandwidth match between SSDs (Storage) and I/O (Network) – No oversubscription RESTful API support for simplified management
