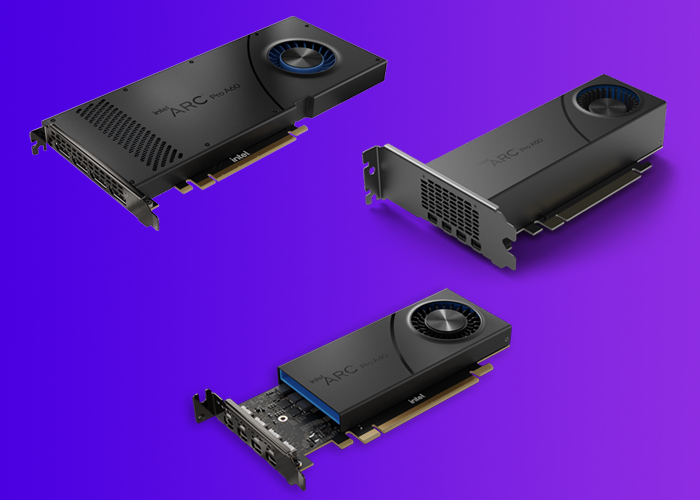

Intel® Arc™ Pro A-Series GPUs for Workstations

With built-in ray tracing hardware, graphics acceleration, and machine learning capabilities, Intel® Arc™ Pro A-Series workstation GPUs unites fluid viewports, the latest in visual technologies, and rich content creation.

Now Available with Colfax Workstations

Inquire

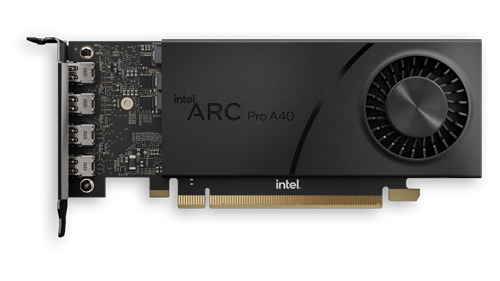

Intel® Arc™ Pro A40 GPU

Intel® Arc™ Pro A50 GPU

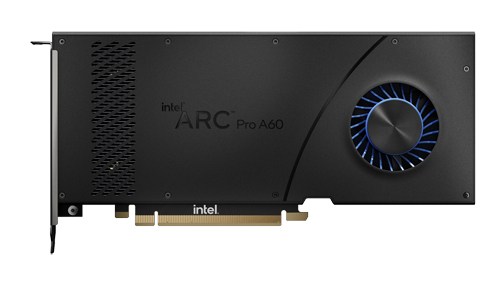

Intel® Arc™ Pro A60 GPU

Datasheet

Download Datasheet

Download Datasheet

Download Datasheet

Form Factor

Low-Profile, Single Slot

Low-Profile, Dual Slot

Standard, Single Slot

Peak FP32 Throughput1

Up to 5.02 TFLOPS at Single Precision

Up to 5.02 TFLOPS at Single Precision

Up to 10.04 TFLOPS at Single Precision

Xe-cores

8

8

16

Ray Tracing Units

8

8

16

Memory

6GB GDDR6

6GB GDDR6

12GB GDDR6

Display Outputs

4x mini-DP 2.0 Ready with Audio & Dolby Vision Support

4x mini-DP 2.0 Ready with Audio & Dolby Vision Support

4x DP 2.0 Ready with Audio & Dolby Vision Support

Total Board Power (TBP)

50W Peak Power

75W Peak Power

130W Peak Power

1 As defined by maximum clock frequency and peak single precision operations throughput. Performance may vary.

GPU Specifications

Execution Units

128

128

256

Xe-cores

8

8

16

Render Slices

2

2

4

Ray Tracing Units

8

8

16

Intel® Xe Matrix Extensions (Intel® XMX) Engines

128

128

256

Xe Vector Engines

128

128

256

Graphics Base Clock

1550 MHz

2050 MHz

2000 MHz

TBP

50 W

75 W

130 W

PCI Express Configurations‡

PCIe 4.0 x 16 (x8 Electrical) with 3.0 Backwards Compatibility

PCIe 4.0 x 16 (x8 Electrical) with 3.0 Backwards Compatibility

PCIe 4.0 x16

Memory Specifications

Memory Size

6 GB

6 GB

12 GB

Memory Type

GDDR6

GDDR6

GDDR6

Graphics Memory Interface

96 bit

96 bit

192 bit

Graphics Memory Bandwidth

192 GB/s

192 GB/s

384 GB/s

Graphics Memory Speed

16 Gbps

16 Gbps

16 Gbps

I/O Specifications

# of Displays Supported

4

4

4

Graphics Output

DP 1.4 w/ HDR, DP 2.0 up to UHBR 10**

DP 1.4 w/ HDR, DP 2.0 up to UHBR 10**

DP 2.0 up to UHBR 10**

Max Resolution (HDMI)

4096 x 2160@60Hz

4096 x 2160@60Hz

Max Resolution (DP)

7680 x 4320@60Hz

7680 x 4320@60Hz

7680 x 4320@60Hz

Features

H.264 Hardware Encode/Decode

Yes

Yes

Yes

H.265 (HEVC) Hardware Encode/Decode

Yes

Yes

Yes

AV1 Encode/Decode

Yes

Yes

Yes

VP9 Bitstream & Decoding

Yes

Yes

Yes

Supported Technologies

Ray Tracing

Yes

Yes

Yes

Variable Rate Shading (VRS)

Yes

Yes

Yes

oneAPI Support

Yes

Yes

Yes

OpenVINO™ Support

Yes

Yes

Yes

DirectX* Support

DirectX 12 Ultimate

DirectX 12 Ultimate

DirectX 12 Ultimate

Vulkan* Support

1.3

1.3

1.3

OpenGL* Support

4.6

4.6

4.6

OpenCL* Support

3.0

3.0

3.0

Multi-Format Codec Engines

2

Adaptive Sync

Yes

Intel® Deep Link Technologies

Intel® Deep Link Hyper Compute

Yes

Yes

Yes

Intel® Deep Link Hyper Encode

Yes

Yes

Yes

Intel® Deep Link Stream Assist

Yes

Yes

Yes

Software Certifications

Intel has worked hand-in-hand with hundreds of software companies over the years, and this unmatched experience goes into the Intel® Arc™ Pro A-series graphics cards.

Click here for the latest ISV certification information

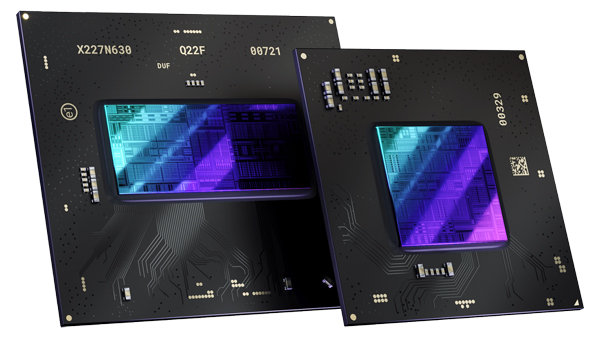

Ray Tracing

Graphics cards need to do more than simply push pixels to displays, they also need to accelerate the creation of beautiful images. Ray tracing hardware technology built into Intel® Arc™ Pro A-series graphics allows your compatible software to start to explore these new pro workflows.


Pro Resolutions Supported

Intel® Arc™ Pro A-Series GPUs support Ultra High-Definition (UHD) and ultrawide UHD display resolutions with HDR enabled..

Ultra High-Definition 60 Hz
7680x4320

Ultrawide High-Definition 240 Hz
5120x1440

Ultra High-Definition 120 Hz
5120x2880

Ultra High-Definition 60 Hz
3820x2160

Full AV1 Support

Full AV1 hardware acceleration. Get faster hardware encoding with Intel® Arc™ graphics compared to software encoding.

Making AI Attainable

This GPU range includes a wide selection of great technology, including support for your compatible AI tools with built-in dedicated AI acceleration where you need it.
