Colfax ProEdge™ CUX2600 Workstation

Features

Asus ProArt Z890-CREATOR WIFI (Learn More)
Asus ProArt PA602 (Learn More)
Intel® Core™ Ultra Processor (Series 2) (Product Brief) (Click here for Specifications and Comparison)
Intel® Z890 Chipset (Chipset Brief)
Asus ProArt LC 360 (Learn More)
4x DIMMs Supports DDR5
Expansion Slots:
- Up to 2 Asus ProArt GeForce RTX™ 5090 (Learn More)
- 1 PCIe 4.0 x16 Slot (x4 mode)
2x 3.5"/2.5" SATA HDDs
4x M.2 NVMe SSDs (1 PCIe 5.0 x4 and 3 PCIe 4.0 x4)
1x 10GbE and 2.5GbE LAN Port
Graphics
- 1x HDMI® Port¹
- 2x Intel® Thunderbolt™ 5 Ports (USB Type-C®) supports DisplayPort and Thunderbolt™ Video Outputs²
- 1x Intel® Thunderbolt™ 4 Port (USB Type-C®) supports DisplayPort and Thunderbolt™ Video Outputs³
Wireless and Bluetooth
- Wi-Fi 7⁴
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band⁵
- Bluetooth v5.4⁶
Power Supply
Choice of:
- ASUS Pro WS 2200W Platinum PSU⁷ (Learn More)
- ASUS Pro WS 3000W Platinum PSU⁷ (Learn More)

¹ Supports 4K@60Hz as specified in HDMI 2.1
² Supports up to 2x 8K@60HZ (DSC mode) + 1x 4K@60HZ monitors with DP in. Supports up to 1x 8K@60HZ (DSC mode) + 1x 4K@60HZ monitors without DP in. For resolution support please check DisplayPort 2.1 specs. Thunderbolt™ 5 bandwidth is limited by DisplayPort 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.
³ In Thunderbolt™ mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
⁴ Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
⁵ Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries
⁶ The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
⁷ Supports 220V only

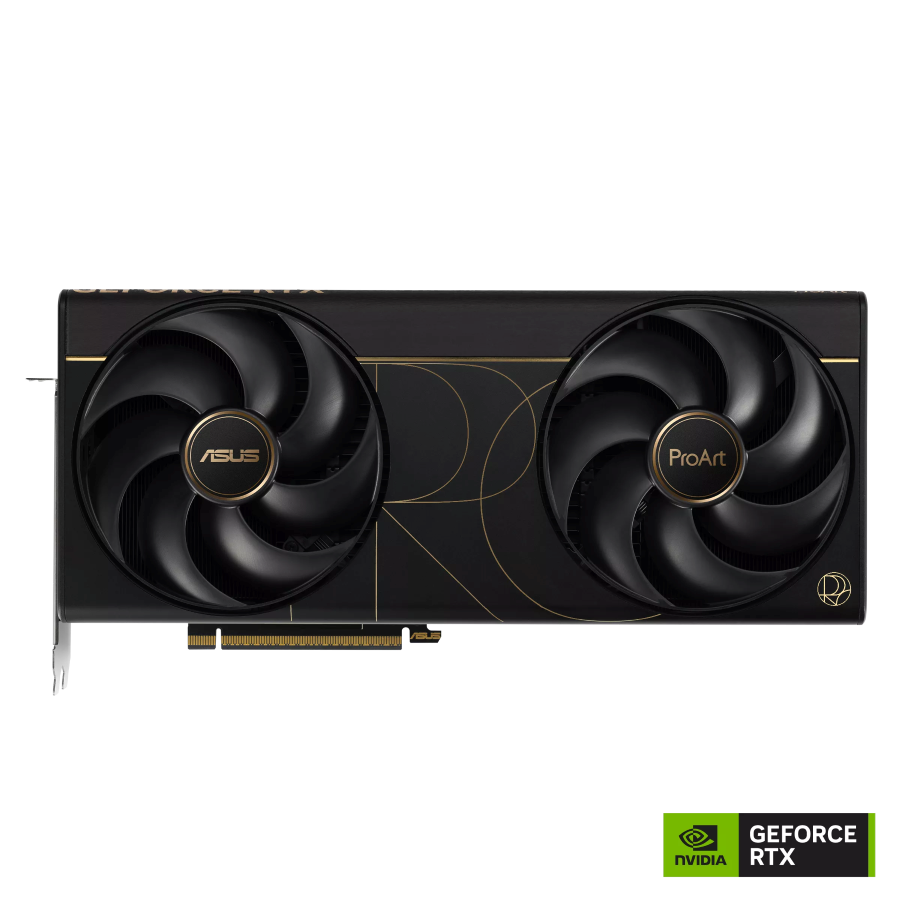

Asus ProArt GeForce RTX™ 5090 OC Edition

GPU Architecture: NVIDIA Blackwell Architecture
GPU Model: NVIDIA GeForce RTX 5090
Video Memory: 32GB GDDR7
CUDA Cores: 21,760
AI Performance: Up to 3,352 TOPS
Bus Interface: PCIe 5.0 x16
Factory Overclocked: Up to 2,512 MHz Boost Clock (OC Mode)
Memory Speed: 28 Gbps
Memory Interface: 512-bit
Compact Design: 2.5-slot, SFF-Ready form factor
Cooling: Dual 115mm Axial-tech fans with 3D Vapor Chamber
Thermal Design: Liquid Metal GPU thermal compound
Airflow Optimization: Double-vented backplate design
Display Outputs: 2x DisplayPort 2.1b, 1x HDMI 2.1b, 1x USB Type-C
Maximum Displays Supported: 4
Maximum Resolution: 7680 x 4320 (8K)
Software Support: ASUS GPU Tweak III, NVIDIA Studio Drivers, Game Ready Drivers
Recommended Power Supply: 1000W

Technical Specifications


Motherboard	• Asus ProArt Z890-CREATOR WIFI
CPU	• LGA1851 socket • Supports Intel® Core™ Ultra processors (Series 2)
Chipset	Intel® Z890
Memory	• 4 x DIMM sockets (Max. 192GB) • Supports up to 9066+MT/s(OC) • Non-ECC, Unbuffered DIMM (UDIMM)* • Dual channel memory architecture • Supports Intel® Extreme Memory Profile (XMP) memory module • DIMM Fit • ASUS Enhanced Memory Profile III (AEMP III)* * Non-ECC Unbuffered DDR5 memory supports On-Die ECC function DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. WARNING: Overclocking and/or undervolting Intel® processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of Intel’s published specifications will void any applicable Intel® product warranty, even when enabled via Intel® hardware and/or software. This may also void warranties offered by Colfax.** Users assume all risks and liabilities that may arise out of overclocking and/or undervolting Intel® processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability.
Graphics	• 1 x HDMI® port* • 2 x Intel® Thunderbolt™ 5 Ports (USB Type-C®) supports DisplayPort and Thunderbolt™ Video Outputs • 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs* * Supports 4K@60Hz as specified in HDMI 2.1 Supports up to 2x 8K@60HZ (DSC mode) + 1x 4K@60HZ monitors with DP in. Supports up to 1x 8K@60HZ (DSC mode) + 1x 4K@60HZ monitors without DP in. For resolution support please check DisplayPort 2.1 specs. Thunderbolt™ 5 bandwidth is limited by DisplayPort 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables. * In Thunderbolt™ mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20
Expansion Slots	Intel® Core™ Ultra Processor (Series 2) • Up to 2 Asus ProArt GeForce RTX™ 5090 Intel® Z890 Chipset • 1 x PCIe 4.0 x16 slot (supports x4 mode)
Integrated LAN	• 1 x Marvell® AQtion 10Gb Ethernet • 1 x Realtek 2.5Gb Ethernet
Storage	Supports total 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processor (Series 2) • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** • 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled
Wireless & Bluetooth	• Wi-Fi 7* • 2x2 Wi-Fi 7 (802.11be) • Supports 2.4/5/6GHz frequency band • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate • Bluetooth v5.4* * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries * The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
Audio	• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 24-Bit/192 kHz playback** • Audio Features - Gold-plated audio jacks - Premium audio capacitors - Dedicated audio PCB layers * HD audio module in the front panel is required to support 7.1 Surround Sound audio output ** Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
USB Ports	Rear USB: Total 10 ports • 2 x Thunderbolt™ 5 ports (1 x USB Type-C®) • 1 x Thunderbolt™ 4 port (1 x USB Type-C®) • 6 x USB 10Gbps ports (6 x Type-A ) • 1 x USB 2.0 port (1 x Type-A ) Front USB: Total 9 ports • 1 x USB 20Gbps connector (supports USB Type-C®) • 1 x USB 5Gbps header support 2 additional USB 5Gbps ports • 1 x USB 2.0 header support 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
Back I/O Ports	• 2 x Thunderbolt™ 5 USB Type-C® ports • 1 x Thunderbolt™ 4 USB Type-C® port • 6 x USB 10Gbps port (6 x Type-A) • 1 x USB 2.0 port (1 x Type-A) • 1 x DisplayPort (Input only) • 1 x HDMI™ port • 1 x Wi-Fi module • 1 x Marvell® AQtion 10Gb Ethernet port • 1 x Realtek 2.5Gb Ethernet port • 2 x Gold-plated audio jacks • 1 x BIOS FlashBack™ button
Internal I/O Ports	Fan and Cooling related • 1 x 4-pin CPU Fan header • 1 x 4-pin CPU OPT Fan header • 1 x 4-pin AIO Pump header • 5 x 4-pin Chassis Fan headers Power related • 1 x 24-pin Main Power connector • 2 x 8-pin +12V CPU Power connectors Storage related • 5 x M.2 slots (Key M) • 4 x SATA 6Gb/s ports USB • 1 x USB 20Gbps connector (supports USB Type-C® • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports • 1 x USB 2.0 header support 2 additional USB 2.0 ports Miscellaneous • 3 x Addressable Gen 2 headers • 1 x Clear CMOS button • 1 x COM Port header • 1 x CPU Over voltage jumper • 1 x Chassis Intrusion header • 1 x Front Panel Audio header (F_AUDIO) • 1 x SPI TPM header (14-1 pin) • 1 x 10-1 pin System Panel header • 1 x Thermal Sensor heade
BIOS	• 256 Mb Flash ROM, UEFI AMI BIOS

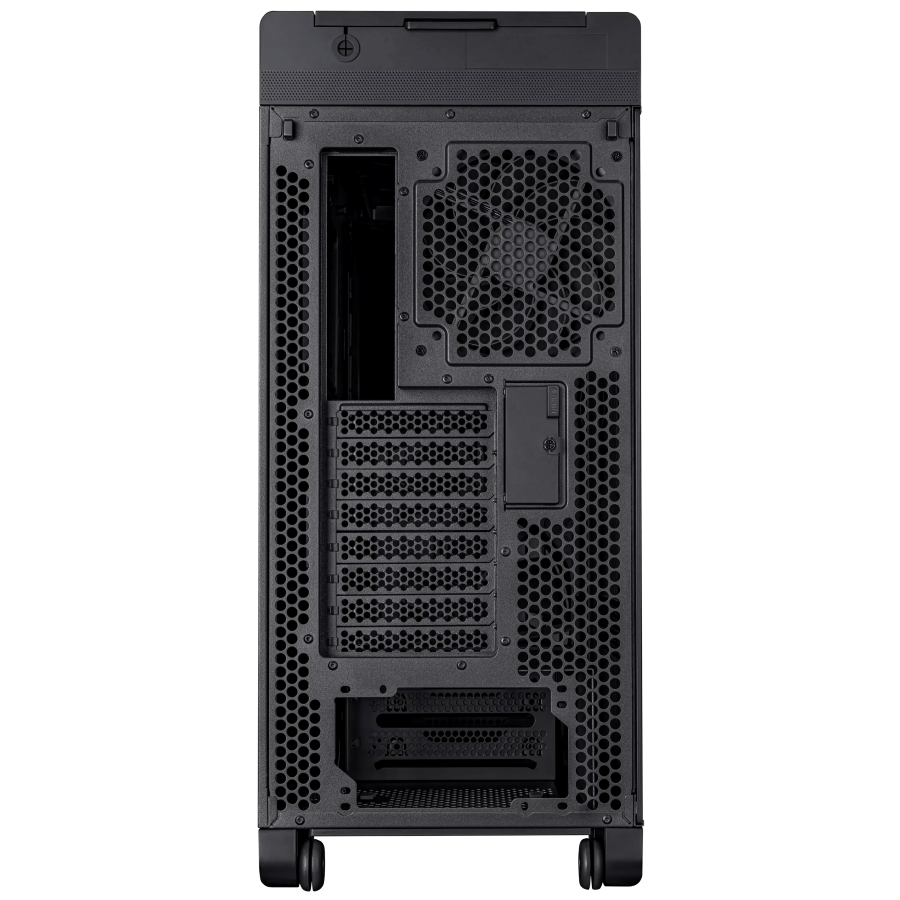

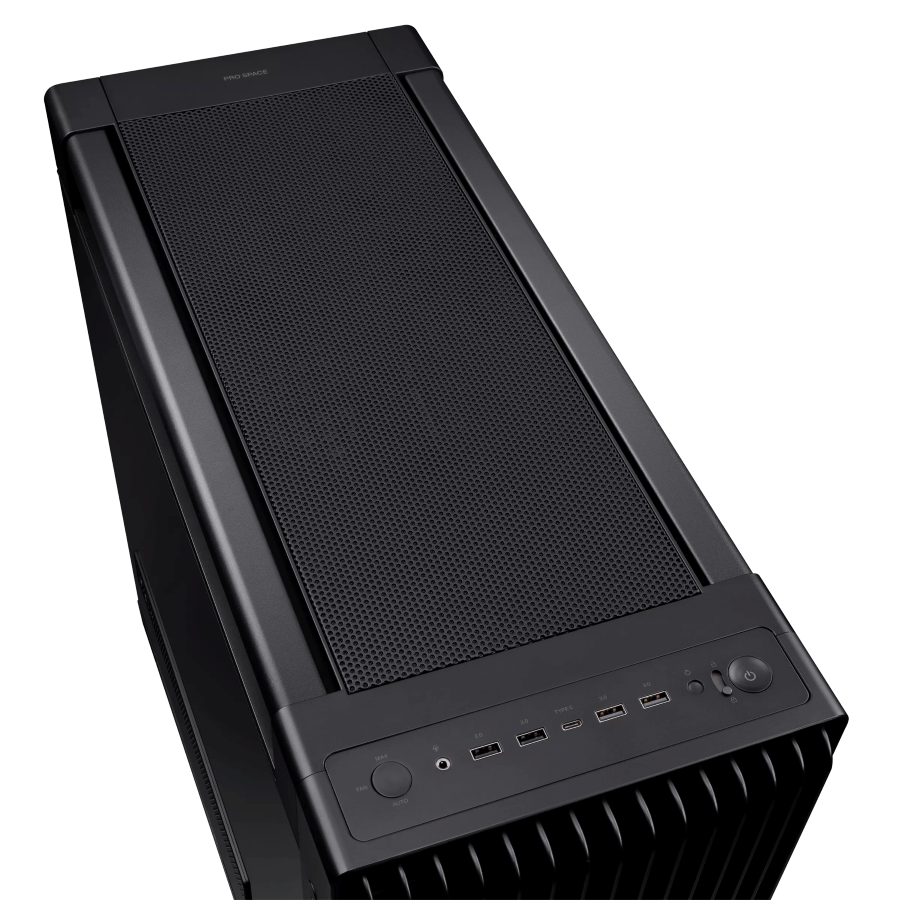

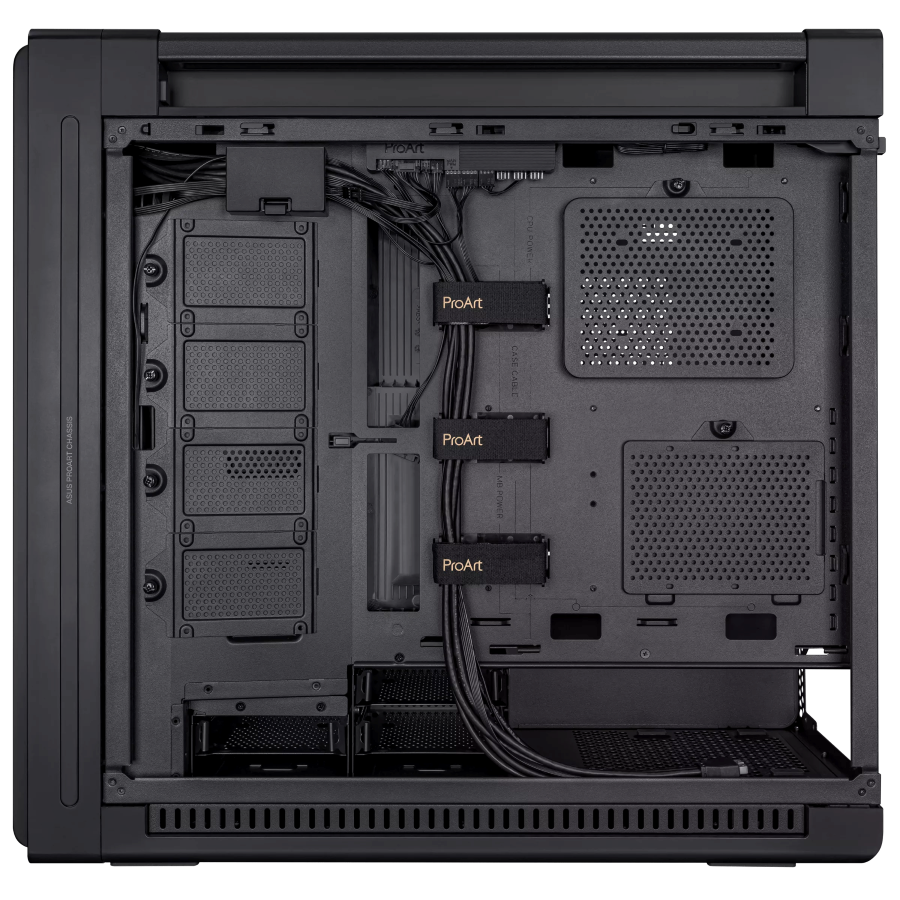

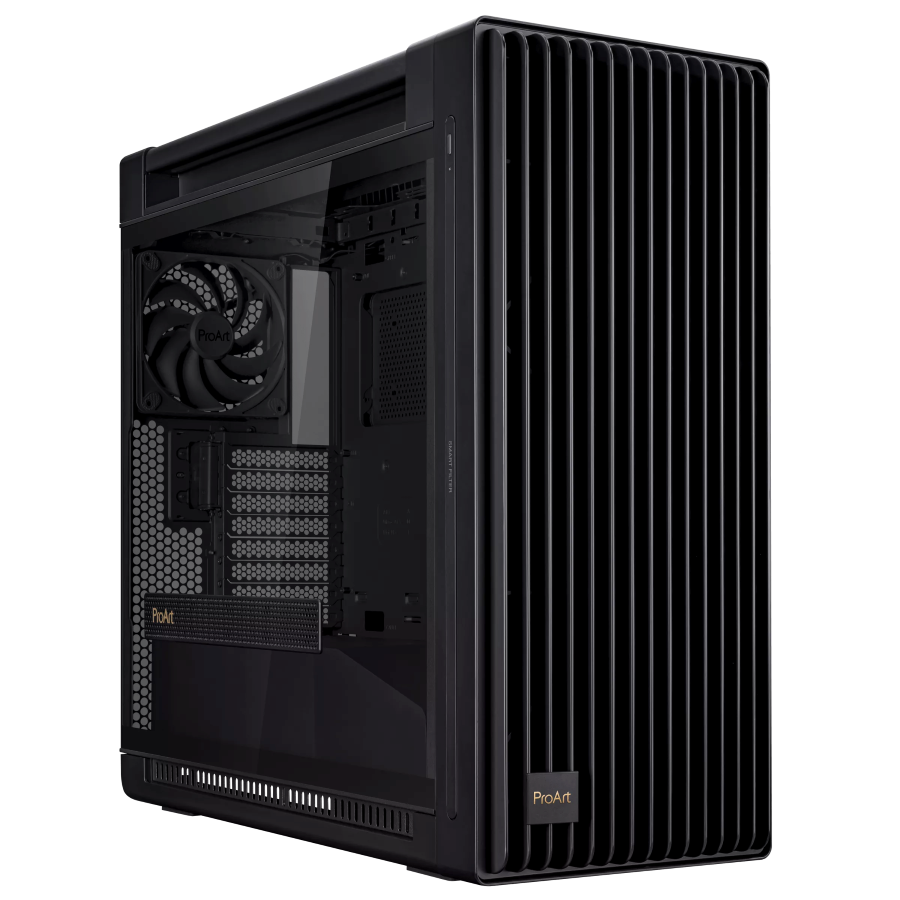

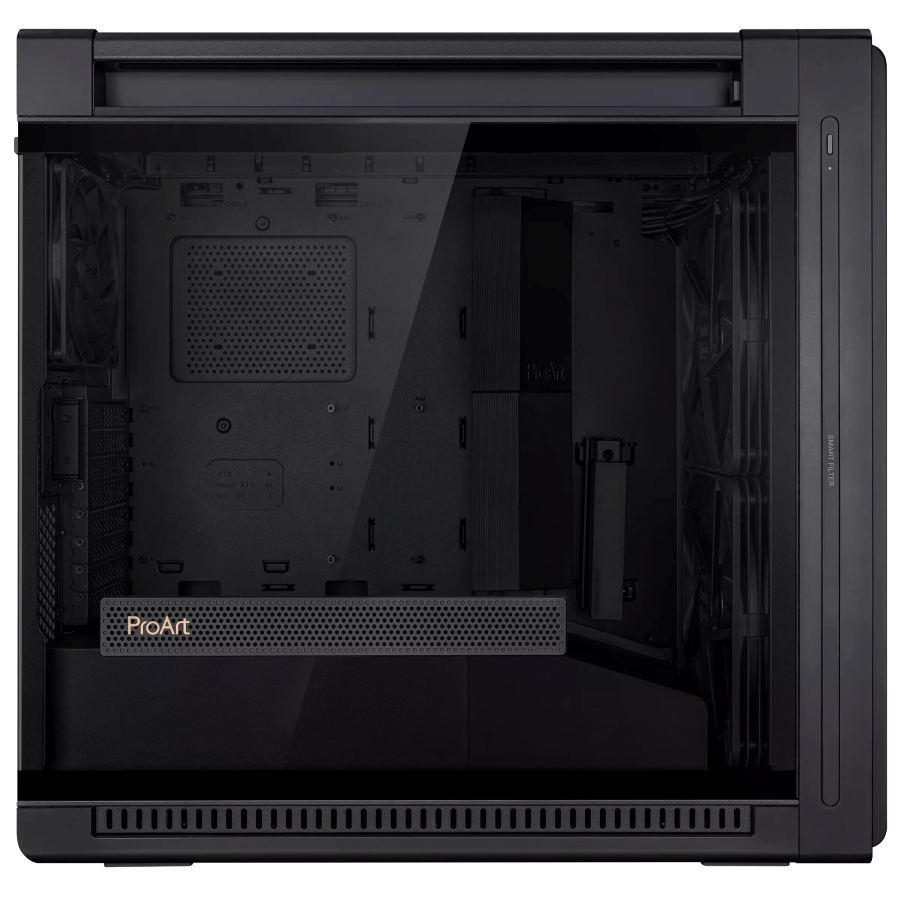

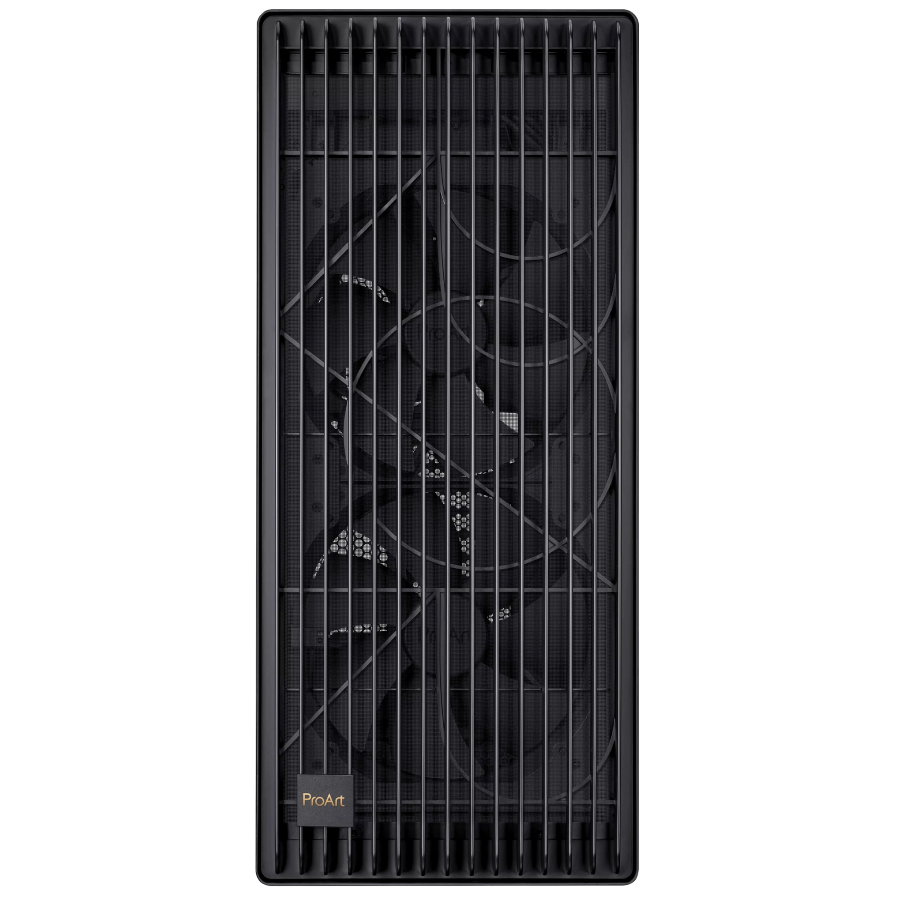

Chassis	ASUS ProArt PA602 Drive Bays • 4 x 2.5"/3.5" Combo Bays • 4 x 2.5" Bays Expansion Slots • 8 + 2 additional vertical slots Front I/O Ports • 1 x USB 3.2 Gen 2x2 Type-C • 2 x USB 3.2 Gen 1 Type-A • 2 x USB 2.0 Type-A • Fan Control Button • Reset Button Front Fan Support • 2 x 200 mm (2 x 200 mm pre-installed) Top Fan Support • 3 x 120 mm or 3 x 140 mm Rear Fan Support • 1 x 120 mm or 1 x 140 mm (1 x 140 mm pre-installed) Dust Filters • Front, Top, Bottom Cable Management Space • 30 mm Tempered Glass Panel • Left Side Panel Compatibility Motherboard Compatibility • Mini-DTX / DTX / Mini-ITX / Micro-ATX / ATX / EATX (12" x 10.9") Power Supply Type • ATX PSU Max Length • 190 mm GPU Max Length • 440 mm CPU Cooler Max Height • 185 mm Top Radiator Support • Up to 420 mm (120 / 140 / 240 / 280 / 360 / 420 mm) Vertical GPU Support • 2 additional vertical expansion slots provided Dimensions Case Dimensions (LxWxH) • 593 x 245 x 560 mm Net Weight • 15.8 kg

Images

$2,486.87

	Qty.	Colfax ProEdge™ CUX2600 Workstation, Cost As Configured $2,486.87
Motherboard	1
Primary CPU	1
Memory Socket 1	1	Set next items ( ) like this
Memory Socket 2	1
Memory Socket 3	1
Memory Socket 4	1
Chassis	1
Power Supply	1
Liquid Pump	1
M.2 NVM-E Drive 1 (Gen 5)	1
M.2 NVM-E Drive 2 (Gen 4)	1
M.2 NVM-E Drive 3 (Gen 4)	1
M.2 NVM-E Drive 4 (Gen 4)	1
M.2 NVM-E Drive 5 (Gen 4)	1
Disk Drive 1	1	Set next items ( ) like this
Disk Drive 2	1
Asus RTX5090 1	1	Set next items ( ) like this
Asus RTX5090 2	1
Mouse	1
Keyboard	1
Operating System SW	1
		Colfax ProEdge™ CUX2600 Workstation, Cost As Configured $2,486.87
