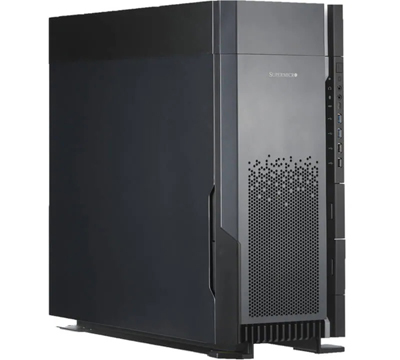

Colfax ProEdge™ SX9200 Workstation



  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors
  • Up to 2x NVIDIA GPUs
  • 16x DIMMS Support DDR5 RDIMM
  • Flexible Storage Options

Please Note: SX9200 is NOT suitable for quiet environments.

Models

  • SX9200-4INT - 4x 2.5"/3.5" Internal SATA Drive Bays
  • SX9200-4INT+8MR - 4x 2.5"/3.5" Internal SATA Drive Bays + 8x SATA SSDs via Mobile Rack (instead of 2x 5.25" Peripheral Drive Bays)

Hardware Features

  • Pedestal or 5U Rackmount (w/Optional Rackmount Kit)
  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors
  • Up to 2x Double-Width Active NVIDIA GPUs
  • Intel C741 Chipset
  • 16x DIMMS, Supports DDR5 ECC RDIMMM
  • Expansion Slots:
    - 5 PCIe 5.0 x16 Slots (Full-Height, 10.5")
    - 1 PCIe 5.0 x8 Slot (Full-Height, 6.6")

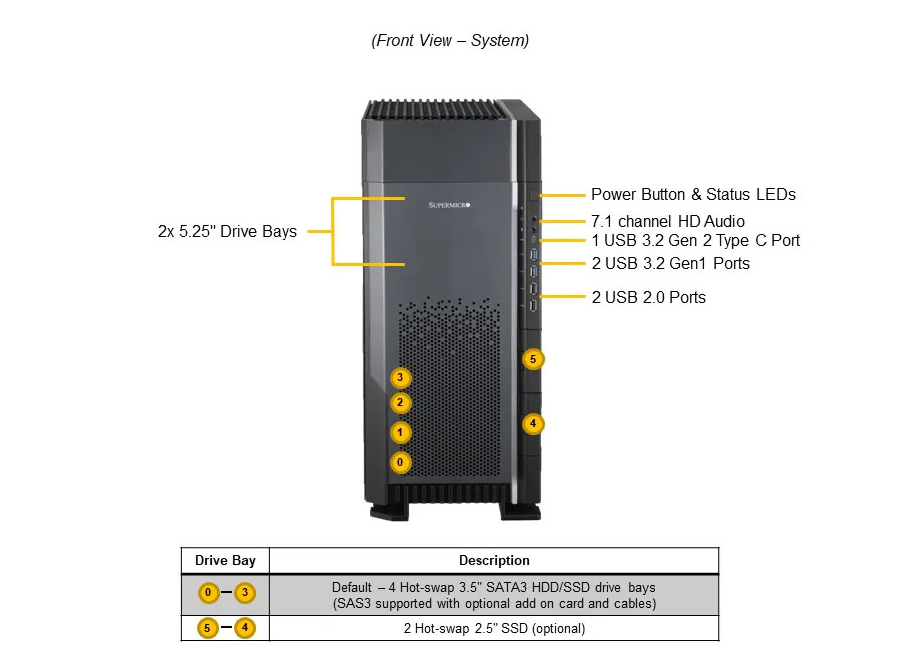

  • 4x 2.5"/3.5" Internal SATA Drive Bays (SX9200-4INT)
  • 4x 2.5"/3.5" Internal SATA Drive Bays + 8x SATA SSDs via Mobile Rack (SX9200-4INT+8MR)
  • 2x 2.5" Front SATA Drive Bays
  • 2x M.2 NVMe SSDs (PCIe 5.0 x4)

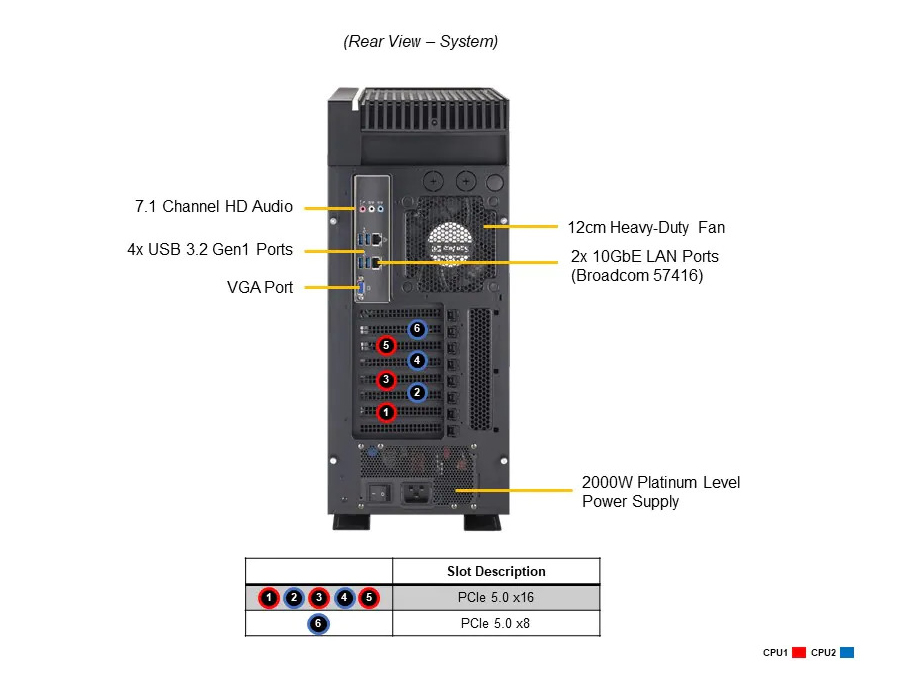

  • 2x 10GbE Ports via Broadcom 57416 (IPMI Shared on LAN Port1)
  • IPMI 2.0 with KVM and Dedicated LAN
  • 2000W Single Power Supply


Please Note: SX9200 is NOT suitable for quiet environments.



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 5U Rackmountable / Tower

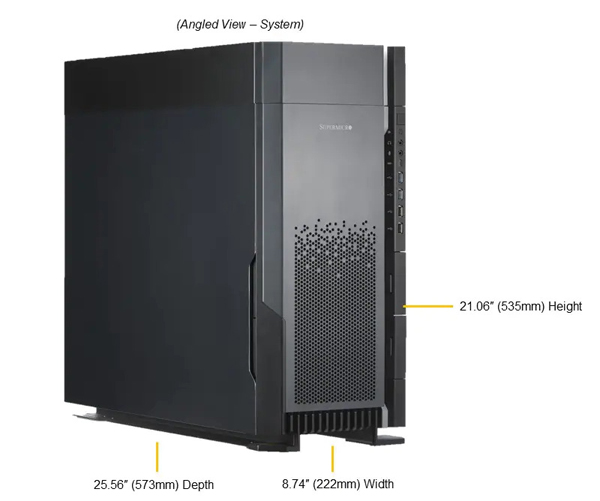

• Dimension (HxWxD): 21.1" (536mm) x 8.7" (221mm) x 22.6" (574mm)
CPU • Dual Socket E (LGA-4677)
• Supports 4th/5th Gen Intel® Xeon® Scalable processors
• TDP up to 350W
GPU CPU-GPU Interconnect
• PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
• PCIe
Memory • 16 DIMM Sockets
• Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Chipset • Intel® C741
I/O Expansion PCI-Express
• 5 PCIe 5.0 x16 Slots (Full-Height, 10.5")
• 1 PCIe 5.0 x8 Slot (Full-Height, 6.6")
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Broadcom BCM57416 Dual Port 10GBase-T
• 1 port shared with IPMI
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 10 SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T ports (IPMI Shared on LAN port1)
USB
• 2x USB 3.2 Gen1, 2x USB 2.0, 1x USB 3.2 Gen2 Type C (Front)
• 4x USB 3.2 Gen1
VGA
• 1x VGA port
Power Supply • 2000W Power Supply
• AC Input
- 1200W: 100-115Vac / 50-60Hz
- 1500W: 115-200Vac / 50-60Hz
- 2000W: 200-264Vac / 50-60Hz
• +12V
- Max: 100A / Min: 0.1A (100Vac-115Vac)
- Max: 125A / Min: 0.1A (115Vac-120Vac)
- Max: 166.6A / Min: 0.1A (200Vac-264Vac)
• 5V sb
- Max: 4A / Min: 0A
• 80PLUS Platinum Certified
Storage • 4x 2.5"/3.5" Internal SATA Drive Bays + 2x 2.5" SATA Front Drive Bays

M.2
• M.2 Interface: 2 PCIe 5.0 x4
• Form Factor: 2280/22110
• Key: M-Key
System Cooling Fans
• 3x 12cm heavy duty fans (1x rear, 2x front) with optimal fan speed control
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram


Images
