Colfax ProEdge™ SXP9000 Workstation



  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • Up to 4x NVIDIA Ampere Architecture GPUs
  • 16x DIMMS Support DDR4 RDIMM/LRDIMM
  • 8x 3.5" SATA/NVMe (Up to 4 NVMe) or SATA/SAS Drive Bays

Hardware Features

  • Pedestal or 4U Rackmount (w/Optional Rackmount Kit)
  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • Up to 4x NVIDIA Ampere Architecture GPUs
  • Intel C621A Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 4 PCI-E 4.0 x16 Slots (Double-Width)
    - 2 PCI-E 4.0 x16 Slots (Single-Width)
    - 1 PCI-E 4.0 x8 Slot (LP)
  • 8x 3.5" Hot-Swap SATA/NVMe (Up to 4 NVMe) or SATA/SAS Drive Bays
  • Intel® Virtual RAID on CPU (Intel® VROC) Support using one of the Three Types of VROC Keys
    - Standard Intel® VROC Key
    - Premium Intel® VROC Key
    - Intel® SSD Only VROC Key
  • 2x M.2 NVMe SSDs
  • 2x 10GBase-T LAN ports via Intel X550
  • 2200W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 4U Rackmountable / Tower
• Dimension (HxWxD): 18.1" (460mm) x 7.0" (178mm) x 26.5" (673mm)
CPU • Dual Socket P+ (LG-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processors
• TDP up to 270W
GPU CPU-GPU Interconnect
• PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
• N/A
Memory • 16 DIMM Sockets
• Supports up to 4TB: 16x 256 GB DRAM
• Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A
I/O Expansion PCI-Express
• 4 PCI-E 4.0 x16 (double-width) slots
• 2 PCI-E 4.0 x16 (single-width) slots
• 1 PCI-E 4.0 x8 (LP)
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Intel® X550 Dual Port 10GBase-T
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC

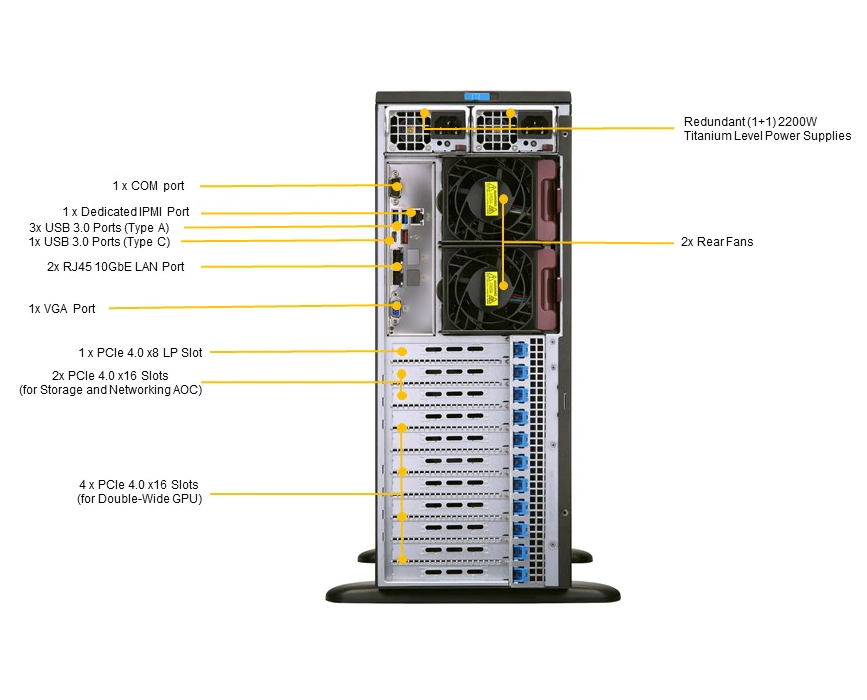

Input / Output SATA
• 10 SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 6 USB 3.1 Gen1 ports (3 Rears Type A + 1 Rear Type C, 1 via header, 1 via header, 1 Type A)
• 2 USB 2.0 ports (2 via headers)
VGA
• 1x VGA port
Serial Port/Header
• 2 COM ports (1 rear, 1 Header)
Power Supply • 2200W Redundant Power Supplies
• AC Input
- 1200W: 100-127Vac / 50-60Hz
- 2200W: 200-240Vac / 50-60Hz
• +12V
- Max: 100A / Min: 0A (100Vac-127Vac)
- Max: 183.3A / Min: 0A (200Vac-240Vac)
• 5V sb
- Max: 1A / Min: 0A
• 80PLUS Titanium Certified
Drive Bays • 8x 3.5" hot-swap NVMe/SATA/SAS drive bays (Up to 4x NVMe)

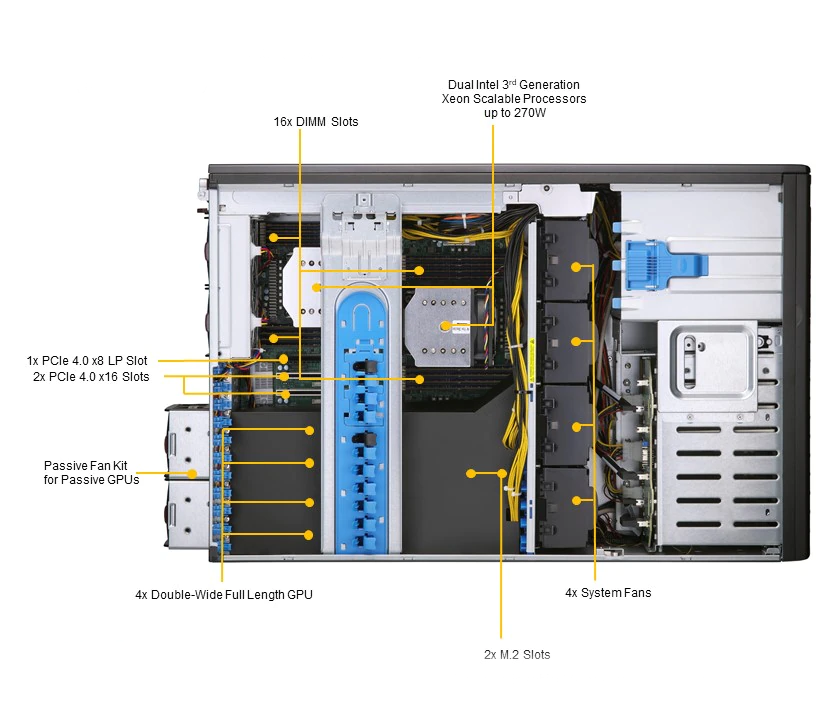

System Cooling Fans
• 4x heavy duty fans
• 2x optional rear fans (required for Passive GPUs)

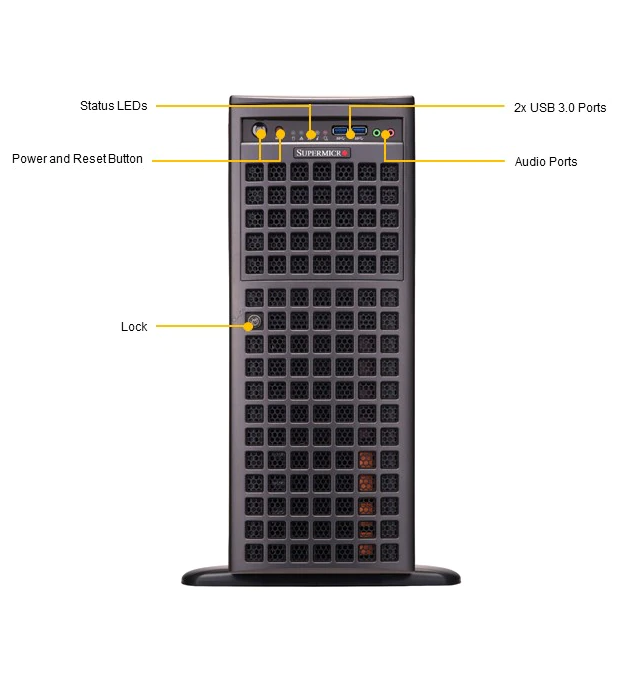

Front Panel Buttons
• Power On/Off button
• System reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat & Power Fail LED
Ports
• 2 Front USB 3.0 ports
BIOS • AMI 32Mb SPI Flash ROM

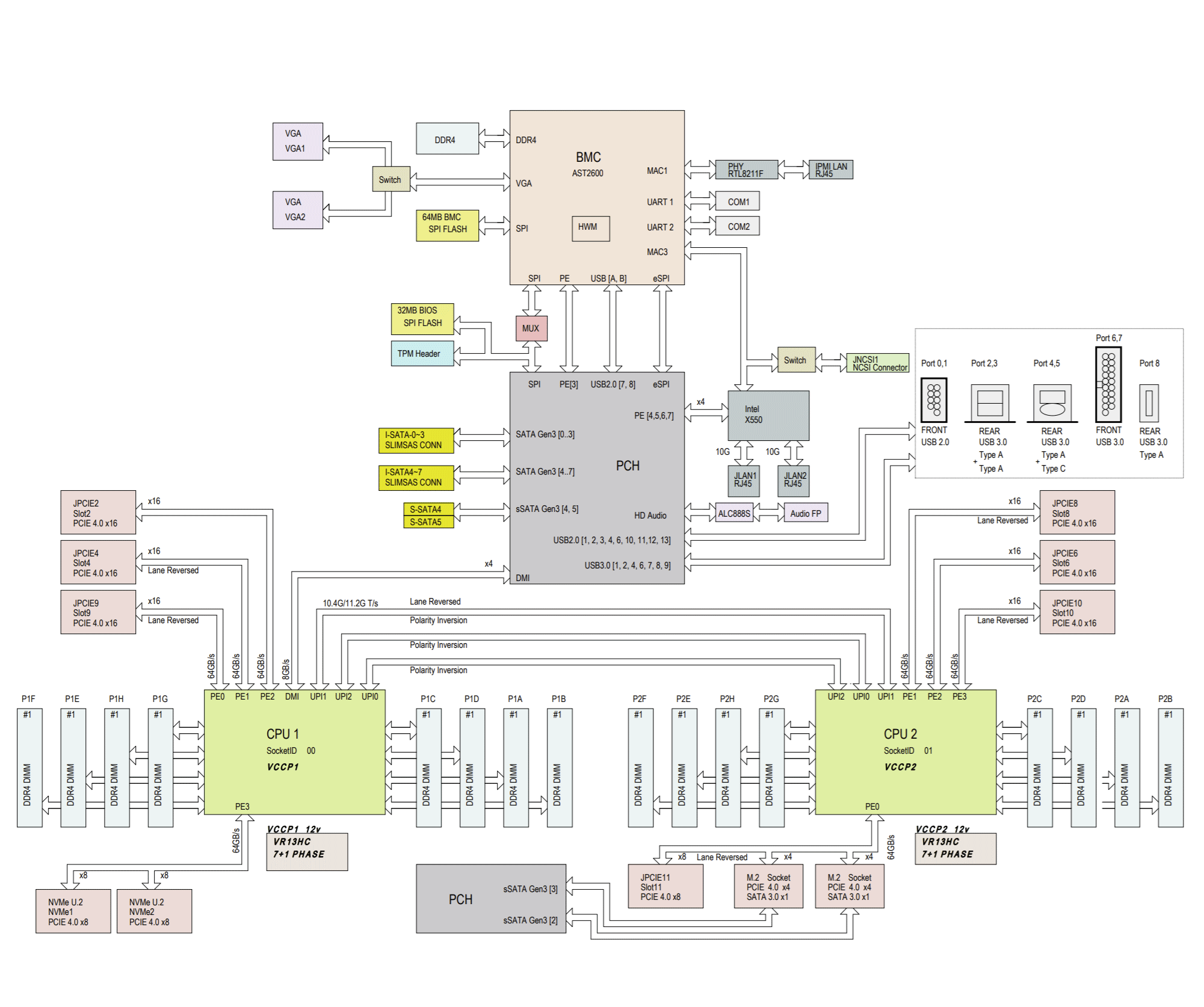

Block Diagram

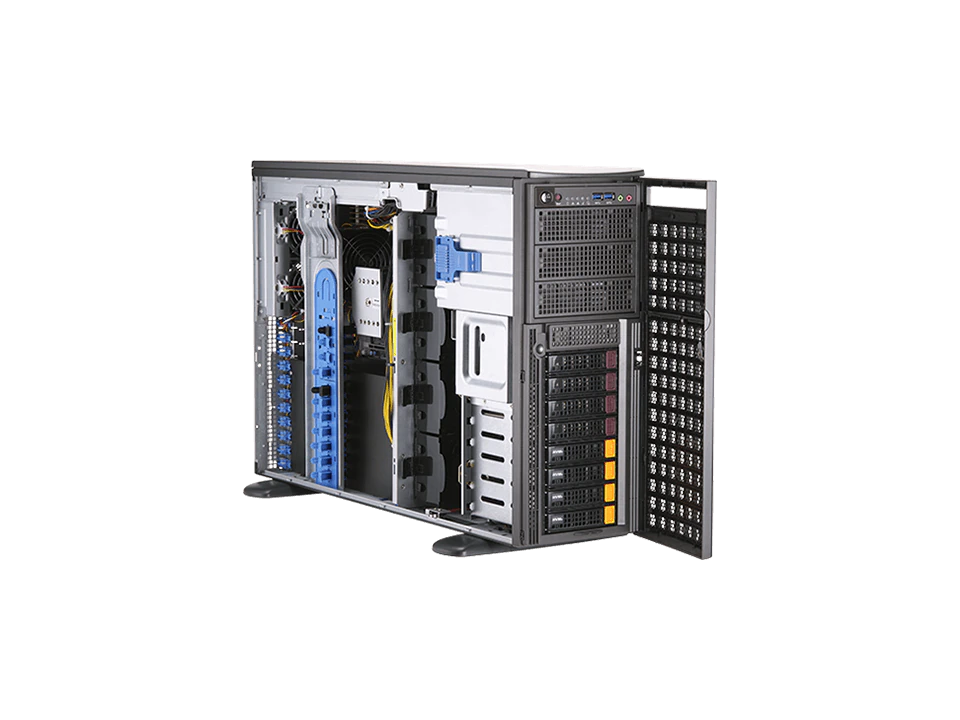

Images
