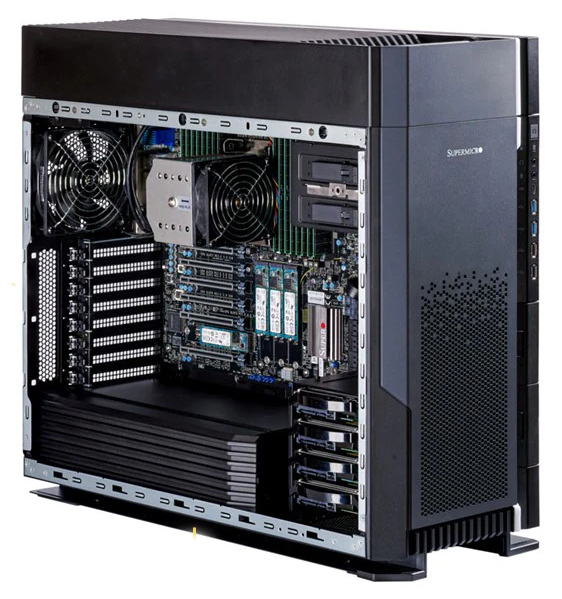

Colfax ProEdge™ WX3400L Workstation



  • Intel® Xeon® W-3500/3400 Processor
  • 16x DIMMs Supporting DDR5 Memory
  • 4x SATA HDDs/SSDs
  • 4x M.2 NVMe SSDs

Features

  • Tower or 5U Rackmount
  • Closed-Loop High-Performance Liquid Cooling Module / 4U Active High-Performance CPU Heat Sink
  • Intel® Xeon® W-3500/3400 Processor
  • Intel® W790 Chipset
  • 16x DIMMs Supports DDR5 ECC RDIMMM
  • 6 PCI-E 5.0 x16 Slots
  • 4x SATA HDDs/SSDs
  • 4x M.2 NVMe SSDs
  • 1x 1GBase-T & 1x 10GBase-T LAN Ports

Optional (Not listed in the Configurator but available on request)


Rocket 7608A – PCIe Gen5 x16 to 8-M.2x4 NVMe RAID AIC

  • Bus Interface: PCIe 5.0 x16
  • Port Count: 8x NVMe Ports
  • Connector Type: M.2
  • Device & Form factor: 2242, 2260, 2280
  • Cooling: Full-Length Aluminum Heatsink with cooling fan
  • Ext. Power Connector: Yes (uses PCIe Standard 2x3 Power Connector)
  • AIC Form factor: Full-Height, Single-Width
  • Operating System Support: Windows & Linux
  • FRU: Yes (stores VPD data)
  • Hardware Secure Boot: Yes
  • OOB Managament: No
  • Synthetic Hierarchy: Yes
  • RAID Support: Single, RAID 0, 1, 10
  • HighPoint Advanced Feature Suite: Yes

Download Datasheet



Technical Specifications

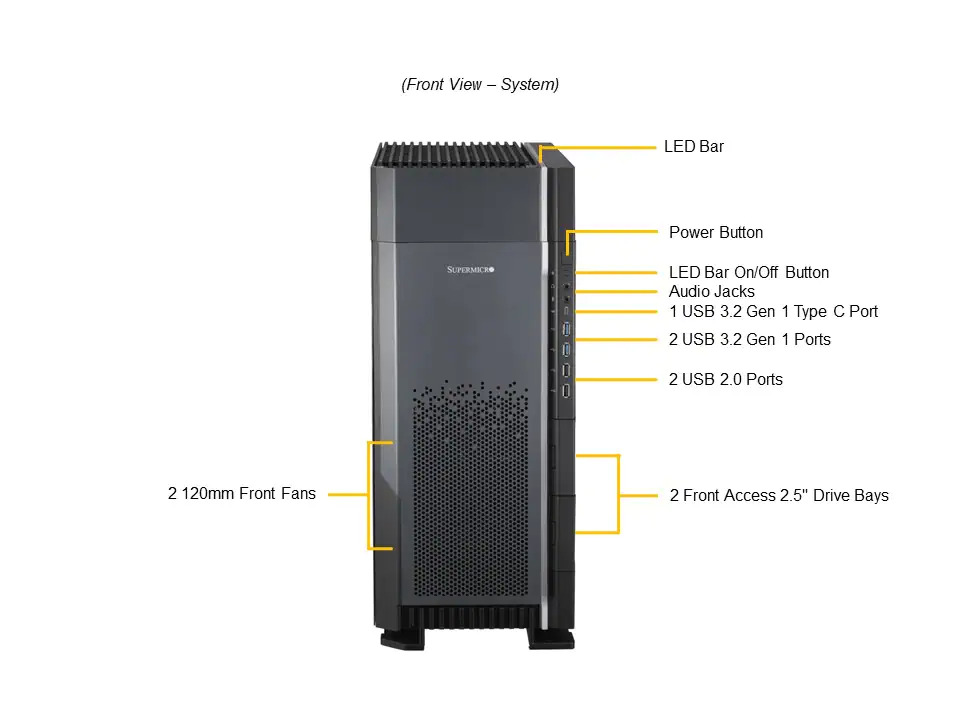

Chassis Form Factor • Tower or 5U Rackmount

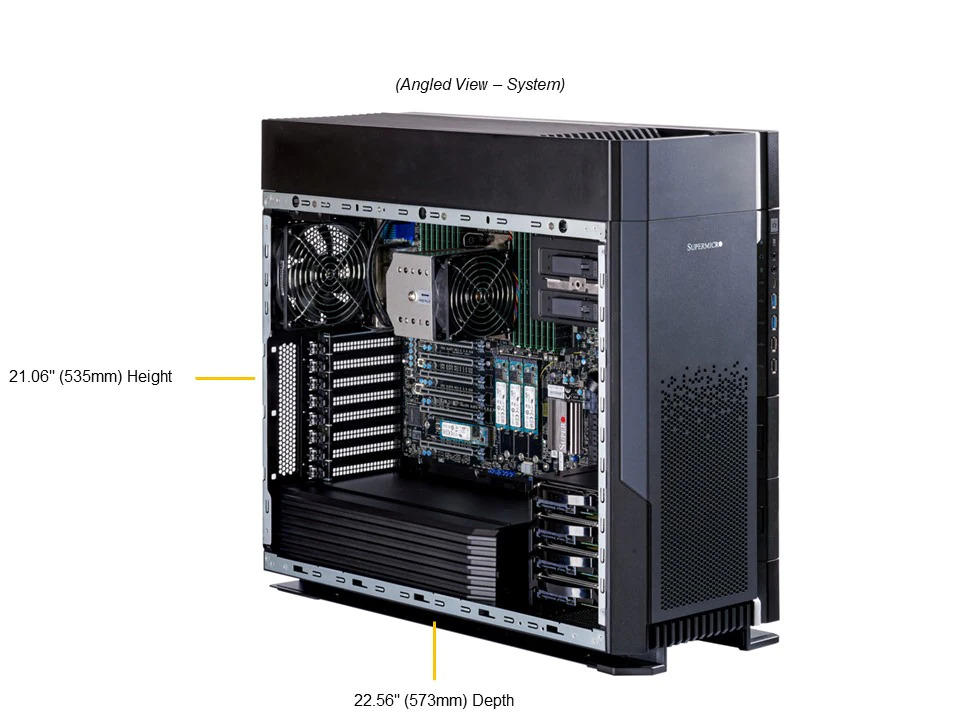

• Dimension (HxWxD): 21.1" (536mm) x 8.7" (221mm) x 22.6" (574mm)

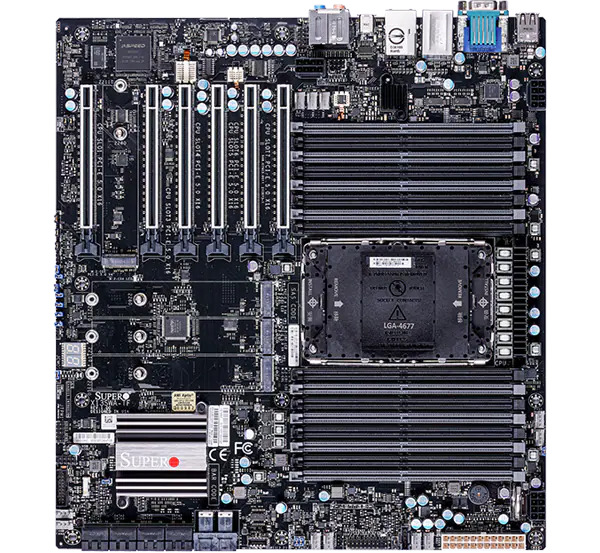

Motherboard • Supermicro X13SWA-TF
CPU • Socket LGA4677
• Intel® Xeon® W-3500/3400 Series Processors
• CPU TDP up to 350W
Chipset • Intel® W790

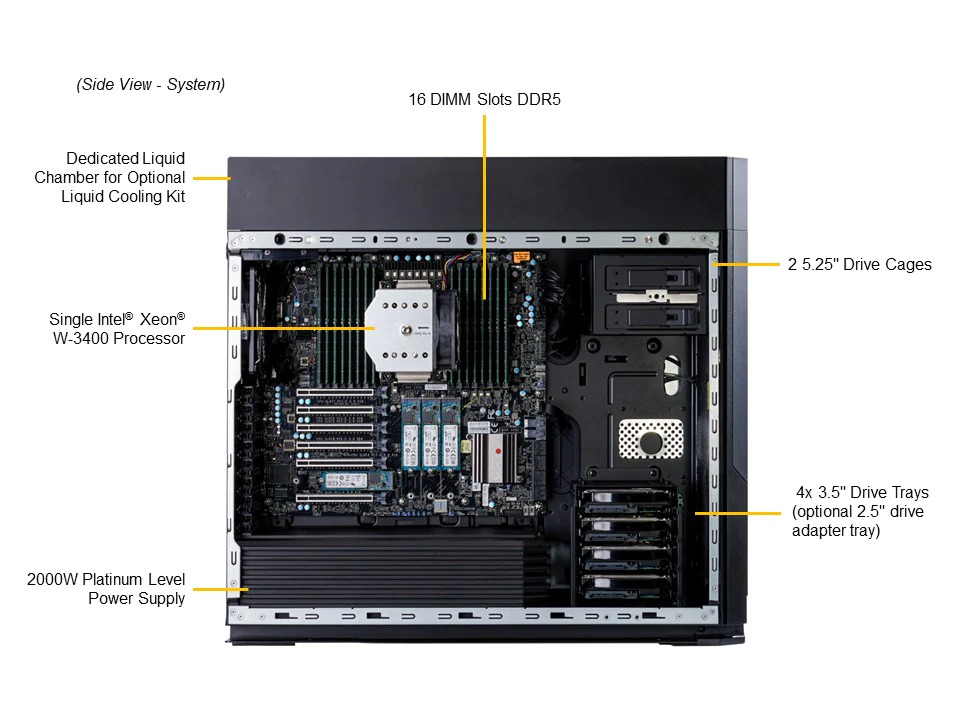

Memory • 16x DDR5 DIMM sockets
• Up to 2TB: 16x 128GB DRAM
• Memory Type: 4800MHz ECC DDR5 RDIMM / LRDIMM
Expansion Slots • 6x PCIe 5.0 x16 slots
Drive Bays / Storage • 4x 3.5" SATA drive bays
• 4x M.2 PCIe 5.0 x4
• 2x 5.25" peripheral drive bays
Integrated LAN • 1x 10GbE BaseT with Marvell AQC113
• 1x 1GbE BaseT with Intel® I210-AT (shared with IPMI)
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• 1x 10GbE BaseT with Marvell AQC113
• 1x 1GbE BaseT with Intel® I210-AT (shared with IPMI)

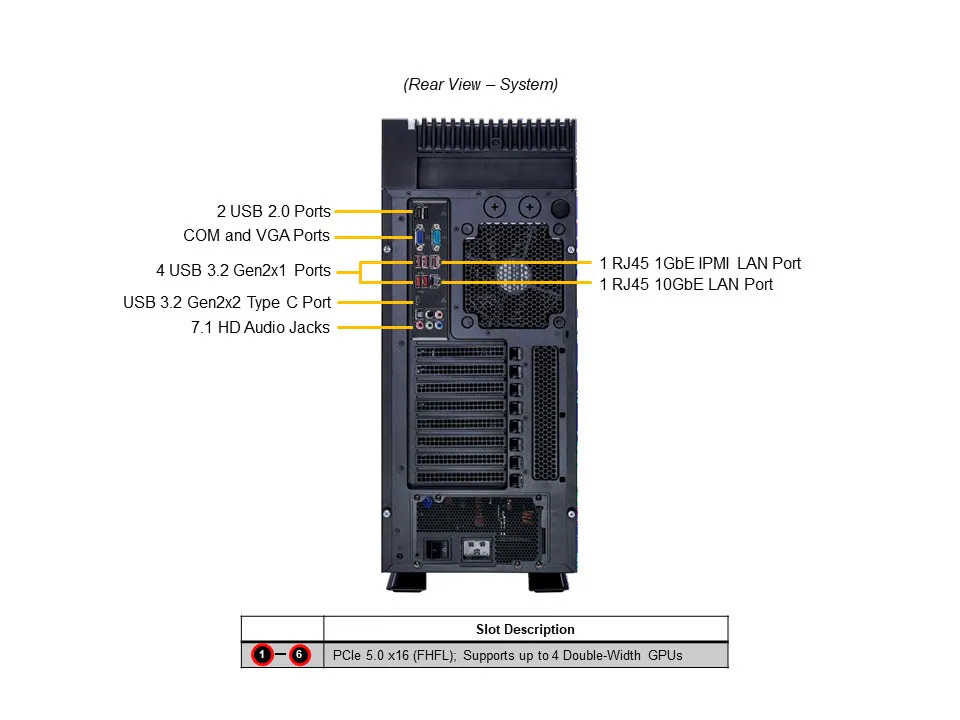

Input / Output LAN
• 1x RJ45 10GbE LAN port
• 1x RJ45 1GbE IPMI LAN port
USB
• 4x USB 2.0 ports (2x front Type A; 2x rear)
• 2x USB 3.2 Gen 1 ports (2x front Type A)
• 5x USB 3.2 Gen 2 ports (1x front Type C; 4x rear)
• 1x USB 3.2 Gen 2x2 port (1x rear)
VGA
• 1 VGA port
Serial Port
• 1 COM port
Power Supply • 2000W PS2 multi-output power supply
• AC Input
- 100-240Vac / 50-60Hz
• +12V
- Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))
- Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))
- Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))
• 80PLUS Platinum Certified
System Cooling • 1x 120mm fan
• 1x 120mm fan (optional)
• 1x 120mm fan (optional)
• 2x 120mm fans
BIOS • AMI 256MB SPI Flash

Images
$2,803.18


  Qty.Colfax ProEdge™ WX3400L Workstation, Cost As Configured $2,803.18
Base Platform 1
Chassis Top Exhaust Fan 1
Rackmount Kit 1
Primary CPU 1
Heat Sink 1
Memory Socket 1 of 16    1

Set next    items (  ) like this
Memory Socket 2 of 16    1
Memory Socket 3 of 16    1
Memory Socket 4 of 16    1
Memory Socket 5 of 16    1
Memory Socket 6 of 16    1
Memory Socket 7 of 16    1
Memory Socket 8 of 16    1
Memory Socket 9 of 16    1
Memory Socket 10 of 16    1
Memory Socket 11 of 16    1
Memory Socket 12 of 16    1
Memory Socket 13 of 16    1
Memory Socket 14 of 16    1
Memory Socket 15 of 16    1
Memory Socket 16 of 16    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
M.2 Drive 3    1
M.2 Drive 4    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
Ethernet HBA 1
TPM 1
Operating System SW 1
   Colfax ProEdge™ WX3400L Workstation, Cost As Configured $2,803.18
