Colfax ProEdge™ wx5200 Workstation



  • Intel® Xeon® 600 series Processor
  • 8x DIMMs Supporting DDR5 Memory
  • 4x SATA HDDs/SSDs
  • 2x 2.5" NVMe SSDs
  • 4x M.2 NVMe SSDs

Features

  • Asus Pro WS W890-SAGE Board
  • Intel® Xeon® 600 series Processor (Product Brief)  (Click here for Specifications and Comparison)
  • Intel® W890 Chipset
  • 8x DIMMs Supports DDR5 ECC RDIMMM
  • 4 PCI-E 5.0 x16 Slots
  • 4x SATA HDDs/SSDs
  • 2x 2.5" NVMe SSDs
  • 4x M.2 NVMe SSDs
  • 1x 10Gb LAN Ports
  • 1x 2.5Gb LAN Ports
  • 2x USB4® 40Gbps Type-C®

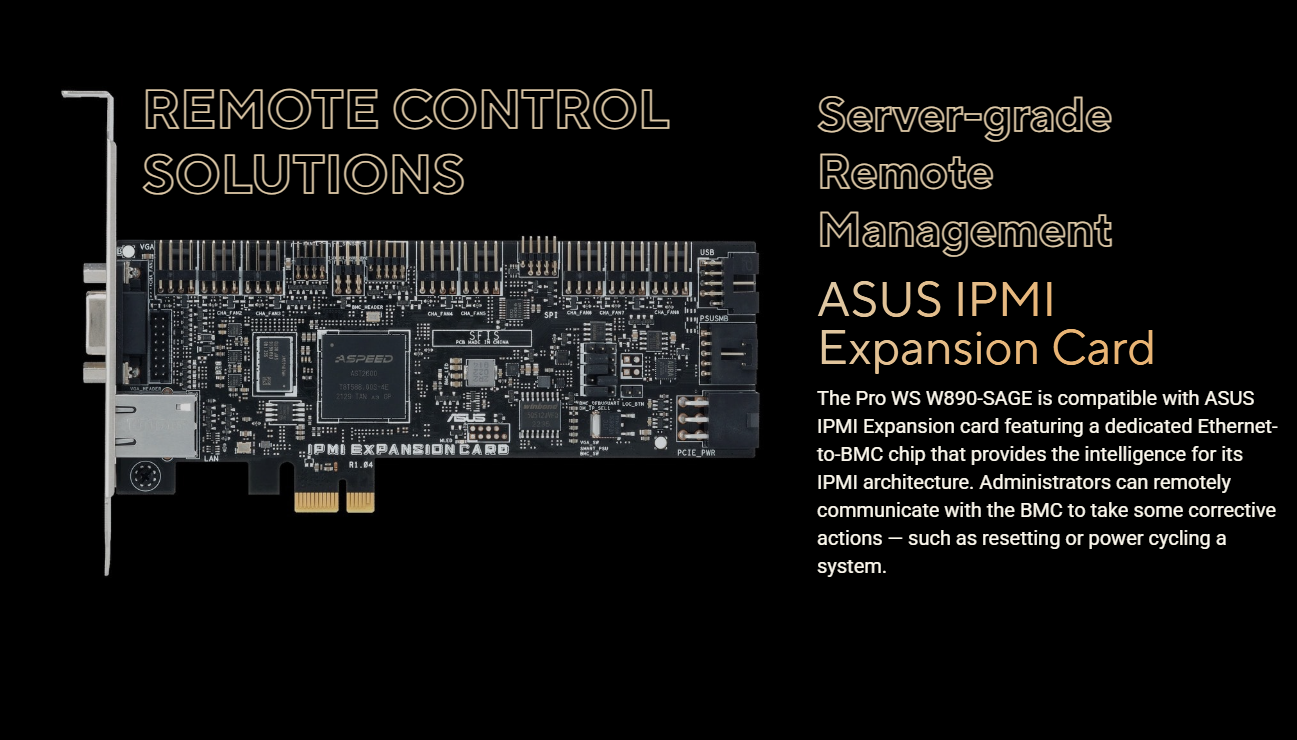

  • Server-grade IPMI Remote Management [Optional Asus IPMI Expansion card]

Optional IPMI Expansion Card


Technical Specifications

Motherboard
  • ASUS Pro WS W890-SAGE
CPU
  • Intel® Socket LGA4710-2
  • Supports Intel® Xeon® 600 Processors for Workstation
  • Supports Intel® Turbo Boost Technology 2.0
  • Supports Intel® Turbo Boost Max Technology 3.0
Chipset
  • Intel® W890 Chipset
Memory
  • 8 x DIMM slots
  • DDR5 ECC Registered DIMM (RDIMM)
  • Supports 3DS-RDIMM
  • Supports Multiplexed Combined Rank DIMM (MRDIMM)
  • 4-channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots Intel® Xeon® 690/670/650/630 Series Processors
  • 4 x PCIe 5.0 x16 slots (supports x16 mode)
Intel® W890 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • Supports PCIe bifurcation
  • Supports CXL on PCIEX16(G5)_1 through PCIEX16(G5)_4
Integrated LAN
  • 1 x Realtek 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
Storage Total Support
  • 4 x M.2 slots
  • 2 x SlimSAS ports
  • 4 x SATA 6Gb/s ports
Intel® Xeon® 690/670/650/630 Series Processors
  • M.2_1 slot supports PCIe 5.0 x4 mode
  • M.2_2 slot supports PCIe 5.0 x4 mode
  • M.2_3 slot supports PCIe 5.0 x4 mode
  • M.2_4 slot supports PCIe 5.0 x4 mode
Intel® W890 Chipset
  • SlimSAS_1 supports PCIe 4.0 x4 mode
  • SlimSAS_2 supports PCIe 4.0 x4 mode
  • 4 x SATA 6Gb/s ports
  • Supports Intel® VROC
  • Supports Intel® VMD
Audio
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
  • Supports jack-detection and multi-streaming
  • Supports up to 32-Bit/192 kHz playback
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
USB Ports Rear USB (Total 10 ports)
  • 2 x USB4® 40Gbps ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Back I/O Ports
  • 2 x USB4® 40Gbps ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x Realtek 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • 2 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
  • 2 x DP IN ports
Internal I/O Ports Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 5 x 4-pin Chassis Fan headers
  • 1 x W_PUMP+ header
  • 1 x 4-pin VRM Fan header
Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 4-pin to 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • 2 x 8-pin PCIe to CPU power connectors
  • 1 x 8-pin PCIe Power connector
Storage Related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 2 x SlimSAS connectors
USB
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header
  • 2 x USB 2.0 headers
Miscellaneous
  • 2 x Addressable RGB Gen 2 headers
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x CPU Over voltage jumper
  • 1 x FlexKey button
  • 1 x Front Panel Audio header
  • 1 x M.2 slot (Key E)
  • 1 x ReTry button
  • 2 x RSVD headers/switches
  • 1 x Safe Boot button
  • 1 x Slow Mode switch
  • 1 x Start button
  • 1 x Front Panel System header
  • 1 x VROC header
  • 1 x Thermal Sensor header
Chassis Dimensions
  • 604 x 240 x 566 mm
  • Net weight: 16.53 kg

Images
$2,122.23


  Qty.Colfax ProEdge™ WX5200 Workstation, Cost As Configured $2,122.23
Motherboard 1
Primary CPU 1
Liquid Pump 1
Chassis 1
Power Supply 1
Memory Socket 1 of 8    1

Set next    items (  ) like this
Memory Socket 2 of 8    1
Memory Socket 3 of 8    1
Memory Socket 4 of 8    1
Memory Socket 5 of 8    1
Memory Socket 6 of 8    1
Memory Socket 7 of 8    1
Memory Socket 8 of 8    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
M.2 Drive 3    1
M.2 Drive 4    1
U.2 Drive 1    1

Set next    items (  ) like this
U.2 Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Nvidia GPU 1
TPM 1
Operating System SW 1
   Colfax ProEdge™ WX5200 Workstation, Cost As Configured $2,122.23
