Colfax ProEdge™ Z790 Workstation



  •

Features

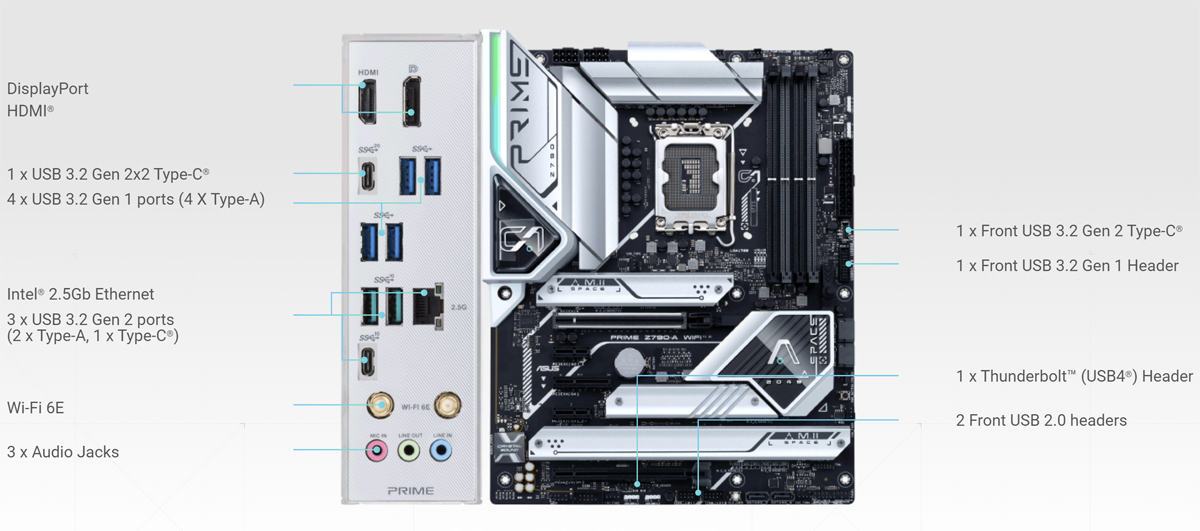

ASUS PRIME Z790-A WIFI Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of the 13th Gen Intel® Core™ processors with 16+1 team power stages (60A) with enlarged heatsinks, DDR5, PCIe 5.0 and fast connectivity including USB 3.2 Gen 2x2 Type-C®, 2.5 Gb Ethernet, plus WiFi 6E.


  •

13th Gen Intel® Core™ Processors

Intel® Core™ i9K and i9KF

Intel® Core™ i7K and i7KF

Intel® Core™ i5K and i5KF

Processor Cores (P-cores + E-cores)

24 (8P+16E)

16 (8P+8E)

14 (6P+8E)

Performance-core Base Frequency [GHz]

3.0 GHz

3.4 GHz

3.5 GHz

Efficient-core Base Frequency [GHz]

2.2 GHz

2.5 GHz

2.6 GHz

Intel® Smart Cache (L3) Size [MB]

36 MB

30 MB

24 MB

Total L2 Cache Size [MB]

32 MB

24 MB

20 MB

Enhanced Intel® UHD Graphics driven by Xe Architecture

i9K: Intel® UHD Graphics 770

i9KF: NO

i7K: Intel® UHD Graphics 770

i7KF: NO

i5K: Intel® UHD Graphics 770

i5KF: NO



Download Product Brief

Unleashing DDR5 Performance

Take advantage of the latest DDR5 support for fast speeds up to 5600 MT/s1, high bandwidth, and enhanced productivity, as well as continued DDR4 support up to 3200 MT/s. Comprehensive advanced tuning and overclocking2 support — including Intel® Extreme Tuning Utility3, and Intel® Extreme Memory Profile — deliver intelligent overclocking performance on demand so that both new and experienced overclockers can get more from their unlocked processors.

1 Maximum memory speeds are associated with 1 DIMM per Channel (1DPC) configurations. Up to DDR5-5600 MT/s 1DPC UDIMM 1Rx8, 1Rx16 and DDR5-5200 1Rx8, 1Rx16, 2Rx8.
3 Users must download this app from Intel.com
2 Overclocking Disclaimer: Unlocked features are present with select chipsets and processor combinations. Altering clock frequency or voltage may void any product warranties and reduce stability, security, performance, and life of the processor and other components.

PCIe® 5.0 Slot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

Integrated Graphics

1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4)
1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1)

Four M.2 Slots

Offers a total of four M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.

WiFi 6E

Onboard WiFi 6E* technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

* Actual speed varies, and depends on networking conditions.
* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

USB4® Support

The workstation features USB4® support via a Thunderbolt™ (USB4®) header. With an add-on card*, it can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.


Technical Specifications

Motherboard • Asus PRIME Z790-A WIFI
CPU • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors
Chipset • Intel® Z790
Memory • 4 x DIMM sockets (Max. 128GB)
• DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

* Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function

WARNING: Overclocking and/or undervolting Intel processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of Intel’s published specifications will void any applicable Intel product warranty, even when enabled via hardware and/or software. This may also void warranties offered by Colfax. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting Intel processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability.

Graphics • 1 x DisplayPort*
• 1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots 13th Gen Intel® Core™ Processors
• 1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x4 slot
• 2 x PCIe 3.0 x1 slots
Integrated LAN • 1 x Intel® 2.5Gb Ethernet
Storage Supports total 4 x M.2 slots and 4 x SATA 6Gb/s ports*

13th Gen Intel® Core™ Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
AMD X670E Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Wireless & Bluetooth • Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.3

* WiFi 6E 6GHz regulatory may vary between countries
Audio • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
USB Ports Rear USB: Total 8 ports
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

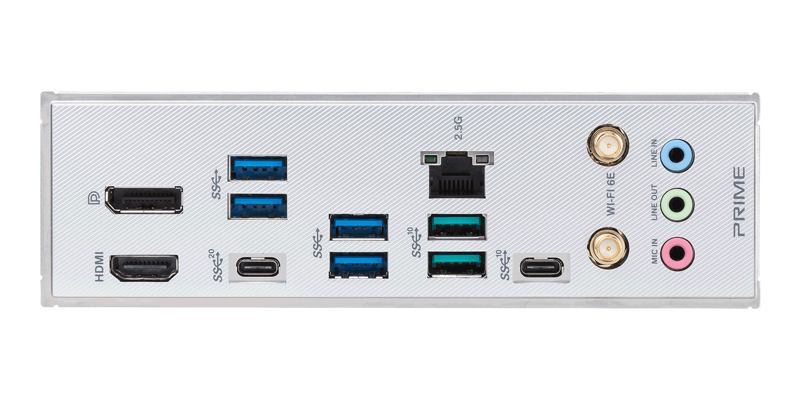

Back I/O Ports • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
• 2 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS button
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x Power button
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ header
Chassis 4000D AIRFLOW Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

4000D Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

Images



Corsair 4000D AIRFLOW Tempered Glass Mid-Tower ATX




Corsair 4000D Tempered Glass Mid-Tower ATX
