Colfax ProEdge™ TRX4400 Workstation



  • AMD Ryzen™ Threadripper™ PRO Processor
  • 8x DIMMs Supporting DDR4 Memory
  • 4x HDDs/SSDs
  • 2x U.2 Slots2
  • 3x M.2 NVMe SSDs2
  • 4x M.2 NVMe SSDs with ASUS Hyper M.2 x16 Gen 4 Card

Features

  • Asus Pro WS WRX80E-SAGE SE WIFI II Board1
  • AMD Ryzen™ Threadripper™ PRO Processor
  • AMD WRX80 Chipset
  • 8x DIMMs Supports DDR4 ECC RDIMMM
  • 7 PCI-E 4.0 x16 Slots
  • 4x HDDs/SSDs
  • 2x U.2 Slots2
  • 3x M.2 NVMe SSDs with PCIe 4.0 x4 Interface2
  • 4x M.2 NVMe SSDs with ASUS Hyper M.2 x16 Gen 4 Card
  • 7.1 channel HD Audio by Relatek ALC4080
  • 2x 10GBase-T LAN Ports
  • USB:
    Rear
    - 1x USB 3.2 Gen2x2 Port (Type-C)
    - 9x USB 3.2 Gen2 Ports (8 x Type-A + 1 x Type-C)
    Front
    - 1x USB 3.2 Gen2 Port (Type-C)
    - 2x USB 3.2 Gen1 Ports
    - 2x USB 2.0 Ports
  • Wireless and Bluetooth
    - Wi-Fi 6E
    - 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    - Supports up to 2.4Gbps max data rate
    - Supports 2.4/5/6GHz Frequency Band3
    - Bluetooth v5.3
  • ASMB9-iKVM for Remote Management


1 Asus Pro WS WRX80E-SAGE SE WIFI II board replaces Asus Pro WS WRX80E-SAGE SE WIFI effective January 2023
2 The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled.
3 WiFi 6E 6GHz regulatory may vary between countries

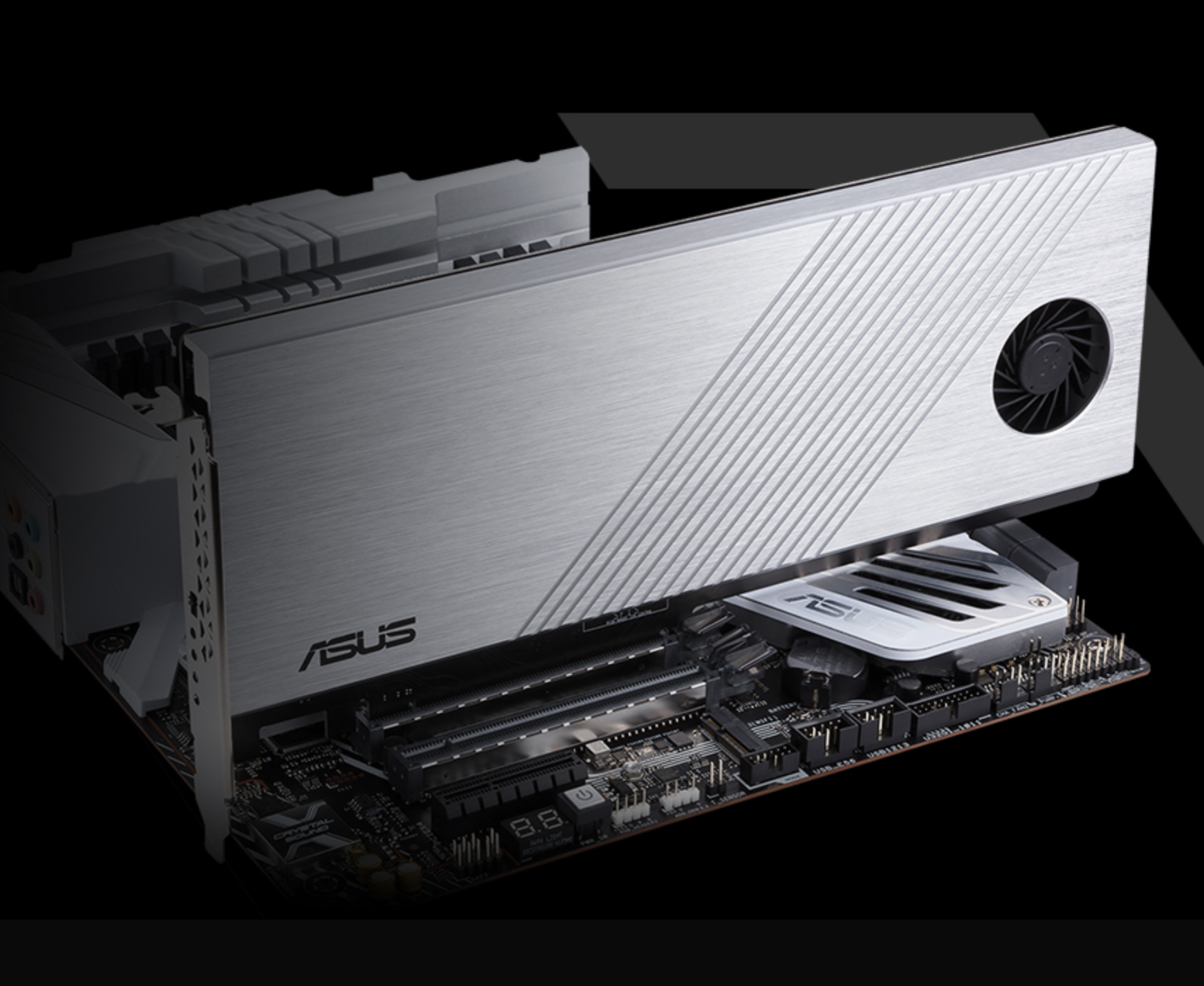

ASUS Hyper M.2 x16 Gen 4 Card

With NVMe RAID support for AMD Ryzen™ Threadripper™ PRO processors, unused CPU PCIe 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput.

  • Two-phase power solution with up to 14-watt output supports the latest NVMe drives
  • Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
  • Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers




Technical Specifications

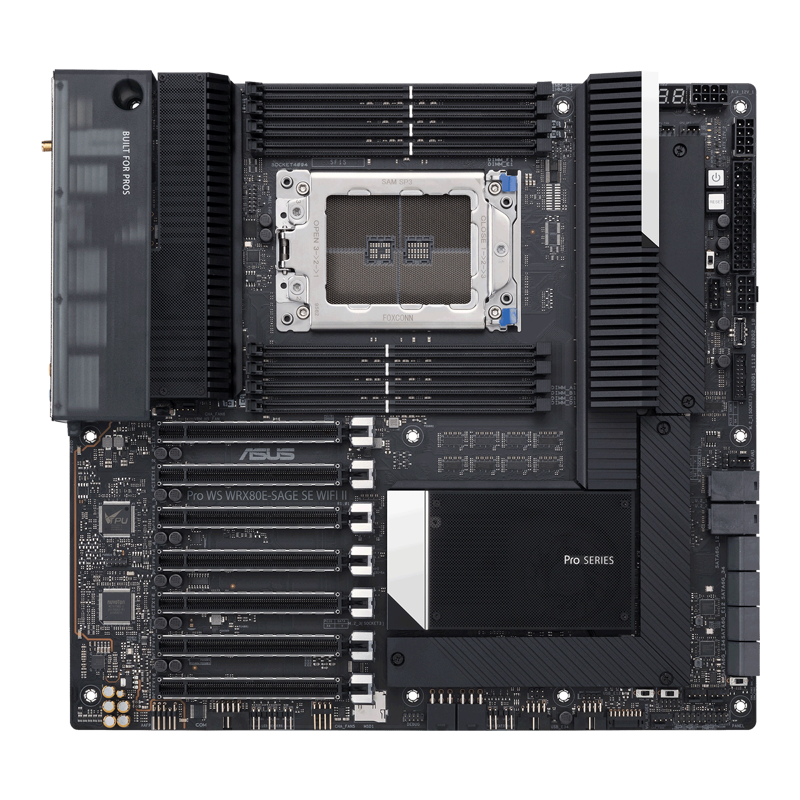

Motherboard • Asus Pro WS WRX80E-SAGE SE WIFI II
CPU • AMD Ryzen™ Threadripper™ PRO processor
Chipset AMD WRX80
Memory • 8x DDR4 DIMM sockets (Max. 2048GB)
• DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC Unbuffered DIMM
• 8-channel memory architecture
Expansion Slots AMD Ryzen™ Threadripper™ Pro Processor
• 7x PCIe 4.0 x16*

* Supports PCIe bandwidth bifurcation for RAID on CPU function
Integrated LAN • Intel® X550-AT2 dual 10Gb Ethernet
Storage AMD Ryzen™ Threadripper™ Pro Processor
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• U.2_1 slot supports U.2 NVMe device and up to 2 SATA devices*
AMD WRX80 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• U.2_2 slot supports U.2 NVMe device and up to 2 SATA devices*
• 4x SATA 6Gb/s port(s)
ASMedia ASM1061 Controller
• 4x SATA 6Gb/s ports
• Supports NVMe RAID configurations via M.2 storages

* The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled.
Wireless & Bluetooth • Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth® v5.3**

* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio • Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
- Rear optical S/PDIF out port
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
USB Ports Rear USB: Total 10 ports
• 1 x USB 3.2 Gen 2x2 port(s) (1 x Type-C)
• 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x Type-C)
Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2 connector(s) (suppports Type-C)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Back I/O Ports • 1 x USB 3.2 Gen 2x2 port(s) (1 x Type-C)
• 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x Type-C)
• 1 x Wi-Fi Module
• 2 x Intel® X550-AT2 dual 10Gb Ethernet ports
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x Clear CMOS button
• 1 x USB BIOS FlashBack™ Button(s)
Internal I/O Ports Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 6 x 4-pin Chassis Fan header(s)
• 1 x VRM heatsink Fan header
• 1 x Chipset Fan header
Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 2 x 6-pin PCIe Graphics Card connector
• 1 x 8-pin PCIe Power connector
Storage related
• 3 x M.2 slots (Key M)
• 8 x SATA 6Gb/s ports
• 2 x U.2 slots
USB
• 1 x USB 3.2 Gen 2 connector (support(s) Type-C)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
BMC Related
• 1 x BMC switch
• 1 x IPMI switch
• 1 x Messange LED header
• 1 x Micro SD card socket
• 2 x LAN LED header(s)
• 1 x Location LED header
• 1 x Location button header
• 1 x PSU_SMB header
• 1 x SMART_PSU switch
• 1 x VGA switch
• 1 x VGA header
• 1 x VPP_I2C header
Miscellaneous
• 1 x COM Port header
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x Start button
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x RTC Battery header
• 1 x Thermal Sensor header
Chassis Define 7 XL

3.5"/2.5" Universal drive brackets
• 6 + 2 included, 18 positions total
Dedicated 2.5" drive brackets
• 2 included, 5 positions total
5.25" drive mounts
• 2
Expansion slots
• 9 + 3
Front ports
• 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts
• 1 x 120 mm or 9 x 140 mm
Front fan
• 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
Top fan
• 4 x 120 mm or 3 x 140 mm
Rear fan
• 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
Bottom fan
• 2 x 120/140 mm
Dust filters
• Top, 2 x Front, Bottom + PSU
Fixed velcro straps
• Yes
Cable routing grommets
• Yes
Captive thumbscrews
• HDD brackets, SSD brackets, PSU bracket
Left side panel
• Industrial sound-damped steel
Right side panel
• Industrial sound-damped steel

Compatibility

Motherboard compatibility
• E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Power supply type
• ATX
PSU max length
• 250 mm (both HDD cages installed)
GPU max length
• Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)
CPU cooler max height
• 185 mm
Front radiator
• Up to 480/420 mm
Top radiator
• Up to 480/420 mm
Rear radiator
• 120 mm
Bottom radiator
• Up to 240/280 mm
Cable routing space
• 30 mm
Vertical GPU Support (with Flex VRC-25)
• 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Dimensions

Case dimensions (LxWxH)
• 604 x 240 x 566 mm
Case dimensions w/o feet/protrusions/screws
• 590 x 240 x 548 mm
Net weight
• 16.53 kg

Images
$2,100.18


  Qty.Colfax ProEdge™ TRX4400 Pedestal Workstation, Cost As Configured $2,100.18
Motherboard 1
Primary CPU 1
Liquid Pump 1
Chassis 1
Power Supply 1
Memory Socket 1 of 8    1

Set next    items (  ) like this
Memory Socket 2 of 8    1
Memory Socket 3 of 8    1
Memory Socket 4 of 8    1
Memory Socket 5 of 8    1
Memory Socket 6 of 8    1
Memory Socket 7 of 8    1
Memory Socket 8 of 8    1
DVD+/-RW Drive 1
M.2 Drive 1    1

Set next    items (  ) like this
M.2/U.2 Drive 2    1
M.2/U.2 Drive 3    1
HyperX M.2 1    1

Set next    items (  ) like this
HyperX M.2 2    1
HyperX M.2 3    1
HyperX M.2 4    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
NV-Link Bridge 1
TPM 1
Asus ProArt LCD 1
Operating System SW 1
   Colfax ProEdge™ TRX4400 Pedestal Workstation, Cost As Configured $2,100.18
