Form
Factor | CPU Sockets | CPU | GPU | Max
GPUs | Max # of DIMMs | Drive
Type | Max
Drives | M/B | Features |
CX1165g-S12-X6K9
1U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA L4 / L40S / RTX Pro 6000 Max-Q
|
Max 1 GPU
|
16 DIMMs
|
2.5" NMVe Gen5
|
Max 12 Drives
|
GIGABYTE
|
- 1x PCIe 5.0 x16 Slot (Full-Height Half-Length)
-
1x OCP 3.0 Gen5 x16 Slot
-
Dedicated LAN for System Management
-
Redundant 1600W Titanium PS
|
CX1160g-S4-X6
1U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
|
No GPU
|
16 DIMMs
|
3.5" SATA/NVMe Hybrid
|
Max 4 Drives
|
GIGABYTE
|
- 2x PCIe 5.0 x16 Slots (Full-Height Half-Length)
-
2x OCP 3.0 Gen5 x16 Slots
-
Integrated 1x 1Gb/s Port
-
Dedicated LAN for System Management
-
Redundant 800W Titanium PS
|
CX1165g-S12-X6
1U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
|
No GPU
|
16 DIMMs
|
2.5" NMVe Gen5
|
Max 12 Drives
|
GIGABYTE
|
- 1x PCIe 5.0 x16 Slot (Full-Height Half-Length)
-
1x OCP 3.0 Gen5 x16 Slot
-
Integrated 1x 1Gb/s Port
-
Dedicated LAN for System Management
-
Redundant 1300W Titanium PS
|
CX1165g-SH12-X6K9
1U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA L4 / L40S / RTX Pro 6000 Max-Q
|
Max 1 GPU
|
16 DIMMs
|
2.5" SATA/NVMe Hybrid
|
Max 12 Drives
|
GIGABYTE
|
- 12x 2.5" Hot-Swap Drive Bays (8x SATA + 4x Gen5 NVMe)
-
1x PCIe 5.0 x16 Slot (Full-Height Half-Length)
-
1x OCP 3.0 Gen5 x16 Slot
-
Dedicated LAN for System Management
-
Redundant 1600W Titanium PS
|
CX1160g-S4-X6K9
1U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA L4 / L40S / RTX Pro 6000 Max-Q
|
Max 1 GPU
|
16 DIMMs
|
3.5" SATA/NVMe Hybrid
|
Max 4 Drives
|
GIGABYTE
|
- 1x PCIe 5.0 x16 Slot (Full-Height Half-Length)
-
1x OCP 3.0 Gen5 x16 Slot
-
Dedicated LAN for System Management
-
Redundant 1300W Titanium PS
|
CX1155g-X6
1U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
|
No GPU
|
16 DIMMs
|
2.5" NMVe Gen5
|
Max 2 Drives
|
GIGABYTE
|
- Short Depth
-
2x PCIe 5.0 x16 Slots (Full-Height Half-Length)
-
2x OCP 3.0 Gen5 x16 Slots
-
Integrated 1x 1Gb/s Port
-
Dedicated LAN for System Management
-
Redundant 800W Platinum PS
|
CX1265a-NVMe5-S12-X6
1U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
|
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 12 Drives
|
Asus
|
- 2x Intel® Xeon® 6700/6500 Series Processor (350W)
-
32x DDR5 DIMM Sockets
-
12 x 2.5” Tool-less Hot-swap drive bays (NVM-E)
-
2 x PCI-E Gen5 x16 (FHHL)
-
2 x OCP3.0 Gen5 x16 (SFF)
-
*1 x OCP 3.0 slot occupied by Asus X710-2T Dual Port RJ45 Card
-
DC-SCM (Data Center Secure Control Module)
-
1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU
-
|
CX1260a-NVMe5-S4-X6
1U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
|
|
32 DIMMs
|
3.5" SATA/NVMe Hybrid
|
Max 4 Drives
|
Asus
|
- 2x Intel® Xeon® 6700/6500 Series Processor (350W)
-
32x DDR5 DIMM Sockets
-
4 x 3.5” Tool-less Hot-swap drive bays (NVM-E/SATA*/SAS*)
-
*HBA/ RAID card is required to support SAS or SATA hard drive
-
2 x PCI-E Gen5 x16 (FHHL)
-
2 x OCP3.0 Gen5 x16 (SFF)
-
*1 x OCP 3.0 slot occupied by Asus X710-2T Dual Port RJ45 Card
-
DC-SCM (Data Center Secure Control Module)
-
1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU
-
|
CX21460g-XH2
2U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 4 GPUs
|
16 DIMMs
|
2.5" NMVe Gen5
|
Max 4 Drives
|
GIGABYTE
|
- NVIDIA MGX™ Modular Server Design
-
1x Intel® Xeon® 6700/6500 Series Processor
-
4x NVIDIA GPUs
-
16x DDR5 DIMM Sockets
-
2x 2.5" Gen5 NVMe Drive Bays
|
CX2165g-S24-X6
2U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
|
No GPU
|
16 DIMMs
|
2.5" NMVe Gen5
|
Max 24 Drives
|
GIGABYTE
|
- 1x PCIe 5.0 x16 Slot (FHFL)
-
1x OCP 3.0 Slot (Gen5 x16)
-
Dedicated LAN for System Management
-
Redundant 2000W Titanium PS
|
CX2155g-X6K9
2U
|
1
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA L4 / L40S / RTX Pro 6000 Max-Q
|
Max 2 GPUs
|
16 DIMMs
|
2.5" NMVe Gen5
|
Max 2 Drives
|
GIGABYTE
|
- Short Depth
-
2x 2.5" Gen5 NVMe Drive Bays (Rear)
-
1x M.2 SSD (PCIe 5.0 x2)
-
2x PCIe 5.0 x16 Slots (Full-Height Full-Length)
-
2x OCP 3.0 Gen5 x16 Slots
-
Integrated 1x 1Gb/s Port
-
Dedicated LAN for System Management
-
Redundant 1200W Platinum PS
|
CX2465g-S8-X6H2
2U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 4 GPUs
|
16 DIMMs
|
2.5" SATA/SAS
|
Max 8 Drives
|
GIGABYTE
|
- 4x NVIDIA H200 NVL PCIe GPUs (Direct Connect) OR 8x NVIDIA L40S
-
2x LP PCIe 5.0 x16 Slots
-
2x 10GbE Ports
-
Dedicated LAN for System Management
-
Redundant 3000W Titanium PS
|
CX2465g-NVMe5-S8-X6H2
2U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 4 GPUs
|
24 DIMMs
|
2.5" NMVe Gen5
|
Max 8 Drives
|
GIGABYTE
|
- 4x NVIDIA H200 NVL PCIe GPUs (2-way NVIDIA® NVLink® Bridges) OR 8x NVIDIA L40S
-
2x LP PCIe 5.0 x16 Slots
-
2x 10GbE Ports
-
Dedicated LAN for System Management
-
Redundant 3000W Titanium PS
|
CX2460g-NVMe5-S8-X6H2
2U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 4 GPUs
|
24 DIMMs
|
2.5" NMVe Gen5
|
Max 8 Drives
|
GIGABYTE
|
- 4x NVIDIA H200 NVL PCIe GPUs (Direct Connect)
-
2x LP PCIe 5.0 x16 Slots
-
2x 10GbE Ports
-
Dedicated LAN for System Management
-
Redundant 3000W Titanium PS
|
CX2225g-X6
2U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
|
No GPU
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 4 Drives
|
GIGABYTE
|
- 4x 2.5" Gen5 NVMe Drive Bays (Rear)
-
6x PCIe 5.0 x16 Slots for GPUs (FHHL)
-
2x 1GbE Ports
-
Dedicated LAN for System Management
-
Redundant 2000W Titanium PS
|
CX2265g-S24-X6
2U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
|
No GPU
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 24 Drives
|
GIGABYTE
|
- 2x FHHL Dual-Slot PCIe Gen5 x16 Slots
-
2x 1GbE Ports
-
Dedicated LAN for System Management
-
Redundant 2000W Titanium PS
|
CX22460g-XH2
2U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 4 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 4 Drives
|
GIGABYTE
|
- NVIDIA MGX™ Modular Server Design
-
2x Intel® Xeon® 6700/6500 Series Processor
-
4x NVIDIA GPUs
-
32x DDR5 DIMM Sockets
-
4x 2.5" Gen5 NVMe Drive Bays
|
CX2250a-NVMe5-S12-X6
2U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
|
|
32 DIMMs
|
3.5" SATA/NVMe Hybrid
|
Max 12 Drives
|
Asus
|
- 2x Intel® Xeon® 6700/6500 Series Processor (350W)
-
32x DDR5 DIMM Sockets
-
12 x 2.5"/3.5” hot-swap drive bays (NVM-E/SATA*/SAS*)
-
*HBA/ RAID card is required to support SAS or SATA hard drive
-
6 x PCI-E Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
-
2 x PCI-E Gen5 x16 (FHHL)
-
2 x OCP3.0 Gen5 x16 (SFF)
-
*1 x OCP 3.0 slot occupied by Asus X710-2T Dual Port RJ45 Card
-
DC-SCM (Data Center Secure Control Module)
-
1+1 Redundant 2700W 80 PLUS Titanium/Platinum PSU
-
|
CX22865g-X6
2U 4x Nodes
|
8
|
Intel Xeon 6700E/6700P/6500P
|
|
No GPU
|
64 DIMMs
|
2.5" NMVe Gen5
|
Max 8 Drives
|
GIGABYTE
|
- 2U, 4 Hot-Swap Nodes
-
16x DDR5 DIMMs / Node
-
1 PCIe 5.0 x16 Low-Profile Slot / Node
-
1 OCP 3.0 Gen5 x16 Mezzanine Slot / Node
-
2x 2.5" Hot-Swap Gen5 NVMe Drive Bays / Node
-
1x M.2 PCIe SSD / Node
-
Dedicated LAN for System Management / Node
-
Redundant 3000W Titanium PS
|
CX4860g-NVMe5-S8-X6RTX
4U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 8 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 8 Drives
|
GIGABYTE
|
- 2 x Intel Xeon 6 6700 Series Processors
-
8 x NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs
-
8 x Nvidia QSFP112 CX8 400Gb/s InfiniBand/Ethernet Ports
-
1 x Nvidia BF3220 Dual Port QSFP112 BlueField-3 200GbE/NDR200 DPU
-
2 x Intel X710-AT2 Dual Port RJ45 10GbE
-
Dedicated LAN for System Management
-
3200W 3+1 80 PLUS Titanium Redundant Power Supplies
|
CX4860r-X6
4U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
Intel ARC
|
Max 8 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 4 Drives
|
ASRock
|
- 2 x Intel Xeon 6500/6700 Series CPU's P-cores (350W TDP)
-
32 x DIMMs 6TB 6400MT/s DDR5 RDIMM
-
1 x M.2 PCI-E 5.0 x 4 NVM-E Slot (22110/2280)
-
8 x FHFL Double-wide PCI-E x 16 Gen5 Slots (rear)
-
1 x FHHL Single-wide PCI-E x 16 Gen5 Slot (front)
-
1 x FHHL Single-wide PCI-E x 8 Gen5 Slot (front)
-
2 x Intel i3501GbE RJ45 Ports
-
1 x Dedicated LAN for System Management
-
3+1 2700W Titanium RPS (1KW 100-127V/2.7KW 200-240V)
|
CX4860m-NVMe5-S20-X6RTX
4U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 8 GPUs
|
32 DIMMs
|
E1.S NVMe
|
Max 20 Drives
|
MSI
|
- (2) Intel Xeon 6 6700 Series Processors (350W)
-
(8) PCI-E 5.0 x16 FHFL double wide slots (through PCI-E switch)
-
(4) PCI-E 5.0 x16 FHFL single wide slots (through PCI-E switch)
-
(1) PCI-E 5.0 x16 FHFL single wide slot (from CPU0)
-
(2) 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI supported)
-
(1) 1000Base-T Dedicated Server Management port
-
(3+1) Redundant 3200W CRPS 80 PLUS Titanium Power Supplies
|
CX4860g-NVMe5-S12-X6H2
4U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 8 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 12 Drives
|
GIGABYTE
|
- 8x NVIDIA H200 NVL or RTX Pro 6000 BSE PCIe GPUs
-
-
Rear:
-
4 x FHFL x16 (Gen5 x16), from PEX89144_0, for GPUs
-
4 x FHFL x16 (Gen5 x16), from PEX89144_1, for GPUs
-
1 x FHHL x16 (Gen5 x16), from CPU_0
-
1 x FHHL x16 (Gen5 x16), from PEX89144_1
-
2 x LP x16 (Gen5 x16), from PEX89144_0
-
1 x LP x16 (Gen5 x16), from PEX89144_1
-
-
Front:
-
1 x FHHL x16 (Gen5 x16), from CPU_0
-
1 x FHHL x16 (Gen5 x16), from CPU_1
-
-
Integrated 2x 10Gb/s Ports
-
Dedicated LAN for System Management
-
4x 3000W Redundant Titanium PS
|
CX4860m-X6H2
4U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA H200 NVL / RTX PRO 6000 Blackwell PCIe
|
Max 8 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 8 Drives
|
Tyan / Mitac Computing
|
- 8x NVIDIA H200 NVL PCIe GPUs
-
3x OCP 3.0 Gen5 x16 Mezzanine Slots
-
Dedicated LAN for System Management
-
3+1 9600W Redundant Titanium PS
|
CX4465s-S24-X6
4U
|
4
|
Intel Xeon 6700E/6700P/6500P
|
|
|
64 DIMMs
|
2.5" NMVe Gen5
|
Max 24 Drives
|
Supermicro
|
- 3 PCIe 5.0 x16 FHHL Slot
-
3 PCIe 5.0 x8 FHHL Slots
-
2 AIOM Slots (OCP 3.0 Gen 5 x8 and x16)
-
Dedicated LAN for System Management
-
2700W Redundant PS
|
CX8860g-X67B2
8U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA B200 HGX
|
Max 8 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 8 Drives
|
GIGABYTE
|
- NVIDIA HGX™ B200 8-GPU (Blackwell)
-
2x Intel Xeon 6700P Series Processors
-
8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
-
2 x M.2 slots with PCIe Gen5 x4 and x2 interface
-
8 x 2.5" Gen5 NVMe hot-swap bays
-
8x PCIe 5.0 x16 (FHHL)
-
4x PCIe 5.0 x16 (FHHL)
-
Integrated 2x 10Gb/s Ports
-
Dedicated LAN for System Management
-
6+6 3000W Redundant Titanium PS
|
CX8860s-X6B3
8U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA B300 HGX
|
Max 8 GPUs
|
32 DIMMs
|
E1.S NVMe
|
Max 8 Drives
|
Supermicro
|
- NVIDIA HGX™ B300 8-GPU (Blackwell)
-
2x Intel® Xeon® 6700 Series Processors
-
32 x DDR5 Memory Sockets
-
2 x PCI-E 22x80 M.2
-
8 x E1.S PCI-E 5.0 NVM-E
-
8 x CX8 on-board
-
2x PCIe 5.0 x16 (FHHL)
-
Integrated 2x 10Gb/s Ports
-
Dedicated LAN for System Management
-
6x 6600W (3+3) Redundant Titanium PS
|
CX8860r-X67B3
8U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA B300 HGX
|
Max 8 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 12 Drives
|
ASRock
|
- NVIDIA HGX™ B300 8-GPU (Blackwell)
-
2x Intel Xeon 6700P Series Processors
-
8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
-
1 x M.2 slots with PCIe Gen5 x4 and x2 interface
-
12 x 2.5" Gen5 NVMe hot-swap bays
-
4x PCIe 5.0 x16 (FHHL)
-
2 RJ45 (1GbE) by Intel® i350-AM2
-
8 OSFP (800Gb/s) via NVIDIA ConnectX-8 SuperNIC
-
Dedicated LAN for System Management
-
6+6 3000W Redundant Titanium PS
|

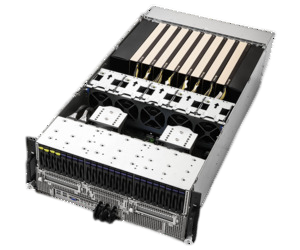

CX8860g-X67B3
8U
|
2
|
Intel Xeon 6700E/6700P/6500P
|
NVIDIA B300 HGX
|
Max 8 GPUs
|
32 DIMMs
|
2.5" NMVe Gen5
|
Max 8 Drives
|
GIGABYTE
|
- NVIDIA HGX™ B300 8-GPU (Blackwell)
-
2x Intel Xeon 6700P Series Processors
-
8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
-
2 x M.2 slots with PCIe Gen5 x4 and x2 interface
-
8 x 2.5" Gen5 NVMe hot-swap bays
-
4x PCIe 5.0 x16 (FHHL)
-
Integrated 2x 10Gb/s Ports
-
8 x 800 Gb/s OSFP InfiniBand XDR or dual 400 Gb/s Ethernet GPU networking ports via onboard NVIDIA ConnectX®-8 SuperNIC™
-
Dedicated LAN for System Management
-
6+6 3000W Redundant Titanium PS
|
