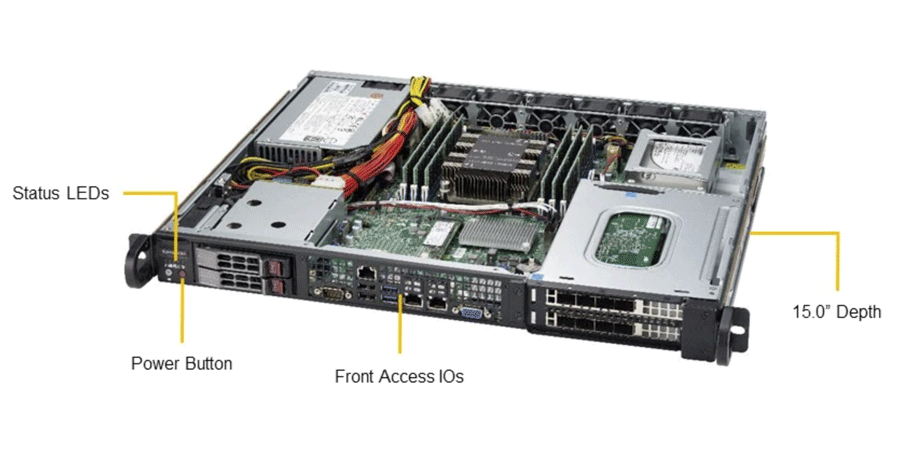

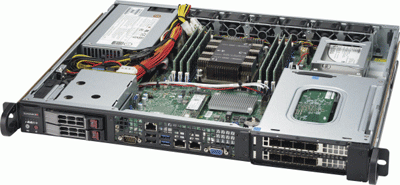

Colfax CX1125s-X7 1U Rackmount Server



  • Single Intel® Xeon® Scalable Processor
  • 6x DIMMs
  • 2x 2.5" Hot-Swap SATA3 and 2x 2.5" Internal Drive Bays
  • 2 PCI-E 3.0 x16 (FHFL) Slots
  • 2x 10GBase-T Ports

Features

  • 1x Intel® Xeon® Scalable Processor
  • Intel C622 Chipset
  • 6x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • 2 PCI-E 3.0 x16 Slots (FH, FL)
  • 2x 2.5" Hot-Swap SATA3 Drive Bays
  • 2x 2.5" Internal Drive Bays
  • 1x M.2 SSD
  • 2x SATA DOMs
  • Dual 10GBase-T LAN with Intel® X722 + X557
  • 500W Single Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Single Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-205W TDP)

* Extended thermal solutions may be required to support CPUs higher than 165W TDP
** If installing 2x NVIDIA T4 GPUs in the riser card bracket, the processor must consume less than 165W TDP
Memory • 6x DDR4 DIMM slots
• Supports up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
• 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C622
I/O Expansion • 2x PCI-E 3.0 x16 slots (FH, FL)
Onboard Devices SATA
• SATA3 (6Gbps) via C622 controller
• RAID 0, 1, 5, 10 support
Network Controllers
• Dual 10GBase-T LAN with Intel® X722 + X557
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
VGA
• ASPEED AST2500 BMC

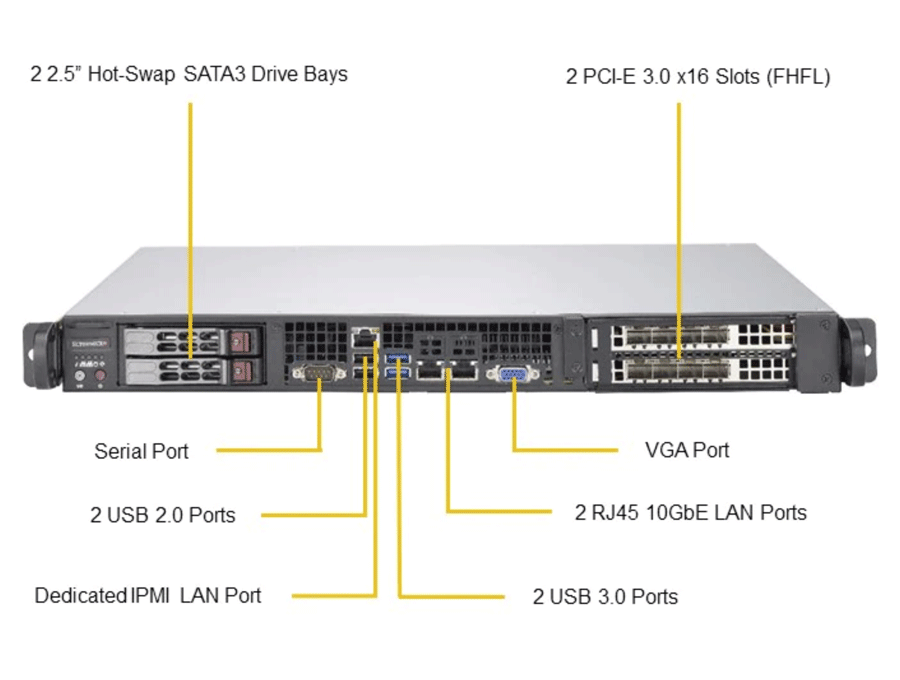

Input / Output SATA
• 4x SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (front)
• 2x USB 2.0 ports (front)
VGA
• 1x VGA port
Serial Port
• 1x COM port (front)
DOM
• 2x SuperDOM (Disk on Module) ports with built-in power
Drive Bays • 2x 2.5" hot-swap SATA3 drive bays
• 2x 2.5" internal drive bays
M.2
• Interface: PCI-E 3.0 x4 and SATA
• Form Factor: 2280, 22110
• Key: M-Key
• Double Height Connector
Chassis Form Factor • 1U Rackmount
• Dimension: 17.2"W (437mm) x 1.7"H (43mm) x 15"D (381mm)
Power Supply • 500W High-Efficiency Power Supply w/ PMBus 1.2, I2C, and PFC
AC Input
• 100-240V, 50-60Hz, 6.6A max
DC Output
• +3.3V: 12A
• +5V: 15A
• +5V standby: 3A
• +12V: 41A
• -12V: 0.2A

• 80PLUS Platinum Certified

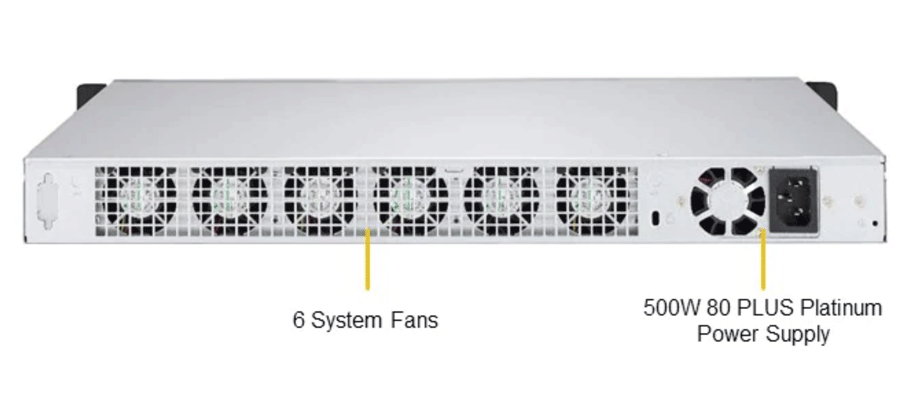

System Cooling • 6x 40x28mm PWM fans
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Information LED
BIOS • AMI 32Mb SPI Flash ROM

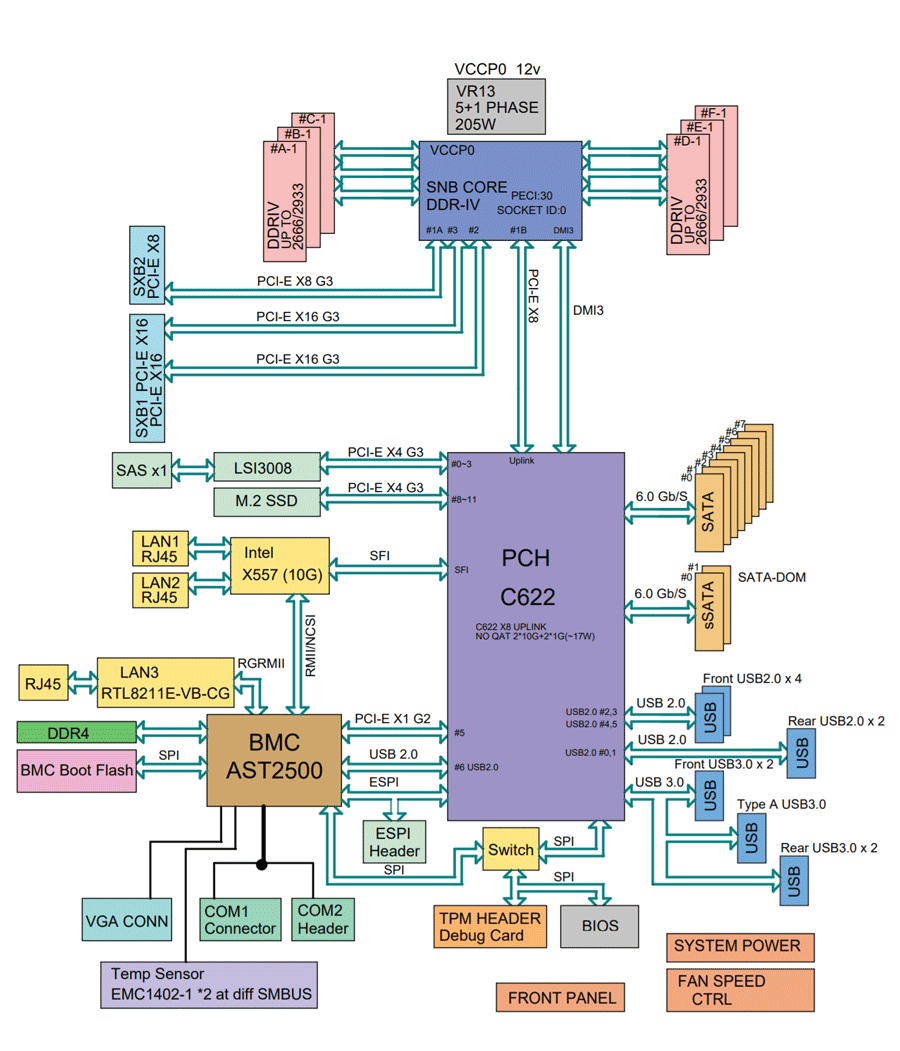

Block Diagram

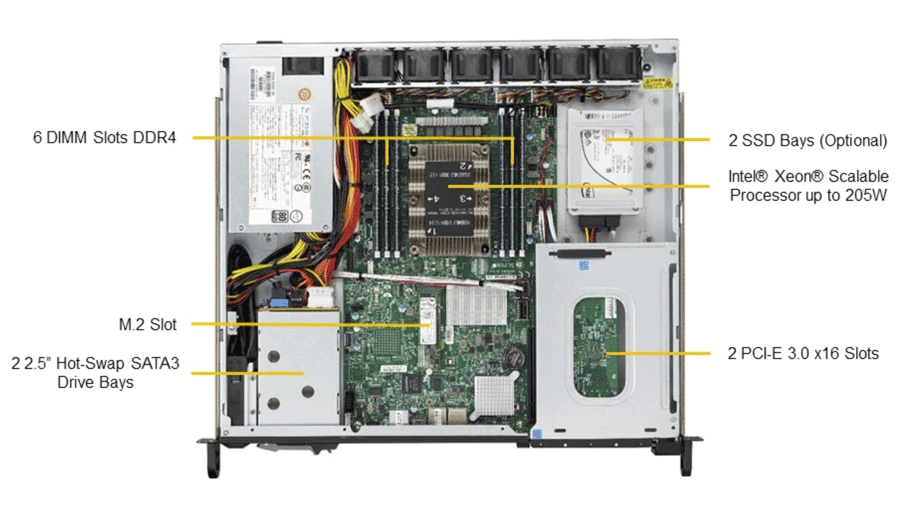

Images
