Colfax ProEdge™ TRX5400 Rack Workstation



  • 4U Rackmount (20" Deep)
  • AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processor
  • Up to 2x Dual-Slot GPUs
  • 8x DIMMs Supporting DDR5 Memory
  • 3x SATA HDDs/SSDs
  • 2x NVMe SSDs
  • 4x M.2 NVMe SSDs

Features

  • 4U Rackmount (20" Deep)
  • Asus Pro WS WRX90E-SAGE SE
  • AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processor (Click here for Specifications and Comparison)
  • ENERMAX LIQTECH TR4 II Series 360mm Liquid CPU Cooler (Learn More)
  • AMD WRX90 Chipset
  • 8x DIMMs Supports DDR5 ECC RDIMMM
  • Expansion Slots:
    - 6 PCIe 5.0 x16 Slots
    - 1 PCIe 5.0 x16 Slot (x8 mode)
  • 3x HDDs/SSDs
  • 2x NVMe SSDs
  • 4x M.2 NVMe SSDs (PCIe 5.0 x4)
  • 2x 10GBe and 1x GbE (Dedicated Management) LAN Ports
  • USB:
    Rear
    - 2x USB 40Gbps Ports (USB4)
    - 6x USB 10Gbps Ports (Type-A)
    Front
    - 1x USB 20Gbps Connector (supports USB Type-C)
    - 1x USB 5Gbps Header (supports 2x ports)
    - 2x USB 2.0 Header (supports 4x ports)




Rack Slides

  • 14" slides for 15.5" to 22" rack post spacing
  • 18" slides for 20" to 28" rack post spacing
  • 18" slides for 22" to 32" rack post spacing
  • 20" slides for 26" to 36" rack post spacing
  • 26" slides for 28" to 46" rack post spacing

Download Rack Installation Guide

Optional (Not listed in the Configurator but available on request)


Rocket 7608A – PCIe Gen5 x16 to 8-M.2x4 NVMe RAID AIC

  • Bus Interface: PCIe 5.0 x16
  • Port Count: 8x NVMe Ports
  • Connector Type: M.2
  • Device & Form factor: 2242, 2260, 2280
  • Cooling: Full-Length Aluminum Heatsink with cooling fan
  • Ext. Power Connector: Yes (uses PCIe Standard 2x3 Power Connector)
  • AIC Form factor: Full-Height, Single-Width
  • Operating System Support: Windows & Linux
  • FRU: Yes (stores VPD data)
  • Hardware Secure Boot: Yes
  • OOB Managament: No
  • Synthetic Hierarchy: Yes
  • RAID Support: Single, RAID 0, 1, 10
  • HighPoint Advanced Feature Suite: Yes

Download Datasheet



Technical Specifications

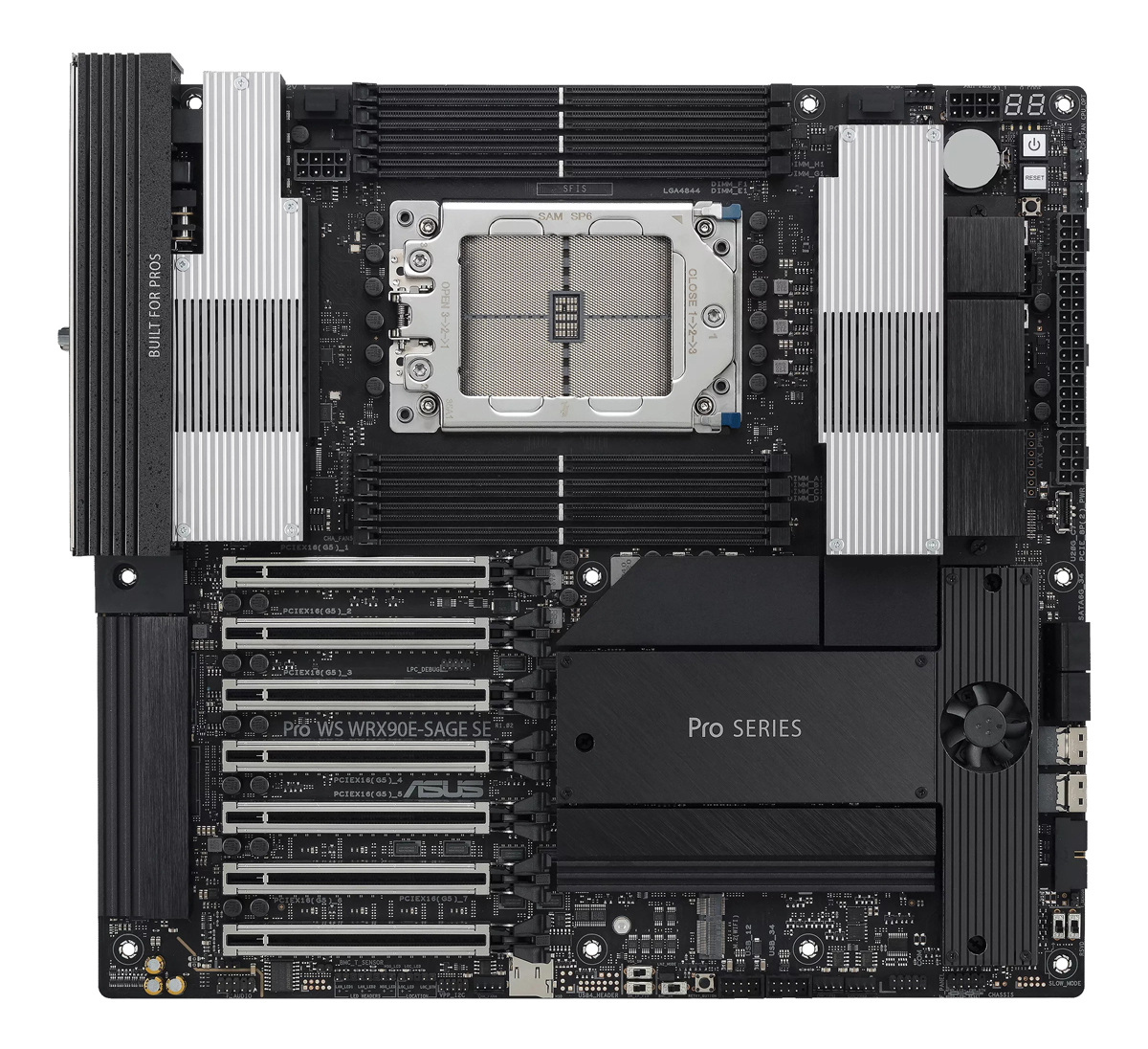

Motherboard • Asus Pro WS WRX90E-SAGE SE
CPU • AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processor
Chipset AMD WRX90
Memory • 8x DDR5 DIMM sockets
• 8-channel memory architecture
Expansion Slots • 6x PCIe 5.0 x16 slots
• 1x PCIe 5.0 x16 slot (x8 mode)
Integrated LAN • 1x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
• 1x Intel® dual 10Gb Ethernet
Storage AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processor
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
• 4x SATA 6Gb/s port(s)
• 2x SlimSAS slots supports PCIe 4.0 x4 mode NVMe device
Audio • Realtek ALC1220P Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192 kHz playback
USB Ports Rear

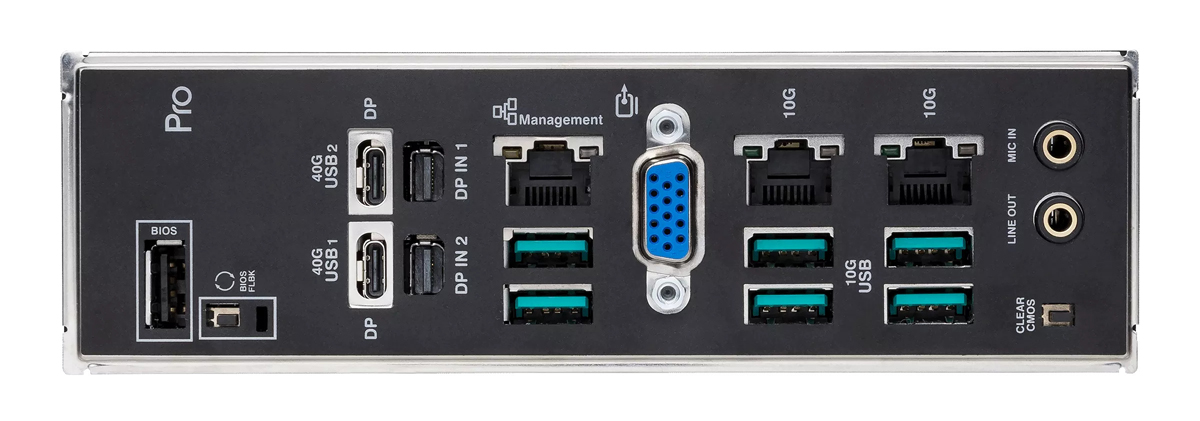

• 2x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2x USB Type-C)
• 6x USB 10Gbps ports (Type-A)
Front
• 1x USB 20Gbps connector (supports USB Type-C)
• 1x USB 5Gbps header (supports 2x ports)
• 2x USB 2.0 header (supports 4x ports)
Back I/O Ports • 2x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2x USB Type-C)
• 6x USB 10Gbps ports (6x Type-A)
• 1x VGA port
• 2x mini DisplayPort IN
• 1x Intel® dual 10Gb Ethernet ports
• 2x Audio jacks
• 1x BIOS FlashBack™ button
• 1x Clear CMOS button
Internal I/O Ports Fan and Cooling related
• 1x 4-pin CPU Fan header
• 1x 4-pin CPU OPT Fan header
• 1x W_PUMP+ header
• 5x 4-pin Chassis Fan headers
• 2x 4-pin VRM Fan headers (with VRM FAN onboard)
• 1x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
• 1x 24-pin Main Power connector
• 2x 8-pin +12V Power connectors
• 2x 8-pin PCIe to CPU power connectors
• 2x 8-pin PCIe Power connectors
Storage related
• 4x M.2 slots (Key M)
• 4x SATA 6Gb/s ports
• 2x SlimSAS ports
USB
• 1x USB 20Gbps connector supports USB Type-C
• 1x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
• 7x ProbeIt measurement points
• 1x COM Port header
• 1x FlexKey button
• 1x Front panel audio header (F_AUDIO)
• 1x Start button
• 1x Safe boot button
• 1x ReTry button
• 1x RSVD switch
• 1x LN2 mode jumper
• 1x M.2 slot (Key E)
• 1x Slow mode switch
• 1x SPI TPM header (14-1pin)
• 1x 10-1 pin system panel header
• 1x Chassis intrusion header
• 1x Thermal Sensor header
Manageability • WOL by PME, PXE
BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
Chassis Outside Dimensions
• 19.89" x 17.00" x 4U (6.96") [DxWxH]
• 505mm x 432mm x 176.75mm [DxWxH]
- Depth is measured from back side of rack ear
GPU / PCIe Cards
• 8x full height PCIe card slot cutouts
- Maximum card height: 158mm (card and power connector must be ≤158mm tall)
- Maximum card length: 450mm (with 25mm thick front fans)
• Optional card retention bar
5.25" Bays
• 1x 5.25" bay with filler blank
- The 1x included 5.25" bay filler blank allows mounting 2x 2.5" SSD and 1x 3.5" HDD
Storage
• 1x 5.25" bay filler provides 2x 2.5" SSD and 1x 3.5" HDD mount
- Using the 5.25" filler panels prevents any 5.25" devices from being installed
• Internal mounting bracket with configuration options for:
- 3x 3.5" HDDs or 8x 2.5" SSDs or 2x 3.5" HDDs and 3x 2.5" SSDs or 1x 3.5" HDD and 5x 2.5" SSDs
Front Panel I/O
• 1x USB C 10Gbps Port
• 1x USB 3.0 Port
• 1x Momentary Switch / Power Status LED (Ring Shape, White)
Power Supply
• ATX
- Maximum of 250mm length with 3.5" HDD bracket installed
Fan Mounting
• Front
- 3x 120mm fans
CPU Air Coolers
• Up to 153mm tall
CPU Liquid Coolers
• 1x 360mm AIO is supported, but requires removal of the HDD/SSD bracket
or
• 1x 240mm liquid cooler
or
• Up to 3x 120mm liquid coolers
- 120mm AIOs must be positioned vertically (tubes at top)
Material
• Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
• Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
• Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
Finish
• Fine texture powder coated chassis and panels

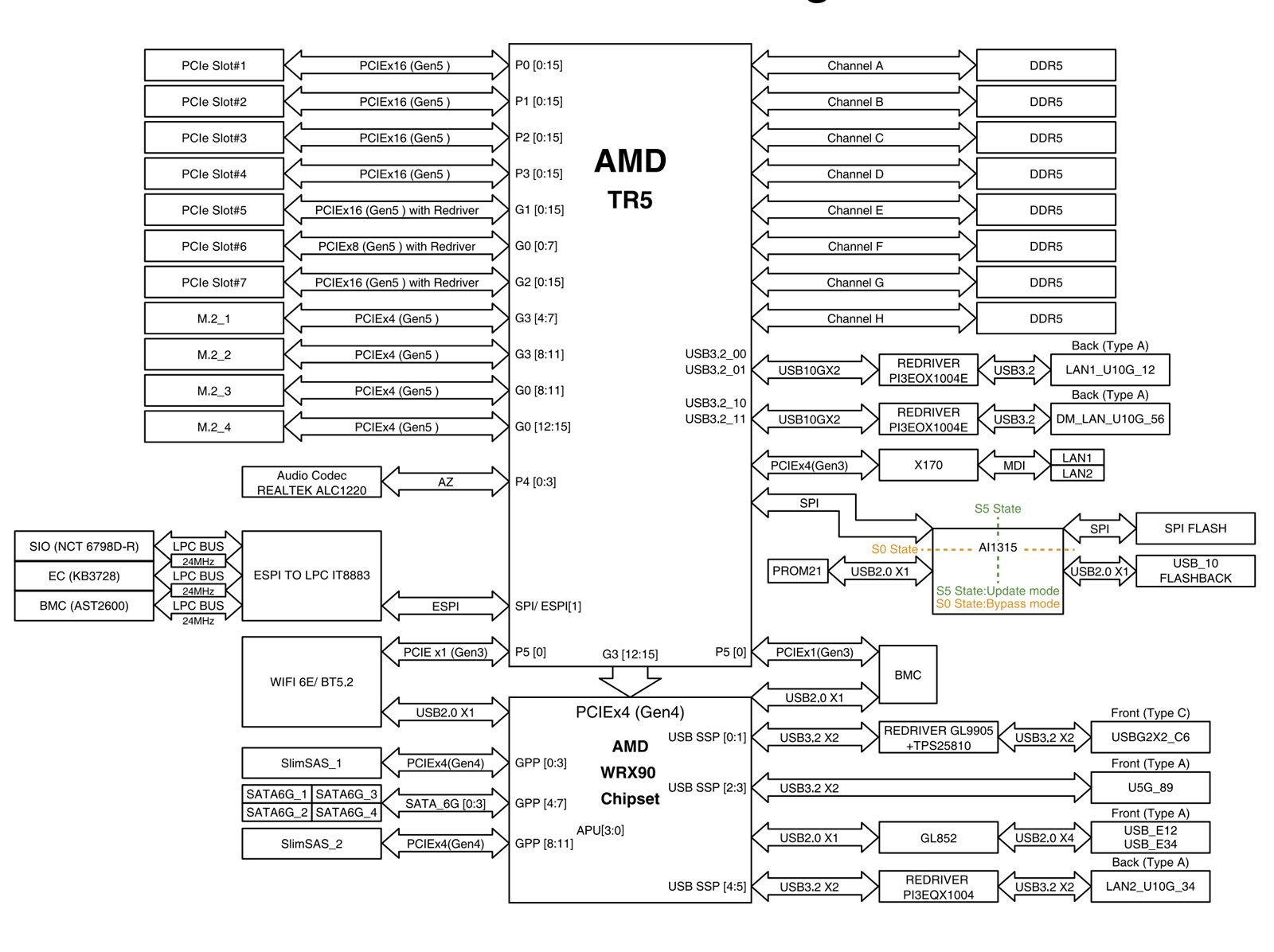

Block Diagram

Images
$2,561.73


  Qty.Colfax ProEdge™ TRX5400 Rack Workstation, Cost As Configured $2,561.73
Motherboard 1
Primary CPU 1
Liquid Pump 1
Chassis 1
Chassis Fans 1
Rackmount Kit 1
Power Supply 1
Memory Socket 1 of 8    1

Set next    items (  ) like this
Memory Socket 2 of 8    1
Memory Socket 3 of 8    1
Memory Socket 4 of 8    1
Memory Socket 5 of 8    1
Memory Socket 6 of 8    1
Memory Socket 7 of 8    1
Memory Socket 8 of 8    1
DVD+/-RW Drive 1
Blu-Ray Drive 1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
M.2 Drive 3    1
M.2 Drive 4    1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
TPM 1
Operating System SW 1
   Colfax ProEdge™ TRX5400 Rack Workstation, Cost As Configured $2,561.73
