Colfax CX1125s-X8 1U Rackmount Server



  • Single 3rd Gen Intel® Xeon® Scalable Processor
  • 8x DIMMs
  • 2x 2.5" Internal SATA Drive Bays
  • 1x M.2 SSD
  • 2 PCI-E 4.0 x16 (FHFL) Slots
  • 2x 10GBase-T Ports

Features

  • 1x Intel® Xeon® Scalable Processor
  • Intel C621A Chipset
  • 8x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • 2 PCI-E 4.0 x16 Slots (FH, FL)
  • 2x 2.5" Internal SATA Drive Bays
  • 1x M.2 SSD
  • Dual 10GBase-T LAN Ports
  • 800W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 1U Rackmount

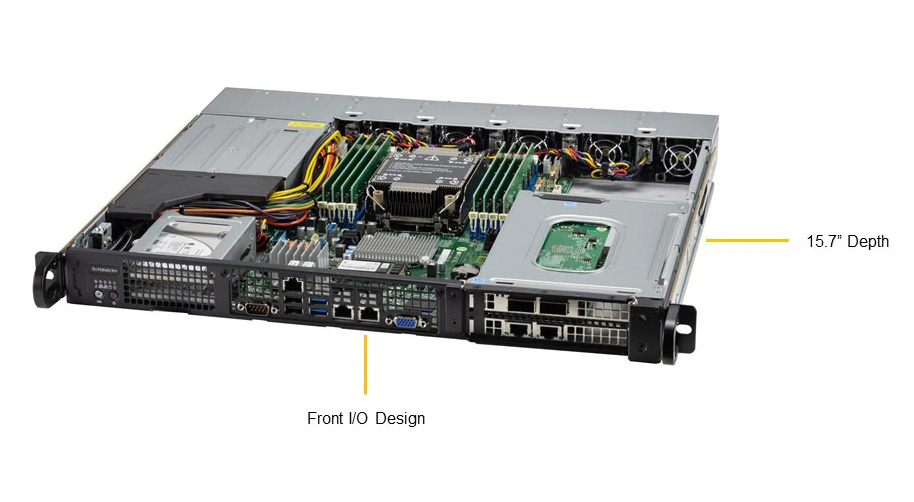

• Dimension: 17.2" W (437mm) x 1.7" H (43mm) x 15.7" D (399mm)
CPU • Single Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processor
• Supports CPU TDP 85-205W
Memory • 8x DDR4 DIMM slots
• Supports up to 2TB
• Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A
I/O Expansion • Slot 1: PCI-E 4.0 x16 FHFL
• Slot 2: PCI-E 4.0 x16 FHFL
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0/1 support
Network Controllers
• Dual 10GBase-T LAN
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 8x SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.2 Gen1 ports (front)
• 2x USB 2.0 ports (front)
VGA
• 1x VGA port
Serial Port
• 1x COM port (front)
DOM
• 2x SuperDOM (Disk on Module) ports
Drive Bays • 2x 2.5" internal drive bays
M.2
• Interface: PCI-E 3.0 x4 and SATA
• Form Factor: 2280, 22110
• Key: M-Key
Power Supply • 800W High-Efficiency Redundant Power Supplies with PMBus
AC Input
• 100-127Vac / 50-60Hz
• 200-240Vac / 50-60Hz
DC Input
• 230-240Vdc
+12V
• Max: 62.5A / Min: 0A (100Vac-127Vac)
• Max: 66.6A / Min: 0A (200Vac-240Vac)
• Max: 66.6A / Min: 0A (230Vdc-240Vdc)
5V SB
• Max: 4A / Min: 0A
+54V
• Max: 4A / Min: 0A

• 80PLUS Platinum Certified

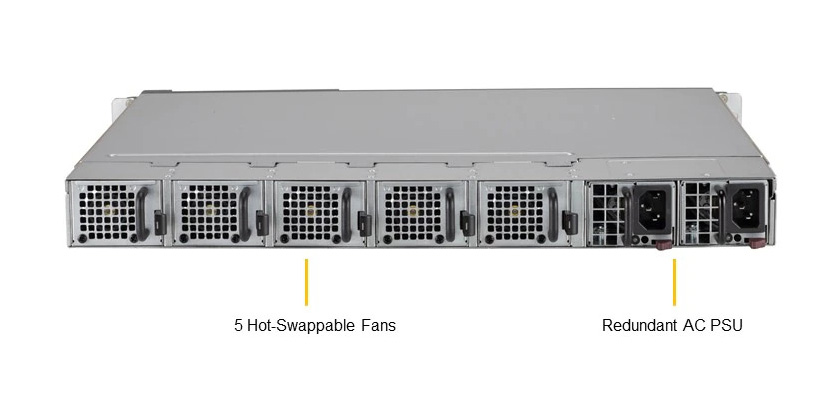

System Cooling • 5 heavy duty fans with optimal fan speed control

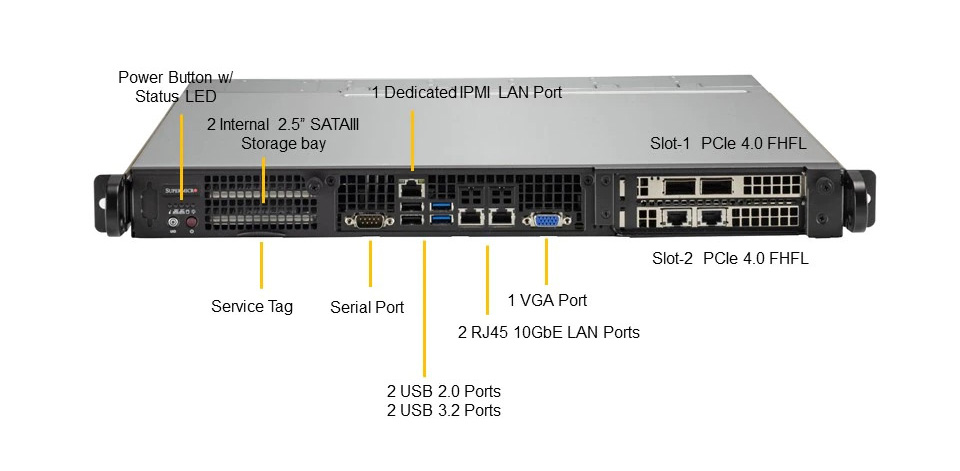

Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Information LED
BIOS • AMI 32Mb SPI Flash ROM

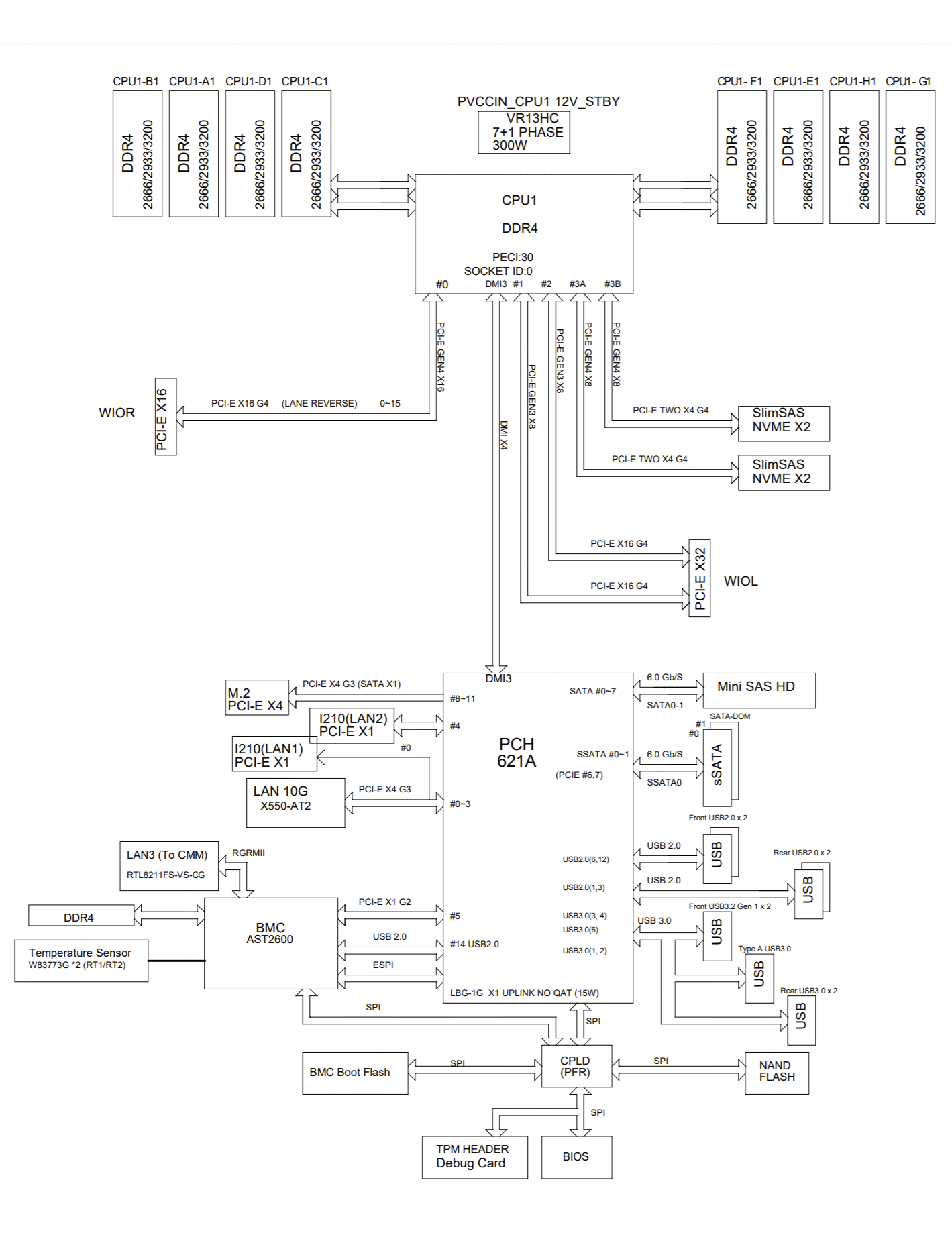

Block Diagram


Images
