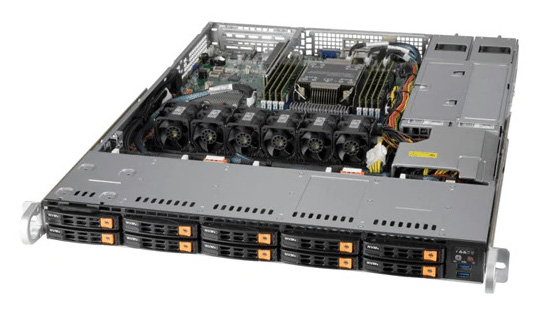

Colfax CX1165s-NVMe4-X8 1U Rackmount Server



  • 1x 3rd Gen Intel® Xeon® Scalable Processor
  • 8x DIMMs
  • 10x 2.5" Gen4 U.2 NVMe SSD Drive Bays
  • 2x 10GBase-T Ports

Features

  • 1x 3rd Gen Intel® Xeon® Scalable Processor
  • Intel C621A Chipset
  • 8x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM

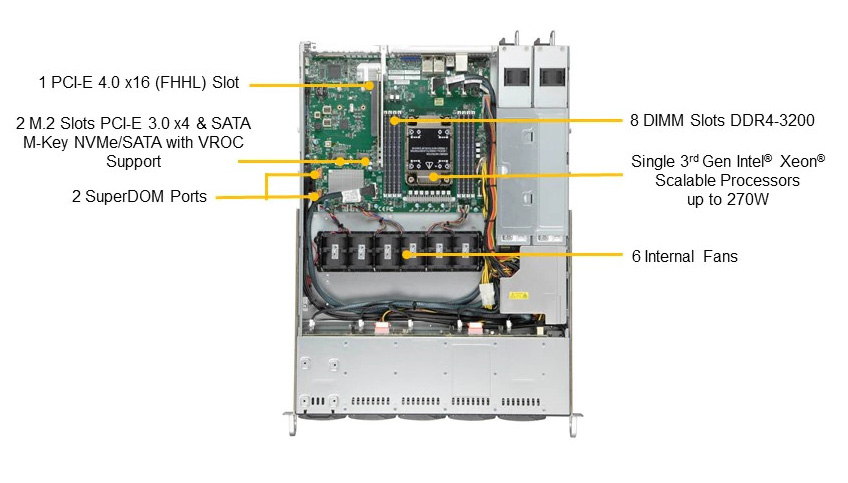

  • 1 PCI-E 4.0 x16 Slot (FHHL)

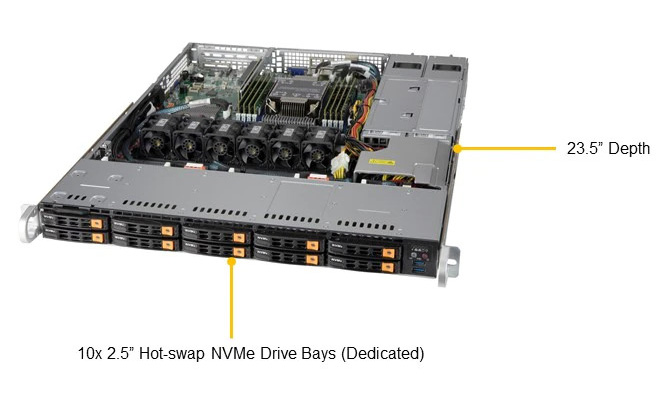

  • 10x 2.5" Gen4 U.2 NVMe SSD Drive Bays
  • 2x M.2 SSDs
  • Dual 10GBase-T LAN Ports
  • 860W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 1U Rackmount
• Dimension: 17.2" W (437mm) x 1.7" H (43mm) x 23.5" D (597mm)
CPU • Single Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processor
• Supports CPU TDP up to 270W
Memory • 8x DDR4 DIMM slots
• Supports up to 2TB
• Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A
I/O Expansion • Slot 1: PCI-E 4.0 x16 FHHL
Onboard Devices NVMe
• NVMe Gen4 via MB onboard controller; RAID 0, 1, 5, 10 support (with additional VROC module)
Network Controllers
• Dual 10GBase-T LAN with Intel® X550
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC

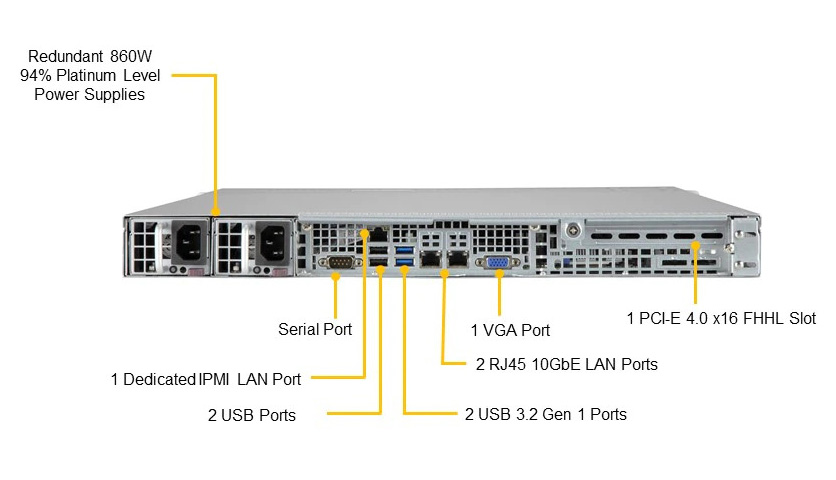

Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4 USB 2.0 ports (2 headers; 2 rear)
• 5 USB 3.2 Gen 1 ports (2 front; 2 rear; 1 Type A)
VGA
• 1x VGA port
Serial Port
• 2x COM ports (1 header; 1 rear)
DOM
• 2x SuperDOM (Disk on Module) ports
Drive Bays • 10x 2.5" Gen4 U.2 NVMe SSD drive bays
M.2
• Interface: PCI-E 3.0 x4 and SATA
• Form Factor: 2280, 22110
• Key: M-Key
Power Supply • 860W Redundant Power Supplies
• 80PLUS Platinum Certified
System Cooling • 6x heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off
• UID
LEDs
• Device Activity
• LAN 1 Activity
• LAN 2 Activity
• Power status
• System information
BIOS • AMI 32Mb SPI Flash ROM

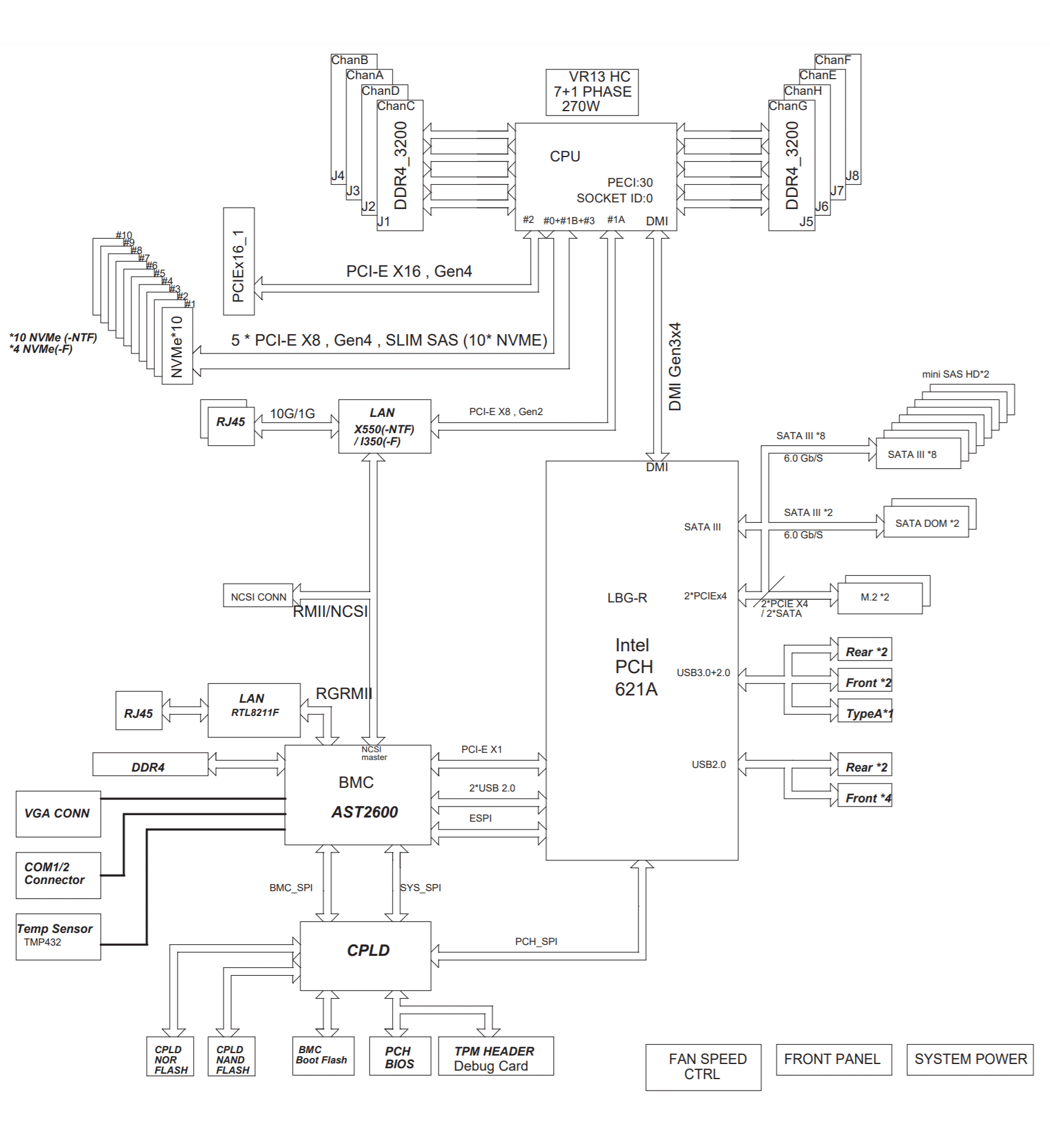

Block Diagram


Images


$2,596.93


  Qty.Colfax CX1165s-NVMe4-X8 1U Rackmount Server, Cost As Configured $2,596.93
Base Platform 1
Primary CPU 1
CPU 1 - Socket 1 of 8    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 8    1
CPU 1 - Socket 3 of 8    1
CPU 1 - Socket 4 of 8    1
CPU 1 - Socket 5 of 8    1
CPU 1 - Socket 6 of 8    1
CPU 1 - Socket 7 of 8    1
CPU 1 - Socket 8 of 8    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
NVMe Drive 1    1

Set next    items (  ) like this
NVMe Drive 2    1
NVMe Drive 3    1
NVMe Drive 4    1
NVMe Drive 5    1
NVMe Drive 6    1
NVMe Drive 7    1
NVMe Drive 8    1
NVMe Drive 9    1
NVMe Drive 10    1
Ethernet HBA 1
Infiniband HBA 1
TPM 1
Operating System SW 1
   Colfax CX1165s-NVMe4-X8 1U Rackmount Server, Cost As Configured $2,596.93
