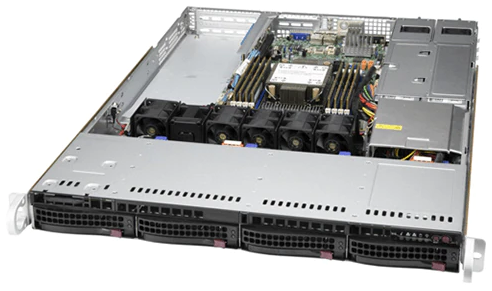

Colfax CX1170s-X8 1U Rackmount Server



  • Single 3rd Gen Intel® Xeon® Scalable Processor
  • 8x DDR4 DIMM Sockets
  • 4x 3.5" Hot-Swap Drive Bays
  • 1x M.2 NVMe SSD

Features

  • Single 3rd Gen Intel® Xeon® Scalable Processor
  • 8x DIMM Sockets Support DDR4 ECC RDIMM/LRDIMM
  • 2 PCI-E 4.0 x16 Slots (FHFL) + 1 PCI-E 4.0 x16 Slot (LP)
  • 4x 3.5" Hot-Swap Drive Bays
  • 1x M.2 NVMe SSD
  • Integrated 2x 10GBase-T Ports (Intel® X550)
  • 500W Redundant Power Supply, 80PLUS Platinum Certified


Technical Specifications

Chassis Form Factor • 1U
• Dimensions (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 25.6" (650mm)
CPU • Single Socket P+ (LGA-4189)
• 3rd Gen Intel® Xeon® Scalable Processor
• TDP up to 270W
Memory • 8 DIMM Sockets
• Supports up to 2TB 3200MHz ECC DDR4 RDIMM/LRDIMM
I/O Expansion • Slot 1: PCI-E 4.0 x16 FHFL
• Slot 2: PCI-E 4.0 x16 FHFL
• Slot 3: PCI-E 4.0 x16 LP
Drive Bays / Storage • 4x 3.5" hot-swap drive bays
M.2
• 1 PCI-E 3.0 x 4 and SATA
• M-Key, 2280/22110
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0/1/5/10 support
Network Controllers
• 2x 10GbE BaseT with Intel® X550
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC

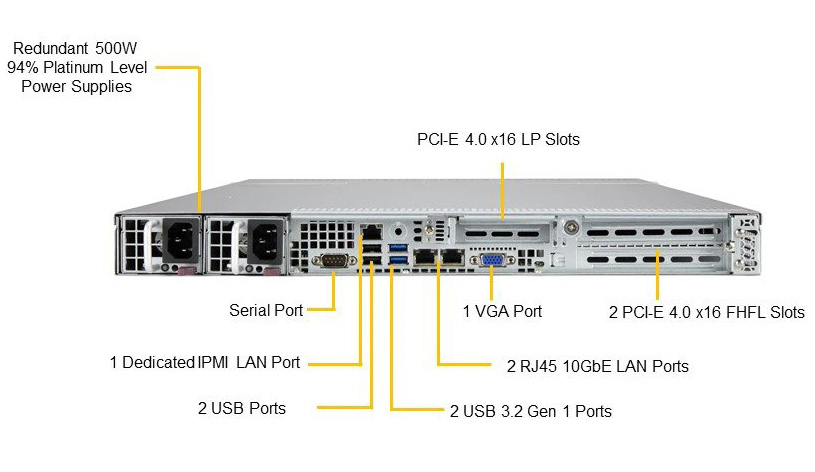

Input / Output SATA
• 10x SATA3 (6Gbps) ports
LAN
• 2 RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 5 USB 3.2 Gen 1 ports (2 rear; 2 headers; 1 Type A)
• 4 USB 2.0 ports (2 rear; 2 headers)
VGA
• 1 VGA port
Serial Port
• 2 COM ports (1 header; 1 rear)
DOM
• 2 SuperDOM (Disk on Module) port with built-in power
Power Supply • 1U 500W Redundant single output power supply W/PMbus
• AC Input
- 50-60Hz
• +12V
- Max: 42A / Min: 0.5A (100Vac-240Vac)
• 5V SB
- Max: 4A / Min: 0A
• +54V
- Max: 4A / Min: 0A
• 80PLUS Platinum Certified
System Cooling • 5 counter-rotation PWM 40x40x56mm fans

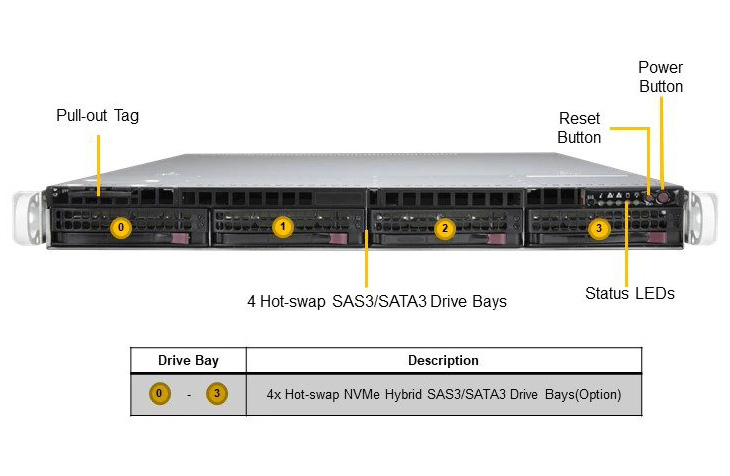

Front Panel Buttons
• Power On/Off
• System reset
• UID
LEDs
• Power status
• Hard drive activity
• 2x Network activity
• System Information
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram

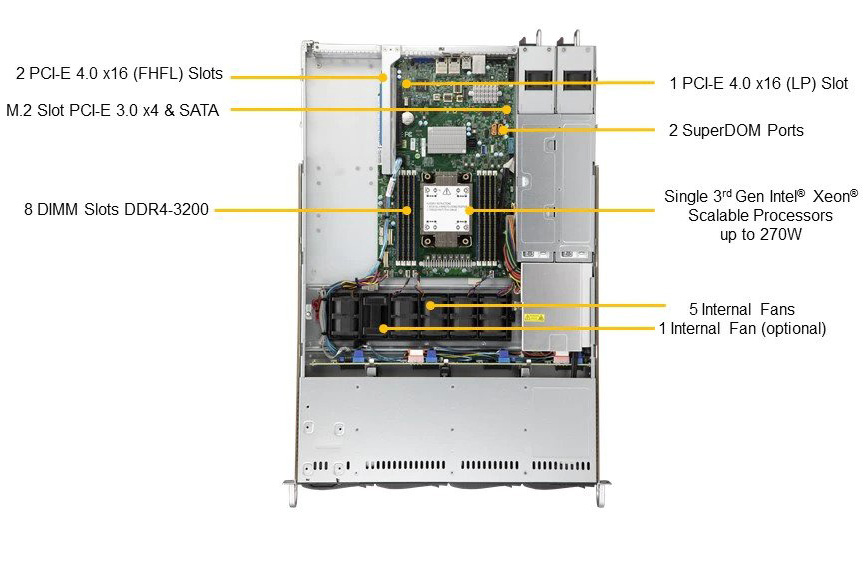

Images
