Colfax CX1250a-NVMe4-S4-EK8 1U Rackmount Server




  • 2x AMD EPYC™ 7003 Processors
  • 1x NVIDIA A10/A30/A40/A100 Tensor Core GPU
  • 32x DIMMS
  • 4x 2.5" Gen4 U.2 NVMe / SATA SSDs

Features

  • 2x AMD EPYC™ 7003 Processors
  • 1x NVIDIA A10/A30/A40/A100 Tensor Core GPU
  • 32x DIMMS, Supports DDR4 ECC RDIMM/LRDIMM
  • Expansion Slots:
    - 1 PCIe 4.0 x16 FHFL Slot
    - 1 PCIe 4.0 x16 FHFL Slot or OCP 3.0
    - 1 PCIe 4.0 x8 or x16 LP Slot (If M.2 is in use, it will operate at x8)
  • 4x 2.5" Gen4 U.2 NVMe / SATA SSDs
  • 2x M.2 NVMe SSDs
  • Integrated 1x Dual-Port Intel® X710-AT2 10GbE + 1x Mgmt LAN
  • 1+1 Redundant 1600W 80PLUS Platinum Power Supplies




Technical Specifications

CPU • 2x Socket SP3 (LGA 4094)
• Supports 2x AMD EPYC™ 7003 Series Processors
Memory • Total Slots: 32 (8-channel)
• Capacity: Maximum up to 4096GB
• Memory Type:
- DDR4 3200/2933 RDIMM/LRDIMM/3DS LRDIMM
• Memory Size:
- 64GB, 32GB, 16GB RDIMM
- 128GB, 64GB LRDIMM
- 256GB, 128GB, 64GB 3DS RDIMM/LRDIMM
Expansion Slots • 1 PCIe 4.0 x16 FH HL Slot
• 1 PCIe 4.0 x16 FH HL or OCP Gen3 4.0 x16 Slot
• 1 PCIe 4.0 x8 or x16 LP HL Slot (If M.2 is in use, it will operate at x8)

Proprietary Slots
• 1 PCIe 4.0 x8 Slot (for Asus Pike card only)
• 2x 10Gb RJ45 Lan Module card

M.2
• 2x M.2 (Up to 22110) (CPU2) (Supports SATA / PCIe Gen4 x4 link)
Drive Bays • 4x 3.5"/2.5" hot-swap drive bays
Storage Storage Controller
- 4x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe Gen4 x4 link)
- 2x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
Front I/O Ports • 2x USB 3.2 Gen1 ports
• 1x VGA port
Rear I/O Ports • 2x USB 3.2 Gen1 ports
• 1x VGA port
• 2x RJ-45 10GbE LAN ports
• 1x RJ-45 Mgmt LAN port
Network • 1x Dual-Port X710-AT2 + 1x Mgmt LAN
Integrated Graphics • Aspeed AST2600 with 64MB VRAM
Power Supply • 1+1 Redundant 1600W 80+ platinum efficiency redundant power supplies
System Management • Asus ASMB10-iKVM for KVM-over-IP
Dimensions • 1.73" x 17.68" x 33.17" (HxWxD)
• 43.85mm x 449mm x 842.5mm

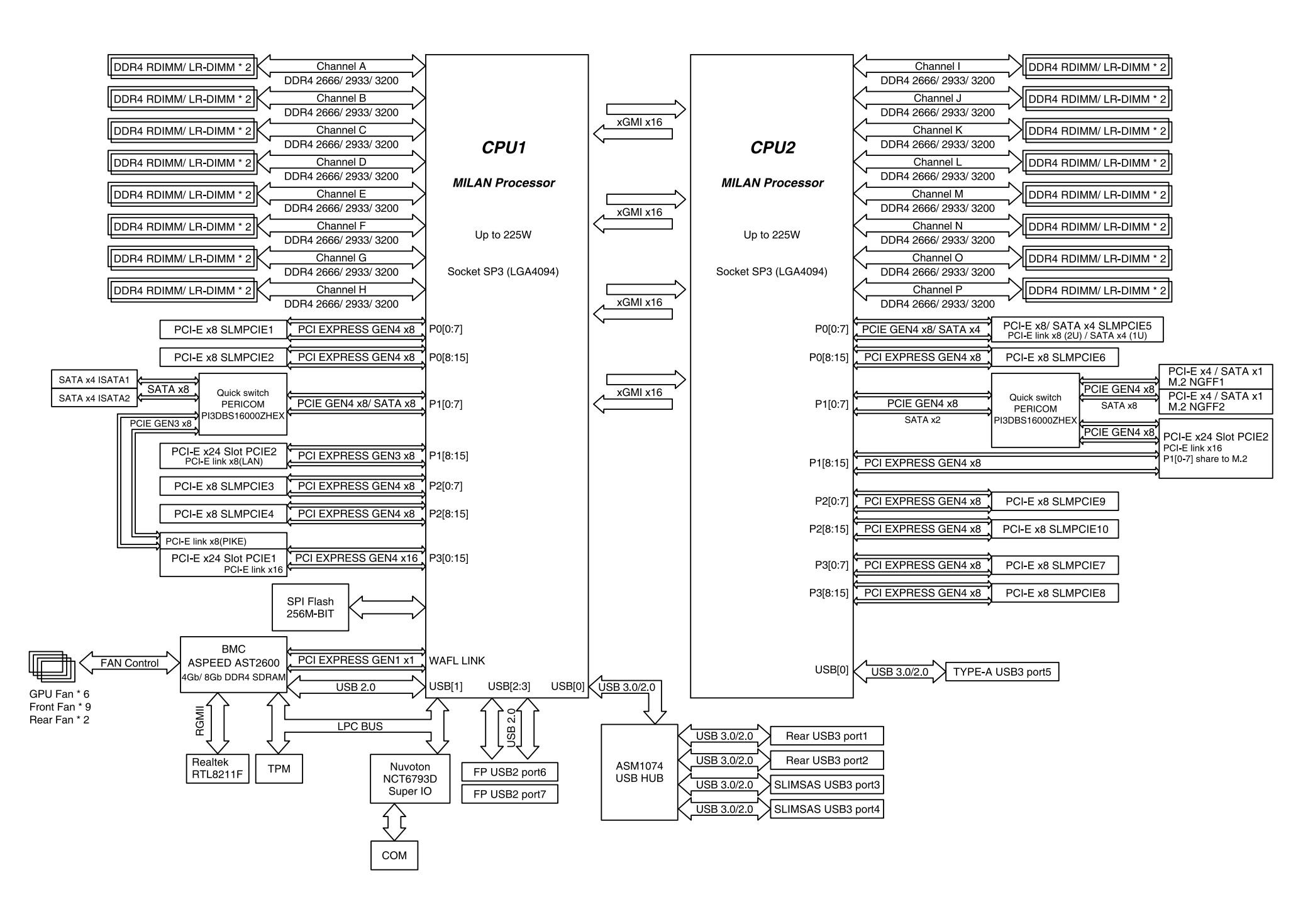

Block Diagram

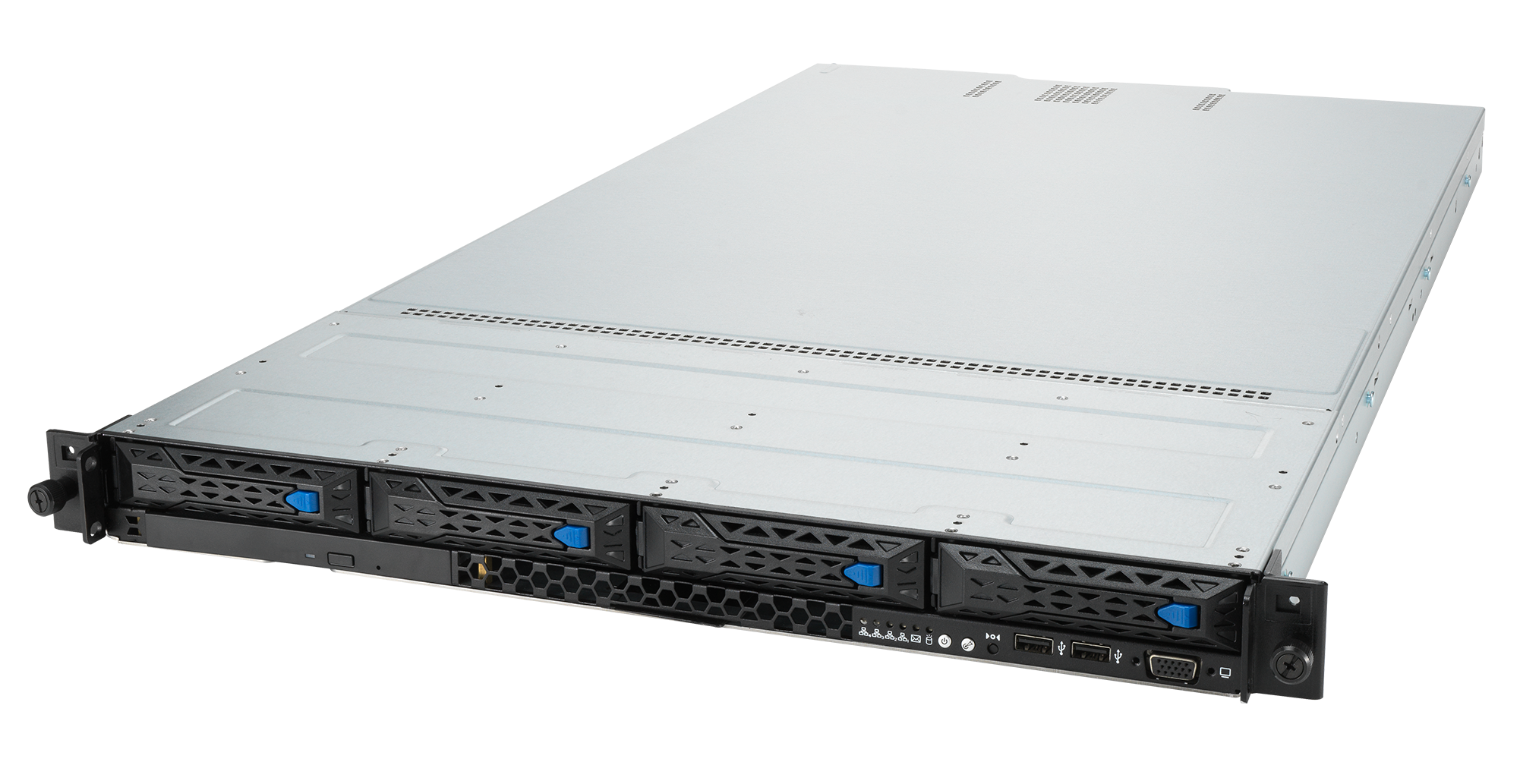

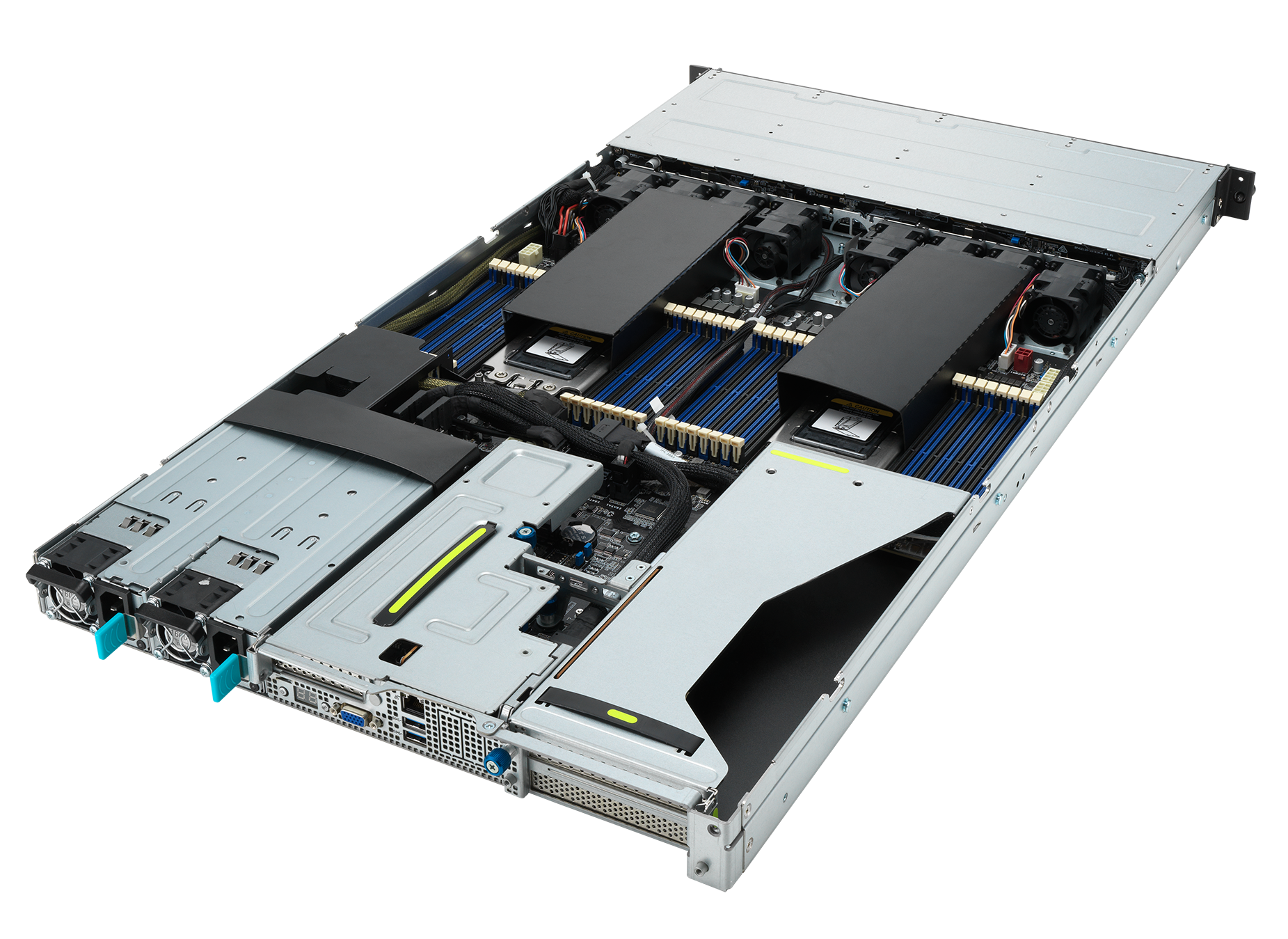

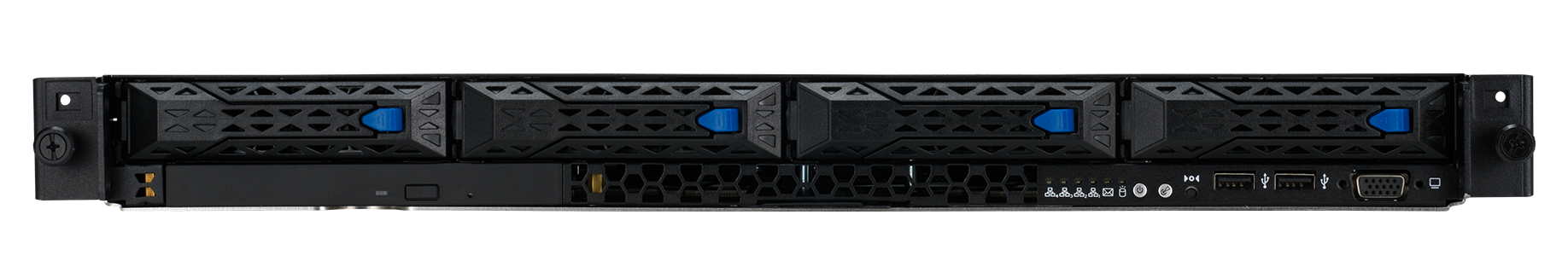

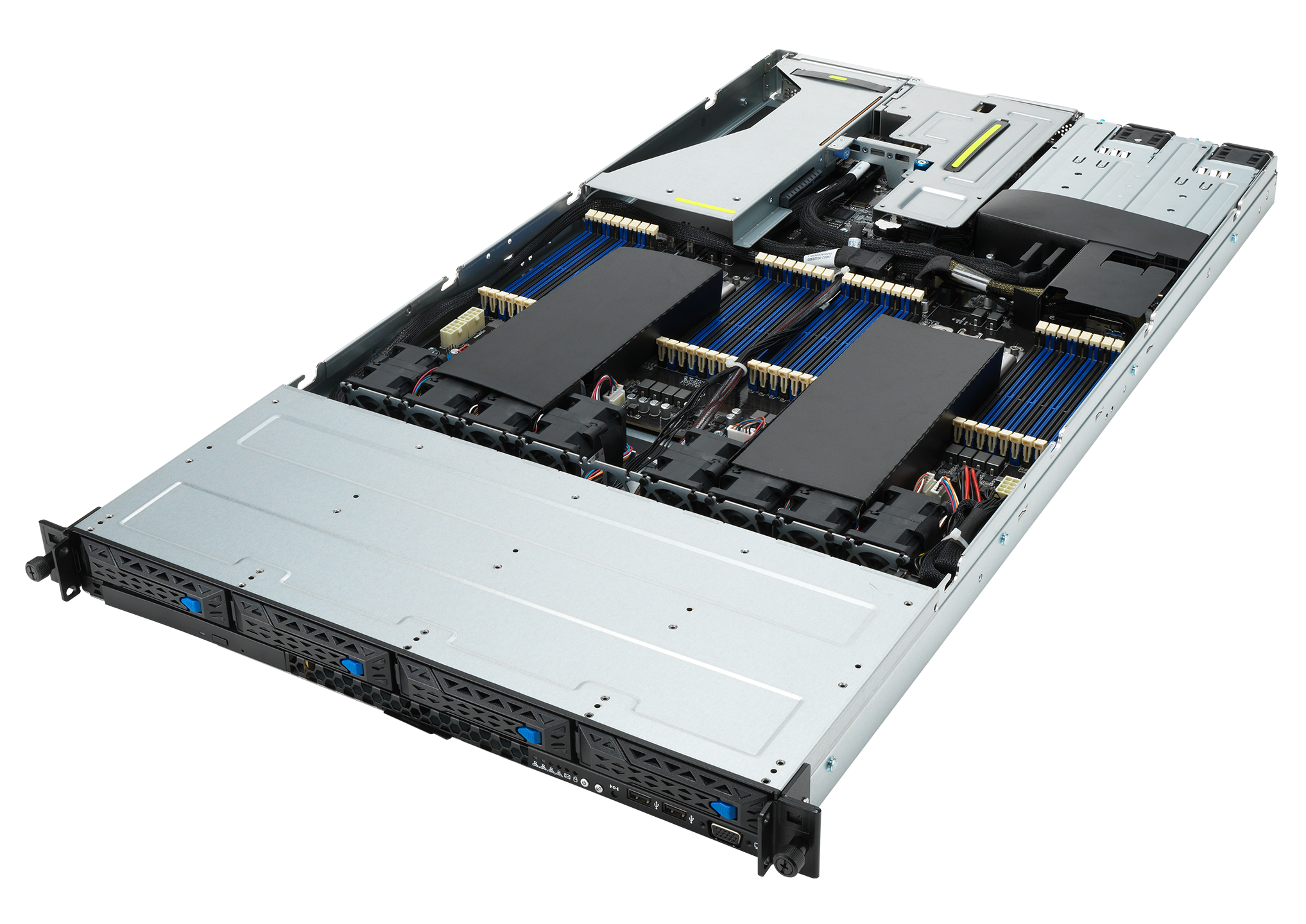

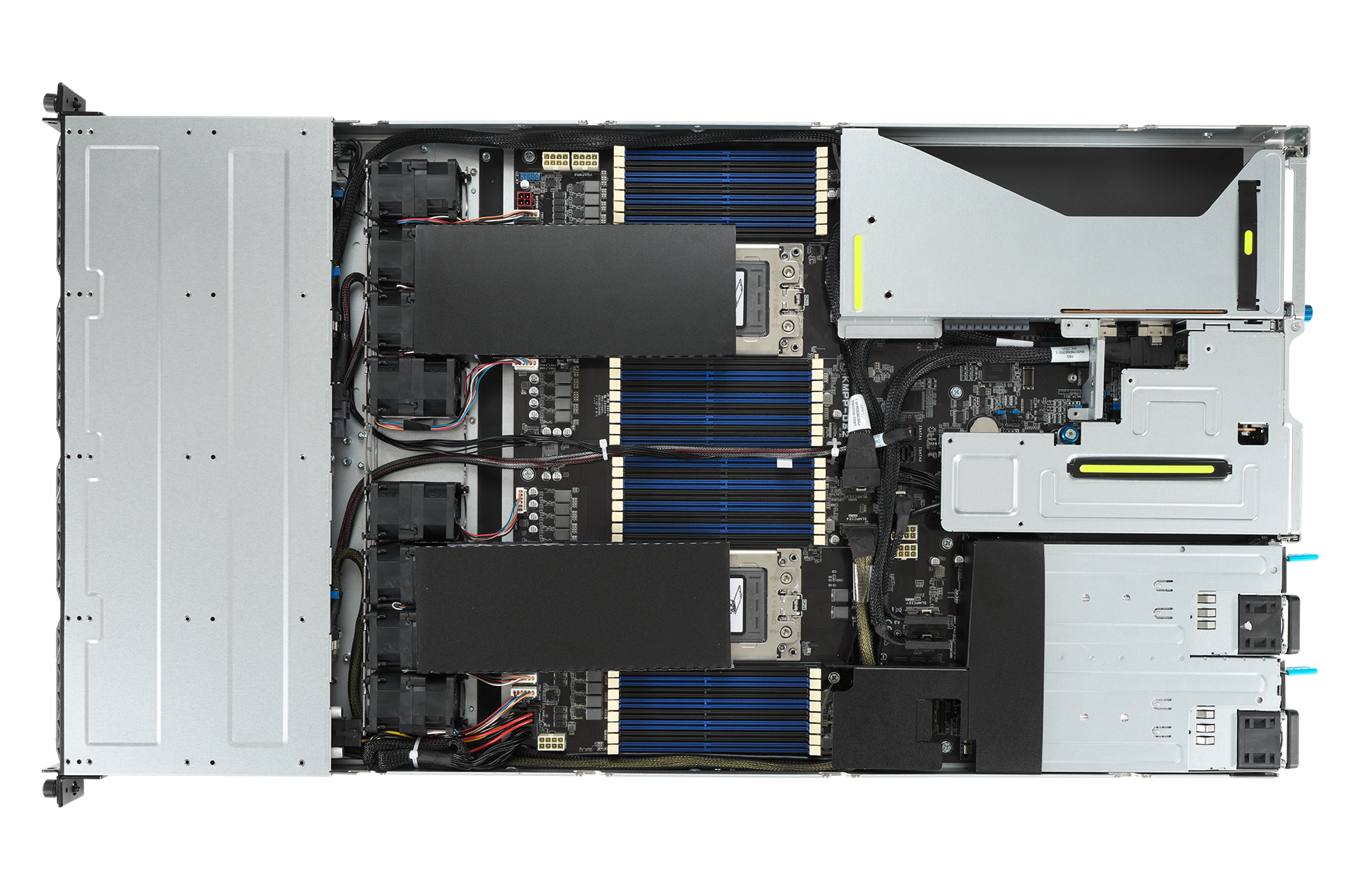

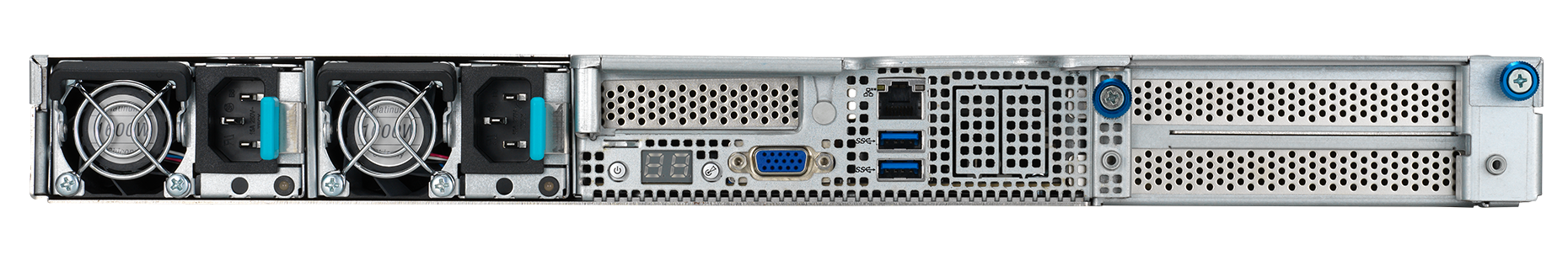

Images


$2,340.36


  Qty.Colfax CX1250a-EK8 1U Rackmount Server, Cost As Configured $2,340.36
Base Platform 1
Primary CPU 1
Secondary CPU 1
CPU 1 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 16    1
CPU 1 - Socket 3 of 16    1
CPU 1 - Socket 4 of 16    1
CPU 1 - Socket 5 of 16    1
CPU 1 - Socket 6 of 16    1
CPU 1 - Socket 7 of 16    1
CPU 1 - Socket 8 of 16    1
CPU 1 - Socket 9 of 16    1
CPU 1 - Socket 10 of 16    1
CPU 1 - Socket 11 of 16    1
CPU 1 - Socket 12 of 16    1
CPU 1 - Socket 13 of 16    1
CPU 1 - Socket 14 of 16    1
CPU 1 - Socket 15 of 16    1
CPU 1 - Socket 16 of 16    1
CPU 2 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 16    1
CPU 2 - Socket 3 of 16    1
CPU 2 - Socket 4 of 16    1
CPU 2 - Socket 5 of 16    1
CPU 2 - Socket 6 of 16    1
CPU 2 - Socket 7 of 16    1
CPU 2 - Socket 8 of 16    1
CPU 2 - Socket 9 of 16    1
CPU 2 - Socket 10 of 16    1
CPU 2 - Socket 11 of 16    1
CPU 2 - Socket 12 of 16    1
CPU 2 - Socket 13 of 16    1
CPU 2 - Socket 14 of 16    1
CPU 2 - Socket 15 of 16    1
CPU 2 - Socket 16 of 16    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
SATA/NVM-E Drive 1    1

Set next    items (  ) like this
SATA/NVM-E Drive 2    1
SATA/NVM-E Drive 3    1
SATA/NVM-E Drive 4    1
GPU 1
Infiniband HBA 1
Ethernet HBA 1
TPM Module 1
Operating System SW 1
   Colfax CX1250a-EK8 1U Rackmount Server, Cost As Configured $2,340.36
