Colfax CX1260s-NVMe-X7 1U Rackmount Server



  • 2x Intel® Xeon® Scalable Processors
  • 24x DIMMs
  • 4x 3.5” Hot-Swap SATA3 HDDS / NVMe SSDs
  • 2 PCI-E 3.0 x16

Models

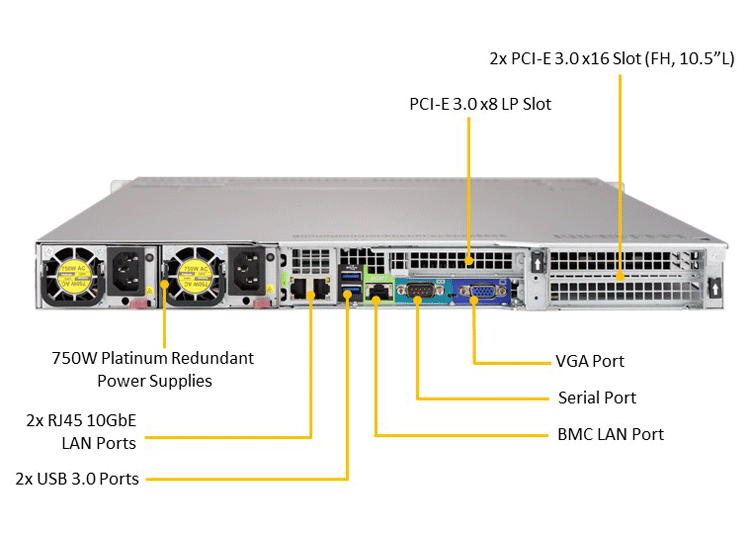

  • CX1260s-NVMe-2T-X7 - Integrated 2x 10GBase-T

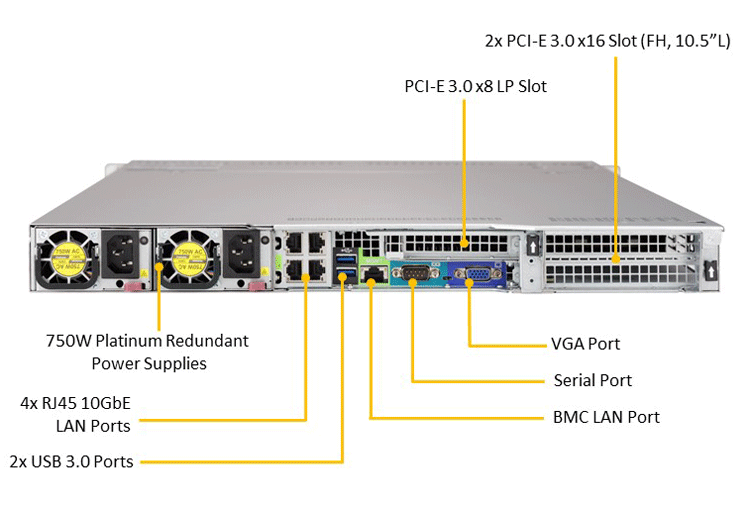

  • CX1260s-NVMe-4T-X7 - Integrated 4x 10GBase-T

Features

  • 2x Intel® Xeon® Scalable Processors (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 24x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 2 PCI-E 3.0 x16 Slots (FH, 10.5"L)
    - 2 PCI-E 3.0 x8 Slots (1 LP, 1 Internal LP)
  • 4x 3.5" Hot-Swap SATA3 HDDs / NVMe SSDs
  • 1x M.2 NVMe and 2x SATA DOM
  • Integrated 2x/4x 10GBase-T Ports
  • 750W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-205W)
Memory • 24x DIMM Sockets
• Supports up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM
• Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 2 PCI-E 3.0 x16 slots (FH, 10.5"L)
• 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• 2x 10GBase-T ports via (AOC-UR-i2XT)
OR
• 4x 10GBase-T ports via (AOC-UR-i4XTF)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SATA/NVMe
• 4 SATA3 (6Gbps)/NVMe ports
LAN
• 2/4 RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 3 USB 3.0 ports (2 rear, 1 Type A)
VGA
• 2 VGA ports (1 rear, 1 onboard)
Serial Port
• 1 Serial header
DOM
• 2x SuperDOM (Disk on Module) with embedded power

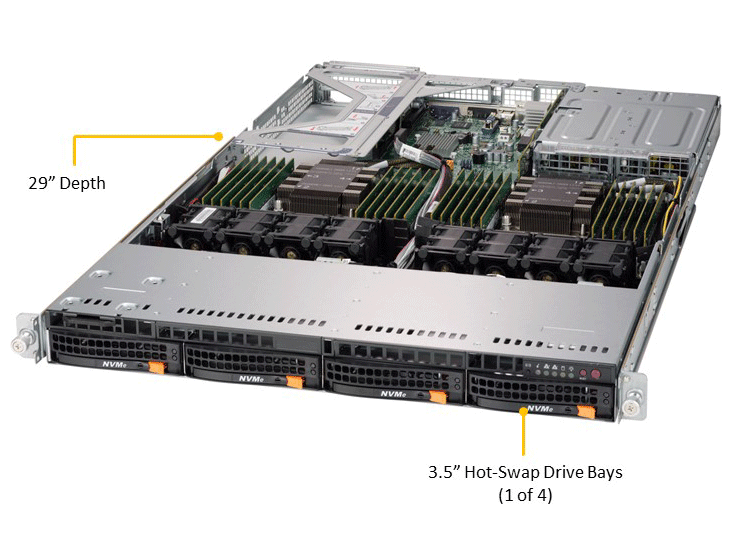

Chassis Form Factor • 1U Rackmount
• Dimension: 17.2"W (437mm) x 1.7" (43mm) x 29" (737mm)
Power Supply • 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
• Input
- 100-127Vac, 50-60Hz
- 200-240Vac, 50-60Hz
• +12V
- Max: 62.5A & Min: 0A (100Vac-127Vac)
- Max: 62.5A & Min: 0A (200Vac-240Vac)
• +12V sb
- Max: 2.1A; Min: 0A
• 80PLUS Platinum Certified
Storage Hot-Swap
• 4x hot-swap 3.5" drive bays: 4 NVMe/SATA3 hybrid ports (optional SAS3 via AOC)
M.2
• 1 M.2 NVMe (2242/2260/2280*/22110*)
• 1 M.2 SATA (2242/2260/2280*/22110*) via optional SATA cable

Note: Not supported if installing both NVMe & SATA M.2

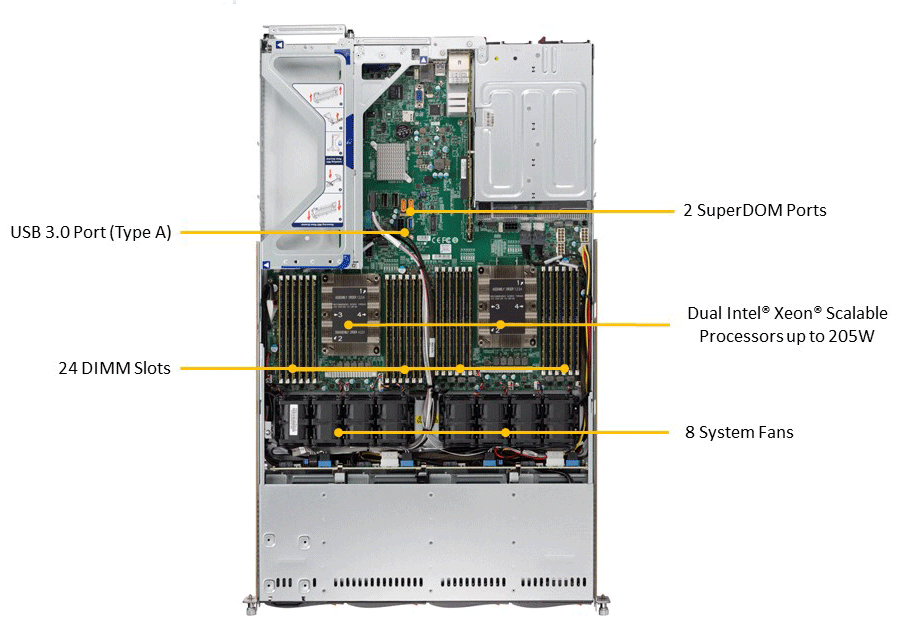

System Cooling • 8x heavy duty fans with optimal fan speed control

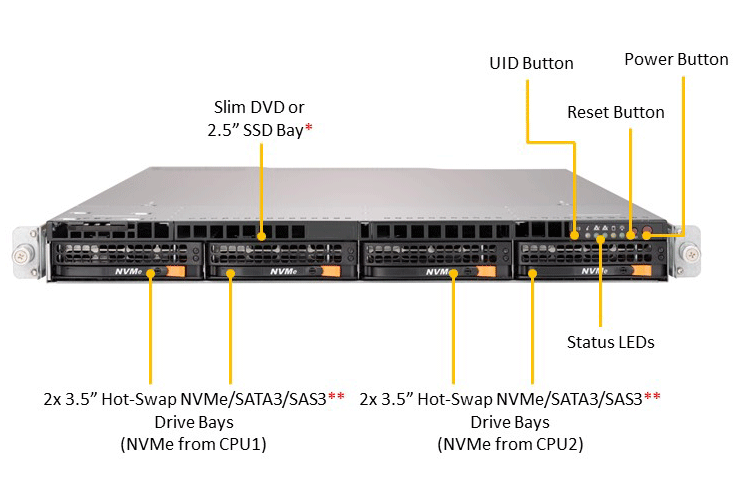

Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram


Images


$2,397.50


  Qty.Colfax CX1260s-NVME-X7 1U Rackmount Server, Cost As Configured $2,397.50
