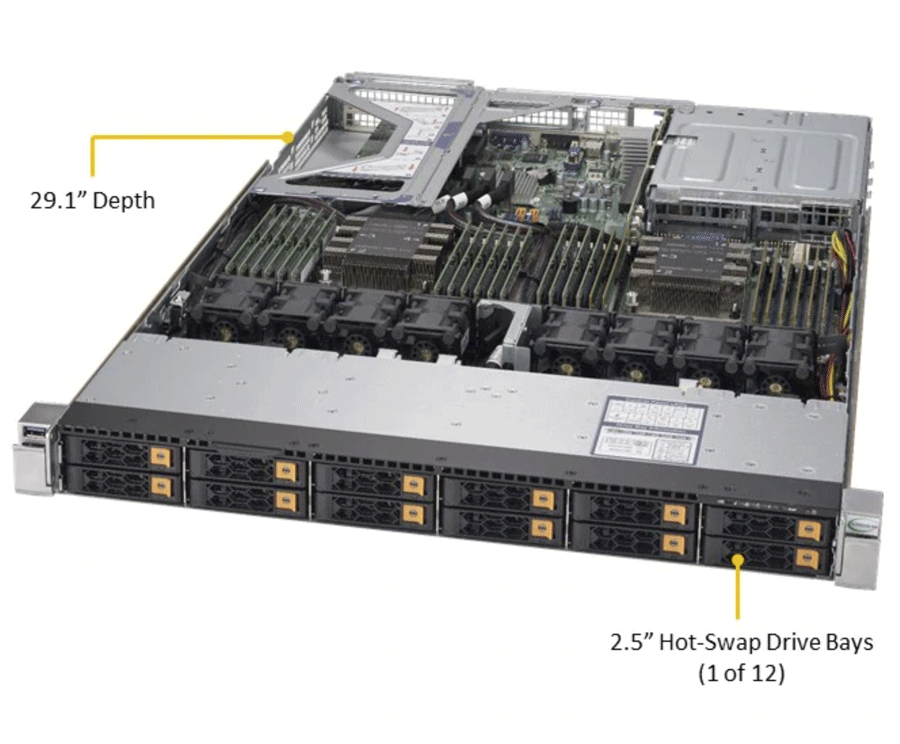

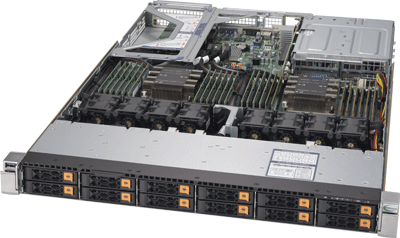

Colfax CX1265s-NVMe-S12-X7 1U Rackmount Server



  • Dual Intel® Xeon® Scalable Processors
  • 24x DIMMs
  • 12x 2.5" Hot-Swap NVMe/SATA SSDs
  • Flexible Networking Options

Features

  • 2x Intel® Xeon® Scalable Processors
  • Intel C621 Chipset
  • 24x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 1 PCI-E 3.0 x16 Slot (FH, 10.5"L)
    - 1 PCI-E 3.0 x8 (LP)
    - 1 Internal PCI-E 3.0 x16 (Ultra Riser)
  • 12x 2.5" Hot-Swap NVMe/SATA SSDs
  • 2x M.2 NVMe and 2x SATA DOM
  • Flexible Networking Options via Ultra Riser
  • 1200W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-205W)

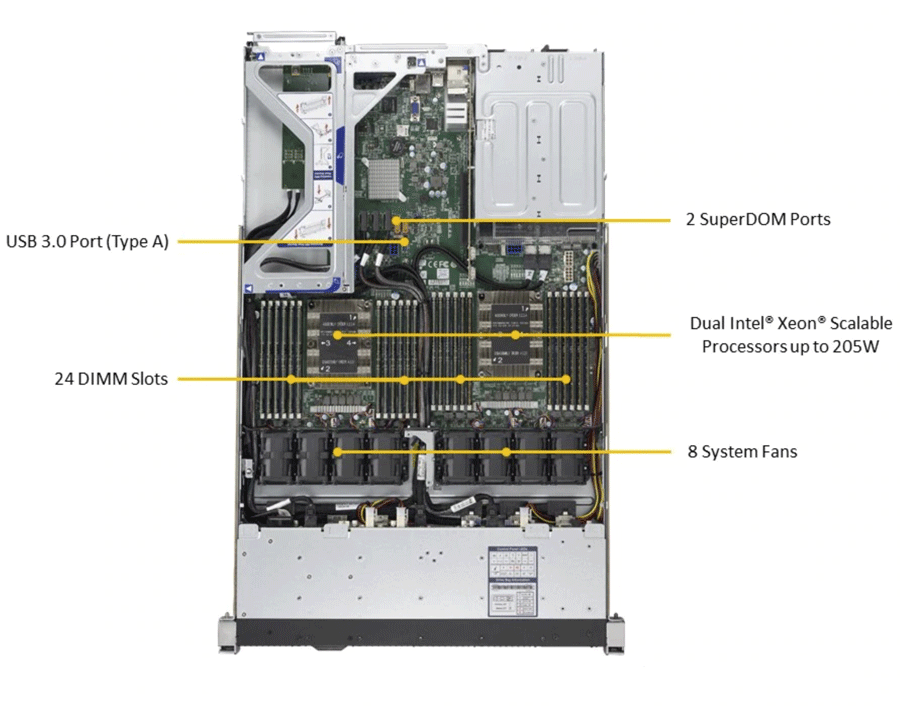

Memory • 24x DIMM Sockets
• Supports up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM
• Memory Type 2933/2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621

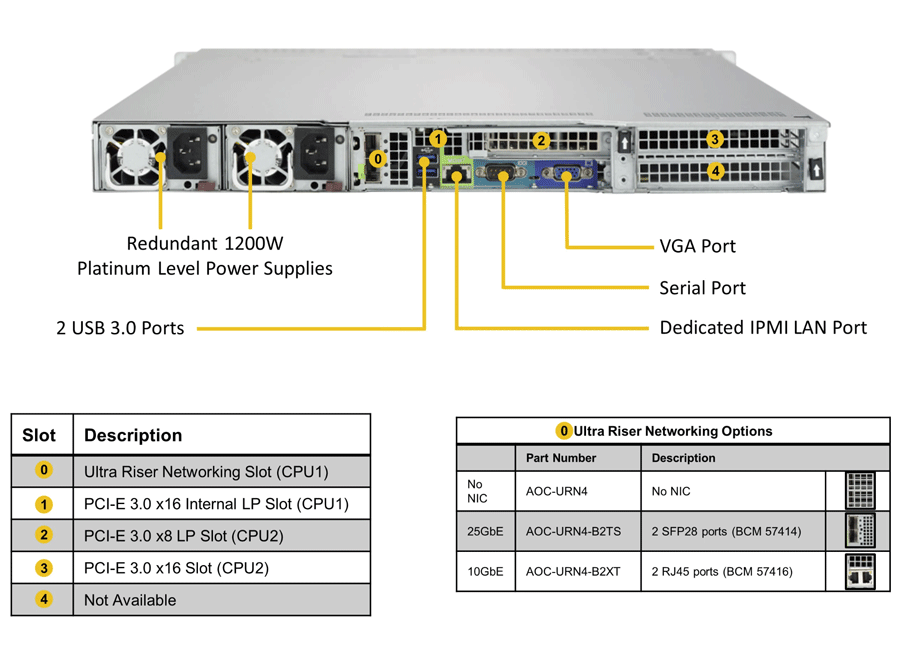

I/O Expansion • 1 PCI-E 3.0 x16 (FH, 10.5"L)
• 1 PCI-E 3.0 x8 (LP)
• 1 Internal PCI-E 3.0 x16 (Ultra Riser)*

* The Ultra riser card that holds the LAN ports also offers another internal low profile card slot for Supermicro SAS only
Onboard Devices SATA
• SATA3 (6Gbps)
Network Controllers
• Networking options provided via Ultra Riser card
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output NVMe
• 6 NVMe/SATA ports (NVMe from CPU 1)
• 6 NVMe/SATA ports (NVMe from CPU 2)
LAN
• Networking options provided via Ultra Riser card
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (rear)
VGA
• 1 VGA port
Serial Port
• 1 Serial header
DOM
• 2x SuperDOM (Disk on Module) ports
Chassis Form Factor • 1U Rackmount
• Dimension: 17.2"W (437mm) x 1.7"H (43mm) x 29.1"D (739mm)
Power Supply • 1200W Redundant Power Supplies with PMBus
• Total Output Power
- 800W: 100 – 127Vac
- 1200W: 200 – 240Vac
• Input
- 100-127Vac / 9.8 - 7A / 50-60Hz
- 200-240Vac / 7.5 - 6A / 50-60Hz
• +12V
- Max: 66.7A / Min: 0A (100-127Vac)
- Max: 100A / Min: 0A (200-240Vac)
• +12V sb
- Max: 2.1A / Min: 0A
• 80PLUS Titanium Certified

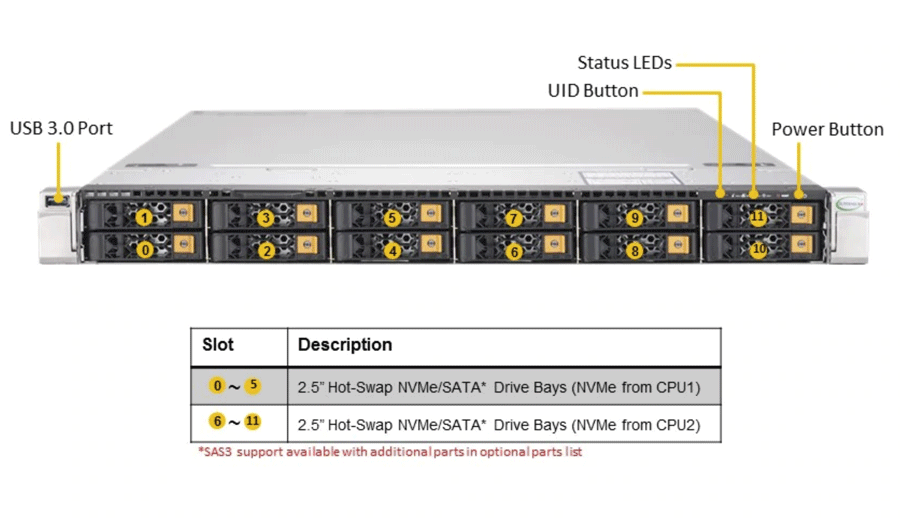

Storage Hot-Swap
• 12 hot-swap 2.5" NVMe/SATA drive bays
M.2
• 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)
System Cooling • 8x heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• Universal Information (UID) LED
BIOS • AMI 32Mb SPI Flash ROM

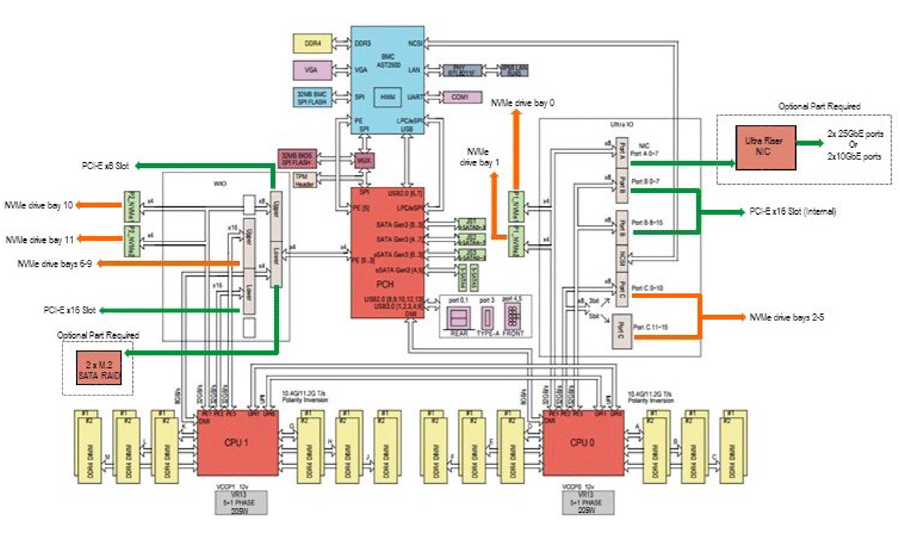

Block Diagram


Images


$3,225.00


  Qty.Colfax CX1265s-NVMe-S12-X7 1U Rackmount Server, Cost As Configured $3,225.00
