Colfax CX1450s-T-NVMe4-XK8 1U Rackmount Server

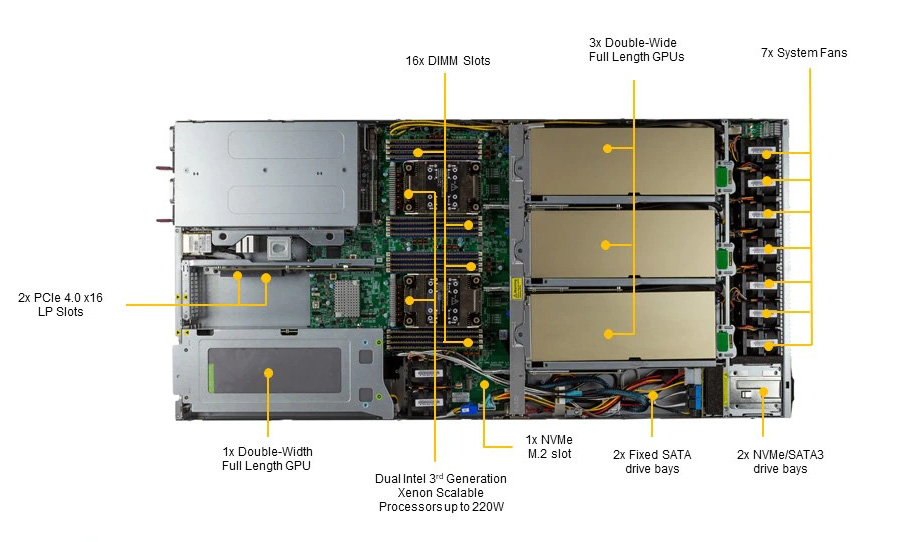

  • 4x NVIDIA Ampere Architecture GPUs
  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 2x 2.5" Hot-Swap Gen4 NVMe + 2x 2.5" Internal Drive Bays

Features

  • 4x NVIDIA Ampere Architecture GPUs
  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 16x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • Expansion Slots
    - 4 PCI-E 4.0 x16 Slots (FHFL)
    - 2 PCI-E 4.0 x16 Slots (LP)
  • 2x 2.5" Hot-Swap Gen4 NVMe Drive Bays
  • 2x 2.5" Internal SATA Drive Bays
  • 1x M.2 NVMe SSD
  • 2x 10GBase-T ports
  • 2000W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 1U Rackmount
• Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 35.2" (894mm)
CPU • Dual Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processors
• TDP up to 270W
GPU CPU-GPU Interconnect
• PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
• PCIe
Memory • 16x DDR4 DIMM slots
• Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM • Intel® Optane™ persistent memory 200 series
Chipset • Intel® C621A
I/O Expansion • 4 PCI-E 4.0 x16 (FHFL) slots
• 2 PCI-E 4.0 x16 (LP) slots
Onboard Devices SATA
• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
• Intel® X540 Dual Port 10GBase-T
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC

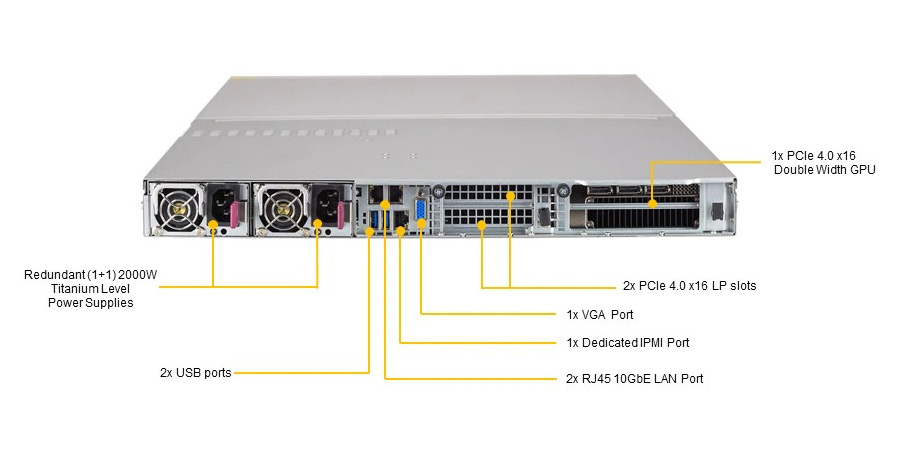

Input / Output SATA
• 4x SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (rear)
VGA
• 1x VGA port
Drive Bays • 2 hot-swap 2.5" Gen4 NVMe drive bays
• 2 internal 2.5" SATA drive bays

M.2
• 1 M.2 NVMe OR 1 M.2 SATA3
Power Supply • 2000W Redundant Power Supplies with PMBus
• AC Input
- 100-127Vac / 50-60Hz
- 200-240Vac / 50-60Hz
• DC Input
- 2000W: 230-240Vdc
• +12V
- Max: 83.3A / Min: 0A (100Vac-127Vac)
- Max: 166.7A / Min: 0A (200Vac-240Vac)
• 12Vsb
- Max: 2.1A / Min: 0A
• 80PLUS Platinum Certified
System Cooling • 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

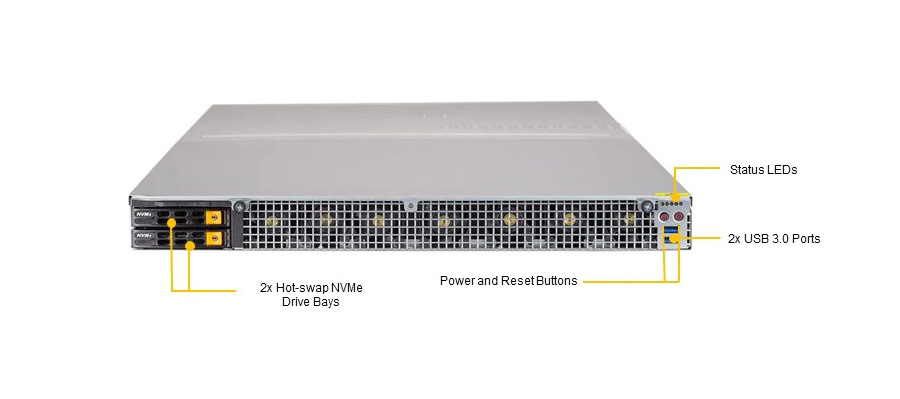

Front Panel USB
• 2 USB 3.0
Buttons
• Power On/Off button
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• Power status LED
• UID LED
BIOS • AMI 32Mb SPI Flash ROM
