Colfax CX21255s-NVMe4-EK8 2U Rackmount Server

* Supported NVIDIA GPUs /Node

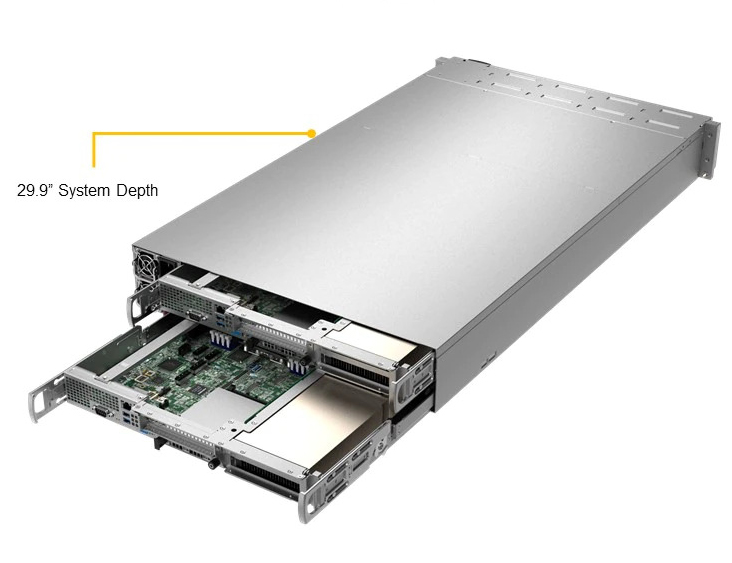

Chassis Form Factor	• 2U Rackmount • Dimensions (HxWxD): 3.47" (88mm) x 17.6" (447mm) x 29.9" (760mm)
CPU / Node	• Socket SP3 • Single AMD EPYC™ 7002/7003 Series Processor • Supports CPU TDP up to 280W* * Certain CPUs with high TDP may be supported only under specific conditions.
Memory / Node	• 8x DDR4 DIMM slots • Supports up to 2TB 3200MHz ECC DDR4 SDRAM
I/O Expansion / Node	PCI-Express • 6 PCI-E Gen 4 x16 (4 internal, 2 external) slots • 1 PCI-E Gen 4 x8 AIOM networking slot M.2 • Interface: 2x PCI-E 4.0 x4 • Form Factor: 2280, 22110 • Key: M-key
Onboard Devices / Node	Chipset • System on Chip Network • Flexible networking via AIOM IPMI • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support VGA • ASPEED AST2600 BMC

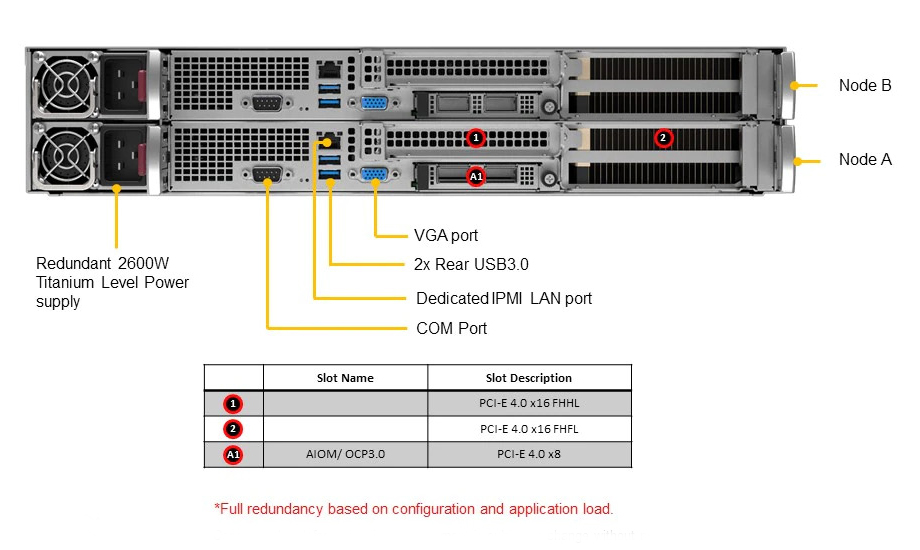

Input / Output / Node	LAN • Provided via AIOM (optional) • 1x RJ45 1GbE Dedicated IPMI LAN port USB • 2 USB 3.0 ports (rear) VGA • 1x VGA port Others • 1 COM port (header) • 1 TPM 2.0 header
Drive Bays / Node	• 2x hot-swap 2.5" U.2 NVMe Gen4 drive bays (front)
Power Supply	• 2600W Redundant Power Supplies with PM Bus • Total Output Power and Input - 2600W with Input 200-240Vac • +12V - Max: 216A / Min: 0A (200-240 Vac) • 12Vsb - Max: 4.5A / Min: 0A • 80PLUS Titanium Certified

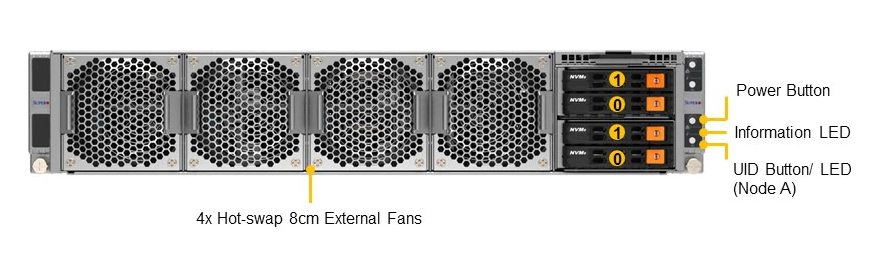

System Cooling	• 4 hot-swap heavy duty 80mm PWM fans
BIOS	• AMI 256Mb SPI Flash ROM
