Colfax CX21460t-E8 2U Rackmount Server




  • Hot-Swappable 4-Nodes in 2U
  • Total 4x AMD EPYC™ 7002 Processors
  • Total 32x DIMMS
  • Total 16x 2.5" NVMe Drive Bays
  • Total 8x M.2 NVMe SSDs

Features

  • 4x AMD EPYC™ 7002 Series Processors (1/Node)
  • 32x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM (8/node)
  • 8x PCIe 4.0 x16 Low-Profile Slots (2/node)
  • 4x OCP 2.0 Gen3 x16 Mezzanine Slots (1/node)
  • 16x 2.5" Hot-Swap NVMe Drive Bays (4/node)
  • 8x M.2 with PCIe 4.0 x4 Interface (2/node)
  • 8x 1Gb/s Broadcom BCM5720 LAN Ports (2/node)
  • 4x Dedicated Management Ports (1/node)
  • 1+1 2000 Watts CRPS, 80 PLUS Platinum


Technical Specifications

Enclosure • 2U 4 Nodes
• Dimension (W x H x D) 17.32" x 3.4" x 28.74" (440 x 87.5 x 730 mm)
CPU / Node • Socket SP3
• 1x AMD EPYC™ 7002 series processor
• Configurable Thermal Design Power (cTDP) up to 240W
Memory / Node • 8 DIMM sockets
• 8-Channel memory architecture
• Memory speed: Up to 3200 MHz
Expansion Slots / Node • 1x M8037T73-R16-1L riser card for 1x HH/HL PCIe 4.0 x16
• 1x M8037T73-L16-1L riser card for 1x HH/HL PCIe 4.0 x16
• 1x OCP 2.0 PCIe Gen3 x16 (conn.A+conn.B)
M.2
• 2 x M.2 slots
- M-key
- PCIe Gen4 x4
- Supports NGFF-22110/2280 cards
Storage / Node • 4x 2.5" NVMe hot-swappable SSD bays
Networking / Node • 2x 1GbE LAN ports (Broadcom BCM5720)
• 1x 10/100/1000 management LAN
Video / Node • Integrated ASPEED AST2500 controller
• Connector type - D-Sub 15-pin
• Resolution - up to 1920x1200@60Hz 32bpp
Power Supply • 1+1 2000W CRPS
• Input Range:
- AC 220-240V/10A, 50-60Hz
• Output:
- 1968W (220-240Vac input)
• 80 plus Platinum
System Cooling / Node • 3‎ x 4cm fans
I/O Ports / Node USB
• 1x USB3.1 Type-C (rear) / 2x USB3.1 Gen1 ports (via cable)
COM
• 1x Header COM1
VGA
• 1x D-Sub 15-pin port
RJ45
• 2x GbE ports, 1x dedicated GbE for IPMI
Front Panel / Node Buttons
• 1x PWR / 1x RST / 1x UID
LEDs
• 1x HDD / 1x ID / 1x System Event / 2x LAN activity
I/O Ports
• 2x USB 3.1 Gen1 ports
TPM • Optional TPM support
Server Management • Onboard Chipset - Aspeed AST2500
AST2500 iKVM Feature
• 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature
• IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

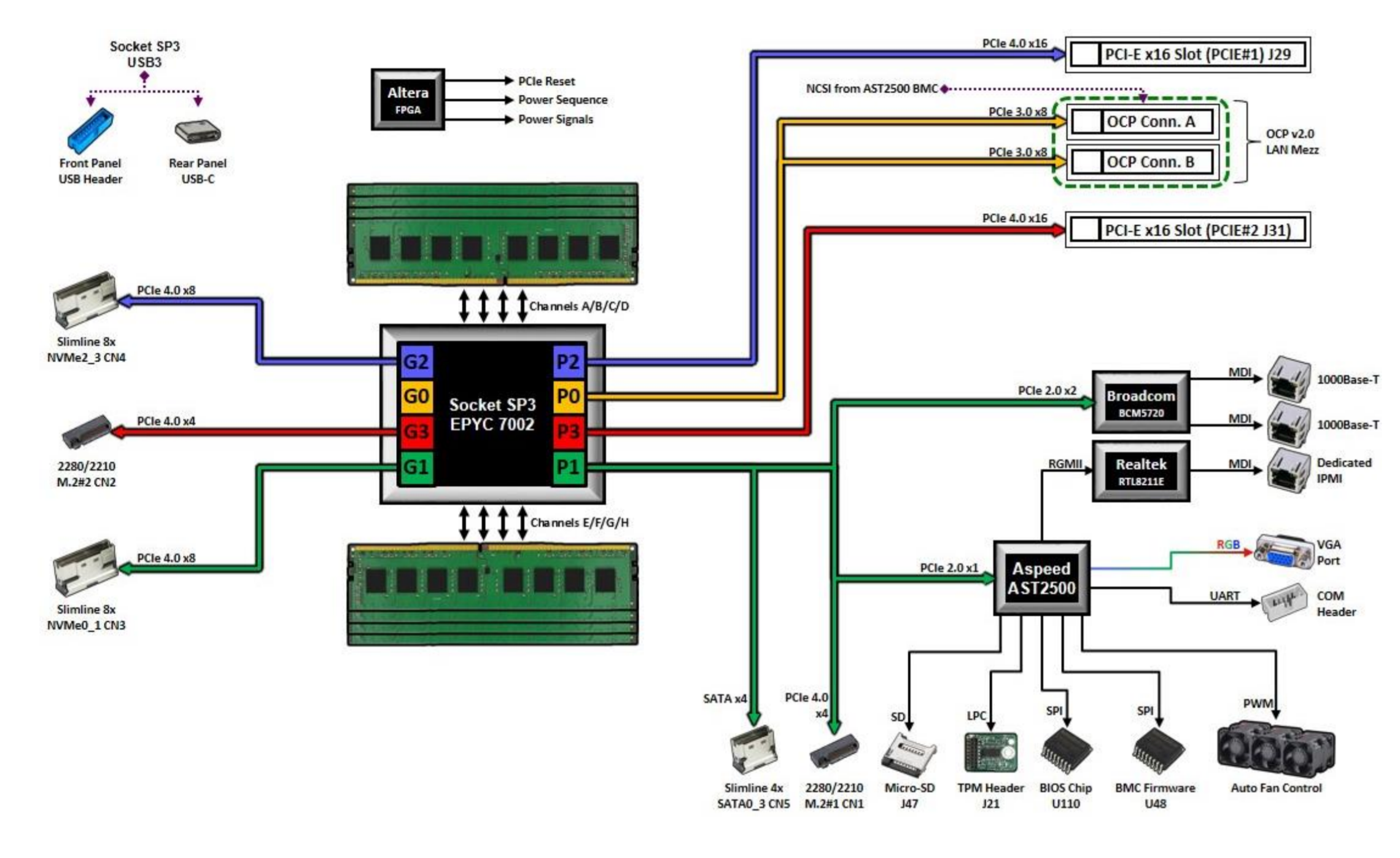

Block Diagram

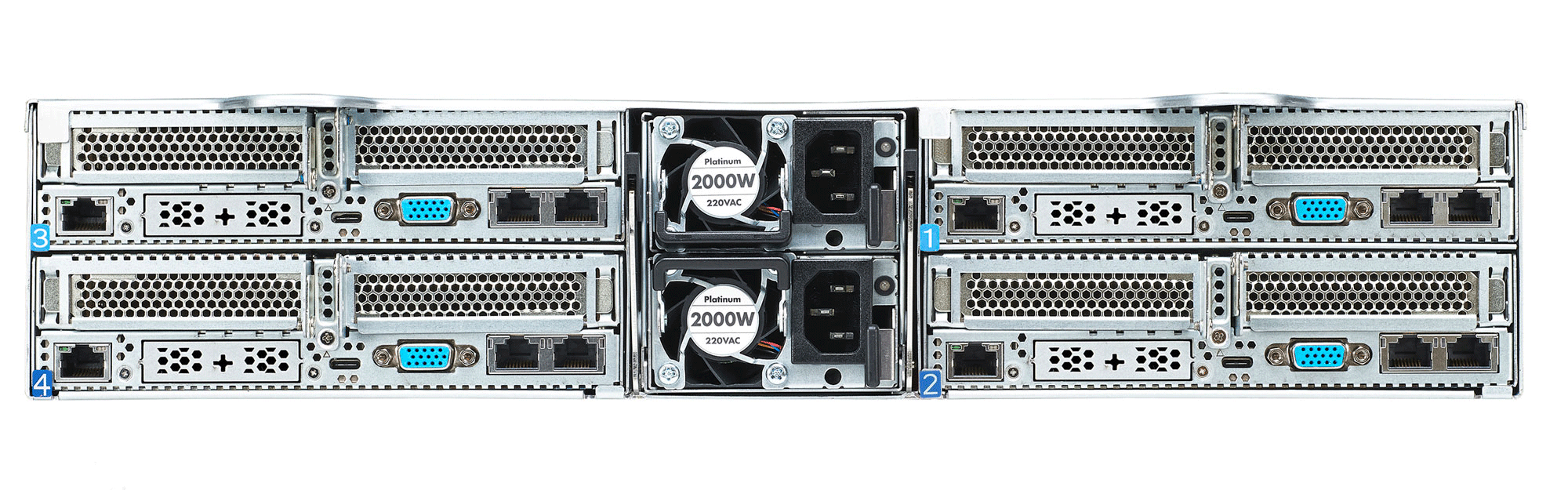

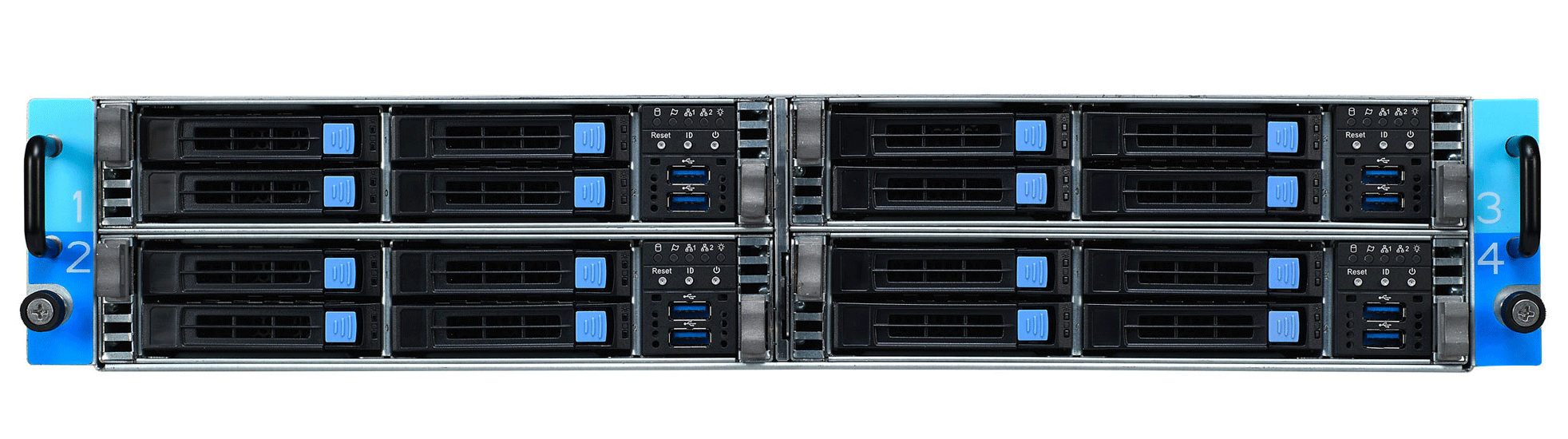

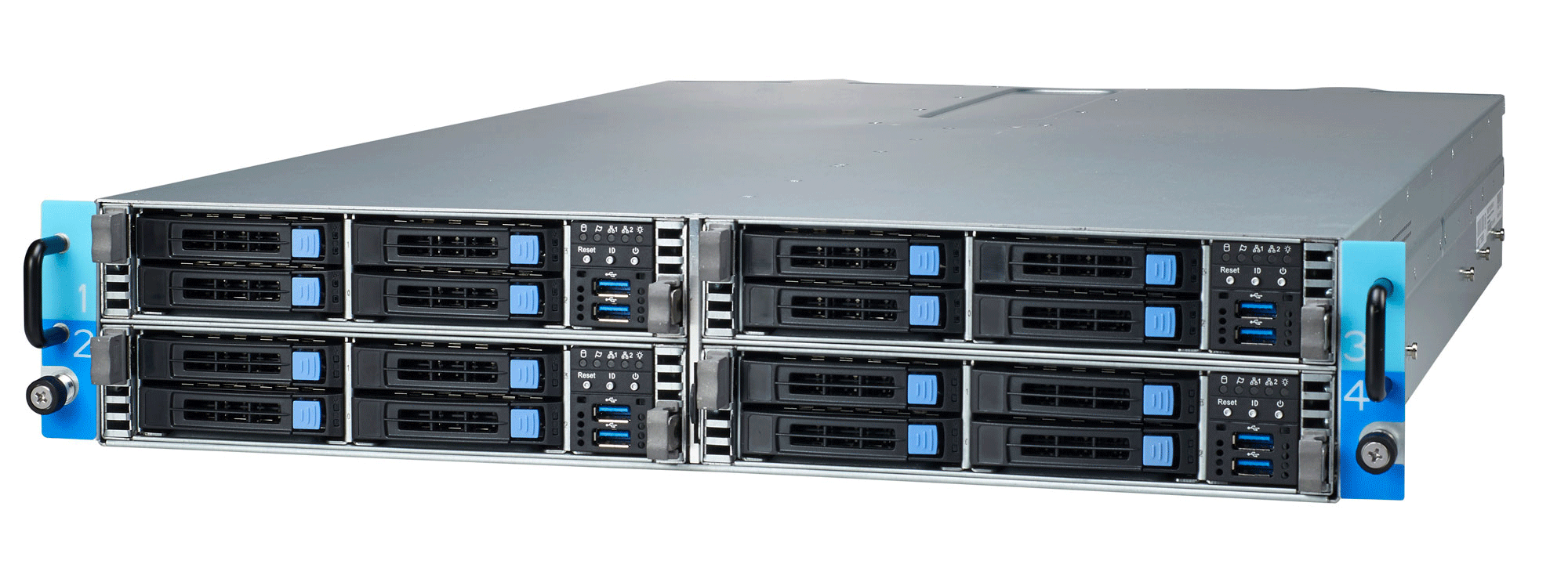

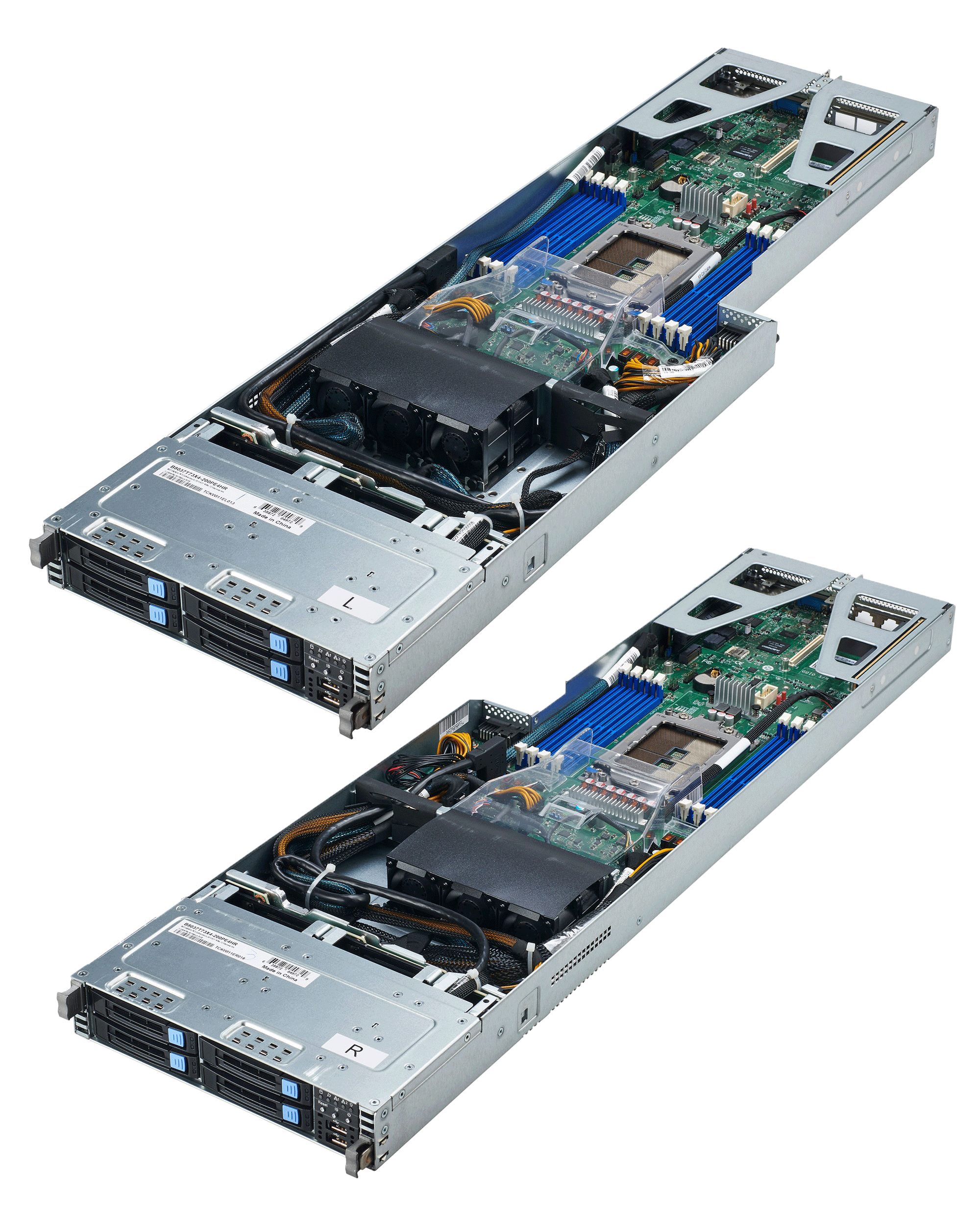

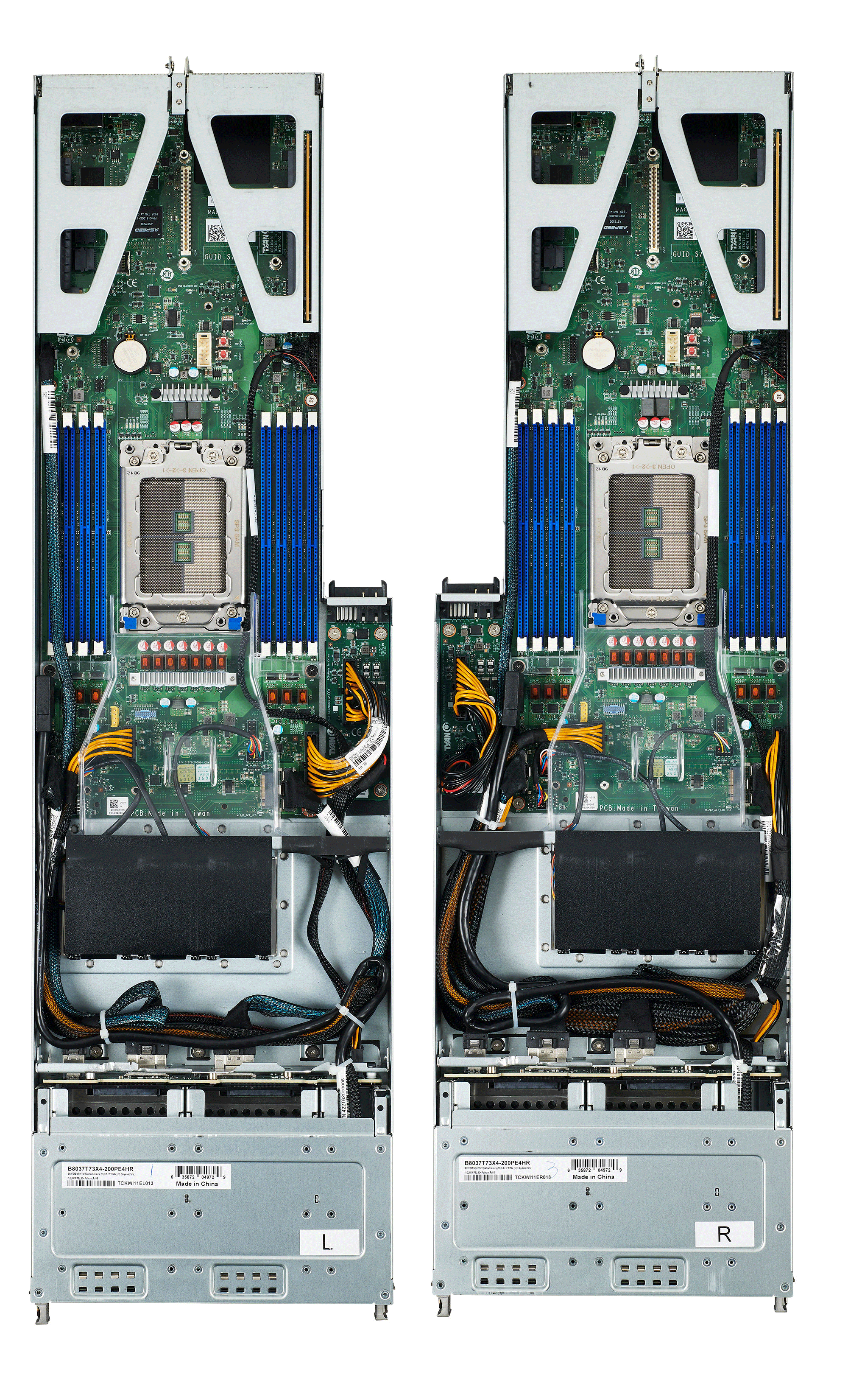

Images

Customize the Chassis below or -->
To review or customize any node in this solution, please select the node from the drop-down list



$1,750.00


  Qty.Colfax CX21460t-E8 2U Rackmount Server, Cost As Configured $350.00
Base Platform 1
   Colfax CX21460t-E8 2U Rackmount Server, Cost As Configured $350.00
