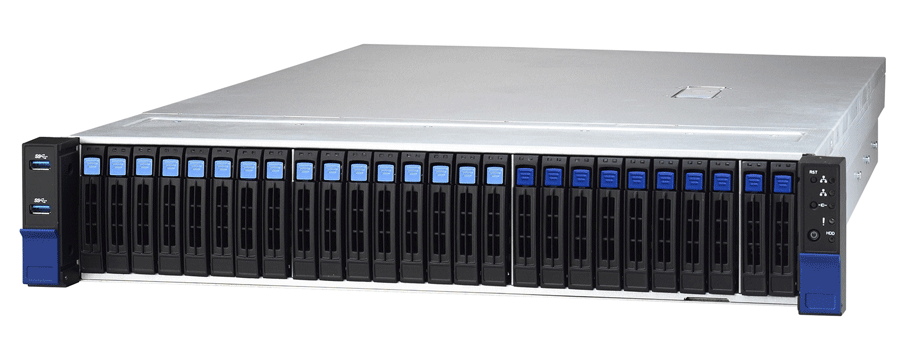

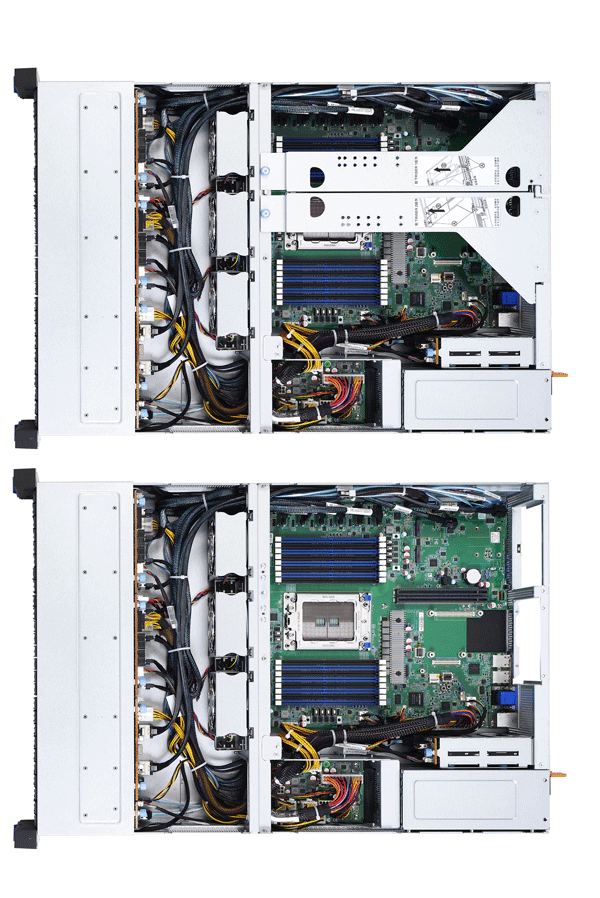

Colfax CX2160t-NVMe-HS26-E8 2U Rackmount Server




  • 1x AMD EPYC™ 7002 Series Processor
  • PCIe Gen 4 Slots
  • 16x 2.5" NVMe + 10x 2.5" SATA Drives
  • 2x 2.5" SATA Drives (Rear)

Features

  • 1x AMD EPYC™ 7000 Series Processor
  • 16x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • 2 PCI-E Gen4 Riser Cards
    - Slot 1: Full Height / Full Length PCIe Gen 4.0 x0 or x8 slot (MUX with Slot 2)  Slot 2: Full Height / Full Length PCIe Gen 4.0 x16 or x8 slot (MUX with Slot 1)  Slot 3: Full Height / Half Length PCIe Gen 4.0 x8 slot  Slot 4: Full Height / Full Length PCIe Gen 4.0 x16 or x8 slot (MUX with Slot 5)  Slot 5: Full Height / Full Length PCIe Gen 4.0 x0 or x8 slot (MUX with Slot 4)  Slot 6: Full Height / Half Length PCIe Gen 4.0 x8 slot
  • 1 PCI-E Gen3 x16 OCP 2.0 Slot (Connector A + Connector B)
    *Connector B of OCP 2.0 mezzanine is mux'd with the HH/HL PCI-E x8 slot on M8036-R24-3F riser
  • 16x 2.5" Hot-Swap NVMe Drives
  • 10x 2.5" Hot-Swap SATA Drives
  • 2x 2.5" Hot-Swap SATA Drives (Rear)
  • 2x M.2 NVMe SSDs
  • Integrated Dual 1GbE Ports + Dedicated Management Port
  • 1+1 1200 Watts RPSU, 80 PLUS Platinum
  • AST2500 BMC with iKVM, IPMI, and Redfish Support



Technical Specifications

Enclosure • 2U rackmount
• Dimension (D x W x H) 25.59" x 17.32" x 3.43" (650 x 440 x 87mm)
CPU • Socket SP3
• Single AMD EPYC™ 7002 series processor (TDP up to 240W)
Memory • 16 DIMM sockets
• 8 Channels per CPU
• Supports up to 2048GB RDIMM / 4096GB LRDIMM 3DS
• Memory Voltage - 1.2V
I/O Expansion • 2 PCI-E Gen4 Riser Cards
- M8036-L24-3F for 2x FH/HL + 1x HH/HL PCI-E Gen4 x8 Slots
- M8036-R24-3F for 2x FH/HL + 1x HH/HL PCI-E Gen4 x8 Slots
• 1 PCI-E Gen3 x16 OCP 2.0 Slot (Connector A + Connector B)

*Connector B of OCP 2.0 mezzanine is mux'd with the HH/HL PCI-E x8 slot on M8036-R24-3F riser
Drives • 16x 2.5" hot-swap NVMe drives
• 10x 2.5" hot-swap SATA drives
• 2x 2.5" hot-swap SATA drives (rear)
• 2x M.2 NVMe 22110/2280 SSDs
Storage SATA
• Connector - 1 SFF-8654 connector for up to 8 SATA ports
• Controller - Direct from AMD EPYC CPU
• Speed - 6Gb/s
• RAID - N/A
Additional SATA
• Connector - 2 7-pin SATA for 2 rear SATA drives / 2 7-pin SATA for 2 front SATA drives
• Controller - Marvell 9235
• Speed - 6Gb/s
• RAID - N/A
NVMe
• Connector (M.2) - 2 22110/2280 (by PCI-E Gen3 interface)
• Connector (Slim SAS) - 8 SFF-8654 for 16 NVMe ports
Networking • Ports: 2 GbE ports + 1 GbE dedicated for IPMI
• Controller: Broadcom BCM5720
• PHY: Realtek RTL8211E
Video • Integrated ASPEED AST2500 controller
• Connector type - D-Sub 15-pin
• Resolution - Up to 1920x1200
Power Supply • Type - CRPS
• Input Range - AC 200-240V/7A / AC 100-127V/13A
• Frequency - 50-60 Hz
• Output Watts - 1,000 Watts (100-127Vac input) / 1,200 Watts (200-240Vac input)
• Efficiency - PFC / 80 plus Platinum
• Redundancy - 1+1
System Cooling • 3x 8cm fans

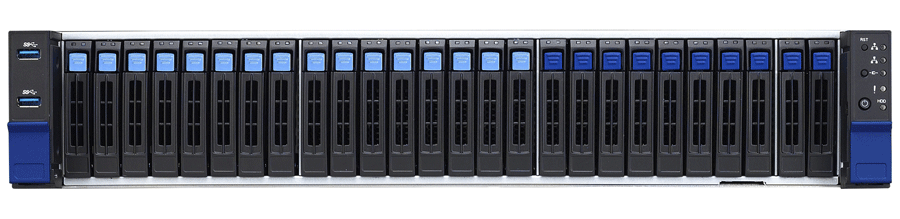

Front Panel I/O
• 2 USB 3.1 Gen1 ports
Buttons
• 1 RST / 1 ID / 1 PWR w/LED
LEDs
• 1 HDD / 2 LAN / 1 ID / 1 System Event

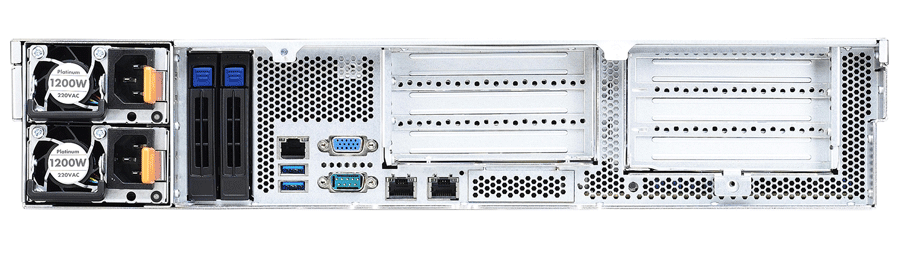

I/O Ports • 2 USB3.1 Gen1 ports (rear) / 2 USB3.1 Gen1 ports (via Cable) / 1 USB3.1 Gen1 port (Type-A)
• 2 GbE ports, 1 GbE dedicated for IPMI
• 1 DB-9 port (COM1) + 1 header (COM2)
• 1 D-Sub 15-pin port
System Monitoring • Chipset - Aspeed AST2500
• Voltage - Monitors voltage for CPU, memory, chipset & power supply
• Temperature - Monitors temperature for CPU, memory & system environment
• LED - Over temperature warning indicator / Fan & PSU fail LED indicator
• Others - Watchdog timer support
Server Management • Onboard Chipset - Aspeed AST2500
• AST2500 IPMI Feature - IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
• AST2500 iKVM Feature - 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
BIOS • AMI 32MB SPI Flash ROM
• Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / ACPI sleeping states S0, S5 / FAN speed control automatic

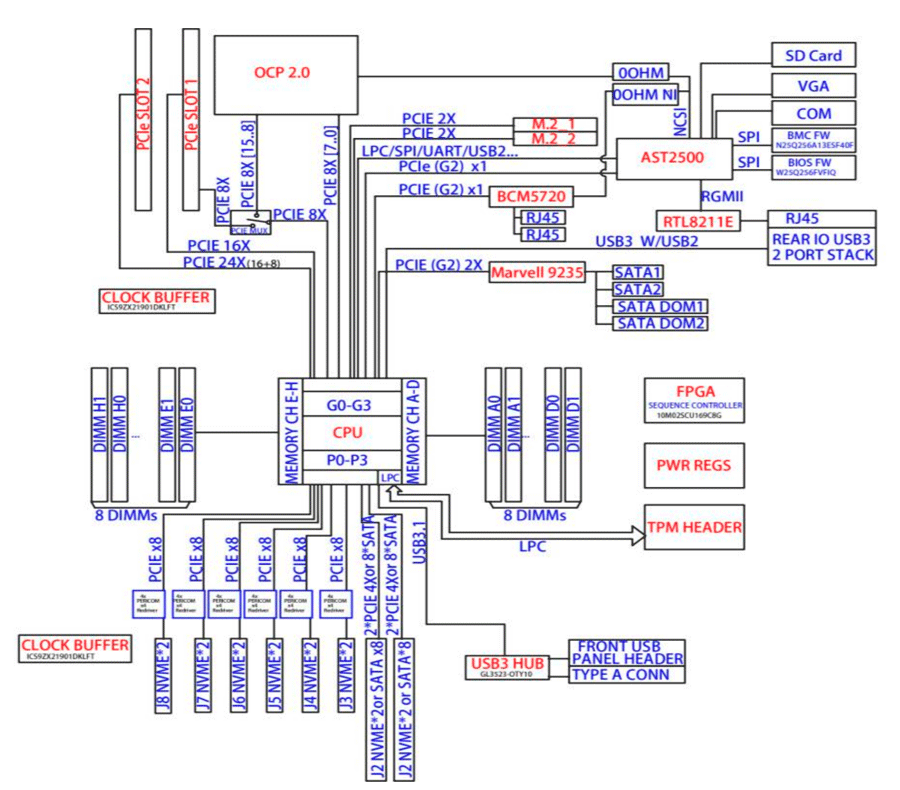

Block Diagram


Images


$2,532.75


  Qty.Colfax CX2160t-NVMe-HS26-E8 2U Rackmount Server, Cost As Configured $2,532.75
