Colfax CX2260t-EK8 2U Rackmount Server




  • 2x AMD EPYC™ 7003 Series Processors
  • 2x NVIDIA Ampere Architecture GPUs
  • 12x 3.5" Hot-Swap SATA Drive Bays (Up to 4x NVMe)

Features

  • 2x AMD EPYC™ 7003 Series Processors
  • 2x NVIDIA Ampere Architecture GPUs
  • 32x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • 12x 3.5" Hot-Swap SATA Drive Bays (Up to 4x NVMe)
  • 2x M.2 SSDs
  • Expansion Slots
    - Left Riser Card Supports 1x PCIe 4.0 x16 FH/10.5"L Slot
    - Right Riser Card Supports 1x PCIe 4.0 x16 FH/10.5"L and 1x PCIe 4.0 x8 FH/HL Slots
    - Additional Riser Cards Support 2x PCIe 4.0 x16 HH/HL Slots (1/Riser)
    - 1x PCIe 4.0 x16 OCP 3.0 Slot
  • Integrated Dual 10GbE Ports
  • 1+1 1600 Watts RPSU, 80 PLUS Platinum
  • AST2500 BMC with IPMI Support



Technical Specifications

Enclosure • 2U rackmount
• Dimension (D x W x H) 29.56" x 17.26" x 3.43" (750.8 x 438.4 x 87mm)
CPU • Socket SP3
• Dual AMD EPYC™ 7002/7003 series processors
• Max up to 240W cTDP
Memory • 32 DIMM sockets
• 8 Channels per CPU
• Supports DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS
• Memory Voltage - 1.2V
I/O Expansion • Left Riser Card Supports 1x PCIe 4.0 x16 FH/10.5"L Slot
• Right Riser Card Supports 1x PCIe 4.0 x16 FH/10.5"L and 1x PCIe 4.0 x8 FH/HL Slots
• Additional Riser Cards Support 2x PCIe 4.0 x16 HH/HL Slots (1/Riser)
• 1x PCIe 4.0 x16 OCP 3.0 Slot
Storage • 12x 3.5" hot-swap SATA drives (Up to 4 NVMe)
Networking • Intel X550-AT2 controller: 2x 10GbE ports
• Realtek RTL8211E PHY controller
Video • Integrated ASPEED AST2500 controller
• Connector type - D-Sub 15-pin
• Resolution - Up to 1920x1200
Power Supply • Input Range - AC 100-127V/12A / AC 200-240V/9.48A
• Frequency - 50-60 Hz
• Output Watts - 1600 Watts
• Efficiency - 80PLUS Platinum
• Redundancy - 1+1
System Cooling • 6x 6cm fans
Front Panel I/O
• 2 USB 3.1 Gen1 ports
Buttons
• 1 RST / 1 UID / 1 PWR w/LED
LEDs
• 1 HDD / 2 LAN / 1 UID / 1 System event
I/O Ports • 2 USB3.1 Gen1 ports (rear) / 2 USB3.1 Gen1 ports (front)
• 2 10GbE ports, 1 PHY dedicated for IPMI
• 2 Headers (COM1, COM2)
• 1 D-Sub 15-pin port
System Monitoring • Chipset - Aspeed AST2500
• Voltage - Monitors voltage for CPU, memory, chipset & power supply
• Temperature - Monitors temperature for CPU, memory & system environment
• LED - Over temperature warning indicator / Fan & PSU fail LED indicator
• Others - Watchdog timer support
Server Management • Onboard Chipset - Aspeed AST2500
• AST2500 IPMI Feature - IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
• AST2500 iKVM Feature - 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
BIOS • AMI 32MB SPI Flash ROM
• Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / FAN speed control automatic / Console Redirection / ACPI sleeping states S0,S1,S5 / ACPI 6.0

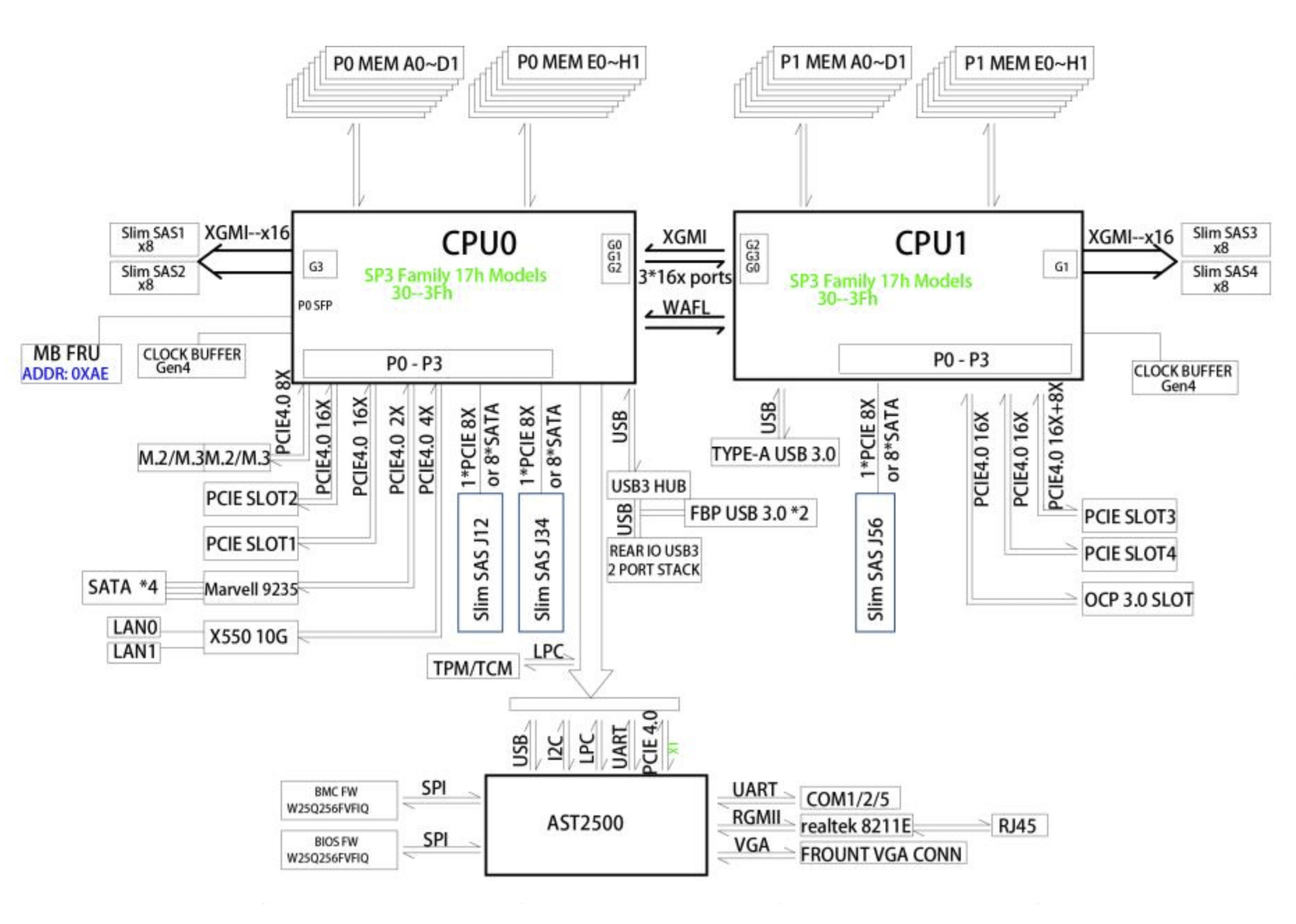

Block Diagram

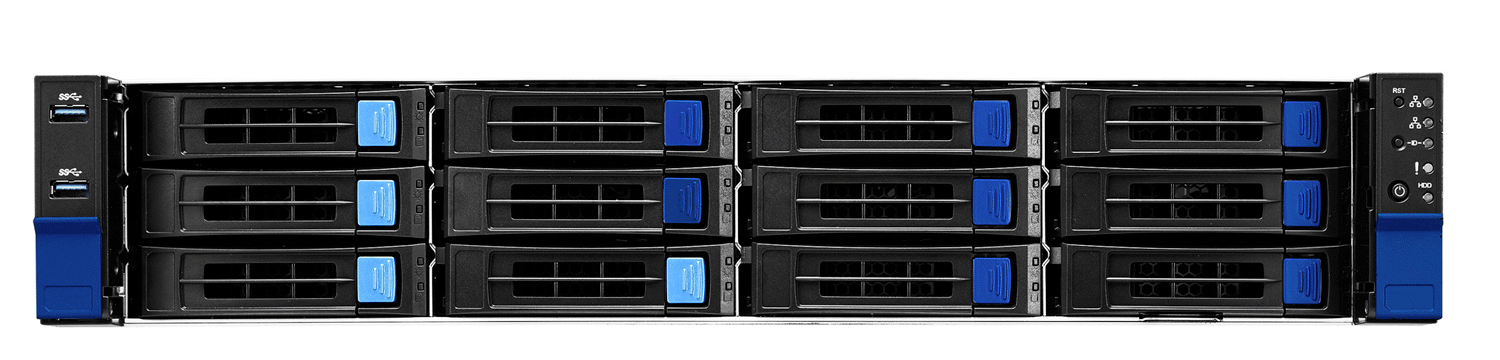

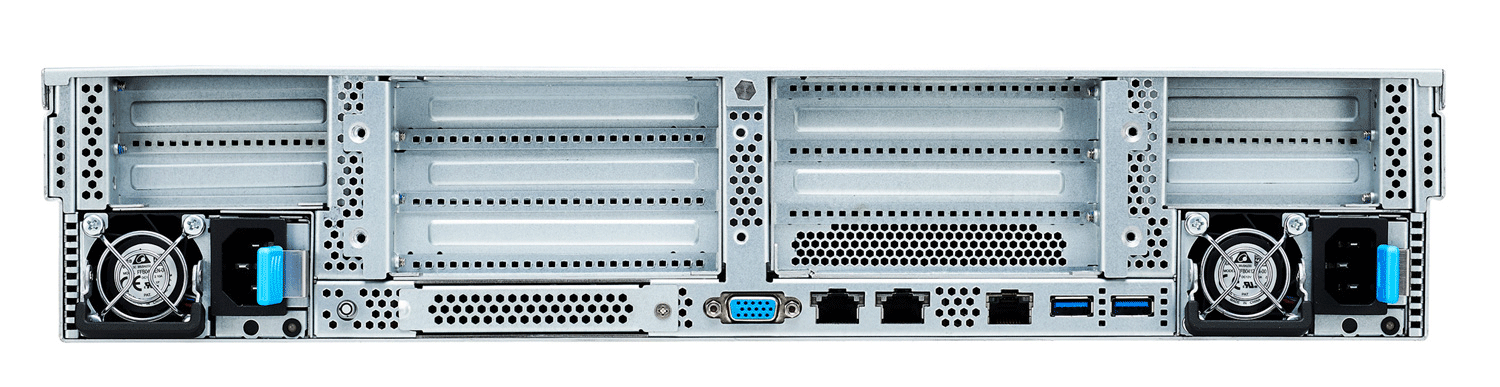

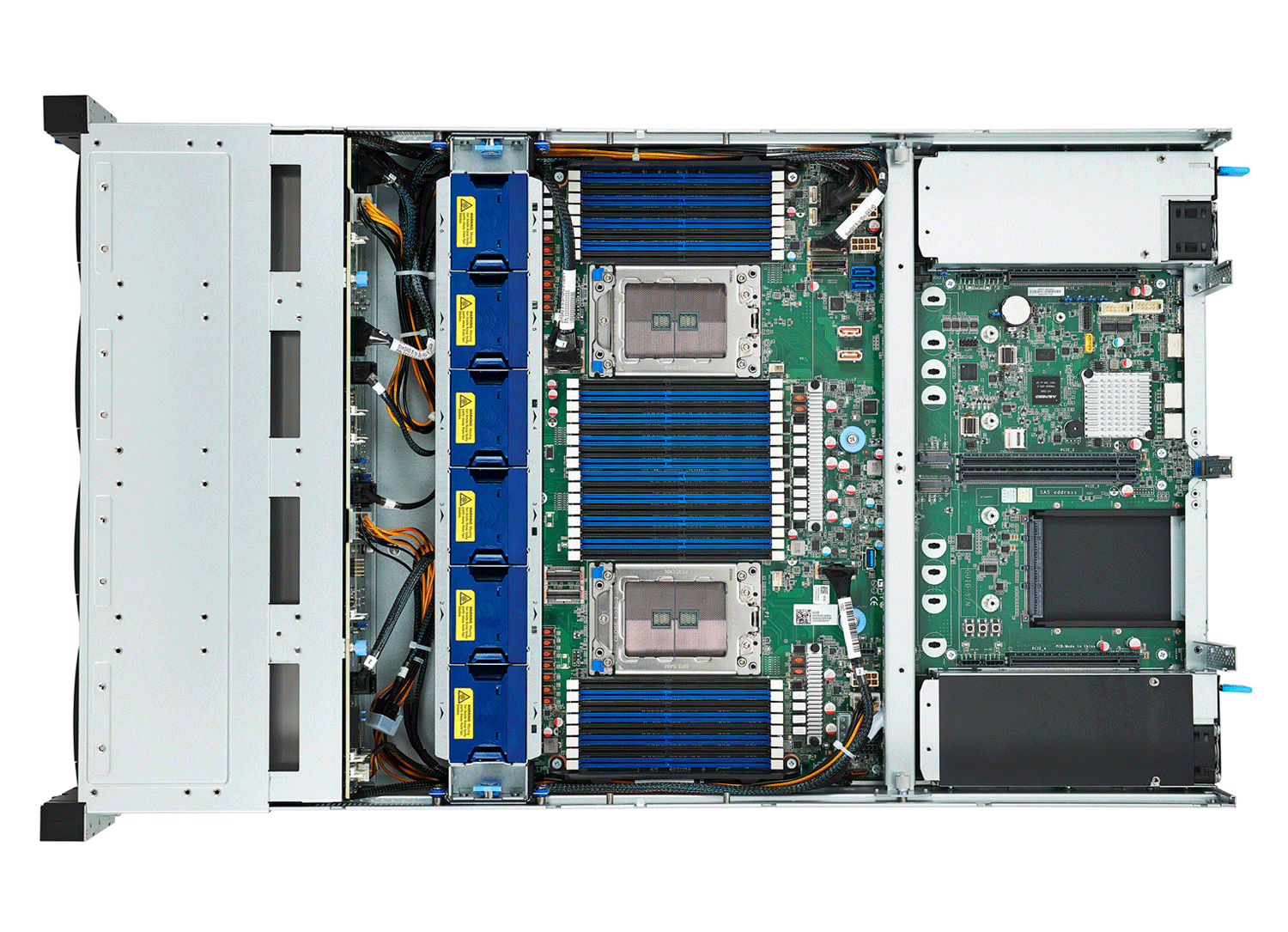

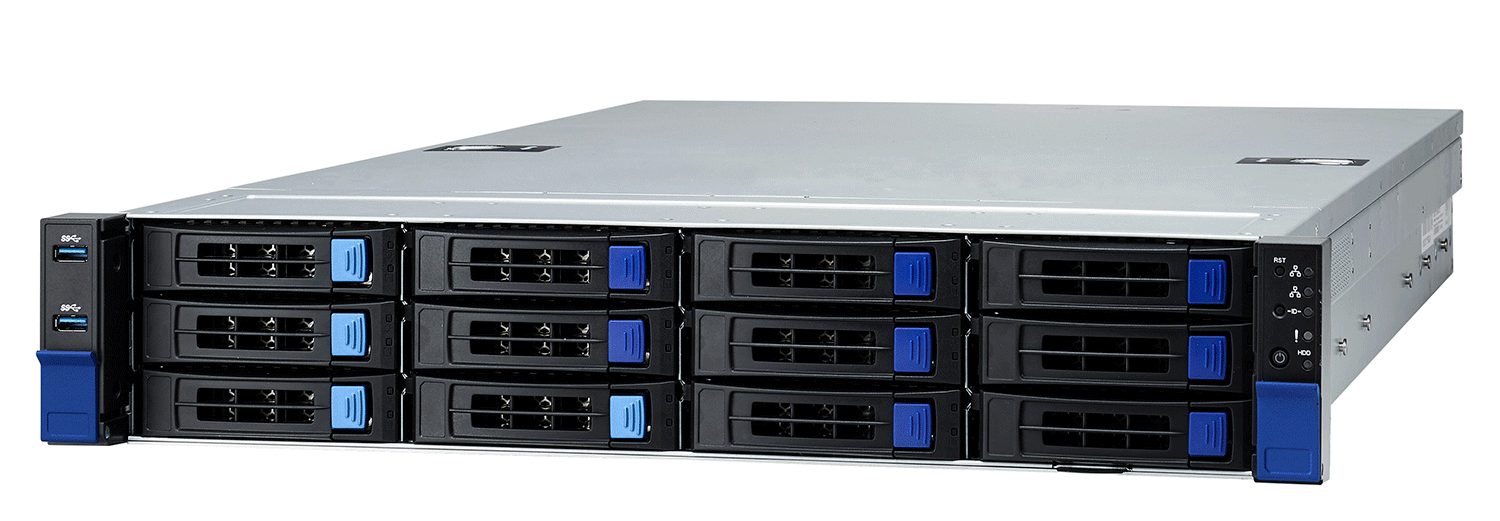

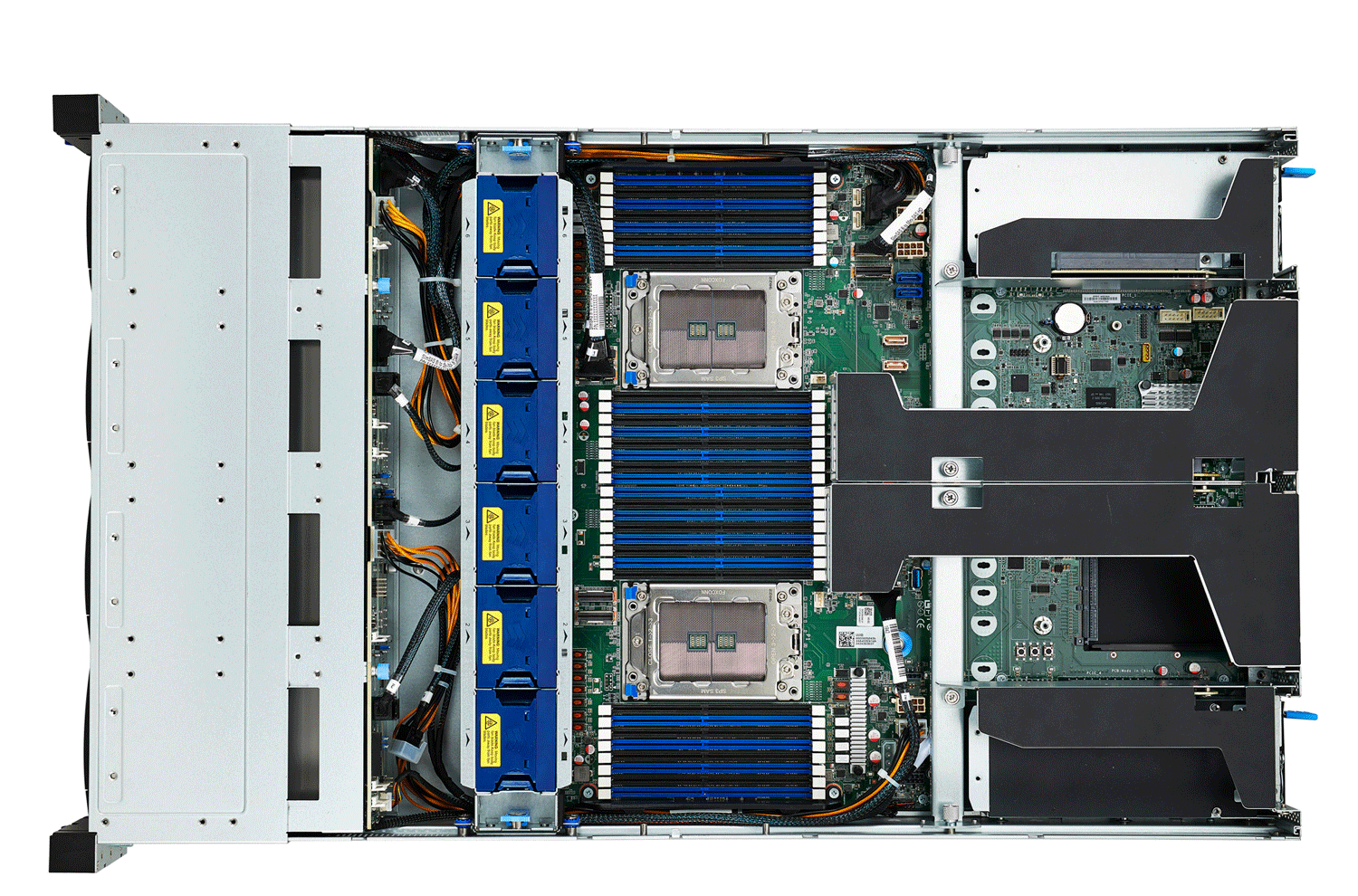

Images


$3,998.78


  Qty.Colfax CX2260t-EK8 2U Server, Cost As Configured $3,998.78
