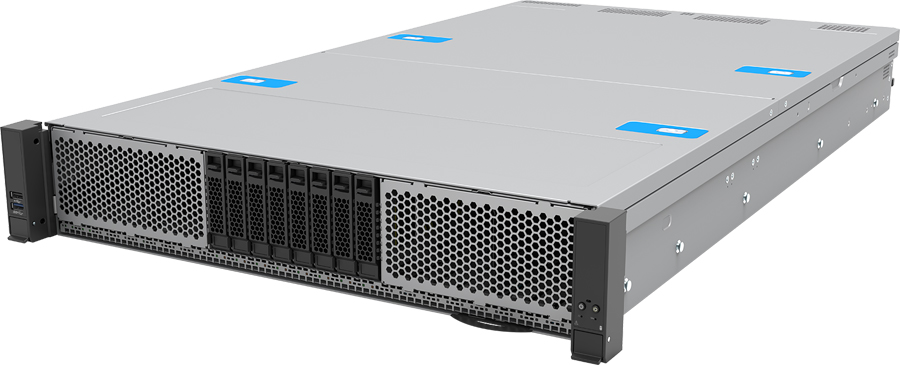

Colfax CX2265i-NVMe4-S8-X9 2U Rackmount Server



  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • 32x DIMMs Support DDR5 RDIMM and Intel® Optane™ PMem 300 Series Modules

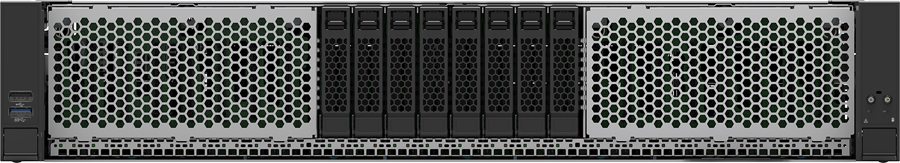

  • 8x 2.5" Gen4 NVMe Drive Bays

Key Features

  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • Intel C741 Chipset
  • 32x DIMMS Support DDR5 RDIMM and Intel® Optane™ PMem 300 Series Modules
  • 8x 2.5" Gen4 NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • Riser Slot #1 Options:
    - 3x Slot PCIe Riser Card (FCP2URISER1STD) which Supports:
    • 1x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slot
    • 1x PCIe 5.0 x8 Full-Height/Full-Length, Single-Width Slot
    • 1x PCIe 5.0 x8 Full-Height/Half-Length, Single-Width Slot
    - 2x Slot PCIe Riser Card (FCP2URISER1DW) which Supports:
    • 1x PCIe 5.0 x16 Full-Height/Full-Length, Double-Width Slot
    • 1x PCIe 5.0 x16 Full-Height/Half-Length, Single-Width Slot
    - 2x Slot PCIe Riser Card (FCP2URISER1SW) which Supports:
    • 2x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slots
    - PCIe NVMe Riser Card (FCP2URISER1RTM) which Supports:
    • 1x PCIe 5.0 x16 Half-Length or Full-Length, Single-Width Slot
    • 1x x8 PCIe NVMe MCIO Connectors, each with a Retimer
  • Riser Slot #2 Options:
    - 3x Slot PCIe Riser Card (FCP2URISER2STD) which Supports:
    • 1x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slot
    • 1x PCIe 5.0 x8 Full-Height/Full-Length, Single-Width Slot
    • 1x PCIe 5.0 x8 Full-Height/Half-Length, Single-Width Slot
    - 2x Slot PCIe Riser Card (FCP2URISER2DW) which Supports:
    • 1x PCIe 5.0 x16 Full-Height/Full-Length, Double-Width Slot
    • 1x PCIe 5.0 x16 Full-Height/Half-Length, Single-Width Slot
    - 2x Slot PCIe Riser Card (FCP2URISER2SW) which Supports:
    • 2x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slots
  • Riser Slot #3 Options:
    - 2x Slot PCIe Riser Card (FCP2URISER3STD) which Supports:
    • 2x PCIe 5.0 x8 Low-Profile/Half-Length, Single-Width Slots
    - PCIe NVMe Riser Card (CYPRISER3RTM) which Supports:
    • 2x PCIe NVMe SlimSAS Connectors with Retimers
  • 1x 5.0 x16 OCP 3.0 Connector Slot Supports Intel® Ethernet Network Adapter
  • Integrated Video Controller
  • Server Management:
    - Integrated Baseboard Management Controller (BMC)
    - Dedicated RJ45 1 GbE Management Port
    - Intelligent Platform Management Interface (IPMI) 2.0 Compliant
    - Redfish* Compliant
    - Support for Intel® Data Center Manager (Intel® DCM)
    - Support for Intel® Server Debug and Provisioning Tool (Intel® SDP Tool)
    - Integrated BMC Web Console
    - Intel® Light Guided Diagnostics
    - Optional Advanced Server Management
  • Security Features:
    - Intel® Platform Firmware Resilience (Intel® PFR) Technology with an I2C Interface
    - Intel® Software Guard Extensions (Intel® SGX)
    - Converged Intel® Boot Guard and Intel® Trusted Execution Technology (Intel® TXT)
    - Intel® Total Memory Encryption – Multi-Key (Intel® TME-MK)
    - Optional Intel® Trusted Platform Module 2.0
  • Intel® DSG System Debug Log Advisor (SDLA)
    - Enables customers to quickly and easily identify and resolve for themselves common server support issues
  • 1x 1300W/ 1600W/ 2100W AC Power Supply*
    * The system can have up to two power supply modules installed, supporting the following power configurations: 1+0, 1+1 redundant power, and 2+0 combined power


Optional Features

Front Bezel



Rack Mount Kit Options

  • Value Rack Mount Rail Kit (CYPHALFEXTRAIL):
    - 1U, 2U compatible
    - Tool-less chassis attachment
    - Tools required to attach rails to rack
    - Rack installation front and rear post distance adjustment from 660 mm to 838 mm
    - 560 mm travel distance
    - Half extension from rack
    - Support for front cover removal and fan replacement
    - 31 kg (68.34 lbs.) maximum support weight
    - No Cable Management Arm support
  • Premium Rail Kit with Cable Management Arm (CMA) Support (CYPFULLEXTRAIL):
    - 1U, 2U compatible
    - Tool-less installation
    - Rack installation front and rear post distance adjustment from 623 mm ~ 942 mm
    - 820 mm travel distance
    - Full extension from rack
    - 31 Kgs (68.34 lbs.) maximum supported weight
    - Support for Cable Management Arm AXXCMA2


PCIe Add-in Card Support

The server system supports up to three PCIe riser cards, identified as: Riser Slot #1, Riser Slot #2, and Riser Slot #3. With three PCIe riser cards, the system can support up to eight PCIe add-in cards.

PCIe Riser Slot #1 Options

3x Slot PCIe Riser Card for Riser Slot #1 (FCP2URISER1STD)

3x Slot PCIe Riser Card (FCP2URISER1STD) supports:

  • 1x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slot
  • 1x PCIe 5.0 x8 Full-Height/Full-Length, Single-Width Slot
  • 1x PCIe 5.0 x8 Full-Height/Half-Length, Single-Width Slot

2x Slot PCIe Riser Card for Riser Slot #1 (FCP2URISER1DW)

2x Slot PCIe Riser Card (FCP2URISER1DW) supports:

  • 1x PCIe 5.0 x16 Full-Height/Full-Length, Double-Width Slot
  • 1x PCIe 5.0 x16 Full-Height/Half-Length, Single-Width Slot

2x Slot PCIe Riser Card for Riser Slot #1 (FCP2URISER1SW)

2x Slot PCIe Riser Card (FCP2URISER1SW) supports:

  • 2x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slots

PCIe NVMe Riser Card for Riser Slot #1 (FCP2URISER1RTM)

PCIe NVMe Riser Card (FCP2URISER1RTM) supports:

  • 1x PCIe 5.0 x16 Half-Length or Full-Length, Single-Width Slot
  • 1x x8 PCIe NVMe MCIO Connectors, each with a Retimer

PCIe Riser Slot #2 Options

3x Slot PCIe Riser Card for Riser Slot #2 (FCP2URISER2STD)

3x Slot PCIe Riser Card (FCP2URISER2STD) supports:

  • 1x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slot
  • 1x PCIe 5.0 x8 Full-Height/Full-Length, Single-Width Slot
  • 1x PCIe 5.0 x8 Full-Height/Half-Length, Single-Width Slot

2x Slot PCIe Riser Card for Riser Slot #2 (FCP2URISER2DW)

2x Slot PCIe Riser Card (FCP2URISER2DW) supports:

  • 1x PCIe 5.0 x16 Full-Height/Full-Length, Double-Width Slot
  • 1x PCIe 5.0 x16 Full-Height/Half-Length, Single-Width Slot

2x Slot PCIe Riser Card for Riser Slot #2 (FCP2URISER2SW)

2x Slot PCIe Riser Card (FCP2URISER2SW) supports:

  • 2x PCIe 5.0 x16 Full-Height/Full-Length, Single-Width Slots

PCIe Riser Slot #3 Options

2x Slot PCIe Riser Card for Riser Slot #3 (FCP2URISER3STD)

2x Slot PCIe Riser Card (FCP2URISER3STD) supports:

  • 2x PCIe 5.0 x8 Low-Profile/Half-Length, Single-Width Slots

PCIe NVMe Riser Card for Riser Slot #3 (CYPRISER3RTM)

PCIe NVMe Riser Card (CYPRISER3RTM) supports:

  • 2x PCIe NVMe SlimSAS Connectors with Retimers


Intel® Trusted Platform Module (TPM) 2.0

The trusted platform module (TPM) option is a hardware-based security device that addresses the growing concern about boot process integrity and offers better data protection. TPM protects the system startup process by ensuring that it is tamper-free before releasing system control to the operating system. A TPM device provides secured storage to store data, such as security keys and passwords. In addition, a TPM device has encryption and hash functions. The server board implements TPM as per TPM PC Client Specifications, Revision 2.0, published by the Trusted Computing Group (TCG).

On the system, a TPM device is installed on to a connector on the server board and is secured using a tamper resistant screw to prevent physical theft and tampering of the device.



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Server Management

Overview

The server uses the baseboard management controller (BMC) features of an Aspeed AST2600* server management processor (SMP). The BMC supports multiple system management features including intra-system sensor monitoring, fan speed control, system power management, and system error handling and messaging. It also provides remote platform management capabilities including remote access, monitoring, logging, and alerting features.

All server management capabilities can be split in two groups:

  • Standard management features (Included)
  • Optional advanced management features that can be enabled with the purchase of advanced management license key

In addition, BMC integrates with the Intel® Data Center Manager (DCM) software to provide unified management at Data Center level.

Remote Management Port
The server board includes a Remote Management Port used to remotely access embedded system management features. The Remote Management Port is an RJ45 Gigabit Ethernet port on the back edge of the server board. The remote management port can be configured using the BIOS Setup Utility before it can be used for remote management purposes.

Standard Server Management Features
The following system management features are supported by default.

  • Integrated BMC Web Console Download User Guide
  • Virtual KVM over HTML5
  • Redfish
  • Support for IPMI 2.0 and Intel® Node Manager (Intel® NM)
  • Out-of-band BIOS/BMC Update and Configuration
  • System Inventory
  • Autonomous Debug Log

Securty Features
The BMC supports several security features including OpenLDAP and Active Directory, security logs, ability to turn off any remote port, Secure Sockets Layer (SSL) certificate upload, VLAN support, and KCS control. The BMC also supports full user management with password defined privileges and with the ability to define password complexity rules. Each BMC release is given a security version number to prevent firmware downgrades from going to lower security versions.

Intel® provides a best practices security guide, that focuses on the best ways for you to enable security on supported Intel® Server Boards and Intel® Server Systems.

Advanced Server Management Features
Purchasing an optional Advanced System Management product key unlocks the following advanced system management features:

  • Virtual Media local mage redirection (HTML5 and Java)
  • Virtual Media shared files and folders redirection
  • Out-of-band hardware RAID Management for latest Intel® RAID cards
  • Included single system license for Intel® Data Center Manager (Intel® DCM)

Virtual Media Local Image Redirection (HTML5)
The BMC supports media redirection of local IMG, IMA or ISO image files. This redirection is supported in HTML5 remote console clients. When a user selects the "Launch Window to Mount Local Image" option, a new web page is displayed. The page provides the user interface to select the type of source media (image files) and the location of the desired media to make it available to the remote server system.

After the type and specific media are selected, the interface provides a mount/unmount interface so the user can connect the media to or disconnect the media from the server system. Once connected, the selected image file is presented to the server system as a read-only removable media and may be interacted like a CD-ROM drive.

This feature gives system administrators the ability to install software (including operating system), copy files, perform firmware updates, from the local media on their workstation.

NOTE: The shared file is presented to the server system as a UDF file system. The operating system of the server must be able to interact with UDF file systems for this feature to work.

Virtual Media Shared Files and Folders Redirection
In addition to supporting virtual media redirection from the administrator’s workstation, the BMC also supports media redirection of .IMG, .IMA or .ISO files hosted on a file server, accessible to the BMC over network interface.

The current version supports Samba shares (Microsoft Windows file shares) and NFS shares. This virtual media redirection is more effective for mounting virtual media at scale, instead of processing all files from the workstation’s drive through the HTML5 application and over the workstation’s network. Each BMC makes a direct network file share connection to the file server and accesses files across that network share directly.


Intel® Data Center Manager (Intel® DCM)

Intel® Data Center Manager is a software solution that collects and analyzes the real-time health, power, and thermals of a variety of devices in data centers—giving you the clarity you need to improve data center reliability and efficiency.

What can you do with Intel® DCM?

  • Automate health monitoring
  • Improve system manageability
  • Simplify capacity planning
  • Identify underutilized servers
  • Measure energy use by device
  • Pinpoint power/thermal issues
  • Create power-aware job scheduling tasks
  • Increase rack densities
  • Set power policies and caps
  • Improve data center thermal profile
  • Optimize application power consumption
  • Avoid expensive PDUs and smart power strips

More Information
Download Intel® Data Center Manager Product Brief
Download Intel® Data Center Manager Console User Guide



Intel® DCM Use Cases

Rack Provisioning

Find new ways to increase rack density.

Intelligent Power

Collect real time data without deploying costly redundant infrastructure by replacing intelligent power distribution units.

Disaster Avoidance

With real-time monitoring and management, it's possible to reduce power failures and other disasters.

Equipment Scheduling

Increase your ability to meet workload demands with equipment scheduling, and make your data center do more.

Build Real-Time Thermal Maps

Build real-time thermal maps to avoid the guesswork that leads to undercooling or overcooling.

Ghost Servers

Identify ghost servers, and get data center power usage under control.

Intel® Power Thermal Aware Solution

Identify energy efficiency issues in the data center to avoid service delays and gain savings.

Granular Rack-Level Thermal Monitoring

Enable the Intel® DCM to recognize an out-of-range temperature reading and allow the user to take immediate action.

Granular Server-Level Thermal Monitoring

Get greater granular server-level thermal visibility, so when temperatures rise, it registers with the Intel® DCM.

Predictive Detection of Cooling Anomalies

Predict cooling issues before they happen with a patented algorithm that detects anomalies in time to be resolved before a thermal issue occurs.

Server health Management

Enable server health management with real-time sub-component monitoring, error detection, proactive health management, and server firmware synchronization.

Updating Firmware of Intel® Data Center Blocks

Monitor and update the firmware of data center systems with Intel® DCM.

Intel® Memory Failure Prediction

Through multi-dimensional model and algorithms, DIMM errors are mined at the micro-level to assign health scores and identify future failures in real time.

Technical Specifications

Dimensions (HxWxL) • 2U Rackmount
• 3.4" x 17.2" x 30.3"
• 87mm x 438mm x 769.6mm
CPU • Dual Socket-E LGA4677
• Supported 4th Gen Intel® Xeon® Scalable processor family SKUs:
- Intel® Xeon® Platinum 84xxxx processor
- Intel® Xeon® Gold 64xxxx processor
- Intel® Xeon® Gold 54xxxx processor
- Intel® Xeon® Silver 44xxxx processor
- Intel® Xeon® Bronze 34xxxx processor
• Max TDP up to 350W*
• Intel® UPI links: 3 at 16 GT/s (Platinum and Gold) or 2 at 16 GT/s (Silver)

NOTE: Intel® Xeon® Bronze processors are used in single processor configurations only
* The maximum supported processor TDP is dependent on the system configuration
Chipset PCH • Intel® C741 chipset platform controller hub (PCH)
• Embedded features enabled on this server board:
- SATA 3.0 support
- USB 3.0 support
- PCIe 3.0 support
Memory • 32x DIMM slots
- 16 memory slots per processor, eight memory channels per processor
- Two memory modules per channel per channel
• Registered DDR5 DIMM (standard RDIMM, 3DS-RDIMM, and 9x4 RDIMM)
• All DDR5 DIMMs must support ECC
• Intel® Optane™ PMem 300 series (App Direct Mode only)
• Memory capacity
- Up to 12 TB per processor (processor SKU dependent) using DDR5 DIMMs combined with Intel Optane PMem 300 series modules
• Memory data transfer rates
- Up to 4800 MT/s at one DIMM per channel (processor SKU dependent)
- Up to 4400 MT/s at two DIMMs per channel (processor SKU dependent)
• DDR5 standard voltage of 1.1 V
Riser Support In the below description FH = Full Height, FL = Full Length, HL = Half Length, LP = Low Profile

Riser Slot #1:
• Riser Slot #1 supports x32 PCIe lanes routed from CPU 0
• PCIe 5.0 support for up to 64 GB/s

Riser Slot #1 supports the following Intel Riser Card options:
• Three PCIe slot riser card (FCP2URISER1STD) which supports:
- One FH/FL single-width slot (x16 electrical, x16 mechanical)
- One FH/FL single-width slot (x8 electrical, x16 mechanical)
- One FH/HL single-width slot (x8 electrical, x8 mechanical)
• Two PCIe slot riser card (FCP2URISER1DW) which supports:
- One FH/FL double-width slot (x16 electrical, x16 mechanical)
- One FH/HL single-width slot (x16 electrical, x16 mechanical)
• Two PCIe slot riser card (iPC FCP2URISER1SW), which supports:
- Two FH/FL single-width slot (x16 electrical, x16 mechanical)
• NVMe riser card (iPC FCP2URISER1RTM), which supports:
- One HL or FL single-width slot (x16 electrical, x16 mechanical)
- Two x8 PCIe NVMe MCIO connectors, each with a re-timer

Riser Slot #2:
• Riser Slot #2 supports X32 PCIe lanes routed from CPU 1
• PCIe 5.0 support for up to 64 GB/s

Riser Slot #2 supports the following Intel Riser Card options:
• Three PCIe slot riser card (iPC FCP2URISER2STD), which supports:
- One FH/FL single-width slot (x16 electrical, x16 mechanical)
- One FH/FL single-width slot (x8 electrical, x16 mechanical)
- One FH/HL single-width slot (x8 electrical, x8 mechanical)
• Two PCIe slot riser card (iPC FCP2URISER2DW), which supports:
- One FH/FL double-width slot (x16 electrical, x16 mechanical)
- One FH/HL single-width slot (x16 electrical, x16 mechanical)
• Two PCIe slot riser card (iPC FCP2URISER2SW), which supports:
- Two FH/FL single-width slot (x16 electrical, x16 mechanical)

Riser Slot #3:
• Riser Slot #3 supports x16 PCIe lanes, routed from CPU 1
• PCIe 5.0 support for up to 32 GB/s

Riser Slot #3 supports the following Intel riser card options:
• Two PCIe slot riser card (iPC FCP2URISER3STD), which supports:
- Two LP/HL single-width slots (x16 mechanical, x8 electrical)
• NVMe riser card (iPC CYPRISER3RTM), which supports:
- Two PCIe NVMe SlimSAS connectors with re-timers
Open Compute Project (OCP) Adapter Support Server board x16 PCIe 5.0 OCP 3.0 connector (Small Form-Factor) slot
PCIe NVMe Support • Supports up to 18 PCIe NVMe interconnects
- 16 server board mounted PCIe MCIO connectors, eight per processor
- Two M.2 NVMe/SATA connectors
• Additional NVMe support through select Riser Card options (See Riser Card Support)
• Volume Management Device (VMD) support
SATA • 10 x SATA 3.0 ports (6 Gb/s, 3 Gb/s, and 1.5 Gb/s transfer rates supported)
- Two M.2 connectors – SATA / PCIe
- Two 4-port Mini-SAS HD (SFF-8643) connectors
USB • One USB 3.0 and two USB 2.0 connectors on the rear of the chassis
• One USB 3.0 and one USB 2.0 connector on the front panel
Serial • One external RJ-45 Serial Port A connector on the rear of the chassis
Video • Integrated 2D video controller
• 128MB of DDR4 video memory
• One DB-15 VGA Port in the back of the server board
Storage Bay • 8 x 2.5" SAS/SATA/NVMe hot swap drive bays
Power Supply The server system can have up to two power supply modules installed, supporting the following power configurations: 1+0, 1+1 redundant power, and 2+0 combined power

• Power supply options:
- AC 1300W Titanium
- AC 1600W Titanium
- AC 2100W Platinum
System Fans • Sx managed 60 mm hot swap capable system fans
• Integrated fans included with each installed power supply module
Server Management Processor (SMP) • Aspeed* AST2600 Remote Management Server Processor
• Embedded features enabled on this server board:
- Baseboard management controller (BMC)
- 2D video graphics adapter
Server Management • Integrated Baseboard Management Controller
• Dedicated RJ45 1 GbE Management Port
• Intelligent Platform Management Interface (IPMI) 2.0 Compliant
• Redfish* Compliant
• Support for Intel® Data Center Manager (Intel® DCM)
• Support for Intel® Server Debug and Provisioning Tool (Intel® SDP Tool)
• Integrated BMC Web Console
• Intel® Light Guided Diagnostics
• Optional Advanced Server Management features
Security Support • Intel® Platform Firmware Resilience (Intel® PFR) technology with an I2C interface
• Intel® Software Guard Extensions (Intel® SGX)
• Converged Intel® Boot Guard and Intel® Trusted Execution Technology (Intel® TXT)
• Intel® Total Memory Encryption – Multi-Key (Intel® TME-MK)
• Trusted platform module 2.0 (accessory option)
BIOS • Unified Extensible Firmware Interface (UEFI)-based BIOS (legacy boot not supported)


Block Diagram


Images


$4,833.82


  Qty.Colfax CX2265i-NVMe4-S8-X9 2U Rackmount Server, Cost As Configured $4,833.82
Base Platform 1
Front Bezel 1
Management 1
Power Supply 1    1

Set next    items (  ) like this
Power Supply 2    1
Rackmount Kit 1
Cable Management 1
Primary CPU 1
Secondary CPU 1
CPU 1 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 16    1
CPU 1 - Socket 3 of 16    1
CPU 1 - Socket 4 of 16    1
CPU 1 - Socket 5 of 16    1
CPU 1 - Socket 6 of 16    1
CPU 1 - Socket 7 of 16    1
CPU 1 - Socket 8 of 16    1
CPU 1 - Socket 9 of 16    1
CPU 1 - Socket 10 of 16    1
CPU 1 - Socket 11 of 16    1
CPU 1 - Socket 12 of 16    1
CPU 1 - Socket 13 of 16    1
CPU 1 - Socket 14 of 16    1
CPU 1 - Socket 15 of 16    1
CPU 1 - Socket 16 of 16    1
CPU 2 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 16    1
CPU 2 - Socket 3 of 16    1
CPU 2 - Socket 4 of 16    1
CPU 2 - Socket 5 of 16    1
CPU 2 - Socket 6 of 16    1
CPU 2 - Socket 7 of 16    1
CPU 2 - Socket 8 of 16    1
CPU 2 - Socket 9 of 16    1
CPU 2 - Socket 10 of 16    1
CPU 2 - Socket 11 of 16    1
CPU 2 - Socket 12 of 16    1
CPU 2 - Socket 13 of 16    1
CPU 2 - Socket 14 of 16    1
CPU 2 - Socket 15 of 16    1
CPU 2 - Socket 16 of 16    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
NVM-E Drive 3    1
NVM-E Drive 4    1
NVM-E Drive 5    1
NVM-E Drive 6    1
NVM-E Drive 7    1
NVM-E Drive 8    1
NVM-E Cable Kit (1-8) 1
Intel VROC 1
OCP 3.0 Networking 1
Riser Card 1 1
Riser Card 2 1
Riser Card 3 1
Infiniband HBA 1
Ethernet HBA 1
TPM Module 1
Operating System SW 1
   Colfax CX2265i-NVMe4-S8-X9 2U Rackmount Server, Cost As Configured $4,833.82
