Colfax CX22855s-X7 2U Rackmount Server

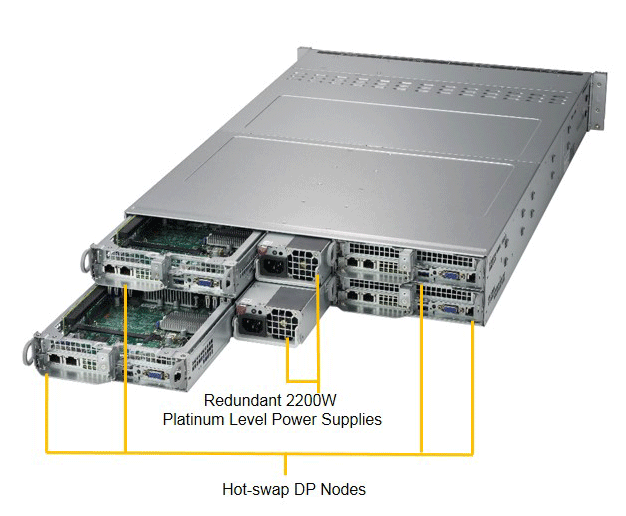

  • Hot-Swappable 4-Nodes in 2U
  • Total 8x Intel® Xeon® Scalable Processors
  • Total 64x DIMMS
  • Total 24x 2.5" Hot-Swap Drive Bays

Features

  • 2U, 4 Hot-Swap Nodes
  • Total 8x Intel® Xeon® Scalable Processors (2/Node)
  • Intel C621 Chipset
  • 64x DIMM Sockets Supporting DDR4 ECC Registered Memory (16/Node)
  • 2 PCI-E 3.0 x16 Low-Profile Slots and 1 SIOM Networking Slot /Node
  • 24x 2.5" Hot-Swap SATA3 Drive Bays (4/Node)
  • 2200W Redundant Power Supplies, 80PLUS Titanium
  • IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN Support




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

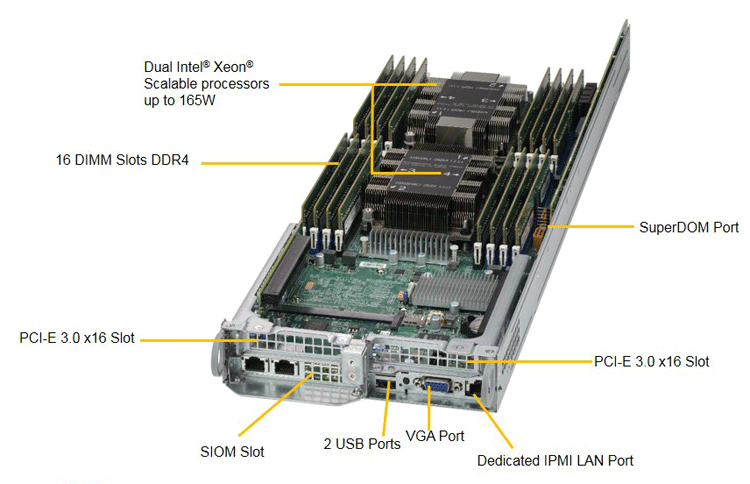

CPU / Node • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processors (70-165W TDP)
Memory / Node • 16x DDR4 DIMM slots
• Supports up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion / Node • 2 PCI-E 3.0 x16 (LP) slots
• 1 SIOM slot
Onboard Devices SATA
• SATA3 (6Gbps) via C621 controller
• RAID 0, 1, 5, 10 support
Network Controllers
• SIOM network card
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC

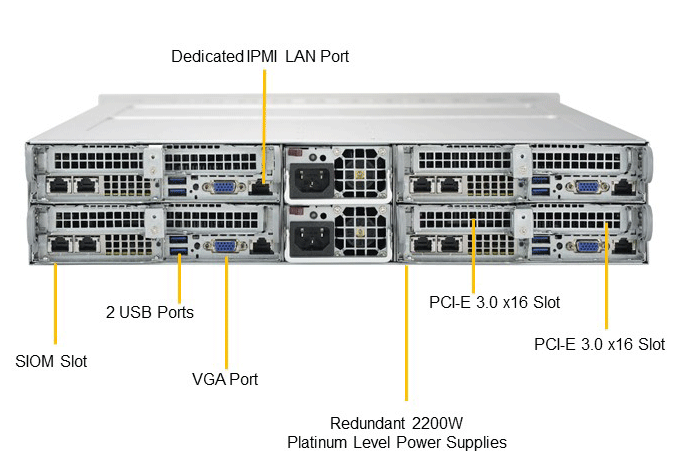

Input / Output / Node LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (rear)
VGA
• 1x VGA port
DOM
• 2x SuperDOM (Disk on Module) ports
Drive Bays / Node • 6x hot-swap 2.5" SATA3 drive bays
Chassis Form Factor • 2U Rackmount
• Dimension: 17.25"W (438mm) x 3.47"H (88mm) x 28.5"D (724mm)
Power Supply • 2200W Redundant Power Supplies with PMBus
• Input
- 1200W: 100-127Vac / 50-60Hz
- 1800W: 200-220Vac / 50-60Hz
- 1980W: 220-230Vac / 50-60Hz
- 2090W: 230-240Vac / 50-60Hz
- 2090W: 180-220Vac (for UL/cUL only)
- 2200W: 220-240Vac (for UL/cUL only)
- 2090W: 230-240Vdc (for CCC only)
• +12V
- Max: 100A / Min: 0A (100-127Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 174.17A / Min: 0A (230-240Vac)
- Max: 183.33A / Min: 0A (220-240Vac)
• 5Vsb
- Max: 1A / Min: 0A
• 80PLUS Titanium Certified
System Cooling • 4 heavy duty 8cm PWM fans with air shroud

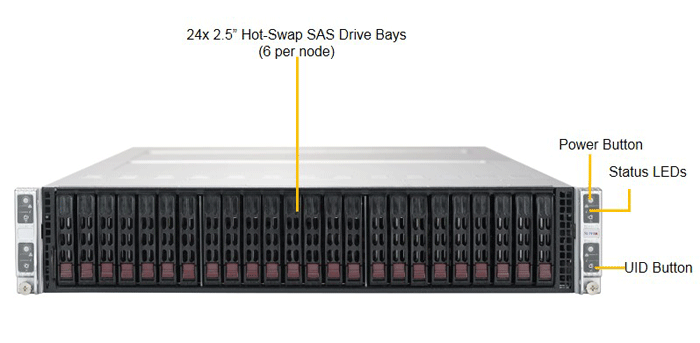

Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• UID LED
BIOS • AMI 32Mb SPI Flash ROM

Images

Customize the Chassis below or -->
To review or customize any node in this solution, please select the node from the drop-down list



$8,057.44


  Qty.Colfax CX22855s-X7 2U Rackmount Server, Cost As Configured $6,457.44
Base Platform 1
   Colfax CX22855s-X7 2U Rackmount Server, Cost As Configured $6,457.44
