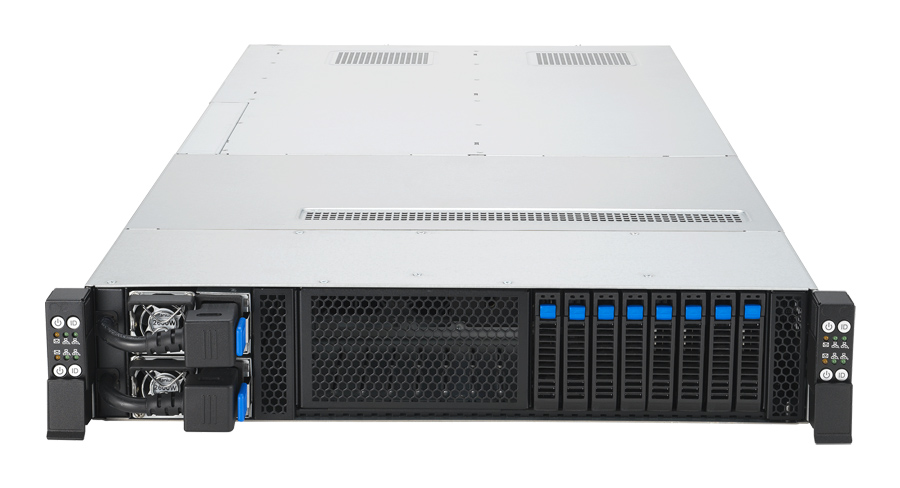

Colfax CX22875a-NVMe4-E9 2U Rackmount Server



  • Hot-Swappable 4-Nodes in 2U
  • Total 8x AMD EPYC™ 9004/9005 Series Processors
  • Total 96x DIMMS
  • Total 8x 2.5" Hot-Swap NVMe Drive Bays

Features

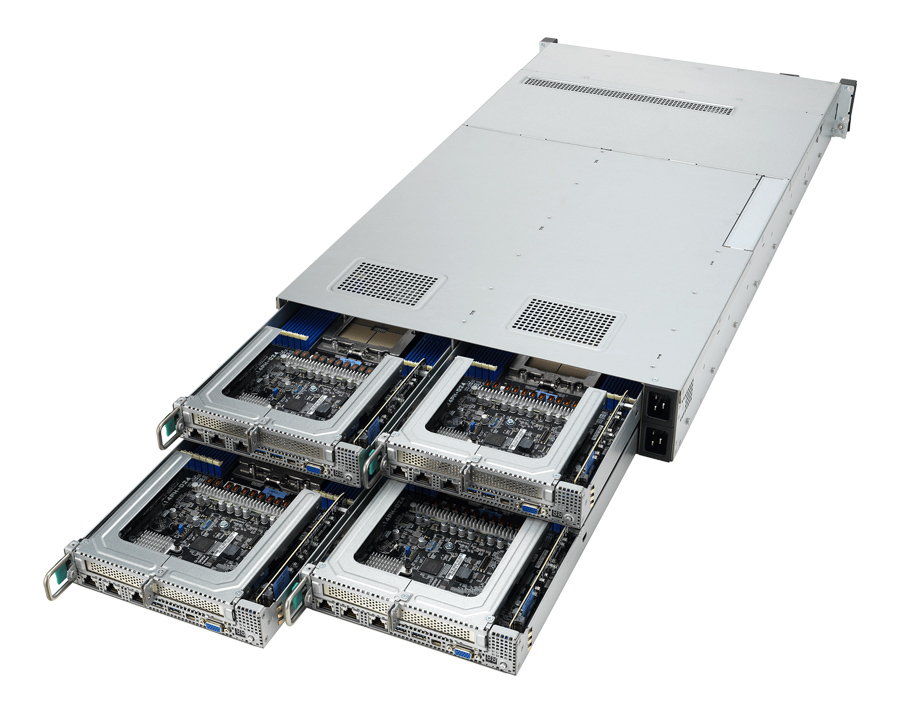

  • 2U, 4 Hot-Swap Nodes
  • 2600W Redundant Power Supplies, 80PLUS Titanium

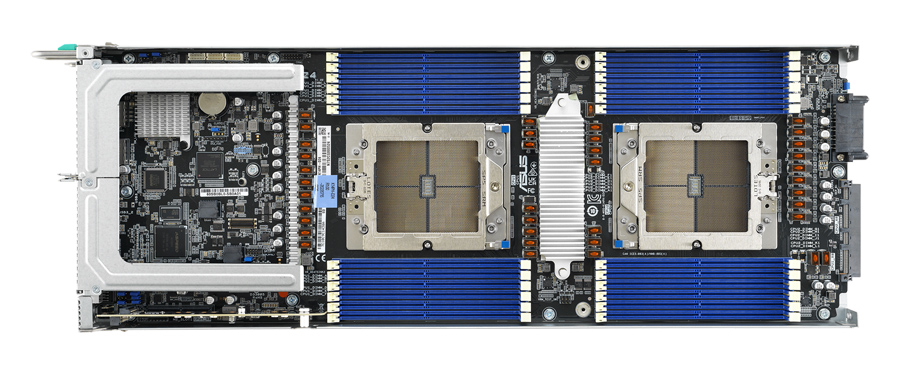

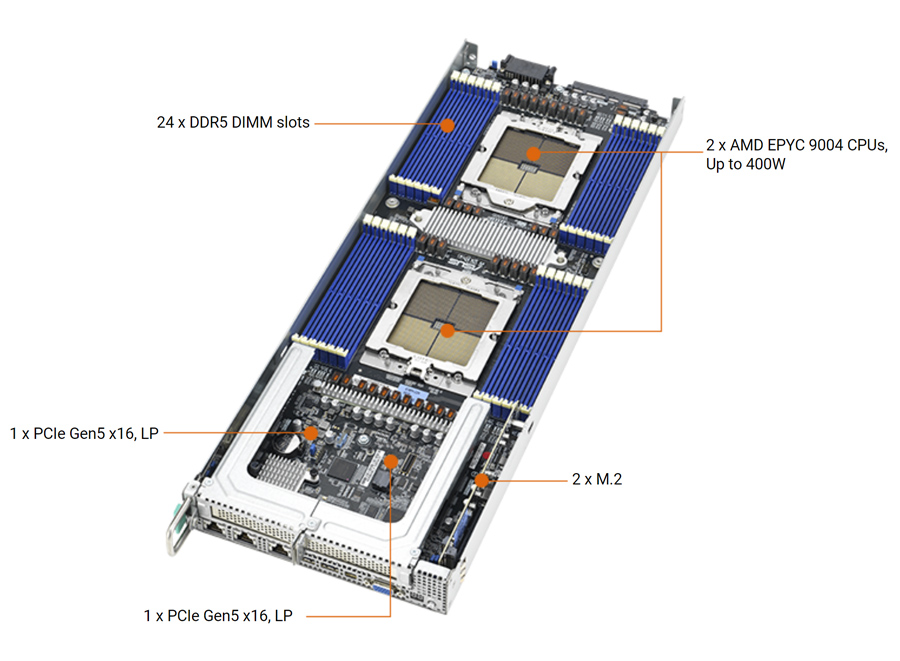

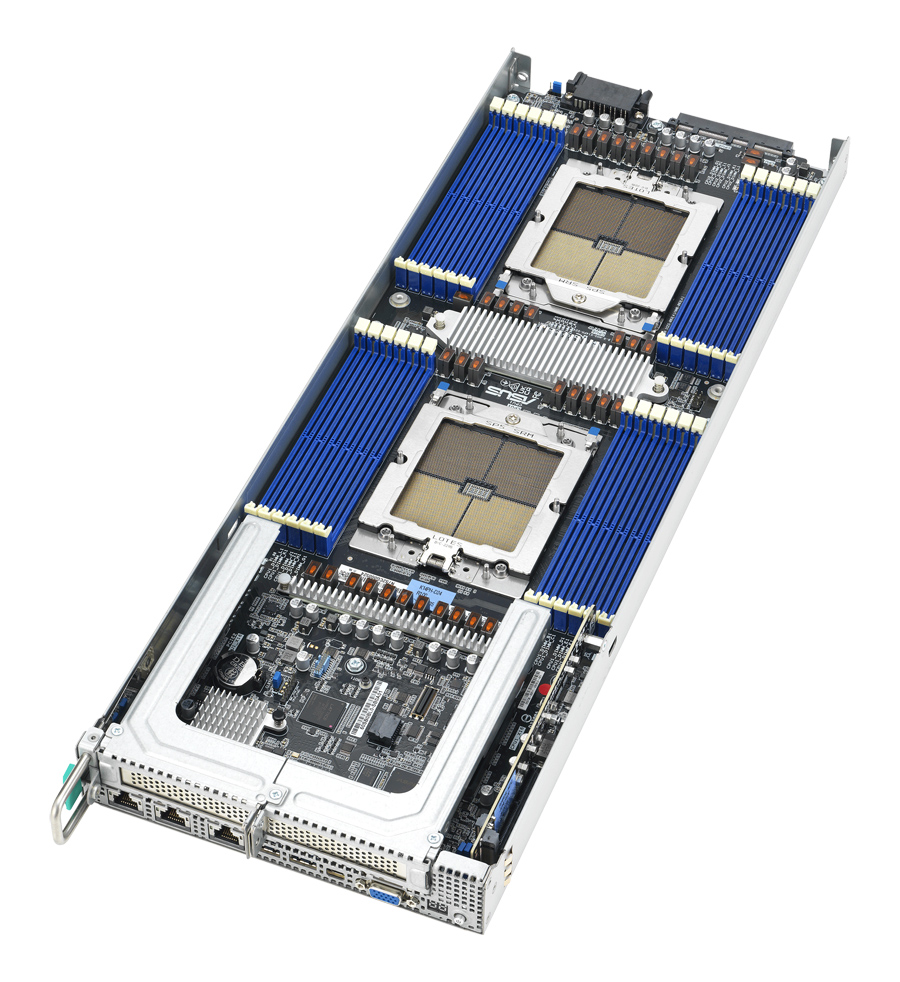

Each node supports the following:

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x PCIe 5.0 x16 Slots (LP)
  • 2x 2.5" Hot-Swap NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • 2x 10GbE LAN Ports
  • 1x Dedicated Management Port








Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension: 17.48"W (444mm) x 3.44"H (87.4mm) x 33.35"D (847mm)
CPU / Node • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processor
• Supports CPU TDP air cool with EVAC up to 240W, with liquid cool up to 400W
Memory / Node • 24x DDR5 DIMM slots
• Supports up to 6TB: 24x 256GB DRAM
• Memory Type: 4800MHz ECC DDR5 RDIMM
I/O Expansion / Node • 2x PCIe 5.0 x16 slots (LP)
Networking / Node • 2x 10GbE LAN ports
• 1x Management port
Graphic / Node • Aspeed AST2600 with 64MB VRAM

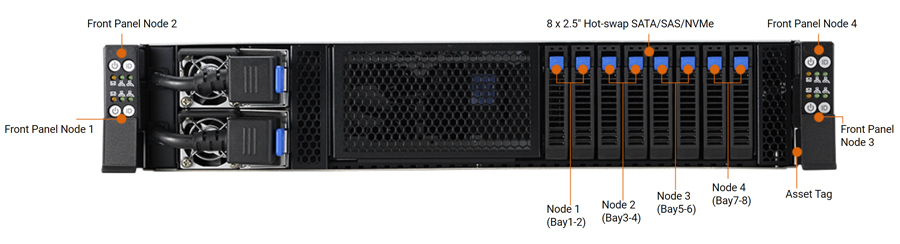

Storage / Node • 2x 2.5" hot-swap NVMe drive bays
M.2
• 2x M.2 connectors (2242/2260/2280/22110) both SATA & PCIe mode (CPU1)
Front I/O Ports / Node • NA

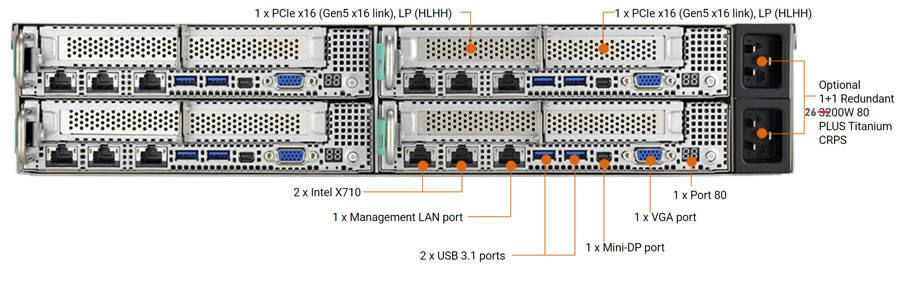

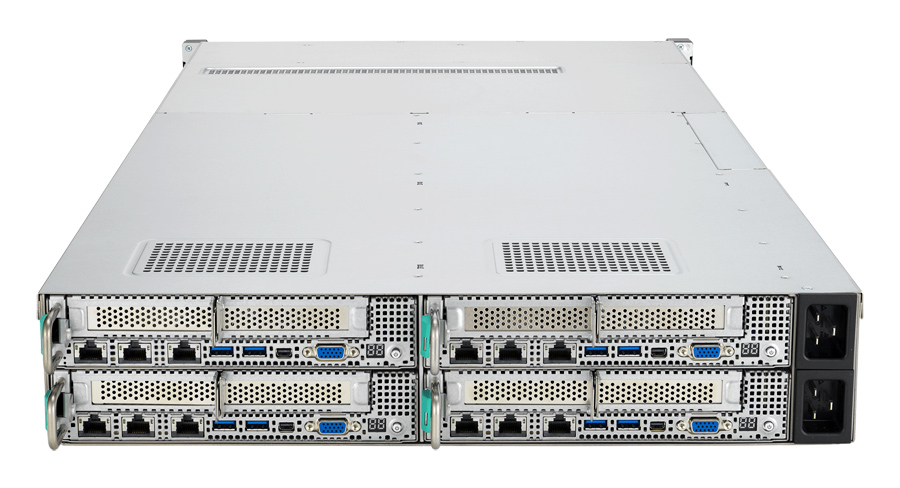

Rear I/O Ports / Node • 2x USB 3.2 Gen1 ports
• 1x VGA port
• 1x Mini-DP port
• 1x Management port
• 2x 10GbE LAN ports
Power Supply • 1+1 2600W Redundant Power Supply
• 80PLUS Titanium Certified

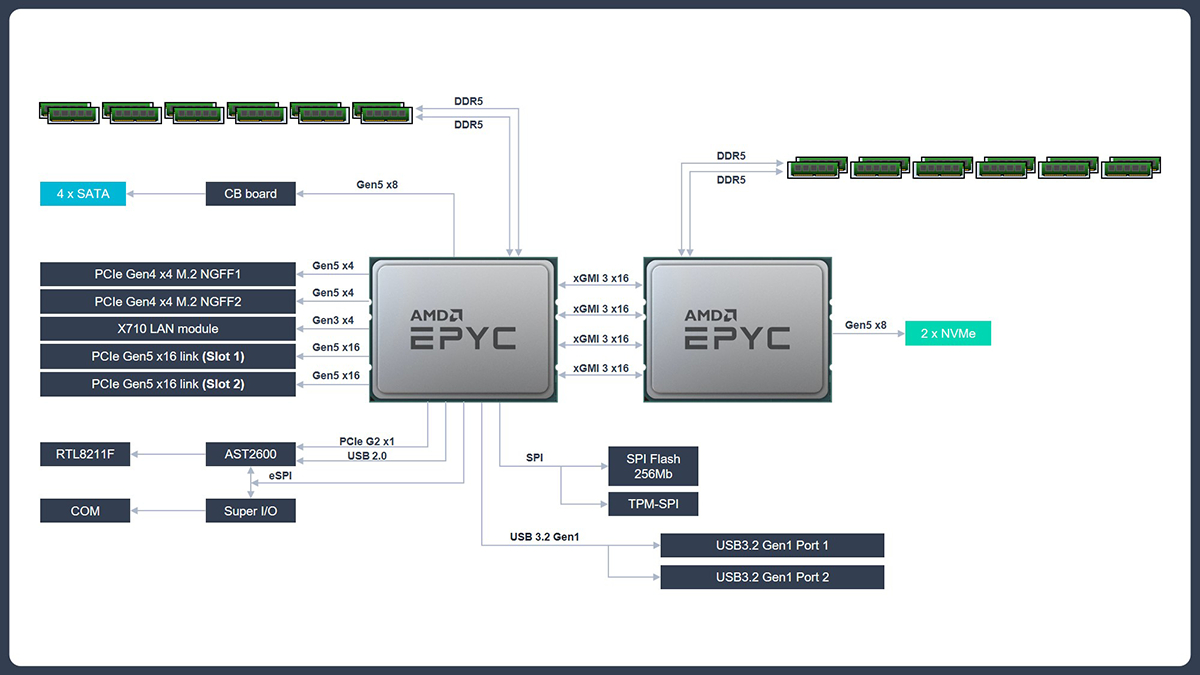

Block Diagram

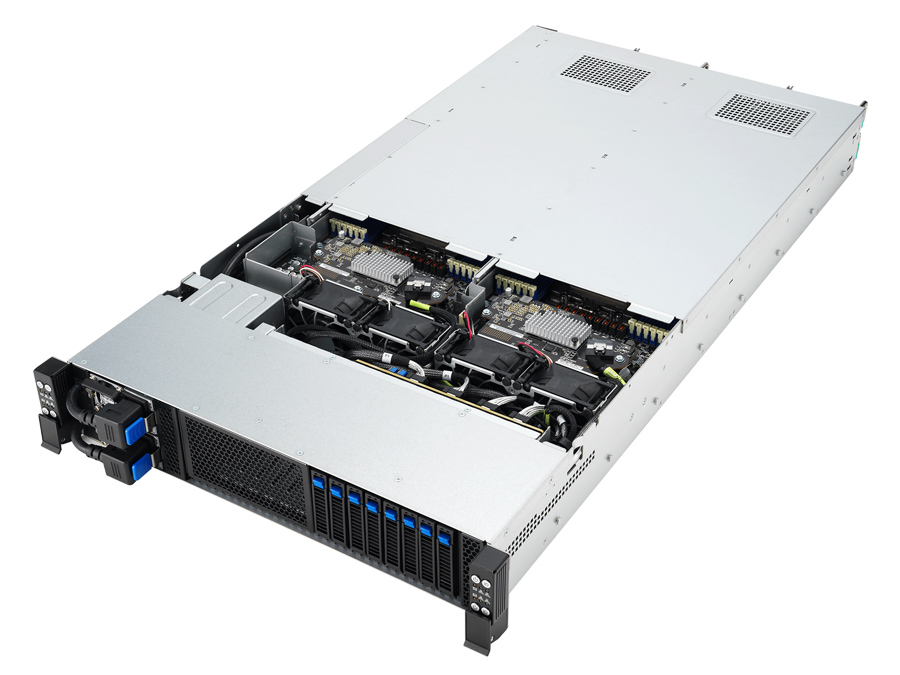

Images

Customize the Chassis below or -->
To review or customize any node in this solution, please select the node from the drop-down list



$12,224.45


  Qty.Colfax CX22875a-NVMe4-E9 2U Rackmount Server, Cost As Configured $10,624.45
Base Platform 1
   Colfax CX22875a-NVMe4-E9 2U Rackmount Server, Cost As Configured $10,624.45
