Colfax CX2460t-EK8 2U Rackmount Server




  • 4x NVIDIA® Tesla® GPUs
  • 2x AMD EPYC™ 7002 Series Processor
  • 8x 3.5" Hot-Swap SATA or 2.5" SATA/NVMe Drives

Features

  • 4x NVIDIA® Tesla® GPUs
  • 2x AMD EPYC™ 7002 Series Processors
  • 16x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • 8x 3.5" Hot-Swap SATA or 2.5" SATA/NVMe Drives
  • Expansion Slots
    - Left Riser Card Supports 2x PCIe 4.0 x16 and 2x PCIe 4.0 x8 FH/FL Slots
    - Right Riser Card Supports 2x PCIe 4.0 x16 and 2x PCIe 4.0 x8 FH/FL Slots
    - Additional Riser Card Supports 2x PCIe 4.0 x16 HH/HL Slots
  • Integrated Dual 10GbE Ports
  • 1+1 2200 Watts RPSU, 80 PLUS Platinum
  • AST2500 BMC with IPMI Support



Technical Specifications

Enclosure • 2U rackmount
• Dimension (D x W x H) 32.71" x 17.25" x 3.43" (831 x 438.4 x 87mm)
CPU • Socket SP3
• Dual AMD EPYC™ 7002 series processors (Max up to 200W cTDP)
Memory • 16 DIMM sockets
• 8 Channels per CPU
• Supports up to 2048 GB RDIMM / 4096 GB LRDIMM 3DS
• Memory Voltage - 1.2V
I/O Expansion • M8251T83-L32-4F riser card for (2) FH/FL PCI-E Gen4 x16 + (2) FH/FL PCI-E Gen4 x8 slots (left) split by Mux
• M8251T83-R32-4F riser card for (2) FH/FL PCI-E Gen4 x16 + (2) FH/FL PCI-E Gen4 x8 slots (right) split by Mux
• M8251T83-LR32-2L riser card for (1) HH/HL PCI-E Gen4 x16 (right) + (1) HH/HL PCI-E Gen4 x16 (left) slots
Storage • 8x 3.5"/2.5" hot-swap drives
• SATA 6Gb/s / NVMe interface support
Networking • Intel X550-AT2 controller: 2x 10GbE ports
• Realtek RTL8211E PHY controller
Video • Integrated ASPEED AST2500 controller
• Connector type - D-Sub 15-pin
• Resolution - Up to 1920x1200
Power Supply • Input Range - AC 200-240V/12.6A
• Frequency 47 - 63 Hertz
• Output Watts - 2200 Watts
• Efficiency - PFC / 80 plus Platinum
• Redundancy - 1+1
System Cooling • 5x 8cm fans
Front Panel I/O
• 2 USB 3.1 Gen1 ports
Buttons
• 1 RST / 1 UID / 1 PWR w/LED
LEDs
• 1 HDD / 2 LAN / 1 UID / 1 System event
I/O Ports • 2 USB3.1 Gen1 ports (@ rear) / 2 USB3.1 Gen1 ports (via Cable) / 1 USB3.1 Gen1 port (Type-A)
• 2 10GbE ports, 1 PHY dedicated for IPMI
• 1 DB-9 port (COM1) + 1 header (COM2)
• 1 D-Sub 15-pin port
• 8 SATA from (2) Slim SAS connectors + 2 SATA-DOM connectors
System Monitoring • Chipset - Aspeed AST2500
• Voltage - Monitors voltage for CPU, memory, chipset & power supply
• Temperature - Monitors temperature for CPU, memory & system environment
• LED - Over temperature warning indicator / Fan & PSU fail LED indicator
• Others - Watchdog timer support
Server Management • Onboard Chipset - Aspeed AST2500
• AST2500 IPMI Feature - IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
• AST2500 iKVM Feature - 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
BIOS • AMI 32MB SPI Flash ROM
• Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1

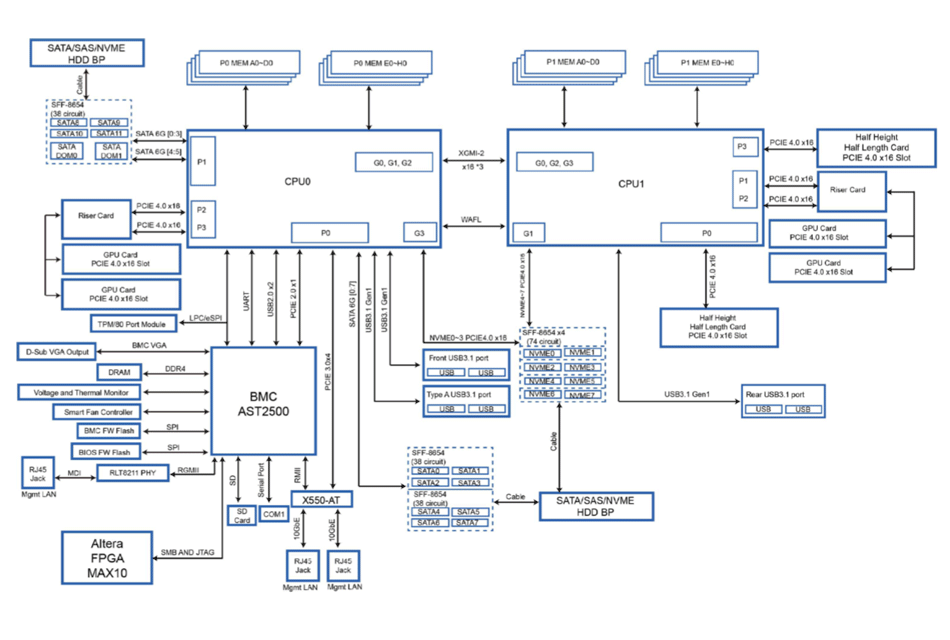

Block Diagram

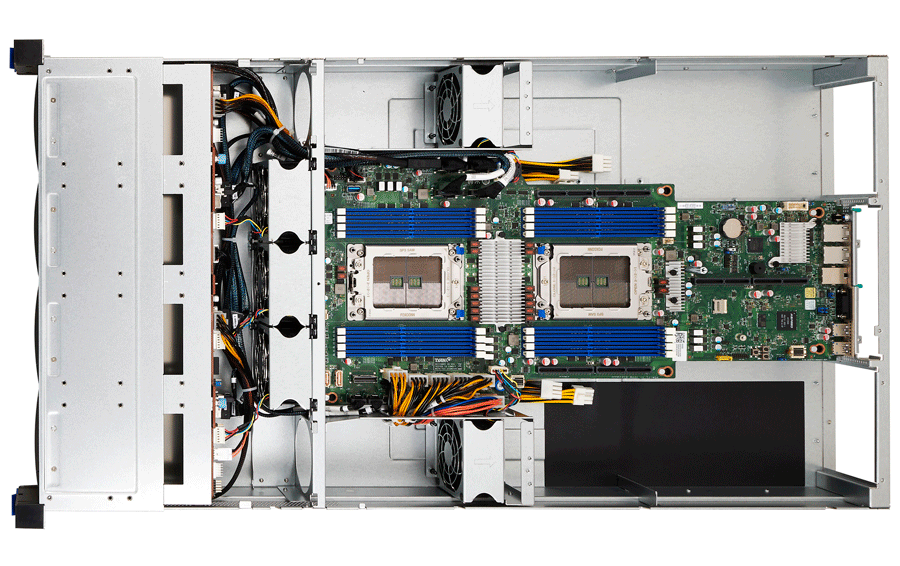

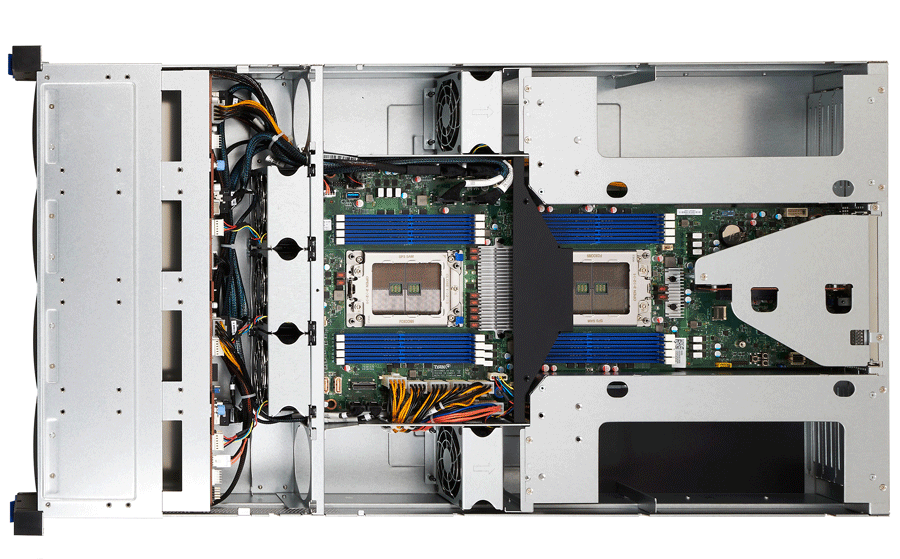

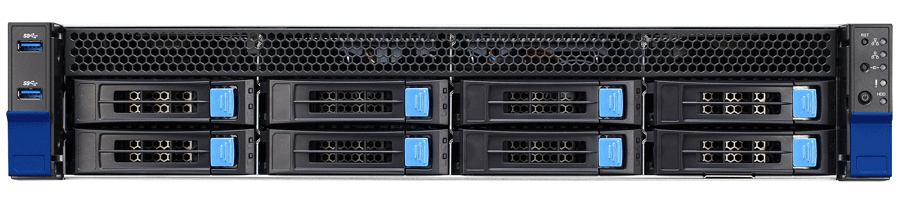

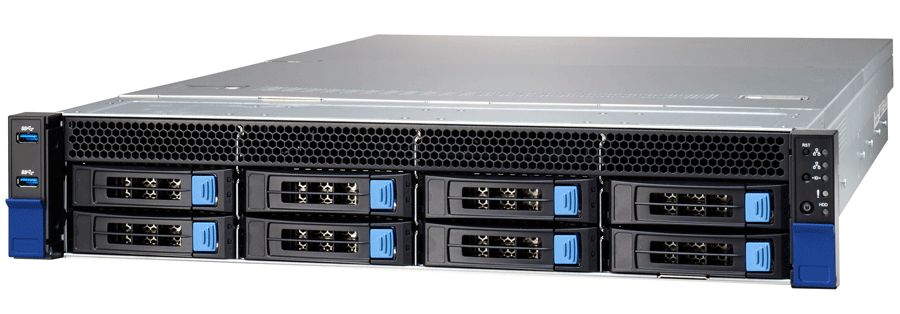

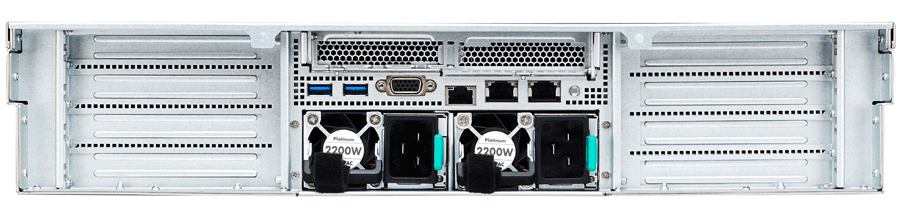

Images


$3,512.50
