Colfax CX2465s-X8 2U Rackmount Server




  • 4x 3rd Gen Intel® Xeon® Scalable Processors
  • 48x DIMMs
  • Up to 24x 2.5" NVMe/SAS3/SATA3 Drive Bays

Features

  • 2U Rackmount
  • 4x 3rd Gen Intel® Xeon® Scalable Processors
  • Intel C621 Chipset
  • 48x DDR4 Memory Sockets Support RDIMM or LRDIMM
  • 2x Riser Cards Support: (Each)
    - 1 PCIe 3.0 x16 FHHL Slot
    - 1 PCIe 3.0 x16 FHFL Slot
    - 1 PCIe 3.0 x8 FHFL Slot
  • Up to 24x 2.5" NVMe/SAS3/SATA3 Drive Bays
  • 2x M.2 PCIe 3.0 x4 NVMe/SATA SSDs
  • 2x 10GbE BaseT + 2x 10GbE SFP+ with Intel® X710-TM4
  • 2000W Redundant Power Supplies
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimensions: Height 3.5" (89mm), Width 17.3" (439.5mm), Depth 31.6" (803mm)
CPU • Quad Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processors
• TDP up to 250W
Chipset • Intel® C621 chipset
Memory • 48x DDR4 DIMM slots
• Supports up to 12TB: 48x 256 GB DRAM
• Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
I/O Expansion • 2x Riser Cards Support: (Each)
- 1 PCIe 3.0 x16 FHHL Slot
- 1 PCIe 3.0 x16 FHFL Slot
- 1 PCIe 3.0 x8 FHFL Slot
Onboard Devices SATA
• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controller
• 2x 10GbE BaseT + 2x 10GbE SFP+ with Intel® X710-TM4
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output LAN
• 2x RJ45 10GbE ports
• 2x SFP+ 10GbE ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports
Video
• 1x VGA port
Serial
• 1x COM port
Power Supply • 2x 2000W Redundant Power Supplies
AC Input
• 1000W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2000W: 220-240Vac / 50-60Hz
• 2000W: 230-240Vac / 50-60Hz
+12V
• Max: 83A / Min: 0A (100Vac-127Vac)
• Max: 150A / Min: 0A (200Vac-220Vac)
• Max: 165A / Min: 0A (220Vac-230Vac)
• Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
• Max: 3.5A / Min: 0A
Certification
• 80PLUS Titanium Certified
Drive Bays Front
• 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays
M.2
• 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling • 4x 8cm heavy duty fans with optimal fan speed control
BIOS Type • AMI 32Mb SPI Flash EEPROM

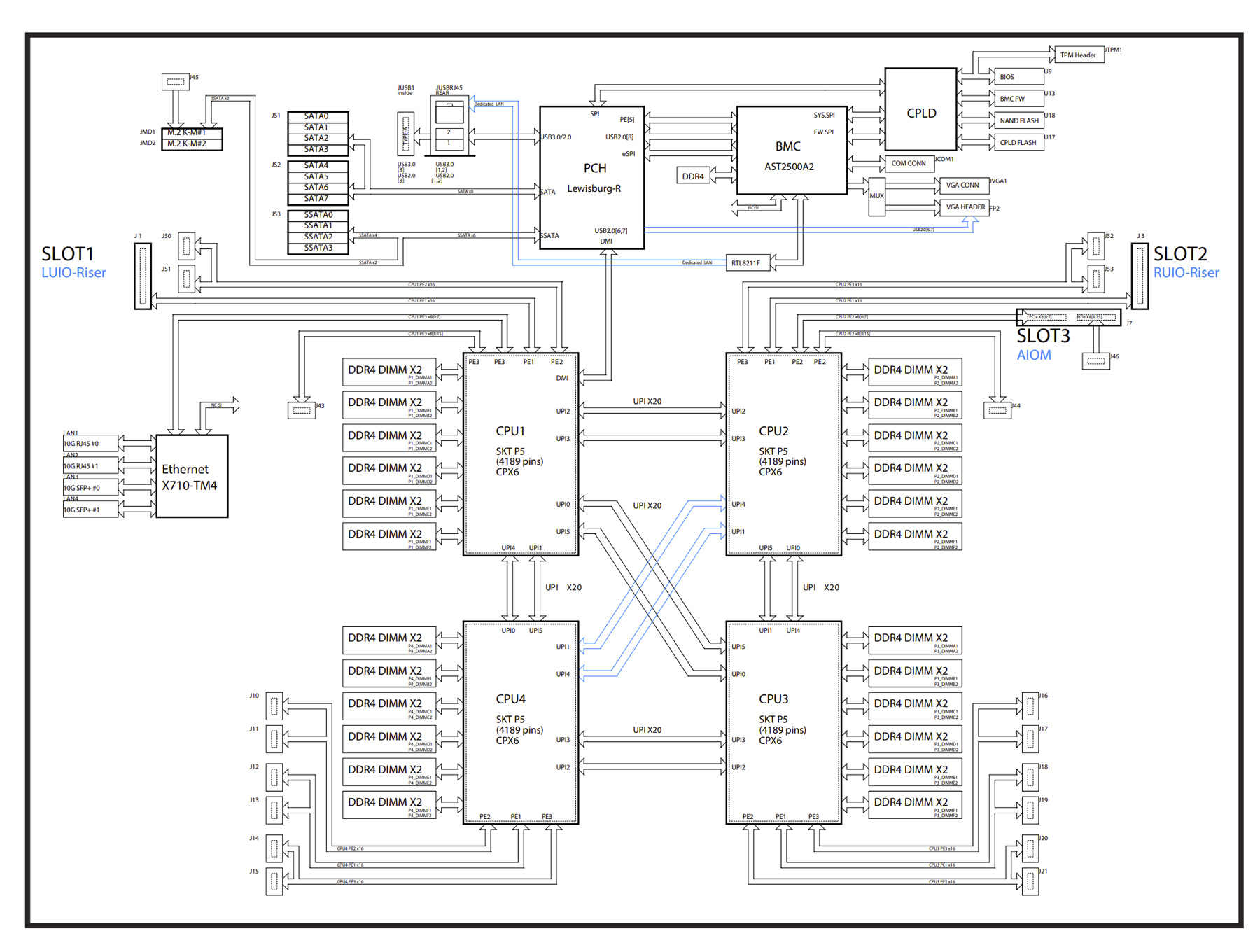

Block Diagram

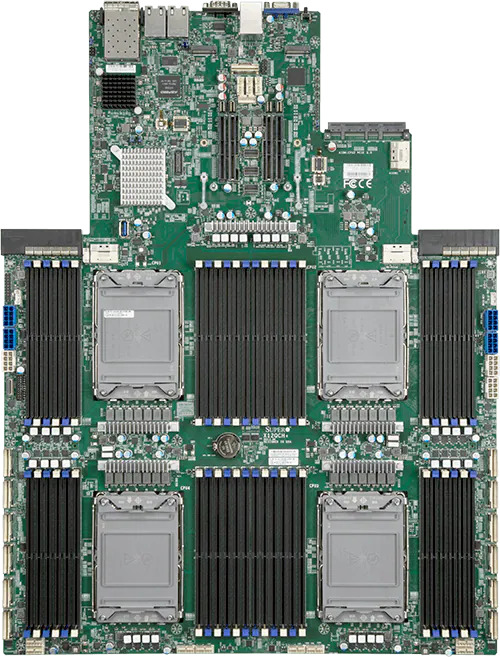

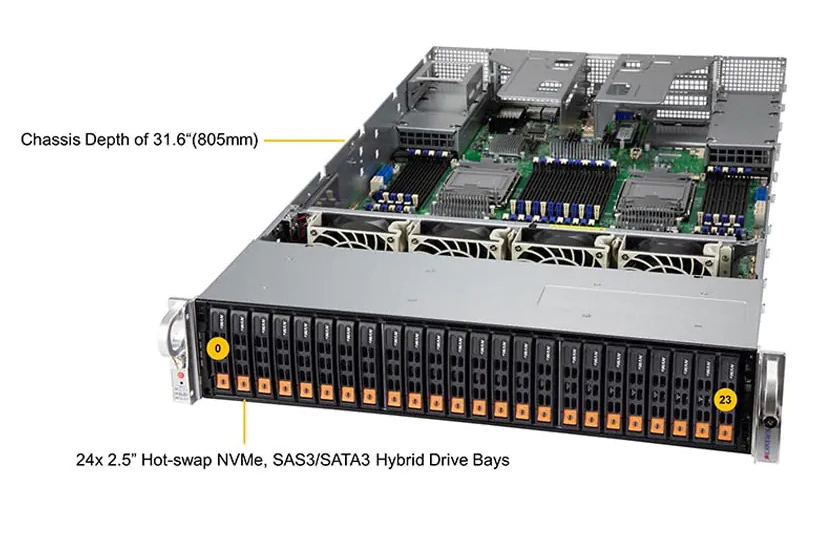

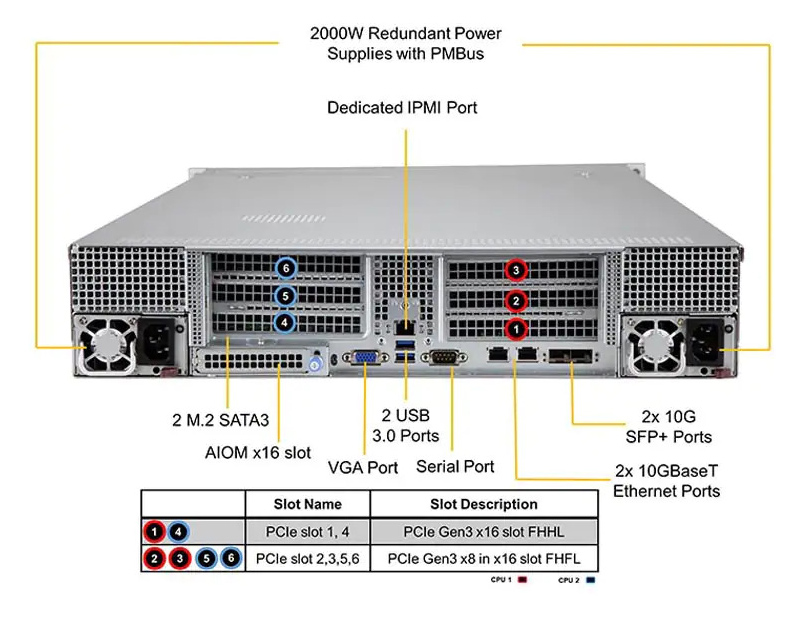

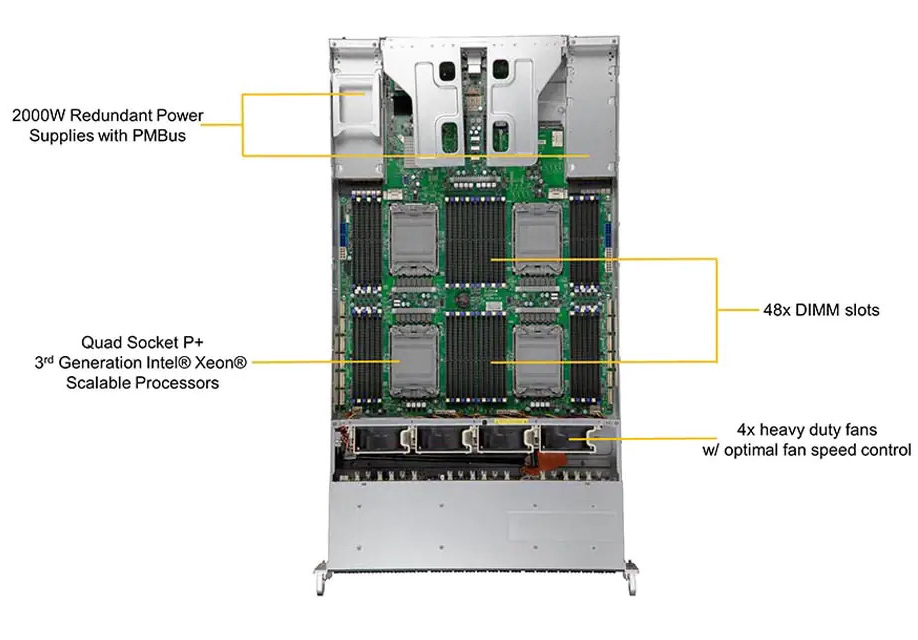

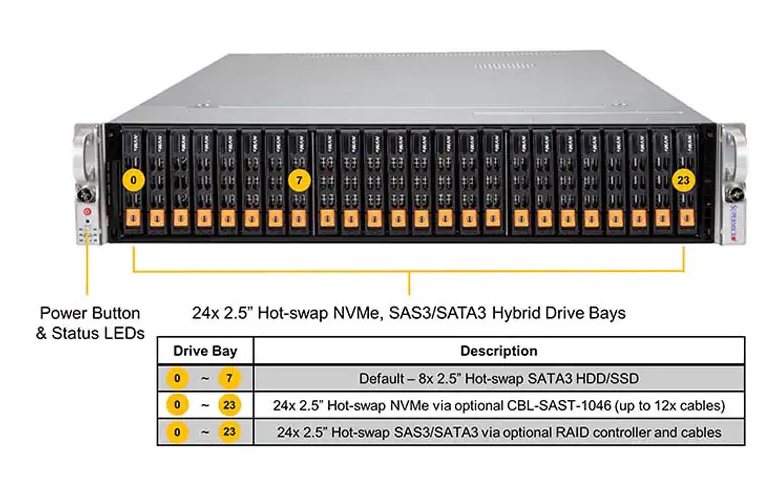

Images
