Colfax CX2470a-XK8 2U Rackmount Server




  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 4x NVIDIA® GPUs
  • 8x Hot-Swap NVMe Drive Bays

Features

  • 2U Rackmount
  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 4x NVIDIA® GPUs
  • Intel C621A Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 4 PCIe 4.0 x16 FHFL Slots for Dual-Slot GPUs
    - 1 Riser Card Supports 2 PCI-E 4.0 x16 Slots for Low-Profile Cards
  • 8x Hot-Swap NVMe Drive Bays
  • Supports Intel® VROC with VROC H/W Key
  • 1x M.2 SSD
  • Integrated 1x Dual-Port Intel® I350 GbE + 1x Mgmt LAN
  • 1+1 Redundant 2200W 80PLUS Platinum Power Supplies




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Dimensions • 3.46" x 17.22" x 31.5" (HxWxD)
CPU • 2 x Socket P+ (LGA 4189)
• Supports 3rd Gen Intel® Xeon® Scalable Processors
• Up to 205W TDP
Memory • Total Slots: 16 (8-channel per CPU, 8 DIMMs per CPU)
• Capacity: Maximum up to 1024GB RDIMM/LRDIMM, 2048GB LRDIMM 3DS
• Memory Type:
- DDR4 3200/2933 RDIMM/LR-DIMM/LR-DIMM 3DS
• Memory Size:
- 64GB, 32GB, 16GB, 8GB, 4GB RDIMM
- 64GB, 32GB LRDIMM
- 128GB, 64GB LRDIMM 3DS
Chipset • Intel® C621A
Expansion Slots • 4 PCIe 4.0 x16 FHFL Slots for Dual-Slot GPUs
• 1 Riser Card Supports 2 PCI-E 4.0 x16 Slots for Low-Profile Cards
Storage • 8x hot-swap NVMe bays
• 1x M.2 socket onboard (Gen3 x4 link or SATA mode, up to 2280 module)
Network • 1x Dual-Port I350 + 1x Mgmt LAN
Integrated Graphics • Aspeed AST2600 with 64MB VRAM
Front I/O • 4x USB 3.2 Gen1 ports
Rear I/O • 2x USB 3.2 Gen1 ports
• 2x Gigabit LAN ports (RJ45)
• 1x Management port (RJ45)
• 1x VGA port
Power Supply • 1+1 Redundant 2200W 80+ platinum efficiency redundant power supplies
System Management • Asus ASMB10-iKVM for KVM-over-IP

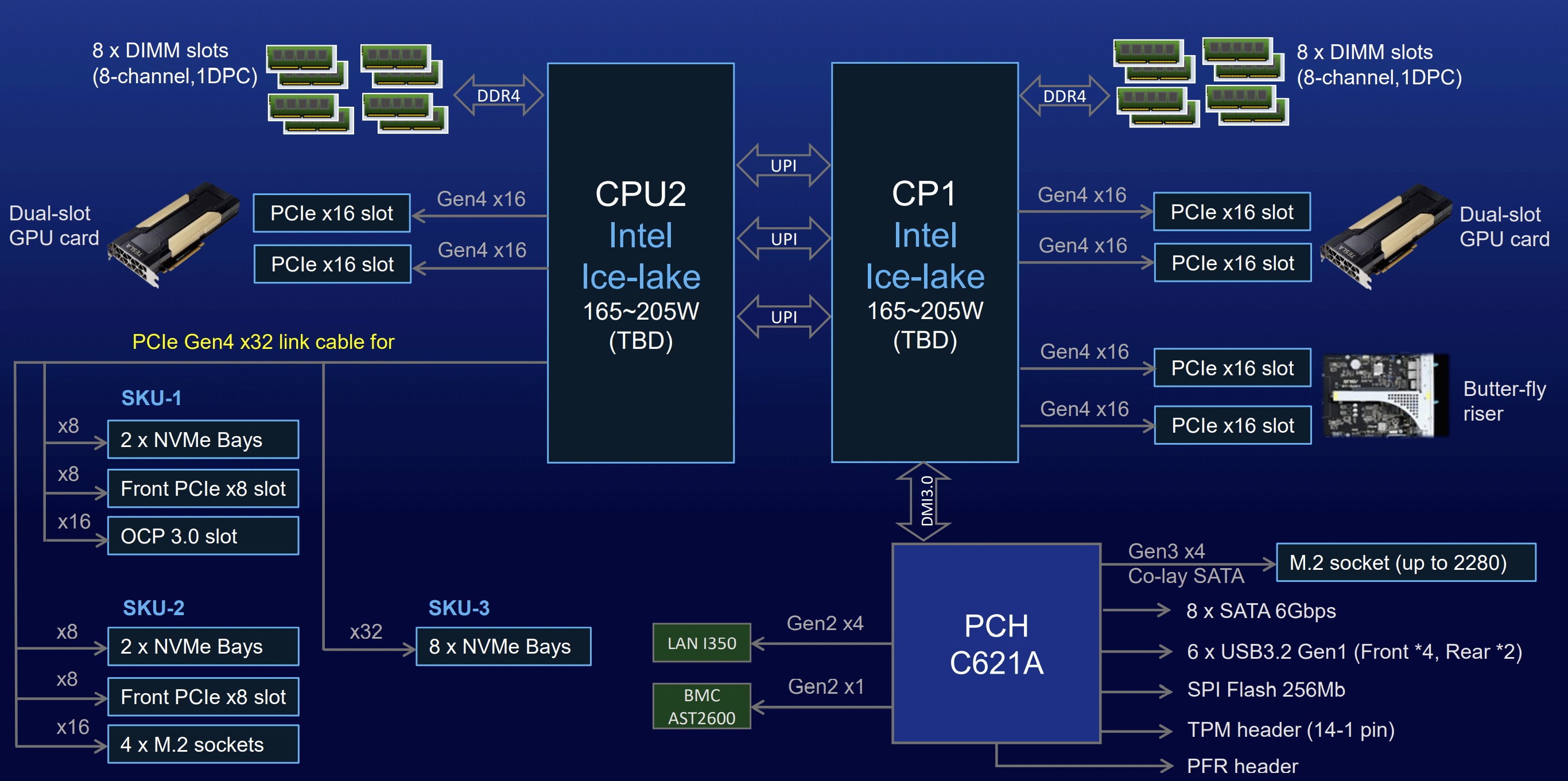

Block Diagram


Images

Coming Soon
