Colfax CX2860g-EK8 2U Rackmount Server




  • 2x AMD EPYC™ 7002/7003 Processors
  • 8x NVIDIA A10/A30/A40/A100 Tensor Core GPUs
  • 16x DIMMS
  • 4x 2.5" SATA + 4x 2.5" SATA/NVMe Drive Bays

Models

  • CX2860g-EK8 (Z40) - Microsemi PCIe Switches
  • CX2860g-EK8 (Z44) - Broadcom PCIe Switches

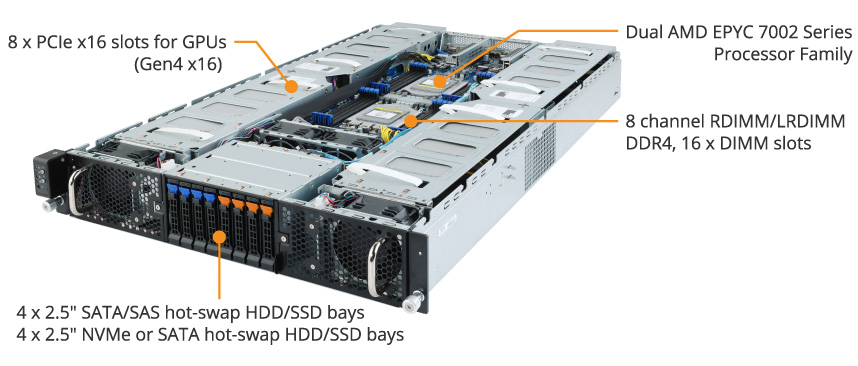

Features

  • 2x AMD EPYC™ 7002/7003 Series Processors
  • 8x NVIDIA A10/A30/A40/A100 Tensor Core GPUs
  • 16x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • Expansion Slots
    - 8x PCIe 4.0 x16 Slots for GPUs
    - 2x PCIe 4.0 x16 Slots (Half-Length Low-Profile)
  • 4x 2.5" SATA + 4x 2.5" SATA/NVMe Drive Bays
  • 2x 10Gb/s Intel® X550-AT2 LAN Ports
  • 1x Dedicated Management Port
  • 2x 2000 Watts PSUs, 80 PLUS Platinum



GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

  • GSM Server - a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
  • GSM CLI - a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
  • GSM Agent* - a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
  • GSM Mobile - a remote server management mobile APP, available for both Android and iOS.
  • GSM Plugin - a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.

* GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.





Intuitive & Informative User Interface

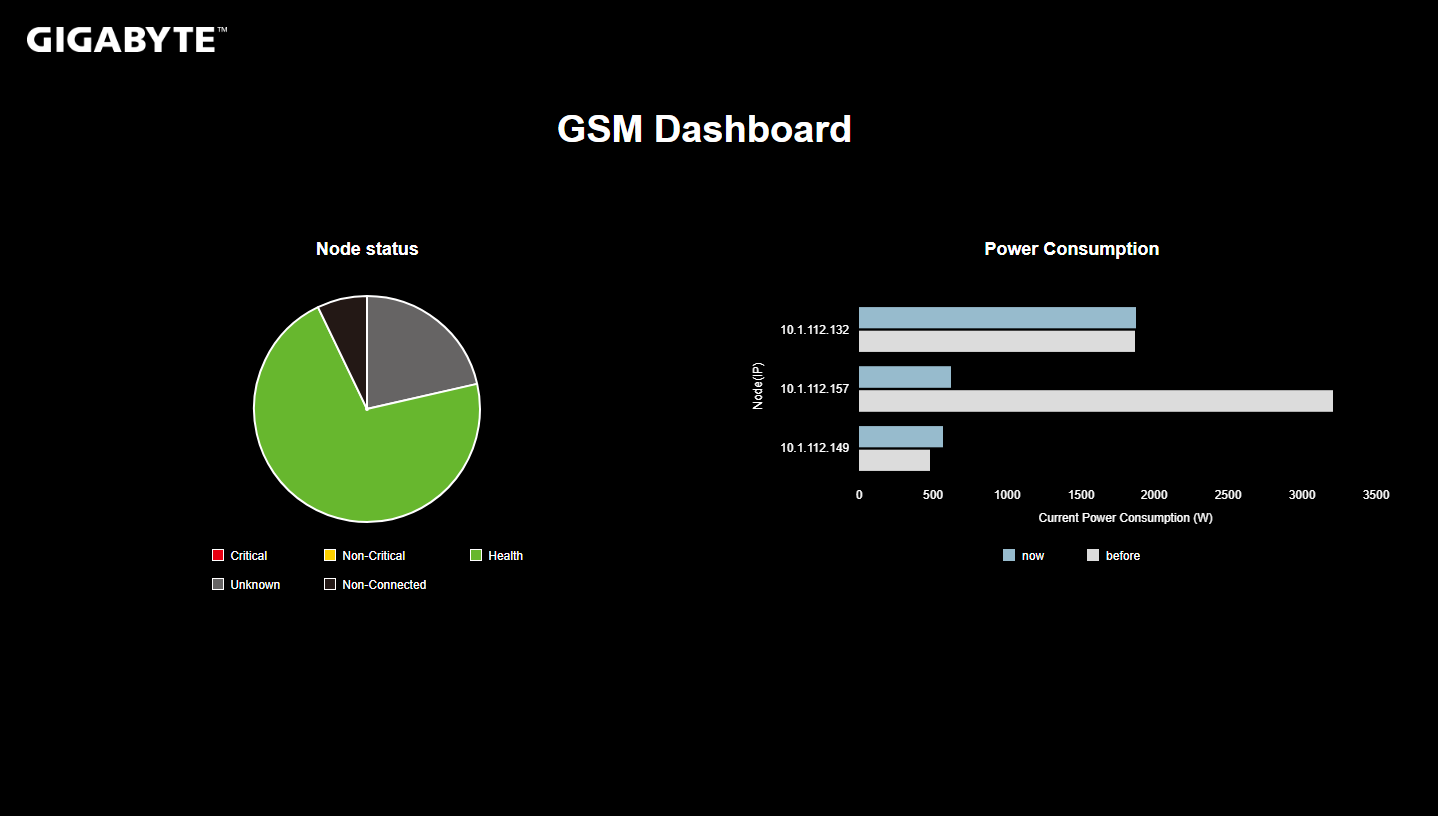

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

  • Node connection status (system is online/offline)
  • Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature
  • Node usage rate status (allowing you to timely allocate more resources when they are needed), including:
    • Power consumption
    • Disk/RAID usage information
    • Memory usage rate
    • CPU usage rate
    • Network card / PCI information

The user can also perform various management functions, including:

  • Node remote access
    • Power on / off / reset
    • Launch iKVM
    • Reboot BMC / BMC Account Configuration
  • Network Configuration
    • IPv4/IPv6 setting
  • Alert Management
    • SNMP trap setting
    • Platform events filters
    • Forwarding alerts by email
  • BMC / BIOS / CPLD Update
  • Power Consumption Limit Setting
  • Group Management
    • Create groups of nodes for BMC / BIOS update or manage power consumption settings


GSM Mobile for iOS and Android

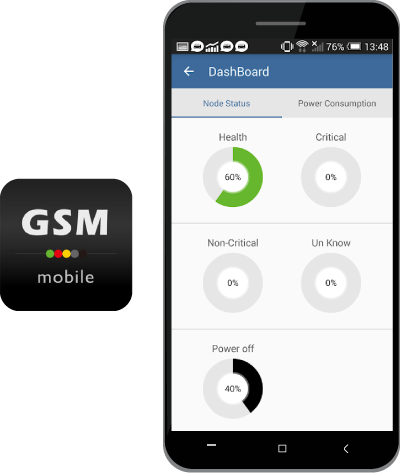

A GSM Mobile app is available for download for both iOS and Android mobile phones for remote server management on the go.


Management through VMware vCenter

A GSM Plugin is available for VMware’s vCenter, allowing the user to perform remote monitoring and management of server nodes without having to switch to a separate software platform.


GIGABYTE Management Console (AMI MegaRAC SP-X)

The server utilizes a AMI MegaRAC SP-X platform for BMC server management, with a feature rich and easy to use browser-based graphical user interface. Notable features include:

  • RESTful API support (including the latest DMTF standards of Redfish) allows the administrator to integrate with 3rd party applications for server management

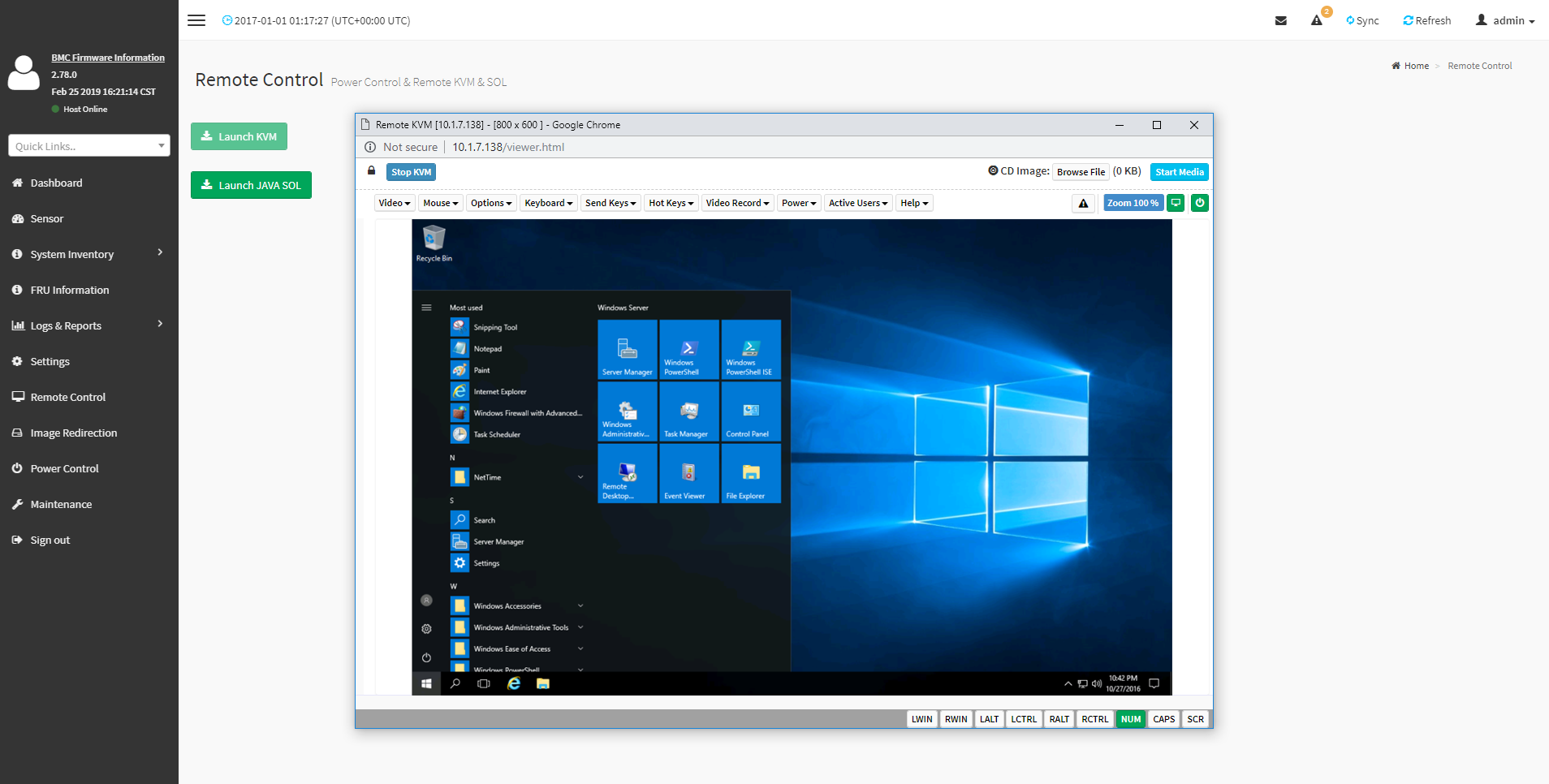

  • HTML5-based iKVM remote management client included as a standard feature, no additional add-on license required to purchase
  • Detailed FRU information from SMBIOS
  • Pre-event automatic video recording feature from 10 to 30 seconds
  • SAS/RAID controller monitoring feature

Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.64" x 3.4" x 31.5" (438 x 87.5 x 800 mm)
CPU • Socket SP3
• 2x AMD EPYC™ 7002/7003 series processors (cTDP up to 240W)
Memory • 16 DIMM sockets
• 8-channel memory architecture
• Supports up to 64GB RDIMM / 128GB LRDIMM modules
• Memory speed: Up to 3200 MHz
Expansion Slots • 8x PCIe 4.0 x16 Slots for GPUs*
• 2x PCIe 4.0 x16 Slots (Half-Length Low-Profile)

* Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
Storage • 8x 2.5" hot-swappable SATA drive bays - 4 x amber HDD trays compatible with NVMe or SATA/SAS devices
- 4 x blue HDD trays compatible with SATA/SAS devices only

SAS card is required for SAS devices support
Networking • 2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2 controller)
• 1x 10/100/1000 management LAN
Video • Integrated ASPEED AST2500 controller
• Connector type - D-Sub 15-pin
• Resolution - up to 1920x1200@60Hz 32bpp
Power Supply • 2+0 x 2000W PSUs
• AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

• DC Input:
- 240Vdc/ 10A

• DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
• 80 Plus Platinum
System Cooling • 8 x 80x80x38mm (16,300 rpm)
Internal I/O • 1x TPM header

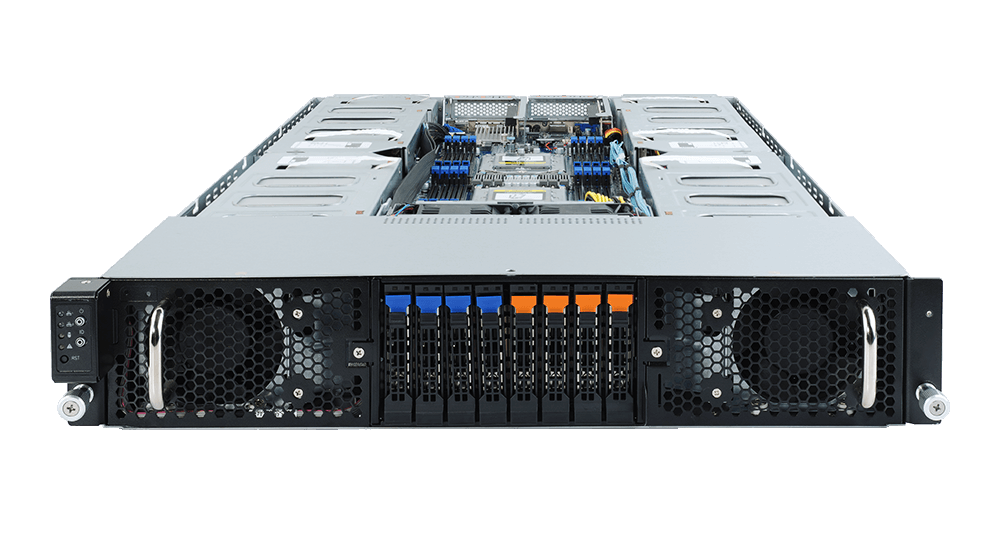

Front I/O • 1x Power button with LED
• 1x ID button with LED
• 2x LAN activity LEDs
• 1x HDD activity LED
• 1x System status LED
• 1x Reset button

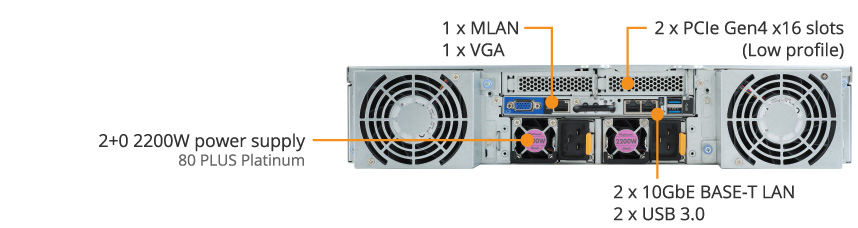

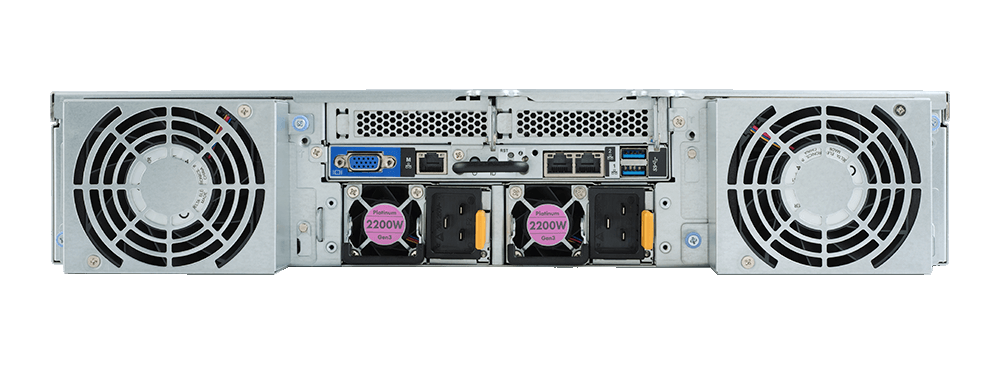

Rear I/O • 2x USB 3.0
• 1x VGA
• 2x RJ45
• 1x MLAN
• 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 1x NMI button
• 1x System status LED
Backplane I/O • 8x SAS/SATA or 4x NVMe ports and 4x SAS/SATA
• Bandwidth: SATA 6Gb/s, SAS 12Gb/s and PCIe x4
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2500
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

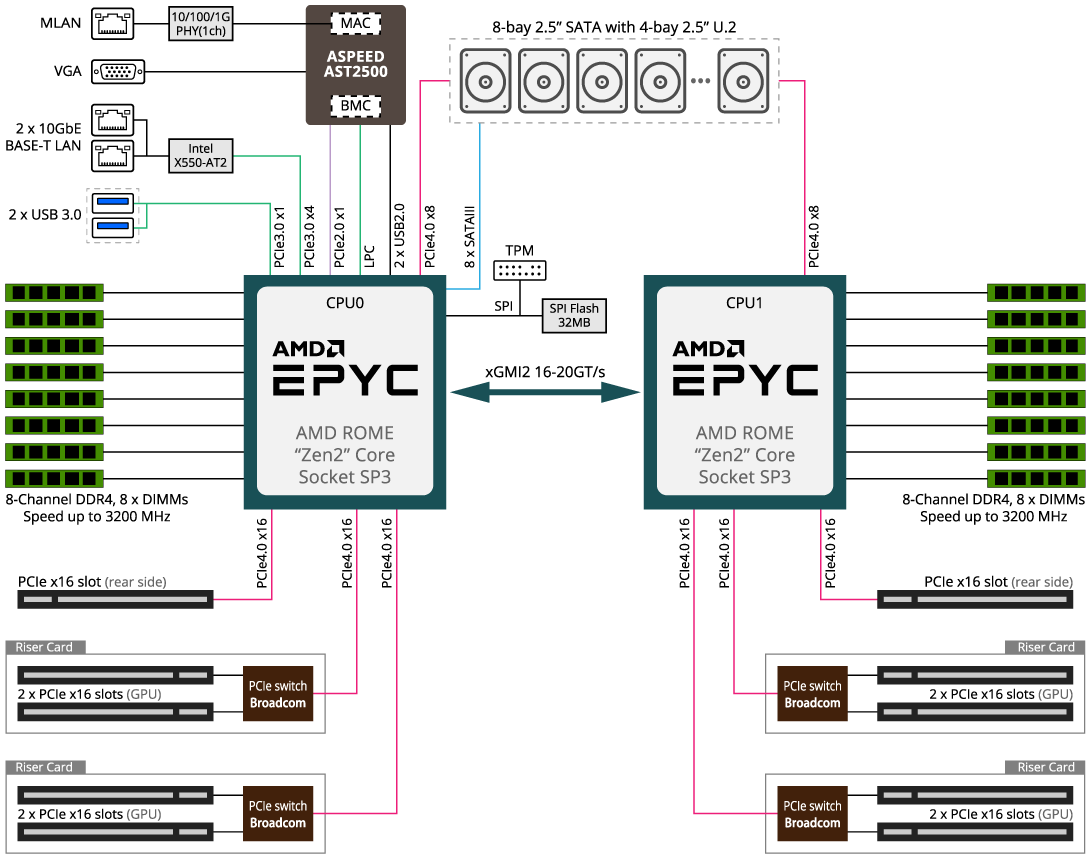

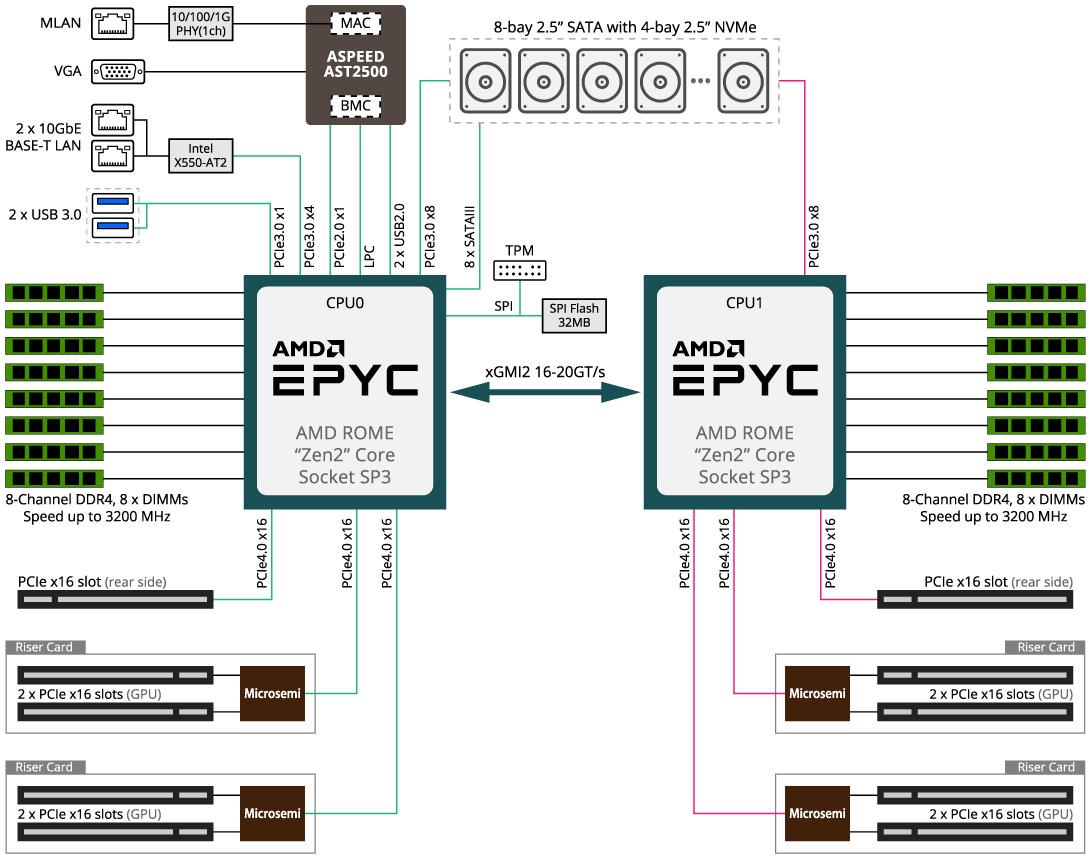

Block Diagram

Z40




Z44



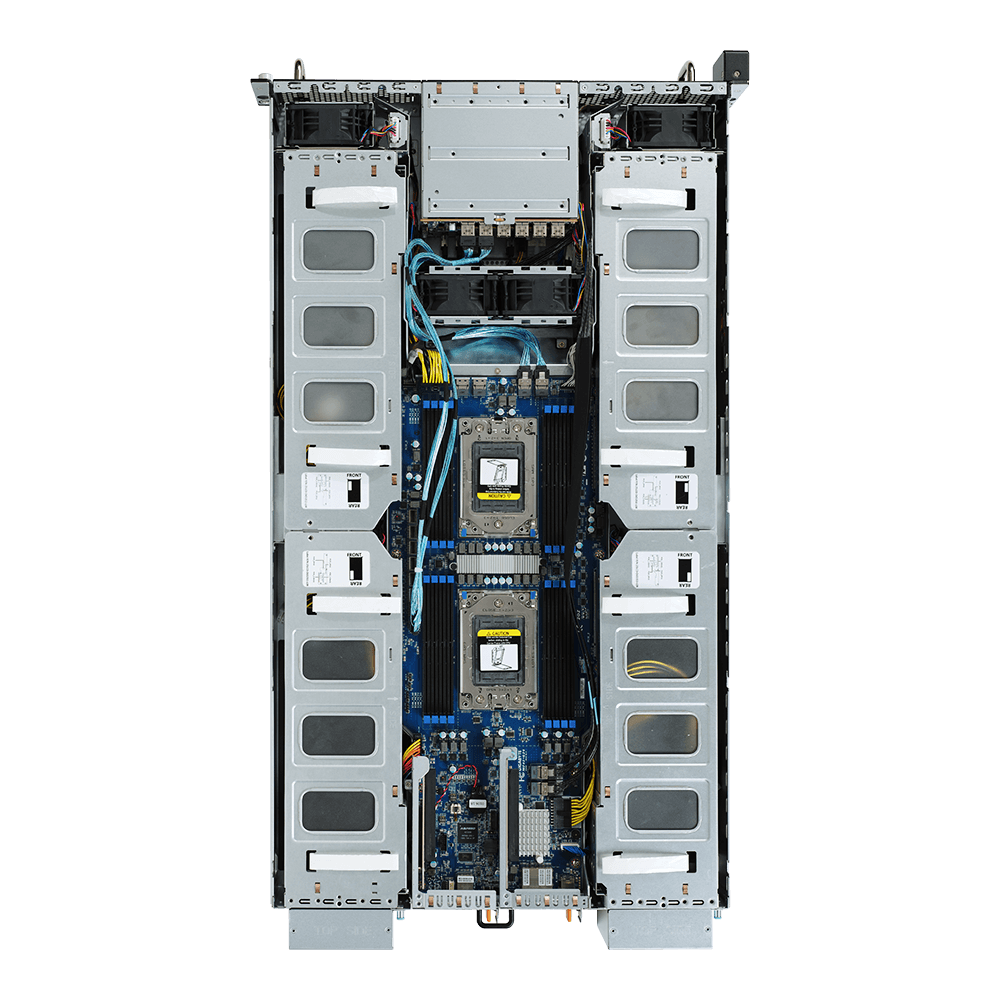

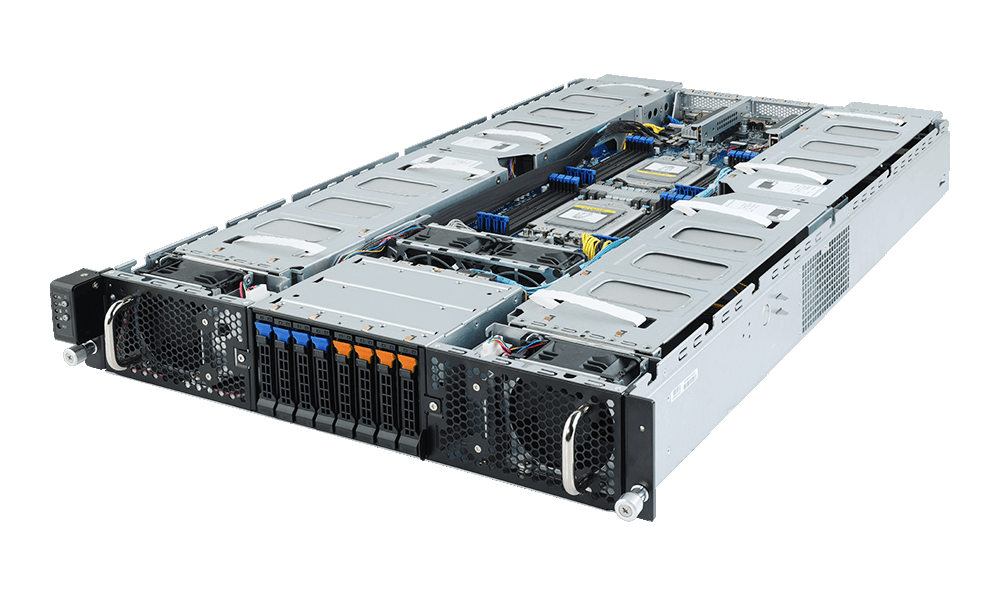

Images
