Colfax CX4860g-NVMe5-S8-X6RTX 4U MGX™ Rackmount Server




  • NVIDIA MGX™ Server
  • 2x Intel® Xeon® 6700/6500 Series Processors
  • 32x 6400 MT/s RDIMMs
  • 8 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs
  • 8 x Nvidia CX8 400Gb/s InfiniBand/Ethernet QSFP112 Ports
  • 1 x Nvidia BF3220 Dual Port QSFP112 BlueField®-3 200GbE/NDR200 DPU
  • 2 x M.2 slots with PCIe Gen3 x2 interface
  • 8 x 2.5" Gen5 NVMe hot-swap bays

Features

  • NVIDIA RTX PRO™ server with ConnectX®-8 SuperNIC switch
    - Configured with 8 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs
    - Configured with 1 x NVIDIA BlueField®-3 DPU
  • Onboard 400Gb/s InfiniBand/Ethernet QSFP ports with PCIe Gen6 switching for peak GPU-to-GPU performance
  • Dual Intel® Xeon® 6700/6500-series processors
  • 32x DIMM Sockets Support DDR5 ECC RDIMM
  • 8 x 2.5" Gen5 NVMe hot-swap bays
  • 2 x M.2 slots with PCIe Gen3 x2 interface
  • 2x 10Gb/s LAN ports via Intel® X710-AT2
  • 3+1 3200W 80 PLUS Titanium redundant power supplies



Technical Specifications

Enclosure • 4U
• Dimension (W x H x D) 17.24" x 6.94" x 31.59" (438 x 176.6 x 802.5 mm)
CPU • Socket E2 (2x LGA 4710)
• 2x Intel® Xeon® 6700/6500 Series Processors
• Supports CPU TDP up to 350W
Memory • 32x DIMM sockets
• DDR5 memory supported only
• 8-channel memory architecture
Expansion Slots ®-8 SuperNIC switch board - CPBXHG0:
• 8 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs
PCIe Cable:
• 1 x NVIDIA BlueField®-3 DPU
   • BlueField-3 BF3220 P-Series
   • Dual-port QSFP112 (200GbE/NDR200)
   • PCIe Gen5.0 x16 FHHL with x16 PCIe extension
   • 32GB onboard DDR
   • Integrated BMC
   • Tall Bracket
   • Crypto Enabled
Storage • 8x front hot-swap 2.5" Gen5 NVMe bays
M.2
• 2x M.2 NVMe Slots
Networking Front(I/O board - CFPX041)
• 2 x 10Gb/s LAN (1 x Intel® X710-AT2)
• 1 x 10/100/1000 Mbps Management LAN
Video - 1x mini-DP port
Power Supply • 3+1 3200W redundant PSUs
• 80PLUS Titanium

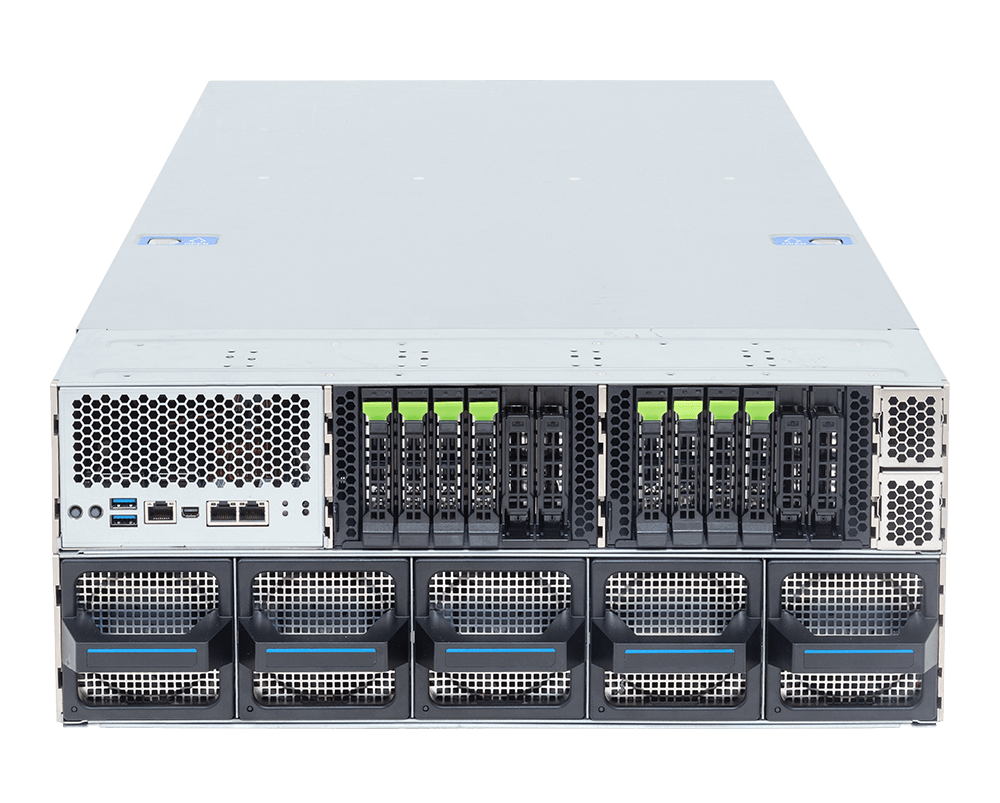

Front I/O I/O board - CFPX041
• 2 x USB 3.2 Gen1 ports (Type-A)
• 1 x Mini-DP
• 2 x RJ45 ports
• 1 x MLAN port
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x NMI button
• 1 x Reset button
• 1 x Storage activity LED
• 1 x System status LED

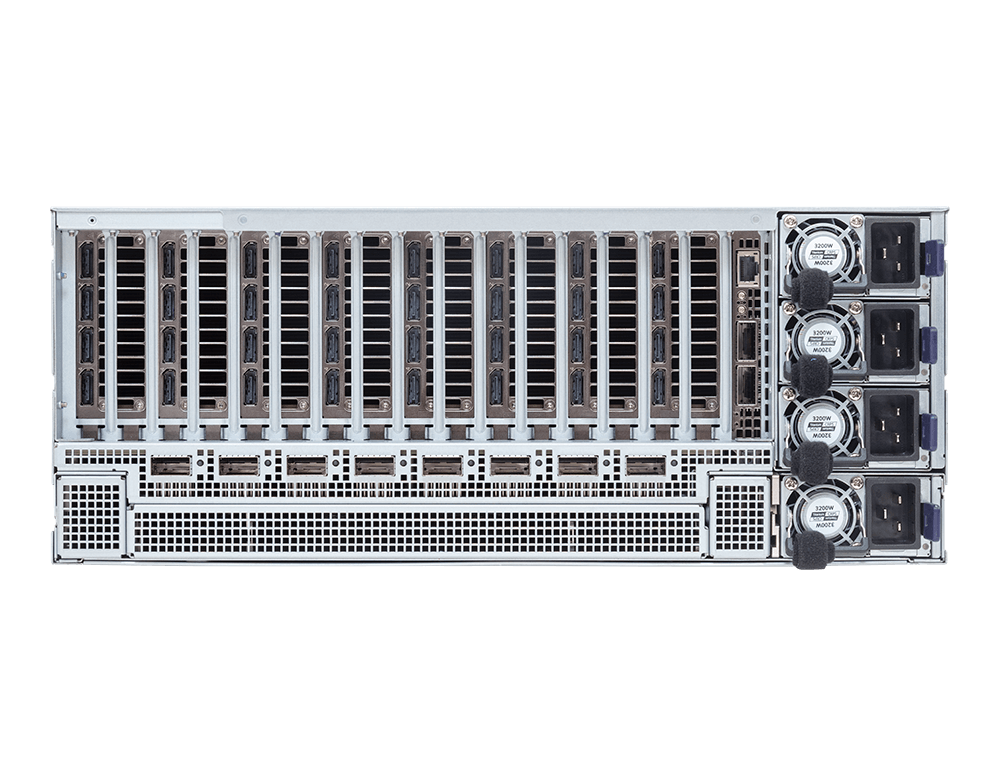

Rear I/O • 8 x QSFP ports (400Gb/s InfiniBand/Ethernet, GPU-to-GPU interconnect)
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management Features
• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Setting
