Colfax CX2220LPs-S12-JBOD-X8 2U Rackmount Server



  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 16x DIMMs
  • 12x 3.5" Hot-Swap SAS/SATA Drive Bays (Up to 4x NVMe)
  • 2x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x 10GBase-T Ports
  • Broadcom 3816 HBA

Features

  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • Intel C621A Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 4 PCI-E 4.0 x16 Slots (LP)
    - 2 PCI-E 4.0 x8 Slots (LP)
  • 12x 3.5" Hot-Swap SAS/SATA Drive Bays (Up to 4x NVMe)
  • 2x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 1x M.2 SSD
  • Broadcom 3816 HBA
  • Dual 10GBase-T LAN Ports
  • 1200W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension: 17.3" W (439mm) x 3.5" H (89mm) x 25.5" D (648mm)
CPU • Dual Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processor
• Supports CPU TDP up to 270W
Memory • 16x DDR4 DIMM slots
• Supports up to 4TB
• Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A

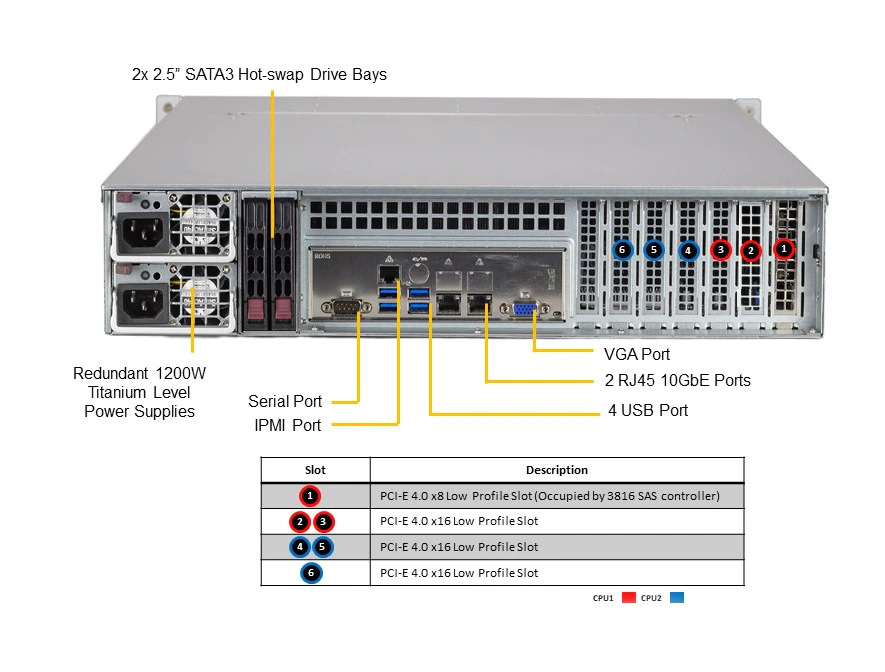

I/O Expansion • Slot 1: PCI-E 4.0 x8 LP
• Slot 2: PCI-E 4.0 x16 LP
• Slot 3: PCI-E 4.0 x16 LP
• Slot 4: PCI-E 4.0 x16 LP
• Slot 5: PCI-E 4.0 x16 LP
• Slot 6: PCI-E 4.0 x8 LP

PCIe slot 1 is occupied by the JBOD Expansion/Storage Controller
Onboard Devices SATA
• SATA3 (6Gbps)
Network Controllers
• Dual 10GBase-T LAN with Intel® X550
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 1x COM port (rear)
DOM
• 2x SuperDOM (Disk on Module) ports
Drive Bays • 12x 3.5" hot-swap SAS/SATA drive bays
• 2x 2.5" hot-swap SATA drive bays (rear)
M.2
• Interface: PCI-E 3.0 x4 and SATA
• Form Factor: 2280, 22110
• Key: M-Key
Power Supply • 1200W Redundant Power Supplies with PMBus 1.2, +12V/+5Vsb
• 80PLUS Titanium Certified
System Cooling • 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
Front Panel Buttons
• Power On/Off button
LEDs
• HDD activity
• Network activity
• Power status
• System information (overheat/UID)
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram


Images


$3,603.35


  Qty.Colfax CX2220LPs-S12-JBOD-X8 2U Rackmount Server, Cost As Configured $3,603.35
