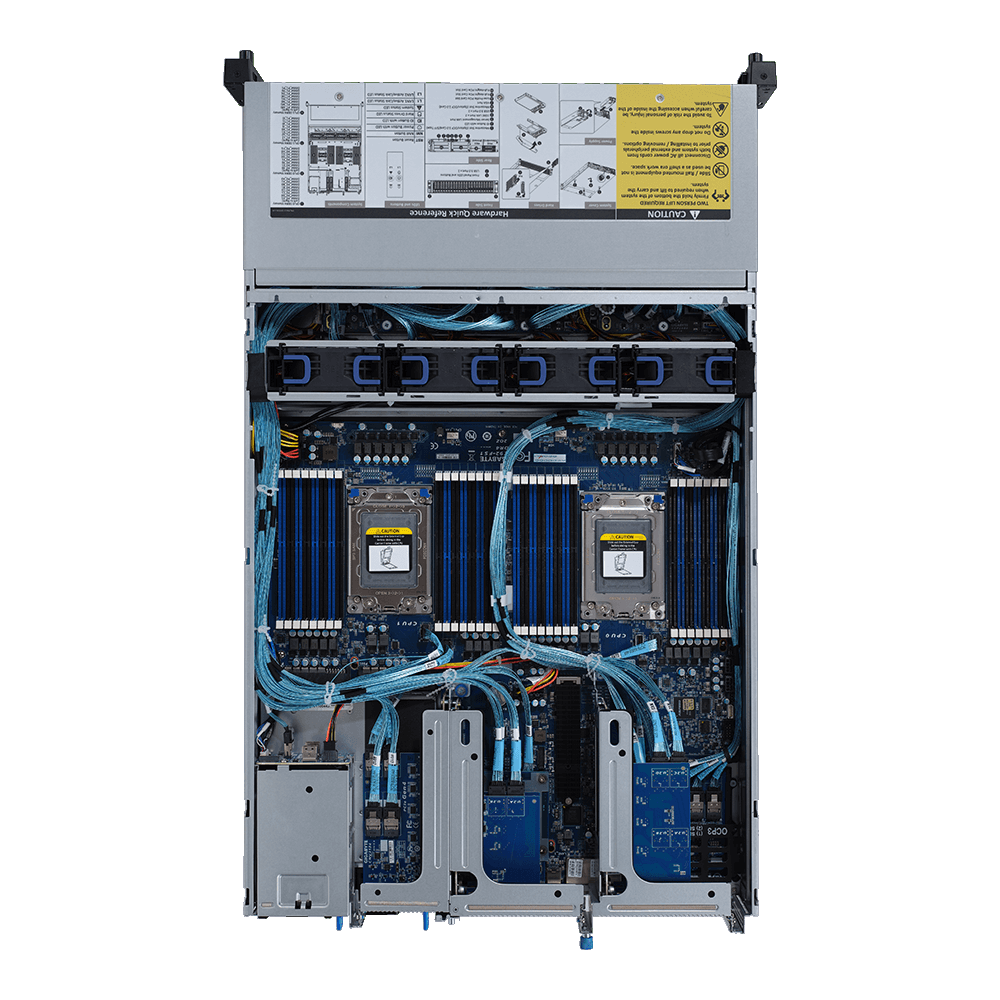

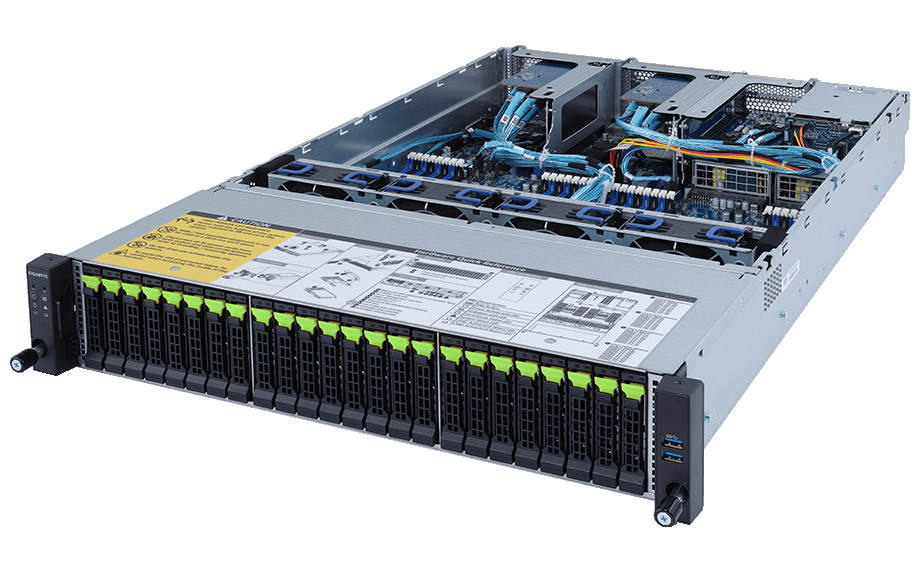

Colfax CX2265g-NVMe4-E8 2U Rackmount Server




  • 2x AMD EPYC™ 7002 Processors
  • 32x DIMMS
  • 24x 2.5" Gen4 U.2 NVMe SSD Drive Bays

Features

  • 2x AMD EPYC™ 7002 Series Processors
  • 32x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • Expansion Slots
    Riser 1:
    - 1x PCIe 4.0 x16 Slot (Occupied by CNV3134, 4x NVMe HBA)
    Riser 2:
    - 1x PCIe 4.0 x16 Slot (Full-Height Half-Length)
    - 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
    - 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
    Riser 3:
    - 1x PCIe 4.0 x16 Slot (Full-Height Half-Length) (Occupied by CNV3134, 4x NVMe HBA)
    - 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
    - 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
  • 1x OCP 3.0 4.0 x16 Mezzanine Slot (Occupied by CNV9134, 4x NVMe HBA)
  • 1x OCP 2.0 4.0 x8 Mezzanine Slot (Occupied by CNVO132, 2x NVMe HBA)
  • 24x 2.5" Hot-Swap Gen4 U.2 NVMe SSD Drives
  • 2x 2.5" Hot-Swap Rear SATA SSD Drives
  • 1x M.2 with PCIe 4.0 x4 Interface
  • 2x 1Gb/s Intel® I350-AM2 LAN Ports
  • 1x Dedicated Management Port
  • 2x 1600 Watts RPSU, 80 PLUS Platinum



GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

  • GSM Server - a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
  • GSM CLI - a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
  • GSM Agent* - a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
  • GSM Mobile - a remote server management mobile APP, available for both Android and iOS.
  • GSM Plugin - a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.

* GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.





Intuitive & Informative User Interface

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

  • Node connection status (system is online/offline)
  • Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature
  • Node usage rate status (allowing you to timely allocate more resources when they are needed), including:
    • Power consumption
    • Disk/RAID usage information
    • Memory usage rate
    • CPU usage rate
    • Network card / PCI information

The user can also perform various management functions, including:

  • Node remote access
    • Power on / off / reset
    • Launch iKVM
    • Reboot BMC / BMC Account Configuration
  • Network Configuration
    • IPv4/IPv6 setting
  • Alert Management
    • SNMP trap setting
    • Platform events filters
    • Forwarding alerts by email
  • BMC / BIOS / CPLD Update
  • Power Consumption Limit Setting
  • Group Management
    • Create groups of nodes for BMC / BIOS update or manage power consumption settings


GSM Mobile for iOS and Android

A GSM Mobile app is available for download for both iOS and Android mobile phones for remote server management on the go.


Management through VMware vCenter

A GSM Plugin is available for VMware’s vCenter, allowing the user to perform remote monitoring and management of server nodes without having to switch to a separate software platform.


GIGABYTE Management Console (AMI MegaRAC SP-X)

The server utilizes a AMI MegaRAC SP-X platform for BMC server management, with a feature rich and easy to use browser-based graphical user interface. Notable features include:

  • RESTful API support (including the latest DMTF standards of Redfish) allows the administrator to integrate with 3rd party applications for server management
  • HTML5-based iKVM remote management client included as a standard feature, no additional add-on license required to purchase
  • Detailed FRU information from SMBIOS
  • Pre-event automatic video recording feature from 10 to 30 seconds
  • SAS/RAID controller monitoring feature

Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.24" x 3.4" x 28.74" (438 x 87 x 730 mm)
CPU • Socket SP3
• 2x AMD EPYC™ 7002 series processors
• TDP up to 225W, cTDP up to 240W
Memory • 32 DIMM sockets
• 8-channel memory architecture
• Supports up to 128GB RDIMM / 128GB LRDIMM modules
• Memory speed: Up to 3200 MHz
Expansion Slots Riser 1:
- 1x PCIe 4.0 x16 Slot (Occupied by CNV3134, 4x NVMe HBA)
Riser 2:
- 1x PCIe 4.0 x16 Slot (Full-Height Half-Length)
- 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
- 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
Riser 3:
- 1x PCIe 4.0 x16 Slot (Full-Height Half-Length) (Occupied by CNV3134, 4x NVMe HBA)
- 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
- 1x PCIe 4.0 x8 Slot (Full-Height Half-Length) (Occupied by CNV3132, 2x NVMe HBA)
• 1x OCP 3.0 4.0 x16 mezzanine slot from CPU_0
- Supported NCSI function, Occupied by CNV9134, 4x NVMe HBA
• 1x OCP 2.0 4.0 x8 mezzanine slot (Type1, P1, P2)
- Supported NCSI function, Occupied by CNVO132, 2x NVMe HBA
M.2
• 1 x M.2 slot
- M-key
- PCIe Gen4 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device

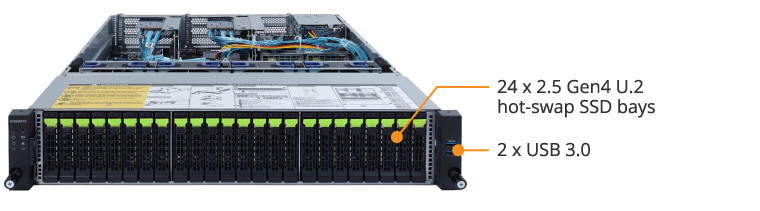

Storage • 24x 2.5" hot-swappable U.2 NVMe SSD bays
• 2x 2.5" hot-swappable rear SATA SSD bays
Networking • 2x 1GbE LAN ports (1 x Intel® I350-AM2)
• 1x 10/100/1000 management LAN
Video • Integrated ASPEED AST2500 controller
• Connector type - D-Sub 15-pin
• Resolution - up to 1920x1200@60Hz 32bpp
Power Supply • 2 x 1600W redundant PSUs
• AC Input:
- 100-127V~/ 12A, 47-63Hz
- 200-240V~/ 9.48A, 47-63Hz

• DC Output:
- Max 1000W/ 100-127V
+12V/ 82A
+12Vsb/ 2.1A
- Max 1600W/ 200-240V
+12V/ 132A
+12Vsb/ 2.1A
• 80 plus Platinum

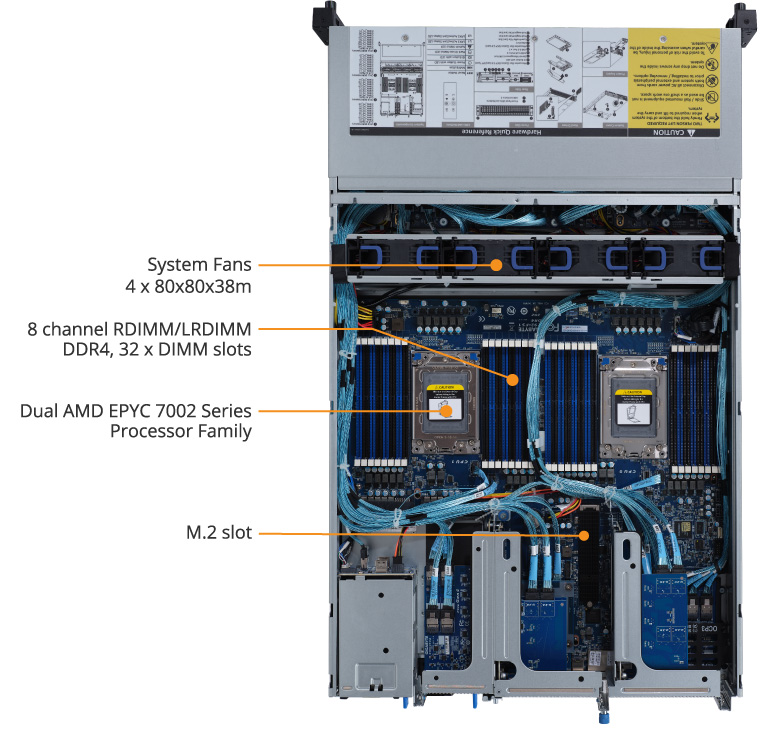

System Cooling • 4 x 80x80x38mm (16,300 rpm)
Internal I/O • 1x M.2 slot
• 1x USB 3.0 header
• 1x COM header
• 1x TPM header
• 1x Front panel header
• 1x HDD back plane board header
• 1x PMBus connector
• 1x IPMB connector
• 1x Clear CMOS jumper
• 1x BIOS recovery jumper

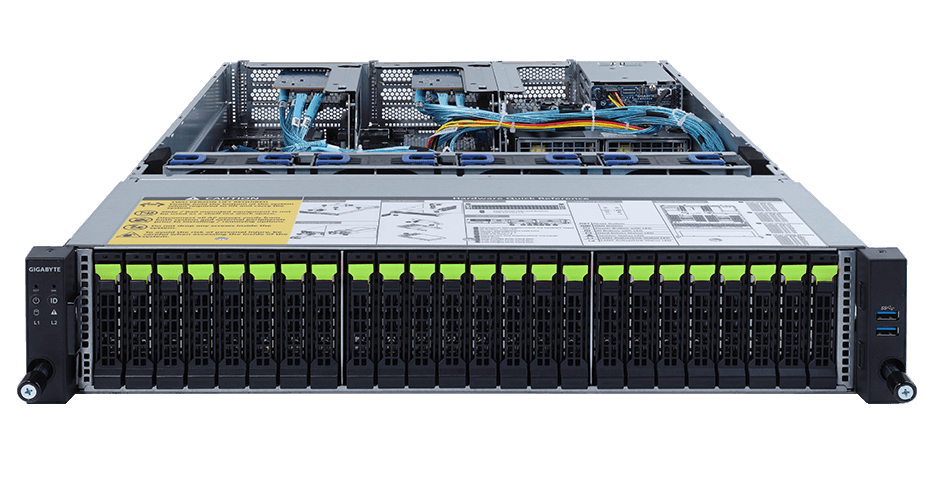

Front I/O • 2x USB 3.0
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 2x LAN activity LEDs
• 1x HDD activity LED
• 1x System status LED

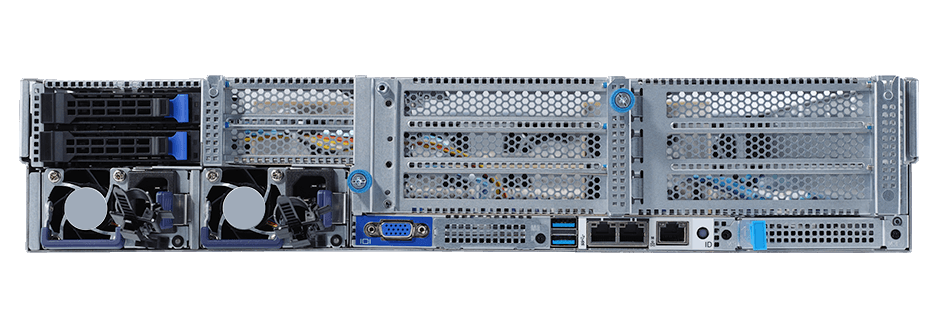

Rear I/O • 2x USB 3.0
• 1x VGA
• 2x RJ45
• 1x MLAN
• 1x ID button with LED
Backplane I/O • Front side_CBP20O8: 24x NVMe ports
• Rear side_CBP2022: 2x SATA/SAS ports
• Speed and Bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe Gen4 x4 per port
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2500
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

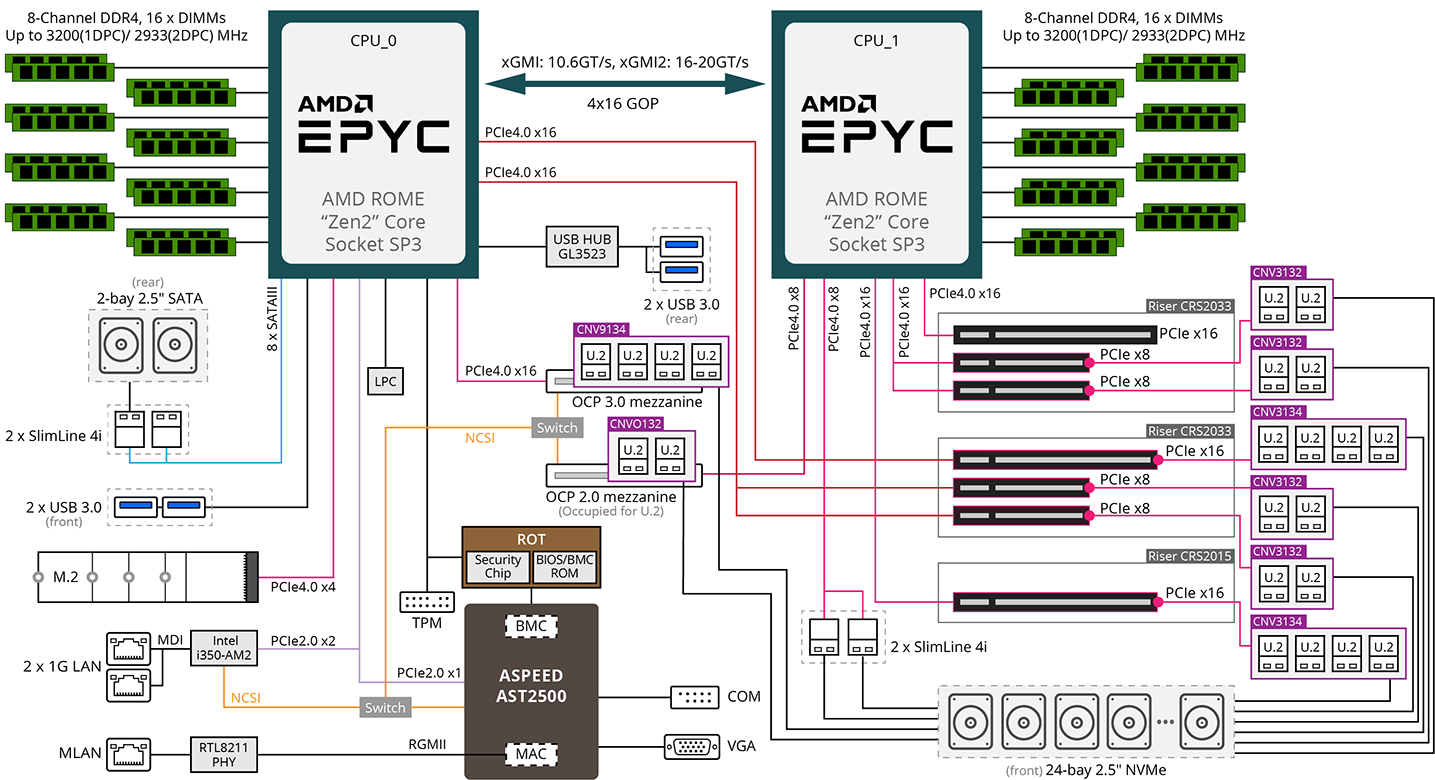

Block Diagram
