Colfax CX2420a-EK8 2U Rackmount Server




  • 1x AMD EPYC™ 7002 Processor
  • 4x NVIDIA® A100/V100 GPUs or NVIDIA® Quadro RTX™ 8000/6000 Passive GPUs
  • 8x DIMMS
  • 8x 3.5" or 2.5" Drive Bays (Up to 4x NVMe)

Features

  • 1x AMD EPYC™ 7002 Processor
  • 4x NVIDIA® A100/V100 GPUs or NVIDIA® Quadro RTX™ 8000/6000 Passive GPUs
  • 8x DIMMS, Supports DDR4 ECC RDIMMM
  • Expansion Slots:
    - 4 PCIe 4.0 x16 FH FL Slots
    - 2 PCIe 4.0 x16 LP HL Slots
    - 1 PCI-E 4.0 x8 Front LP HL Slot
  • 8x 3.5" or 2.5" Drive Bays (Up to 4x NVMe)
  • 1x M.2 NVMe SSD
  • RAID:
    - Optional ASUS PIKE II 3008 8-Port SAS 12Gb/s RAID Controller Supports RAID 0,1,1E,10
    - Optional ASUS PIKE II 3108 8-Port SAS 12Gb/s RAID Controller Supports RAID 0,1,10,5,50,6,60
  • Integrated 1x Dual-Port Intel® I350-AM2 GbE + 1x Mgmt LAN
  • 1+1 Redundant 1600W 80PLUS Platinum Power Supplies




Technical Specifications

CPU • 1 x Socket SP3 (LGA 4094)
• Supports Single AMD EPYC™ 7002 Series Processor
Memory • Total Slots: 8 (8-channel)
• Capacity: Maximum up to 2048GB RDIMM
• Memory Type:
- Single Channel DDR4 3200/2933 RDIMM
• Memory Size:
- 128GB, 64GB, 32GB, 16GB
Expansion Slots • 4 PCIe 4.0 x16 for double-deck GPU Cards (Full-length/Full-height)
• 2 PCIe 4.0 x16 for butterfly riser card (Half-length/Low-profile)
• 1 PCI-E 4.0 x8 front slot
Drive Bays • 8x 3.5" or 2.5" hot-swap drive bays (Up to 4x NVMe)
Storage SATA Controller
- 1x M.2 connector(2242/2260/2280/22110) PCIe mode (PCIe Gen4 x4 link 22110/2280/2260)
SAS Controller
- ASUS PIKE II 3008 8-port SAS HBA card
- ASUS PIKE II 3108 8-port SAS HW RAID card
- 12G SAS Support
Front I/O Ports • 1x 80 port
• 2x USB 3.2 Gen1 ports + 2x USB 3.2 Gen1 ports
Rear I/O Ports • 2x USB 3.2 Gen1 port
• 1x VGA port
• 2x RJ-45 GbE LAN ports
• 1x RJ-45 Mgmt LAN port
Network • 1x Dual-Port I350-AM2 + 1x Mgmt LAN
Integrated Graphics • Aspeed AST2500 with 64MB VRAM
Power Supply • 1+1 Redundant 1600W 80+ platinum efficiency redundant power supplies
System Management • Asus ASMB9-iKVM for KVM-over-IP
Dimensions • 3.5" x 17.22" x 31.50" (HxWxD) • 88.9mm x 440mm x 800mm

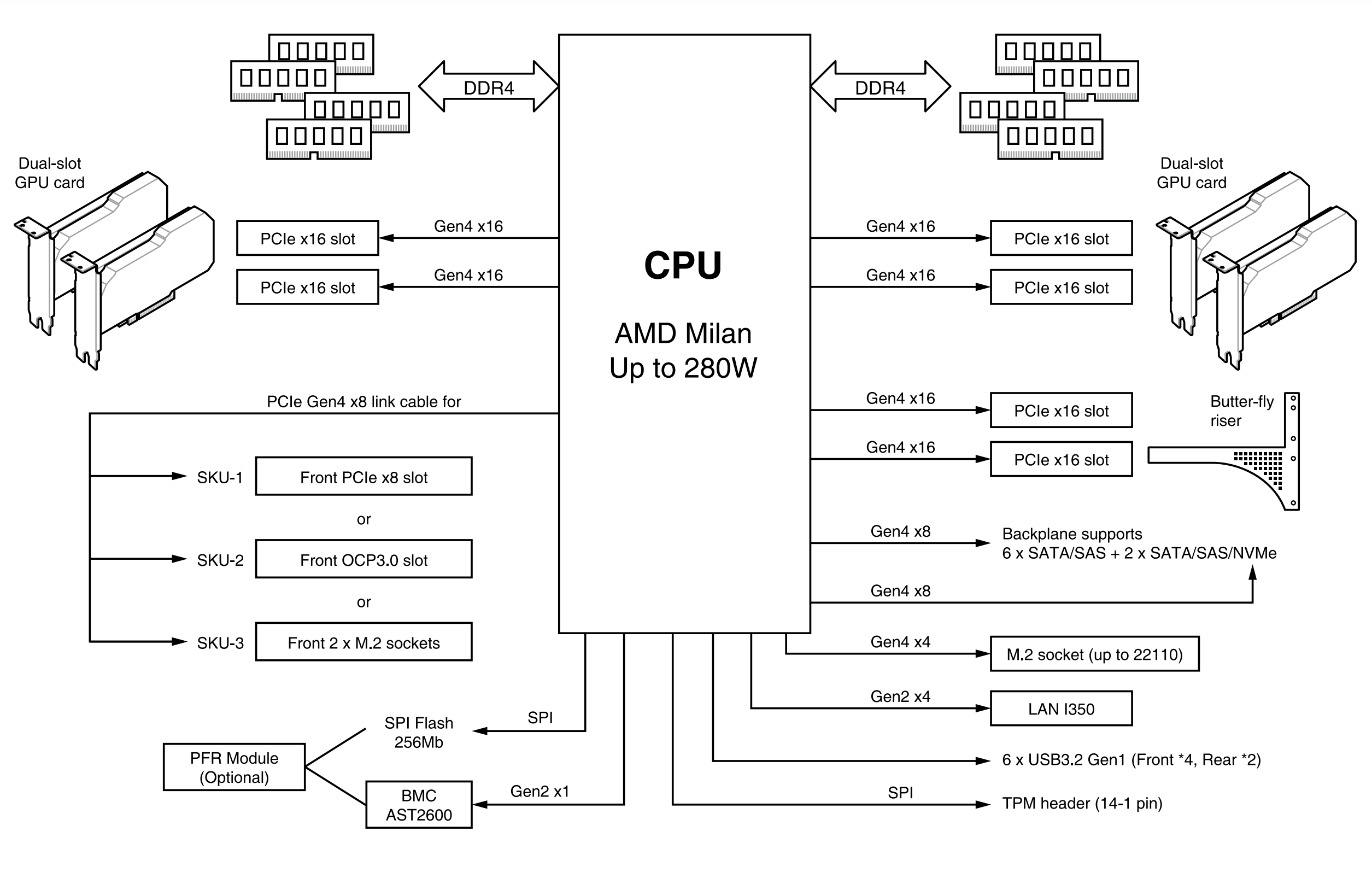

Block Diagram

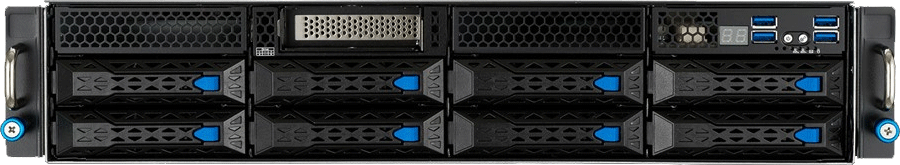

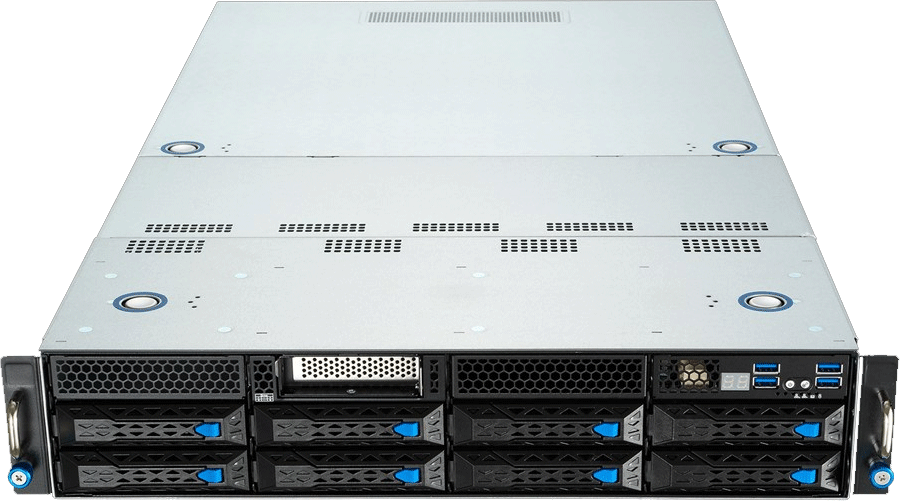

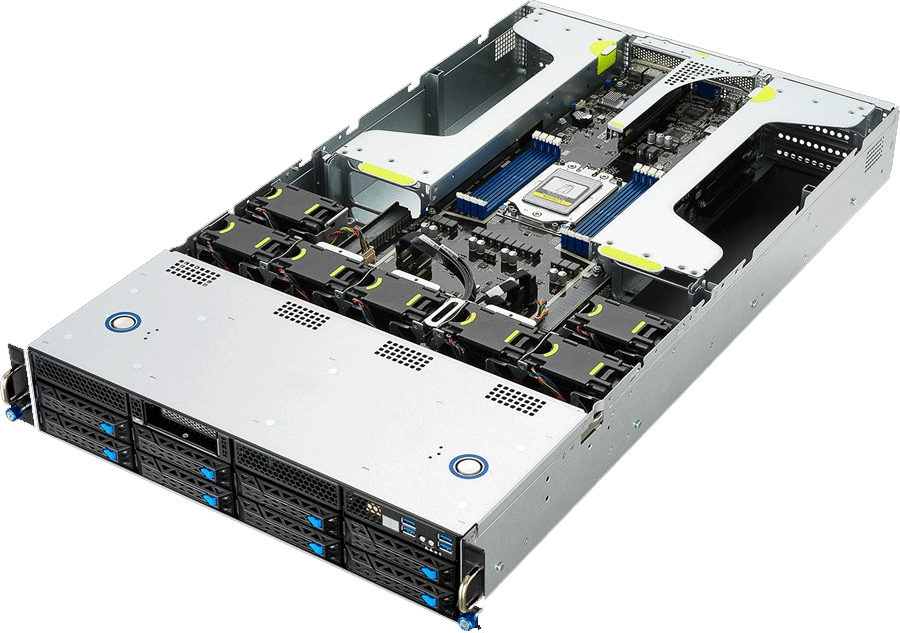

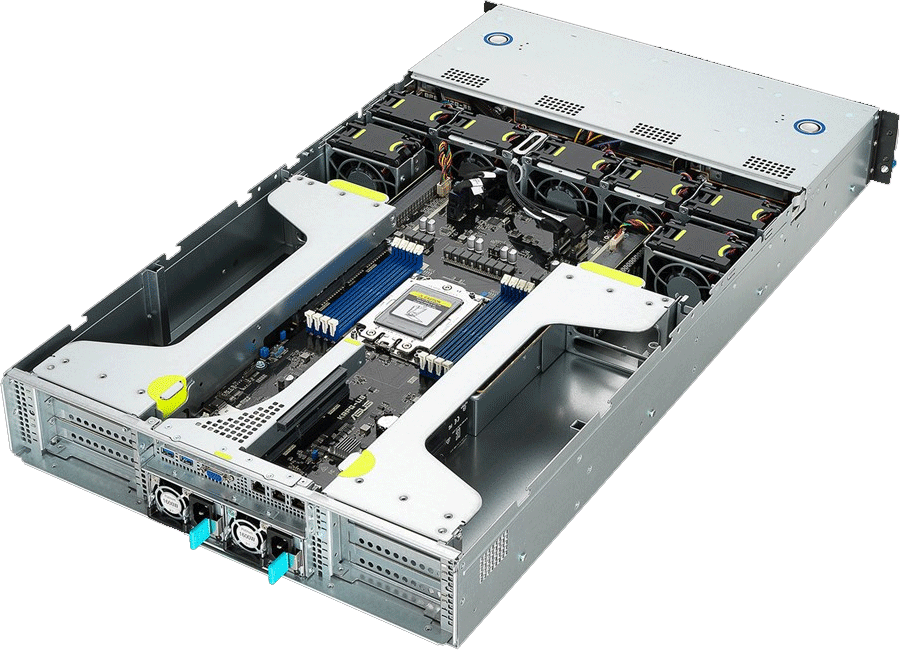

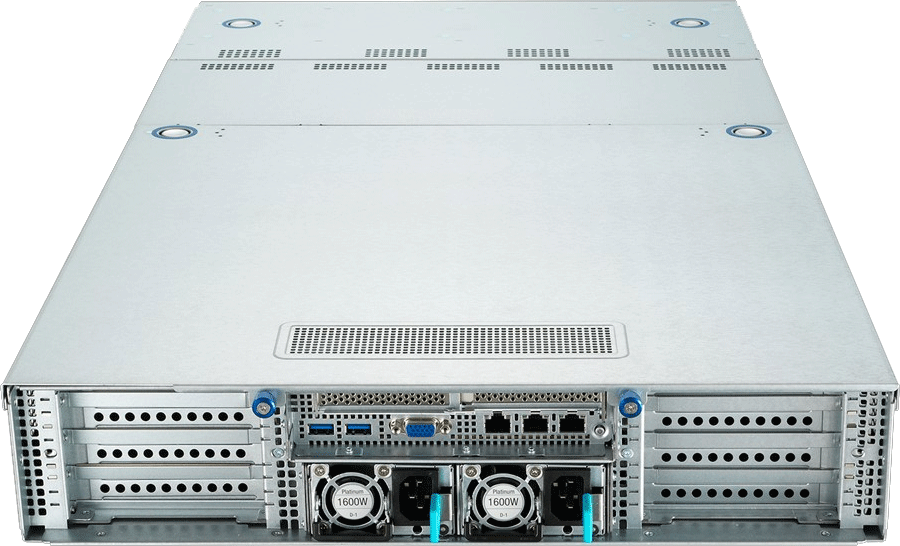

Images


$2,632.97


  Qty.Colfax CX2420a-EK8 2U Rackmount Server, Cost As Configured $2,632.97
